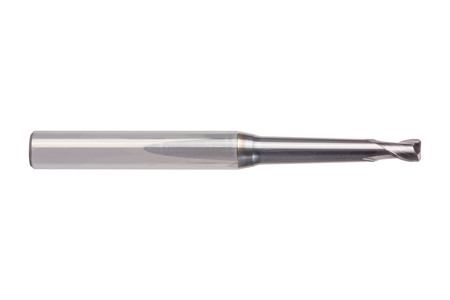

OptiMill®-3D-CR
The OptiMill-3D-CR corner radius milling cutter has been specially developed for machining materials up to 55 HRC. It is characterized by a high-precision corner radius with high radius accuracy, making it ideal for finishing 3D shapes. In addition to an extremely heat-resistant coating and a special carbide substrate, these tools are characterized by the dimensions and geometries specially adapted to mold making.
Selected facets:
- 7.2 Taper angle (φ)
- 1.5 Taper angle (φ)
- 30.0 Taper angle (φ)
- 15.0 Taper angle (φ)
- OptiMill®-3D-CR family
-
Milling type
-
Product Family
-
Diameter (d1)
-
-
Total length (l1)
-
-
Flute length (l2)
-
-
Neck length (l3)
-
-
Shank type
-
Cooling
-
Product category
(81)
(81)
(81)
(81)-
OptiMill®-3D-CR
l1: 75 mm; l2: 1,2mm; l3: 25 mm; d1: 1 mm; d2: 6 mm; R: 0,2 mm; z: 2; MCR102-010-0020-2500C075-HP825
Order number: 31154047
In Stock -
OptiMill®-3D-CR
l1: 75 mm; l2: 1,2mm; l3: 35 mm; d1: 1 mm; d2: 6 mm; R: 0,2 mm; z: 2; MCR102-010-0020-3500C075-HP825
Order number: 31154049
In Stock -
OptiMill®-3D-CR
l1: 75 mm; l2: 1,2mm; l3: 20 mm; d1: 1 mm; d2: 6 mm; R: 0,2 mm; z: 2; MCR102-010-0020-2000C075-HP825
Order number: 31154046
In Stock -
OptiMill®-3D-CR
l1: 60 mm; l2: 1,2mm; l3: 10 mm; d1: 1 mm; d2: 6 mm; R: 0,2 mm; z: 2; MCR102-010-0020-1000C060-HP825
Order number: 31154044
In Stock -
OptiMill®-3D-CR
l1: 60 mm; l2: 1,2mm; l3: 15 mm; d1: 1 mm; d2: 6 mm; R: 0,2 mm; z: 2; MCR102-010-0020-1500C060-HP825
Order number: 31154045
In Stock -
OptiMill®-3D-CR
l1: 60 mm; l2: 1,2mm; l3: 5 mm; d1: 1 mm; d2: 6 mm; R: 0,2 mm; z: 2; MCR102-010-0020-0500C060-HP825
Order number: 31154043
In Stock -
OptiMill®-3D-CR
l1: 75 mm; l2: 1,2mm; l3: 30 mm; d1: 1 mm; d2: 6 mm; R: 0,2 mm; z: 2; MCR102-010-0020-3000C075-HP825
Order number: 31154048
In Stock -
OptiMill®-3D-CR
l1: 60 mm; l2: 2,3mm; l3: 10 mm; d1: 2 mm; d2: 6 mm; R: 0,3 mm; z: 2; MCR102-020-0030-1000C060-HP803
Order number: 31154056
In Stock -
OptiMill®-3D-CR
l1: 60 mm; l2: 2,3mm; l3: 15 mm; d1: 2 mm; d2: 6 mm; R: 0,3 mm; z: 2; MCR102-020-0030-1500C060-HP803
Order number: 31154059
In Stock -
OptiMill®-3D-CR
l1: 75 mm; l2: 2,3mm; l3: 30 mm; d1: 2 mm; d2: 6 mm; R: 0,3 mm; z: 2; MCR102-020-0030-3000C075-HP803
Order number: 31154070
In Stock -
OptiMill®-3D-CR
l1: 75 mm; l2: 2,3mm; l3: 35 mm; d1: 2 mm; d2: 6 mm; R: 0,3 mm; z: 2; MCR102-020-0030-3500C075-HP803
Order number: 31154074
In Stock -
OptiMill®-3D-CR
l1: 60 mm; l2: 2,3mm; l3: 10 mm; d1: 2 mm; d2: 6 mm; R: 0,5 mm; z: 2; MCR102-020-0050-1000C060-HP803
Order number: 31154078
In Stock -
OptiMill®-3D-CR
l1: 75 mm; l2: 2,3mm; l3: 30 mm; d1: 2 mm; d2: 6 mm; R: 0,5 mm; z: 2; MCR102-020-0050-3000C075-HP803
Order number: 31154092
In Stock -
OptiMill®-3D-CR
l1: 60 mm; l2: 2,3mm; l3: 20 mm; d1: 2 mm; d2: 6 mm; R: 0,3 mm; z: 2; MCR102-020-0030-2000C060-HP803
Order number: 31154062
In Stock -
OptiMill®-3D-CR
l1: 60 mm; l2: 2,3mm; l3: 15 mm; d1: 2 mm; d2: 6 mm; R: 0,5 mm; z: 2; MCR102-020-0050-1500C060-HP803
Order number: 31154081
In Stock
