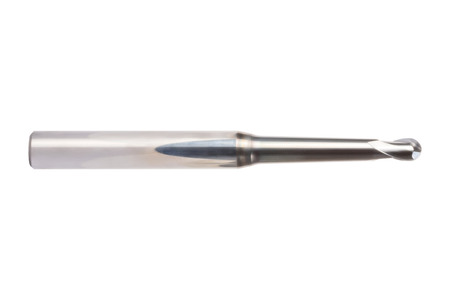

OptiMill®-3D-BN
The OptiMill-3D-BN ball nose mill cutter has been specifically developed for machining materials up to 55 HRC. It is characterized by high radius accuracy, making it ideal for high-precision machining of 3D contours. In addition to an extremely heat-resistant coating and a special carbide substrate, these tools are distinguished by dimensions and geometries tailored specifically to mold making.
Selected facets:
Remove all filters-
Milling type
-
Product Family
-
Diameter (d1)
-
-
Total length (l1)
-
-
Flute length (l2)
-
-
Neck length (l3)
-
-
Shank type
-
Cooling
-
Product category
(47)
(47)
(47)
(47)-
OptiMill®-3D-BN
l1: 60 mm; l2: 1,2mm; l3: 10 mm; d1: 1 mm; d2: 6 mm; R: 0,5 mm; z: 2; MBN102-010-0050-1000C060-HP820
Order number: 31153375
In Stock -
OptiMill®-3D-BN
l1: 60 mm; l2: 1,2mm; l3: 15 mm; d1: 1 mm; d2: 6 mm; R: 0,5 mm; z: 2; MBN102-010-0050-1500C060-HP820
Order number: 31153376
In Stock -
OptiMill®-3D-BN
l1: 60 mm; l2: 1,2mm; l3: 5 mm; d1: 1 mm; d2: 6 mm; R: 0,5 mm; z: 2; MBN102-010-0050-0500C060-HP820
Order number: 31153373
In Stock -
OptiMill®-3D-BN
l1: 75 mm; l2: 1,2mm; l3: 25 mm; d1: 1 mm; d2: 6 mm; R: 0,5 mm; z: 2; MBN102-010-0050-2500C075-HP820
Order number: 31153378
In Stock -
OptiMill®-3D-BN
l1: 75 mm; l2: 1,2mm; l3: 20 mm; d1: 1 mm; d2: 6 mm; R: 0,5 mm; z: 2; MBN102-010-0050-2000C075-HP820
Order number: 31153377
In Stock -
OptiMill®-3D-BN
l1: 75 mm; l2: 1,2mm; l3: 30 mm; d1: 1 mm; d2: 6 mm; R: 0,5 mm; z: 2; MBN102-010-0050-3000C075-HP820
Order number: 31153380
In Stock -
OptiMill®-3D-BN
l1: 75 mm; l2: 1,2mm; l3: 35 mm; d1: 1 mm; d2: 6 mm; R: 0,5 mm; z: 2; MBN102-010-0050-3500C075-HP820
Order number: 31153381
In Stock -
OptiMill®-3D-BN
l1: 60 mm; l2: 2,3mm; l3: 10 mm; d1: 2 mm; d2: 6 mm; R: 1 mm; z: 2; MBN102-020-0100-1000C060-HP801
Order number: 31153403
In Stock -
OptiMill®-3D-BN
l1: 60 mm; l2: 2,3mm; l3: 15 mm; d1: 2 mm; d2: 6 mm; R: 1 mm; z: 2; MBN102-020-0100-1500C060-HP801
Order number: 31153404
In Stock -
OptiMill®-3D-BN
l1: 60 mm; l2: 2,3mm; l3: 20 mm; d1: 2 mm; d2: 6 mm; R: 1 mm; z: 2; MBN102-020-0100-2000C060-HP801
Order number: 31153406
In Stock -
OptiMill®-3D-BN
l1: 75 mm; l2: 2,3mm; l3: 25 mm; d1: 2 mm; d2: 6 mm; R: 1 mm; z: 2; MBN102-020-0100-2500C075-HP801
Order number: 31153407
In Stock -
OptiMill®-3D-BN
l1: 75 mm; l2: 2,3mm; l3: 30 mm; d1: 2 mm; d2: 6 mm; R: 1 mm; z: 2; MBN102-020-0100-3000C075-HP801
Order number: 31153408
In Stock -
OptiMill®-3D-BN
l1: 75 mm; l2: 2,3mm; l3: 35 mm; d1: 2 mm; d2: 6 mm; R: 1 mm; z: 2; MBN102-020-0100-3500C075-HP801
Order number: 31153409
In Stock -
OptiMill®-3D-BN
l1: 75 mm; l2: 3,5mm; l3: 35 mm; d1: 3 mm; d2: 6 mm; R: 1,5 mm; z: 4; MBN105-030-0150-3500C075-HP801
Order number: 31153570
In Stock -
OptiMill®-3D-BN
l1: 75 mm; l2: 3,5mm; l3: 40 mm; d1: 3 mm; d2: 6 mm; R: 1,5 mm; z: 4; MBN105-030-0150-4000C075-HP801
Order number: 31153574
In Stock
