OptiMill®-Uni-HPC-Plus
The OptiMill-Uni-HPC-Plus is designed for highly economical universal machining of steel, stainless steel and cast iron. A high-performance substrate in combination with a newly developed coating guarantee excellent tool life. The precise rounding of the cutting edges ensures low wear while maintaining good surface quality. During machining, the unequal pitch and tooth pitch achieve smooth running, large cutting volumes, high process reliability and low machine load.
Selected facets:
Remove all filters-
Milling type
-
Product Family
-
Diameter (d1)
-
-
Total length (l1)
-
-
Flute length (l2)
-
-
Neck length (l3)
-
-
Corner bevel width Cx45°
-
Number of cutting edges
-
Shank type
-
Cooling
-
Product category
(7)
(7)
(7)-
OptiMill®-Uni-HPC-Plus
l1: 63 mm; l2: 21 mm; l3: 25 mm; d1: 8 mm; d2: 8 mm; R: 3 mm; z: 4 ; SCM770-0800Z04R-R0300HB-HP920
Order number: 30787448
In Stock -

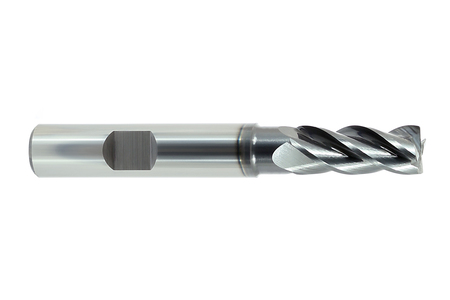

OptiMill®-Uni-HPC-Plus
l1: 72 mm; l2: 22 mm; l3: 30 mm; d1: 10 mm; d2: 10 mm; R: 3 mm; z: 4 ; SCM770-1000Z04R-R0300HB-HP920
Order number: 30787454
In Stock -

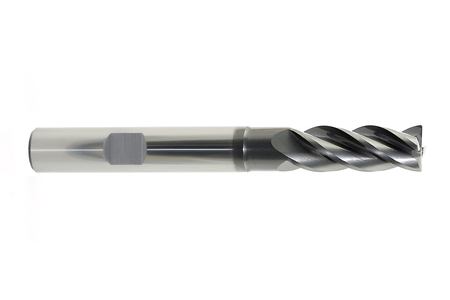

OptiMill®-Uni-HPC-Plus
l1: 80 mm; l2: 22 mm; l3: 38 mm; d1: 10 mm; d2: 10 mm; R: 3 mm; z: 4 ; SCM720-1000Z04R-R0300HB-HP920
Order number: 31046176
In Stock -
OptiMill®-Uni-HPC-Plus
l1: 93 mm; l2: 26 mm; l3: 46 mm; d1: 12 mm; d2: 12 mm; R: 3 mm; z: 4 ; SCM720-1200Z04R-R0300HB-HP920
Order number: 31046181
In Stock -
OptiMill®-Uni-HPC-Plus
l1: 83 mm; l2: 26 mm; l3: 36 mm; d1: 12 mm; d2: 12 mm; R: 3 mm; z: 4 ; SCM770-1200Z04R-R0300HB-HP920
Order number: 30787460
In Stock -
OptiMill®-Uni-HPC-Plus
l1: 92 mm; l2: 36 mm; l3: 42 mm; d1: 16 mm; d2: 16 mm; R: 3 mm; z: 4 ; SCM770-1600Z04R-R0300HB-HP920
Order number: 30787466
In Stock -
OptiMill®-Uni-HPC-Plus
l1: 104 mm; l2: 41 mm; l3: 52 mm; d1: 20 mm; d2: 20 mm; R: 3 mm; z: 4 ; SCM770-2000Z04R-R0300HB-HP920
Order number: 30787470
In Stock
