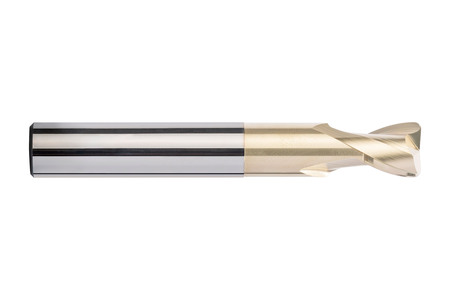

OptiMill®-3D-CR-Alu
The OptiMill®-3D-CR-Alu corner radius milling cutter was specially developed for machining high-strength aluminium alloys. Thanks to its positive and partially polished cutting edges, it is ideally suited for high-precision machining of 3D contours.
Selected facets:
Remove all filters-
Milling type
-
Product Family
-
Material charateristics
-
Diameter (d1)
-
-
Total length (l1)
-
-
Flute length (l2)
-
-
Neck length (l3)
-
-
Number of cutting edges
-
Shank type
-
Cooling
-
Product category
(3)-
OptiMill®-3D-CR-Alu
l1: 72 mm; l2: 10 mm; l3:32mm; d1: 10 mm; d2:10 mm; R: 1,5 mm; z: 2; MCR120-100-0150-3200X072-HP807
Order number: 31153231
In Stock -
OptiMill®-3D-CR-Alu
l1: 83 mm; l2: 12 mm; l3:38mm; d1: 12 mm; d2:12 mm; R: 1,5 mm; z: 2; MCR120-120-0150-3800X083-HP807
Order number: 31153234
In Stock -
OptiMill®-3D-CR-Alu
l1: 110 mm; l2: 12 mm; l3:60mm; d1: 12 mm; d2:12 mm; R: 1,5 mm; z: 2; MCR120-120-0150-6000X110-HP807
Order number: 31153235
In Stock
