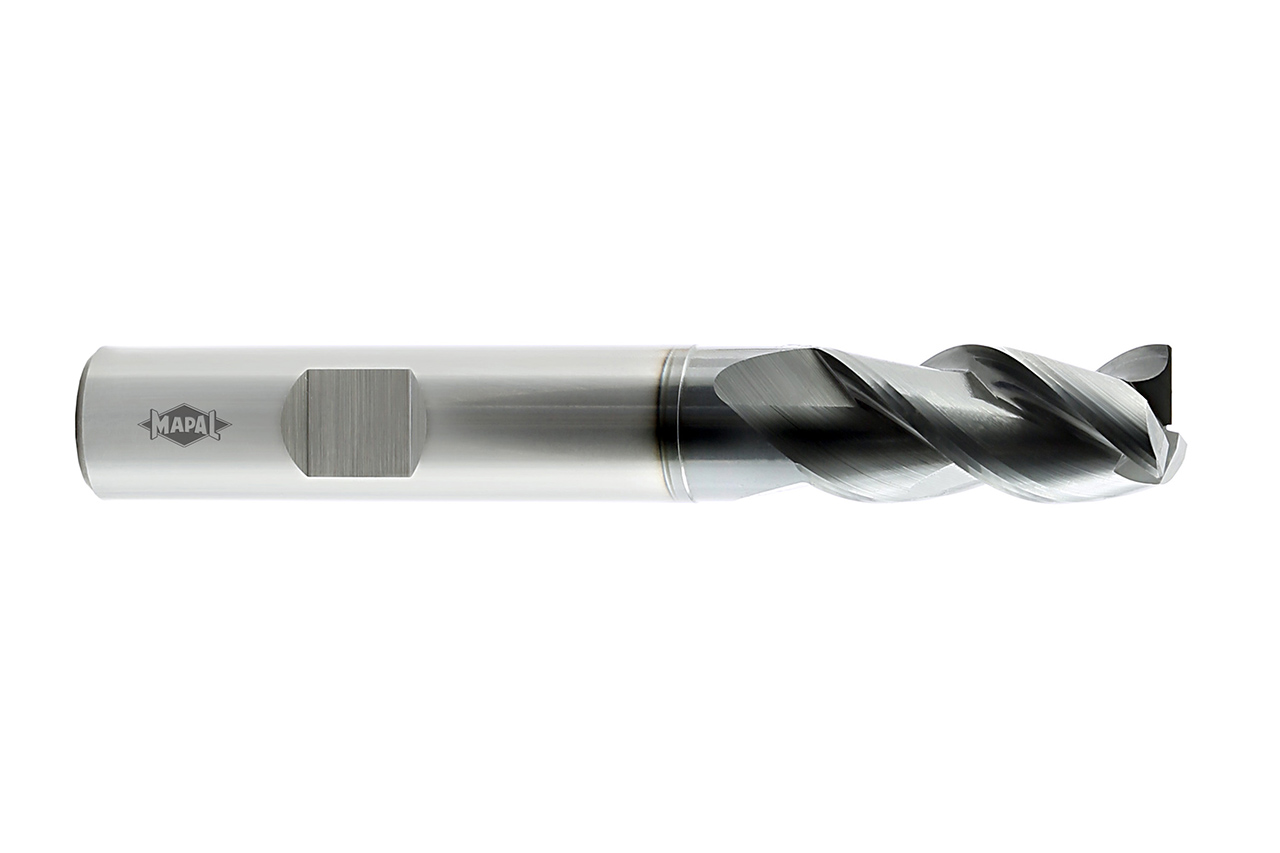

OptiMill®-Uni-HPC-Slot
Diameter d1 (mm)
2.5
Your unit price
*Login requiredTechnical specifications
- Product class
- Performance-Line
- Diameter (d1)
- 2.5 mm
- Shaft diameter (d2)
- 6 mm
- Cylindrical part diameter (d3)
- 2.4 mm
- Total length (l1)
- 54 mm
- Length of cutting edge (l2)
- 6.5 mm
- Neck length (l3)
- 10 mm
- Cylindrical length (l5)
- 10 mm
- Taper angle (φ)
- 24.7 °
- Number of cutting edges (z)
- 3
- Cooling
- external cooling
- Shank type
- HB
- Cutting material
- MF6
- Material group
- MV
Downloads

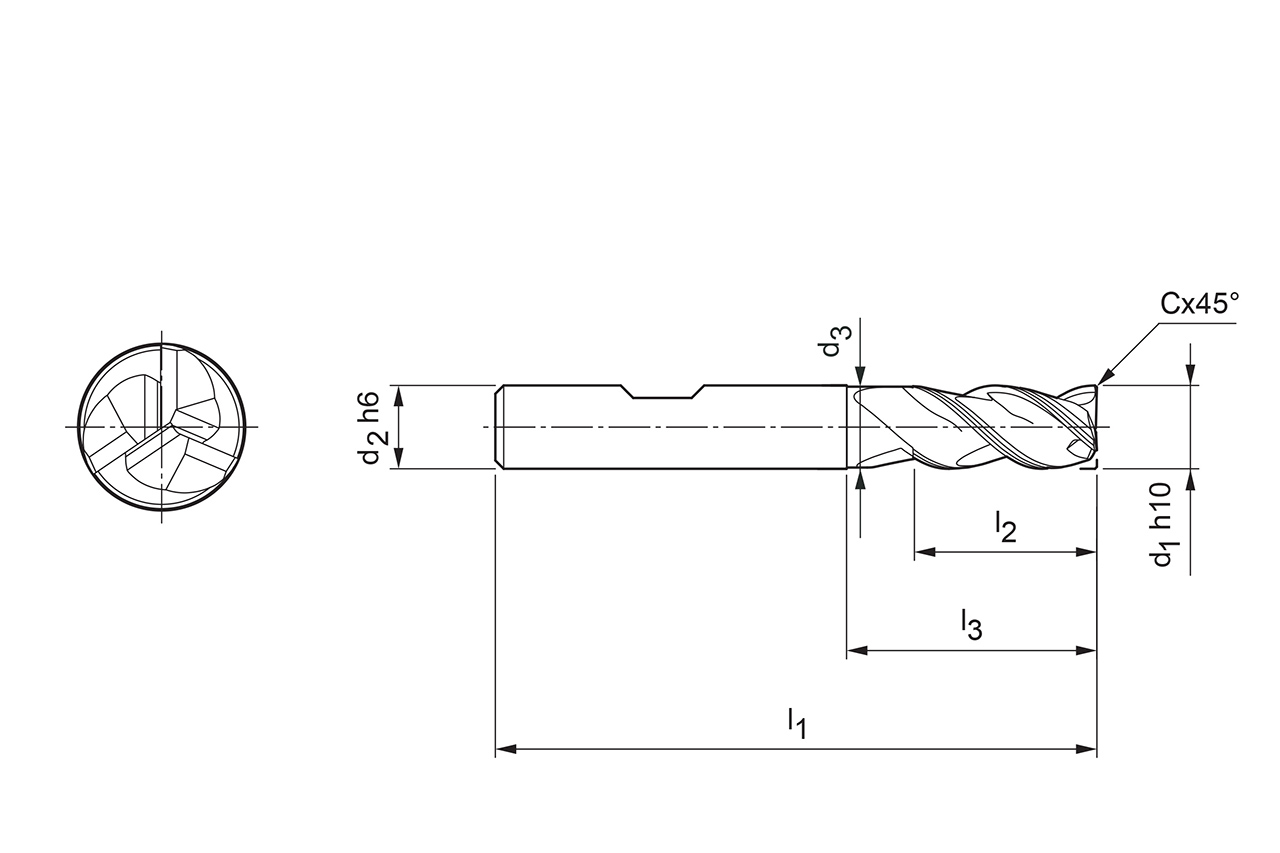

- Technical drawing in tif
- 30596272_608006153-000-00-ED1.TIF
- Technical drawing in pdf
- 30596272_608006153-000-00-ED1.PDF
- Technical drawing in dxf
- 30596272_608006153-000-00-ED1.DXF
- 3D envelope in stp
- 30596272_608006154-000-00-E43.STP
