OptiMill®-Uni-HPC-Slot
Diameter d1 (mm)
20.0
Your unit price
*Login requiredArticle
30393575
Quantity
Added to Your Shopping Cart
Product description

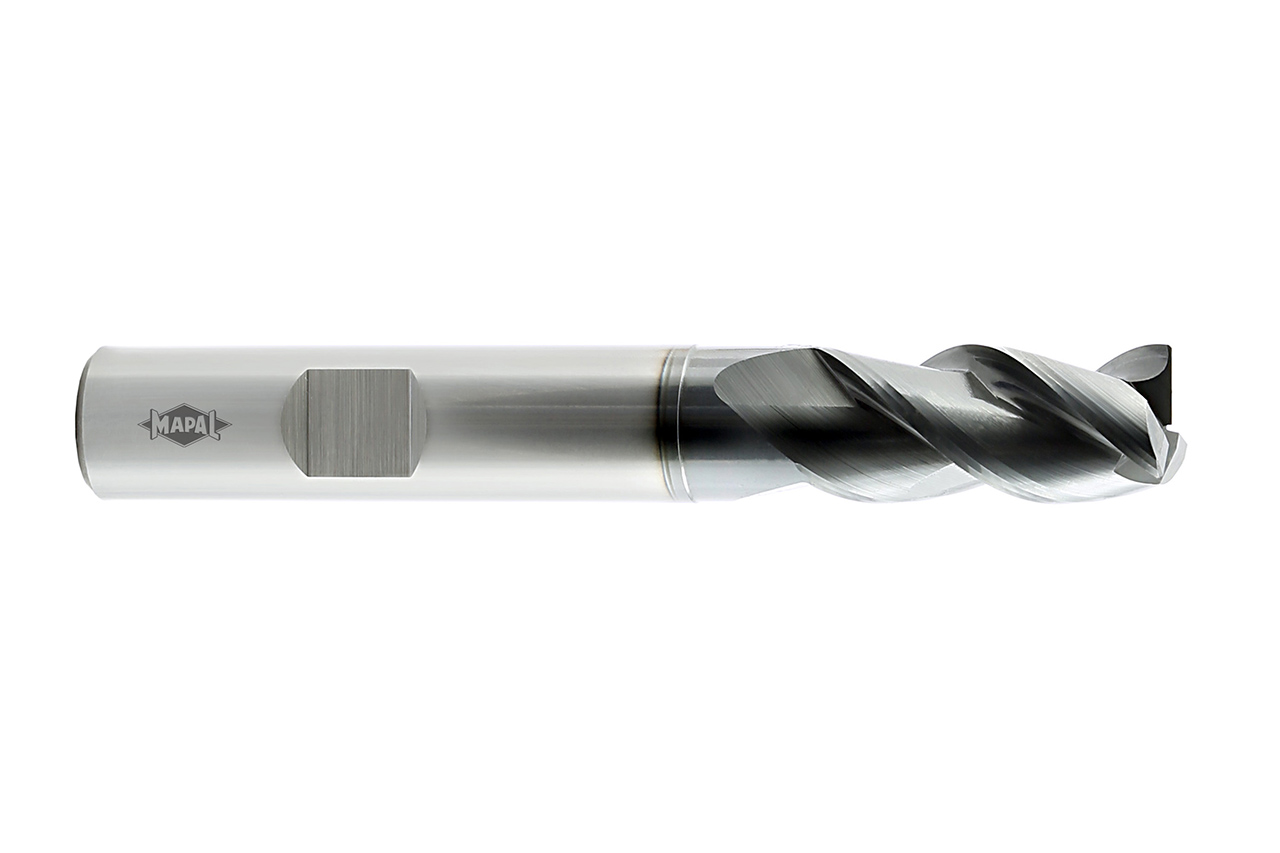

The corner milling cutter OptiMill®-Uni-HPC-Slot was specifically developed for slot milling in steel, stainless steel, and cast iron. The unequal spacing prevents vibrations and results in smooth cutting behavior. A corner protection chamfer further enhances stability and ensures a long tool life.

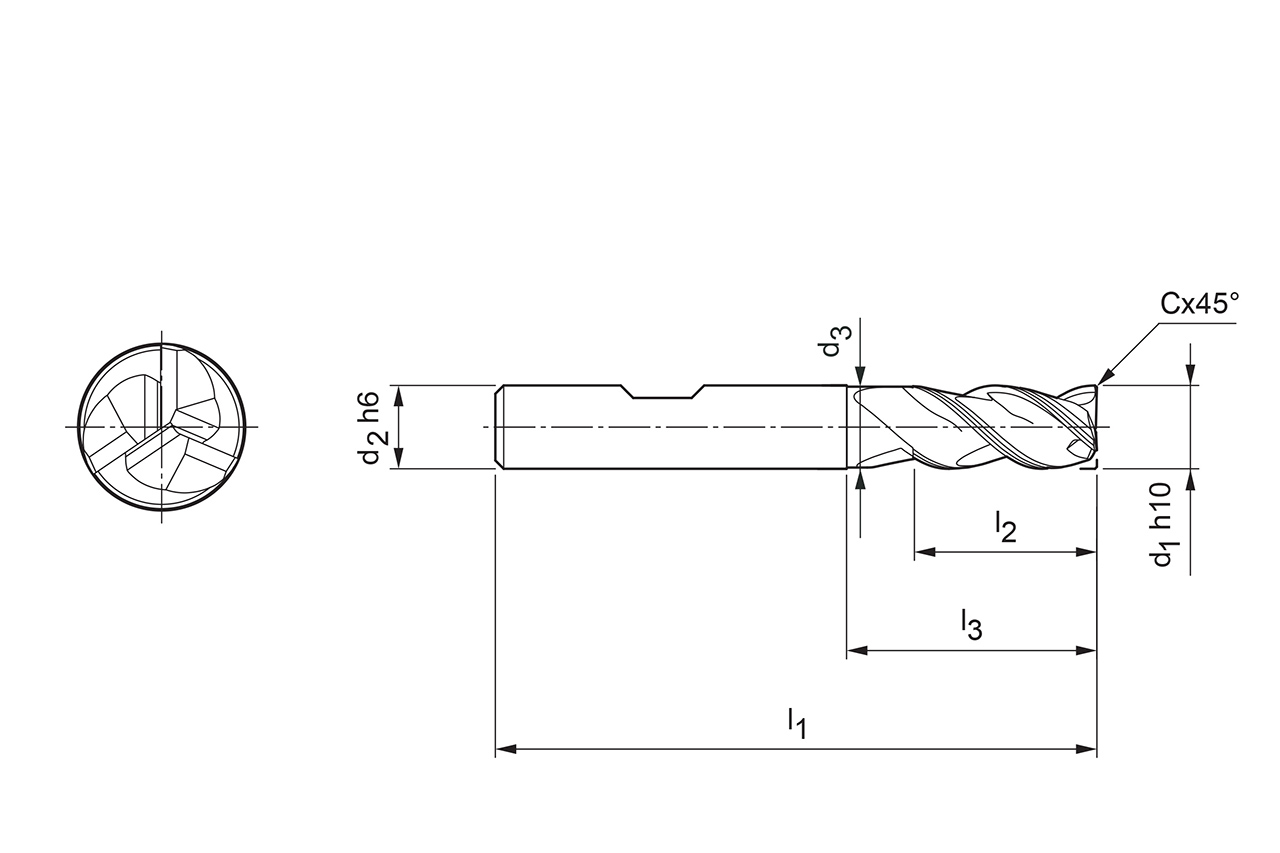

Technical specifications
- Product class
- Performance-Line
- Diameter (d1)
- 20 mm
- Shaft diameter (d2)
- 20 mm
- Cylindrical part diameter (d3)
- 19.8 mm
- Total length (l1)
- 104 mm
- Length of cutting edge (l2)
- 38 mm
- Neck length (l3)
- 55 mm
- Corner bevel width Cx45°
- 0.4 mm
- Number of cutting edges (z)
- 3
- Cooling
- external cooling
- Shank type
- HB
- Cutting material
- HP213
- Material group
- MV
