OptiMill®-Uni-HPC-Pocket
Diameter d1 (mm)
6.0
Your unit price
*Login requiredWe recommend:
Product description

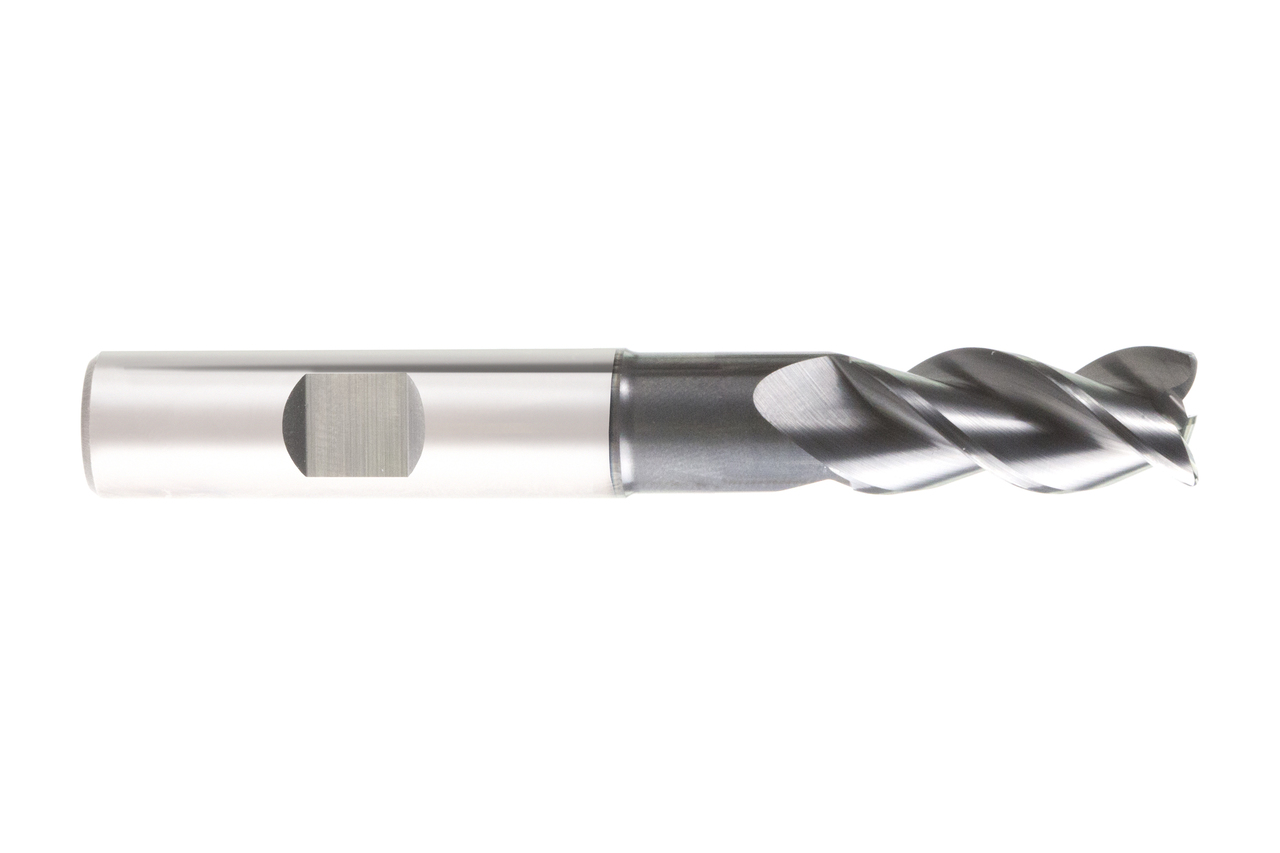

The OptiMill®-Uni-HPC-Pocket corner milling cutter with integrated drill point was specially developed for pocket milling of steel and cast iron. The specially developed pointing together with three large chip spaces guarantees optimum chip removal. The special core rise ensures optimum stability in the cutting process, making the tool ideal for helical milling and grooving.

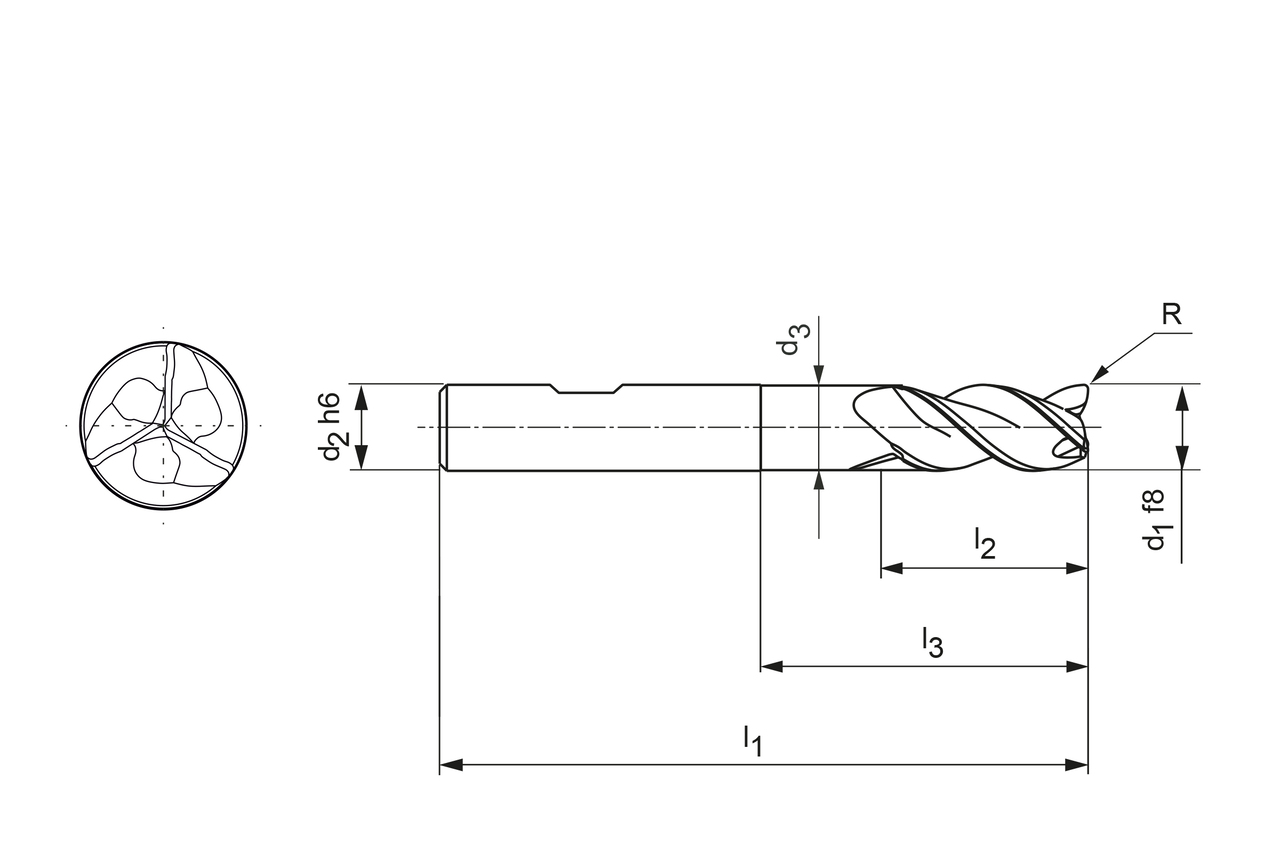

Technical specifications
- Product class
- Performance-Line
- Diameter (d1)
- 6 mm
- Shaft diameter (d2)
- 6 mm
- Cylindrical part diameter (d3)
- 5.8 mm
- Total length (l1)
- 62 mm
- Length of cutting edge (l2)
- 13 mm
- Neck length (l3)
- 24 mm
- Corner radius (R)
- 0.3 mm
- Number of cutting edges (z)
- 3
- Cooling
- external cooling
- Shank type
- HB
- Cutting material
- HP920
- Material group
- MV
Downloads
- 3D envelope in stp
- 30787958_608140765-000-00-E43.STP
- Technical drawing in tif
- 30787958_608145441-000-00-ED1.TIF
- Technical drawing in dxf
- 30787958_608145441-000-00-ED1.DXF
- Brochure OptiMill-HPC-Pocket
- 30787958_OptiMill-HPC-Pocket__EN.pdf
