OptiMill®-Uni-HPC-Plus

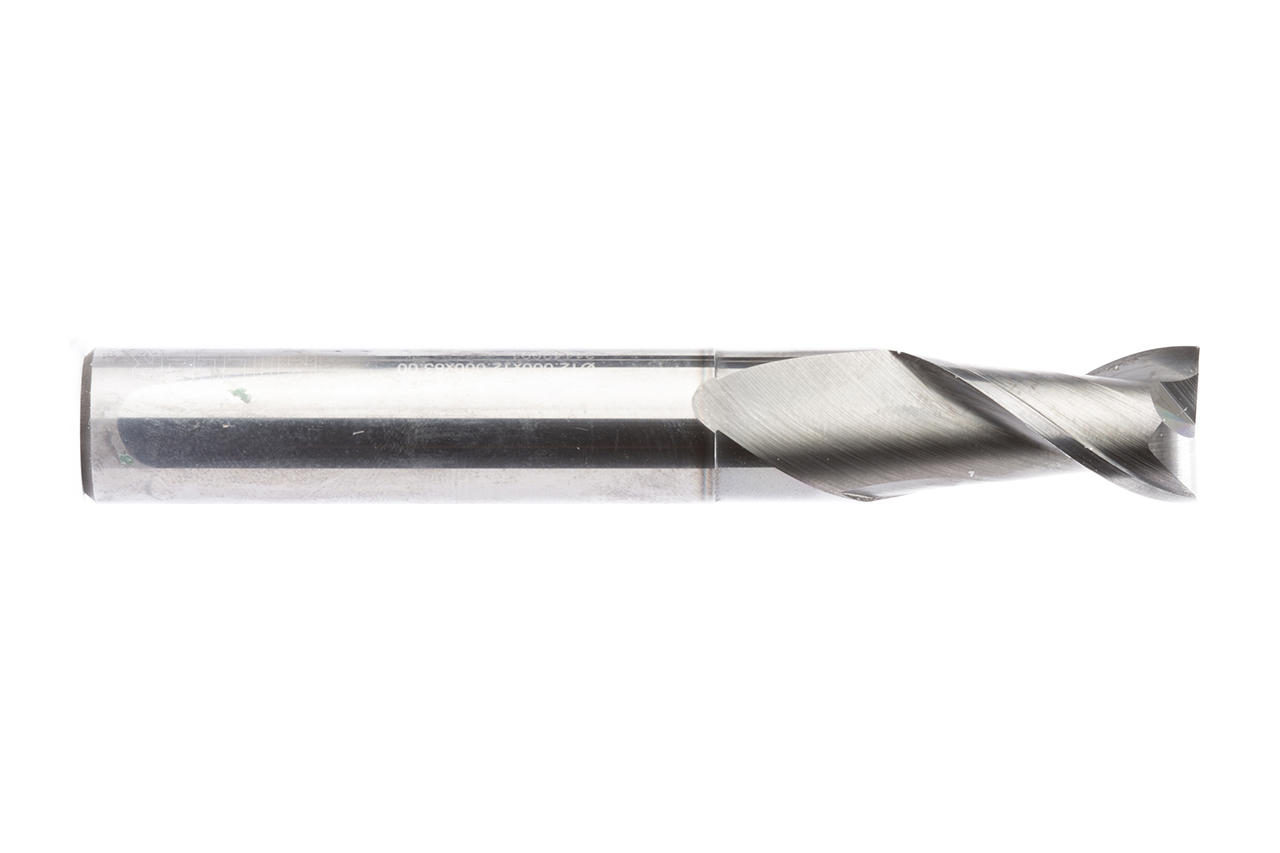

  • Product image OptiMill®-Uni-HPC-Plus

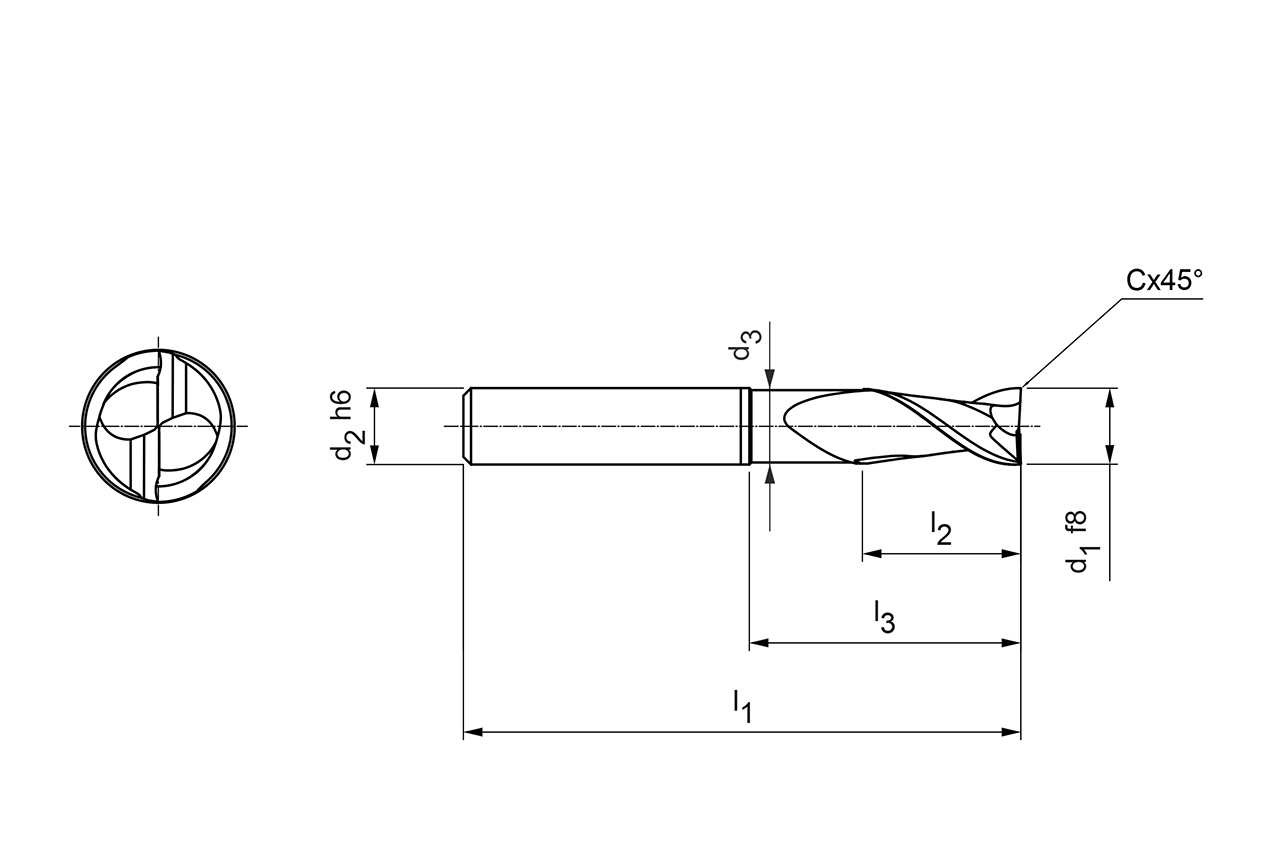

  • Technical drawing OptiMill®-Uni-HPC-Plus

Diameter d1 (mm)

3.0

Your unit price

*Login required

Article

31205149

Quantity

Added to Your Shopping Cart

Product description

The OptiMill-Uni-HPC-Plus is designed for highly economical universal machining of steel, stainless steel and cast iron. A high-performance substrate in combination with a newly developed coating guarantee excellent tool life. The precise rounding of the cutting edges ensures low wear while maintaining good surface quality. During machining, the unequal pitch and tooth pitch achieve smooth running, large cutting volumes, high process reliability and low machine load.

Material suitability

Technical specifications

Product class
Performance-Line
Diameter (d1)
3   mm
Shaft diameter (d2)
6   mm
Cylindrical part diameter (d3)
2.8   mm
Total length (l1)
57   mm
Length of cutting edge (l2)
7   mm
Corner bevel width Cx45°
0.1   mm
Number of cutting edges (z)
2
Cooling
external cooling
Shank type
HA
Cutting material
MF2
Material group
MV

Downloads

3D envelope in stp
31205149_607892179-000-00-E43.STP
Technical drawing in dxf
31205149_607892180-000-00-ED1.DXF
Technical drawing in pdf
31205149_607892180-000-00-ED1.PDF
Technical drawing in tif
31205149_607892180-000-00-ED1.TIF
