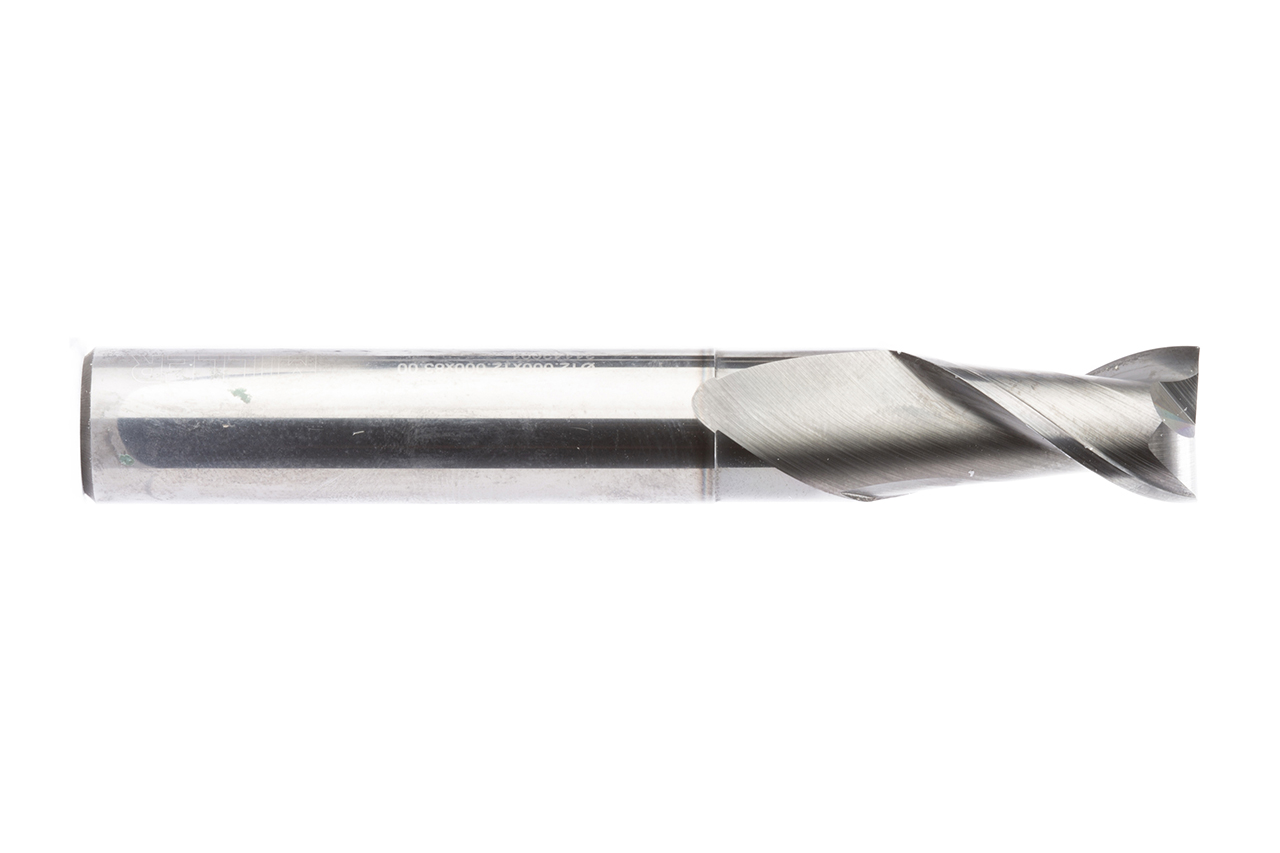

OptiMill®-Uni-HPC-Plus

Diameter d1 (mm)

2.0

Your unit price

*Login required

Article

31205148

Quantity

Added to Your Shopping Cart

Product description

The OptiMill-Uni-HPC-Plus is designed for highly economical universal machining of steel, stainless steel and cast iron. A high-performance substrate in combination with a newly developed coating guarantee excellent tool life. The precise rounding of the cutting edges ensures low wear while maintaining good surface quality. During machining, the unequal pitch and tooth pitch achieve smooth running, large cutting volumes, high process reliability and low machine load.

Material suitability

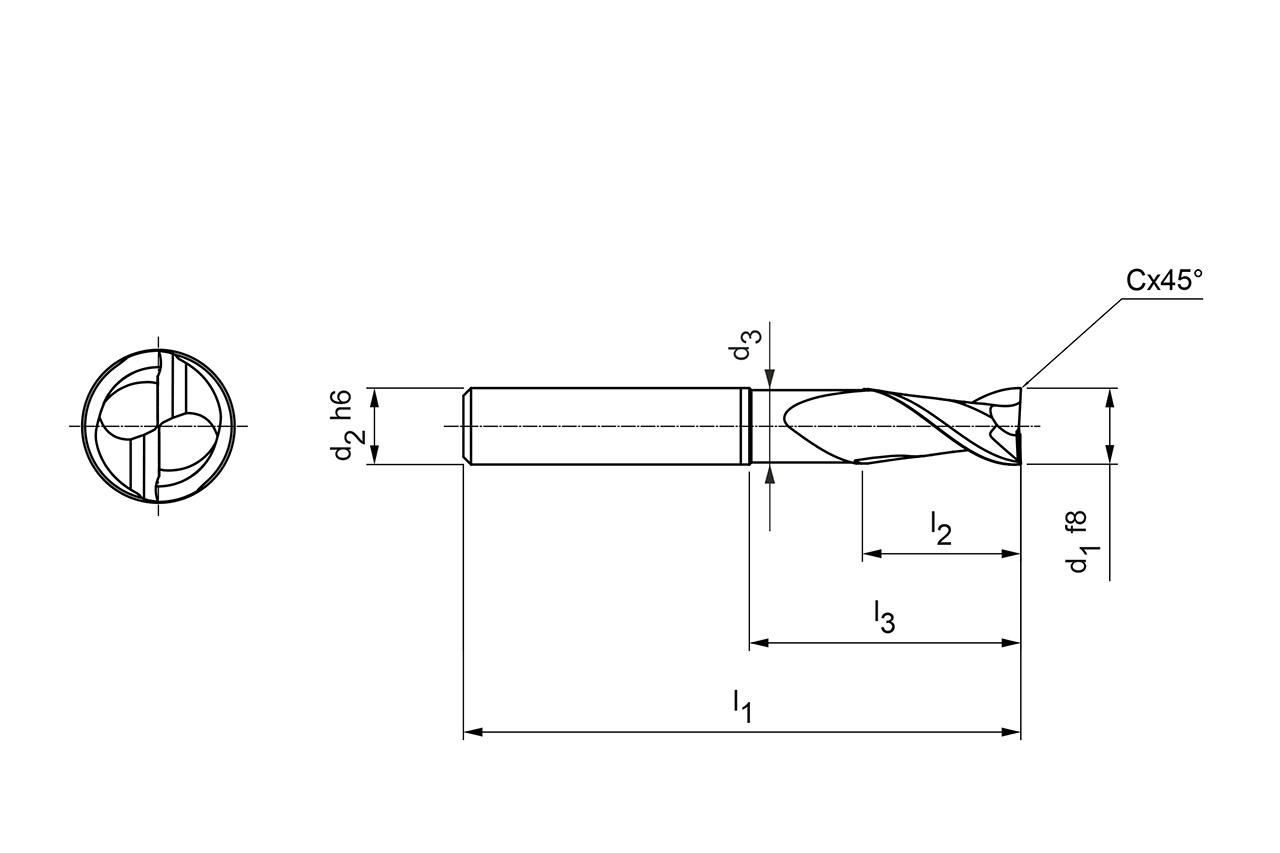

Technical specifications

Product class: Performance-Line
Diameter (d1): 2 mm
Shaft diameter (d2): 3 mm
Cylindrical part diameter (d3): 1.9 mm
Total length (l1): 38 mm
Length of cutting edge (l2): 4 mm
Corner bevel width Cx45°: 0.05 mm
Number of cutting edges (z): 2
Cooling: external cooling
Shank type: HA
Cutting material: MF3
Material group: MV
