OptiMill®-Uni-HPC-Plus
Diameter d1 (mm)
20.0
Your unit price
*Login requiredArticle
31046186
Quantity
Added to Your Shopping Cart
We recommend:

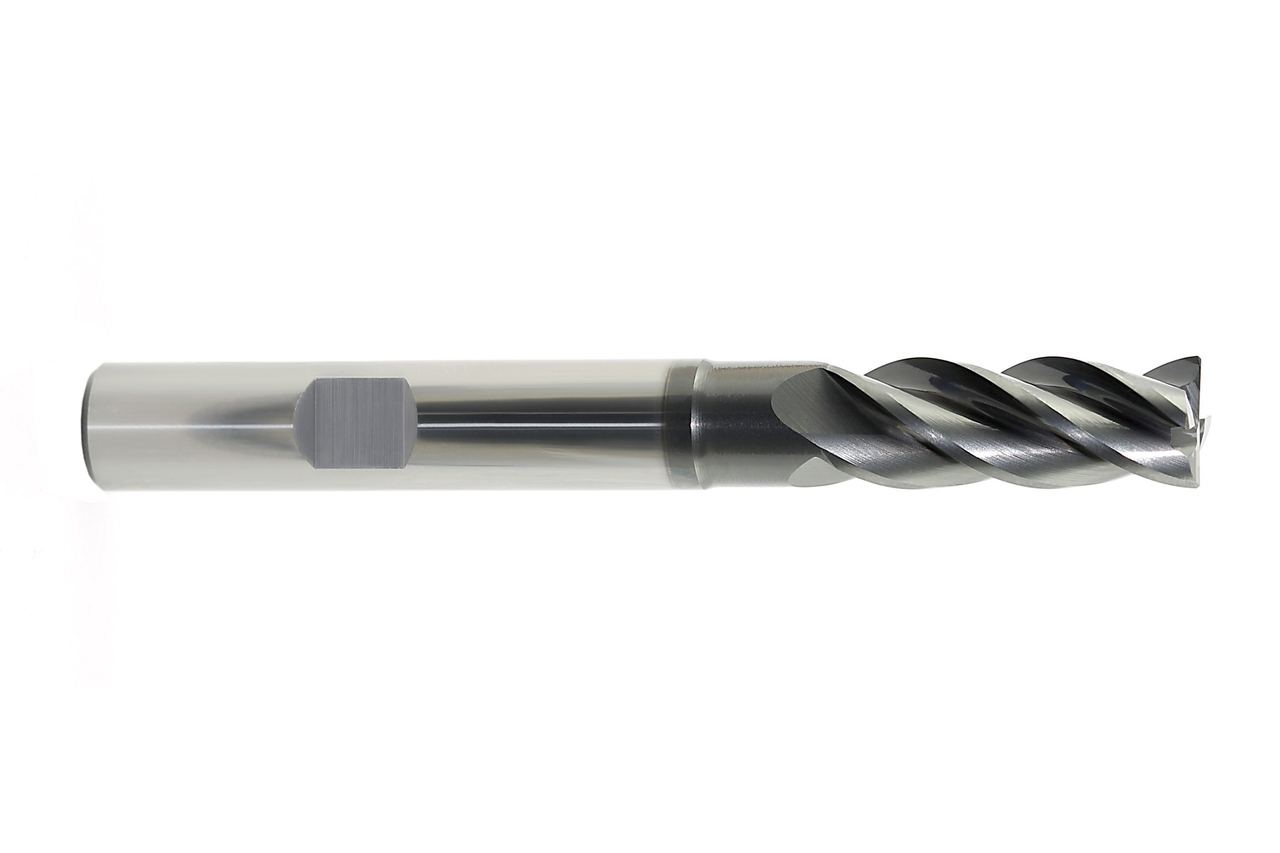

Product description
The OptiMill-Uni-HPC-Plus is designed for highly economical universal machining of steel, stainless steel and cast iron. A high-performance substrate in combination with a newly developed coating guarantee excellent tool life. The precise rounding of the cutting edges ensures low wear while maintaining good surface quality. During machining, the unequal pitch and tooth pitch achieve smooth running, large cutting volumes, high process reliability and low machine load.

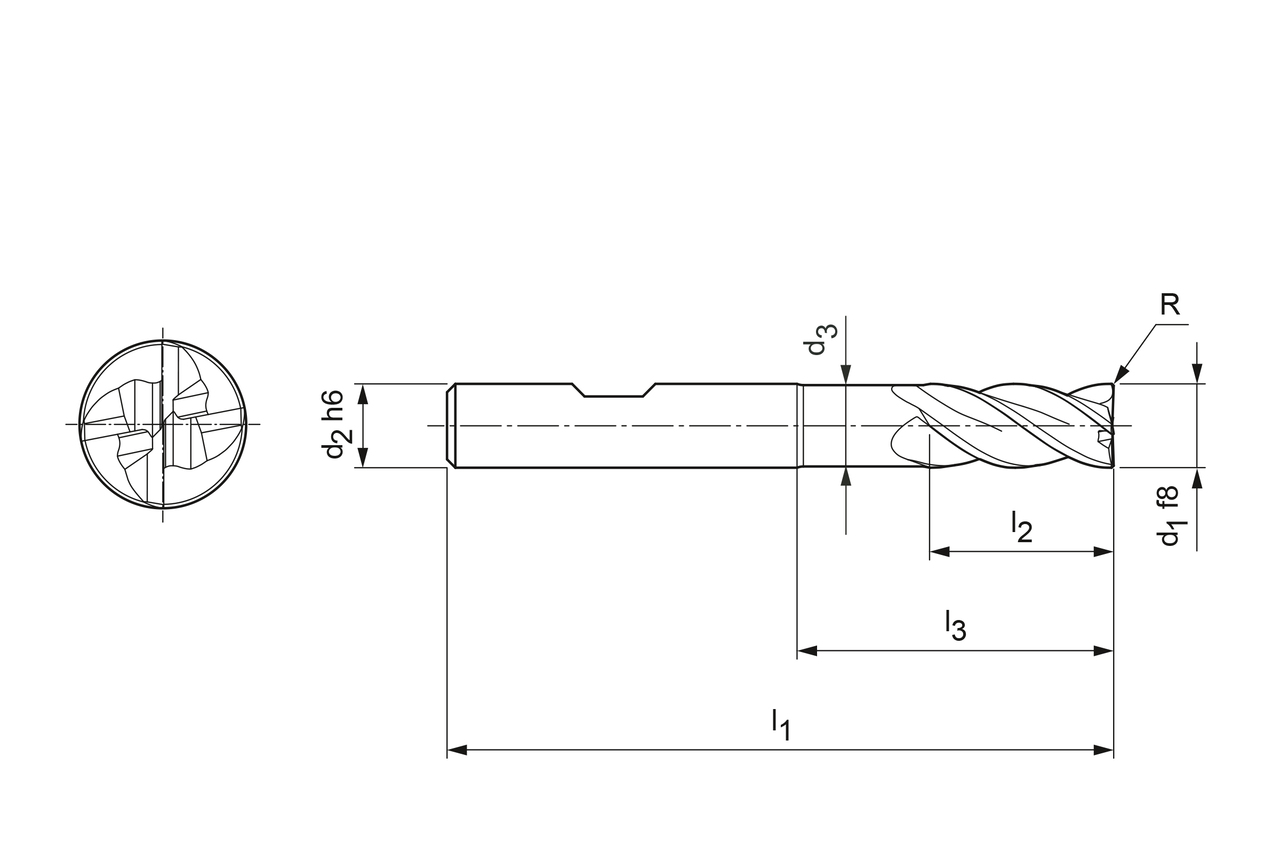

Technical specifications
- Product class
- Performance-Line
- Diameter (d1)
- 20 mm
- Shaft diameter (d2)
- 20 mm
- Cylindrical part diameter (d3)
- 19.5 mm
- Total length (l1)
- 126 mm
- Length of cutting edge (l2)
- 41 mm
- Neck length (l3)
- 74 mm
- Corner radius (R)
- 1 mm
- Number of cutting edges (z)
- 4
- Cooling
- external cooling
- Shank type
- HB
- Cutting material
- HP920
- Material group
- MV
