OptiMill®-Uni-HPC-Plus

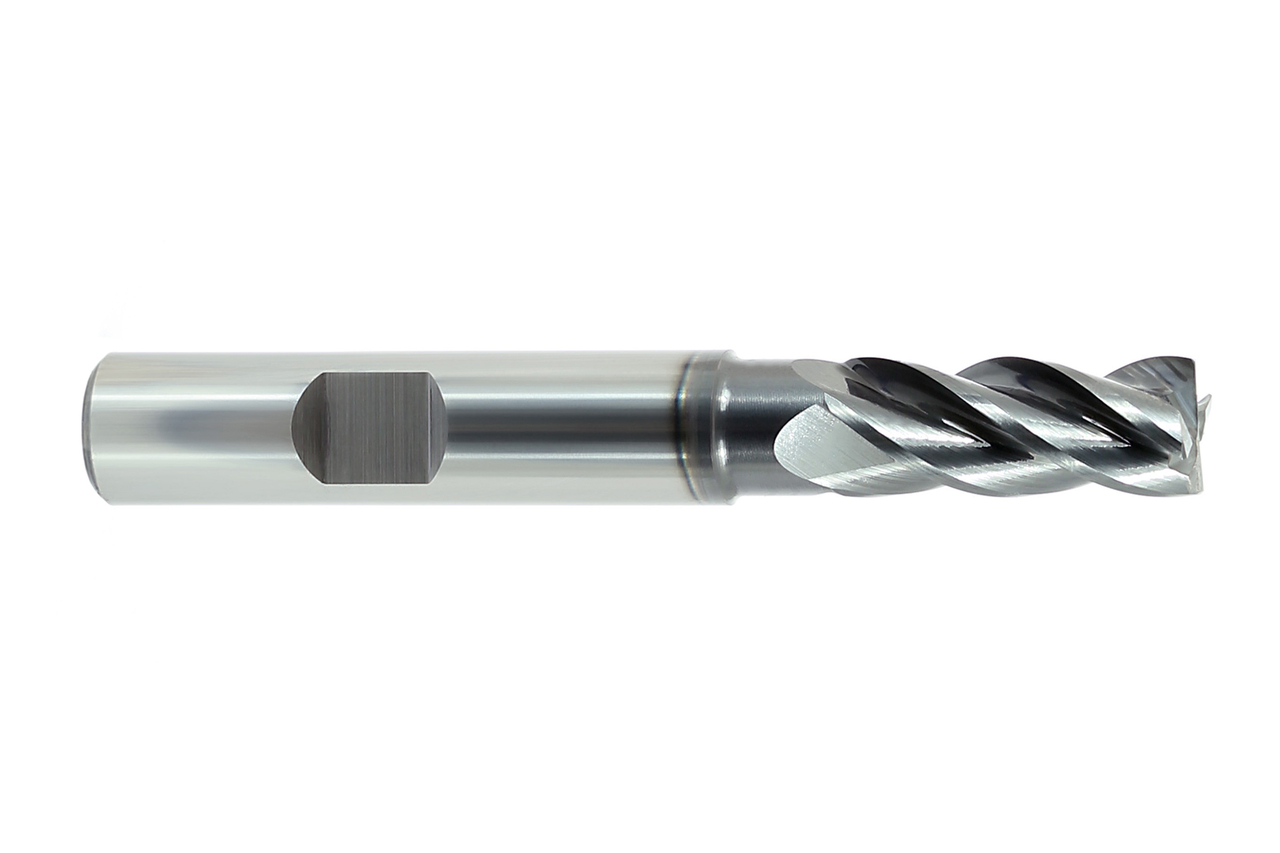

  • Product image OptiMill®-Uni-HPC-Plus
  • Product image OptiMill®-Uni-HPC-Plus

Diameter d1 (mm)

8.0

Your unit price

*Login required

Article

30787380

Quantity

Added to Your Shopping Cart

We recommend:

Product description

The OptiMill-Uni-HPC-Plus is designed for highly economical universal machining of steel, stainless steel and cast iron. A high-performance substrate in combination with a newly developed coating guarantee excellent tool life. The precise rounding of the cutting edges ensures low wear while maintaining good surface quality. During machining, the unequal pitch and tooth pitch achieve smooth running, large cutting volumes, high process reliability and low machine load.

Material suitability

P
P1
highly suitable
P2
highly suitable
P3
highly suitable
P4
highly suitable
P5
highly suitable
P6
highly suitable
M
M1
highly suitable
M2
highly suitable
M3
highly suitable
K
K1
highly suitable
K2
highly suitable
K3
highly suitable
N
N1
N2
N3
N4
S
S1
S2
S3
S4
S5
H
H1
H2
H3

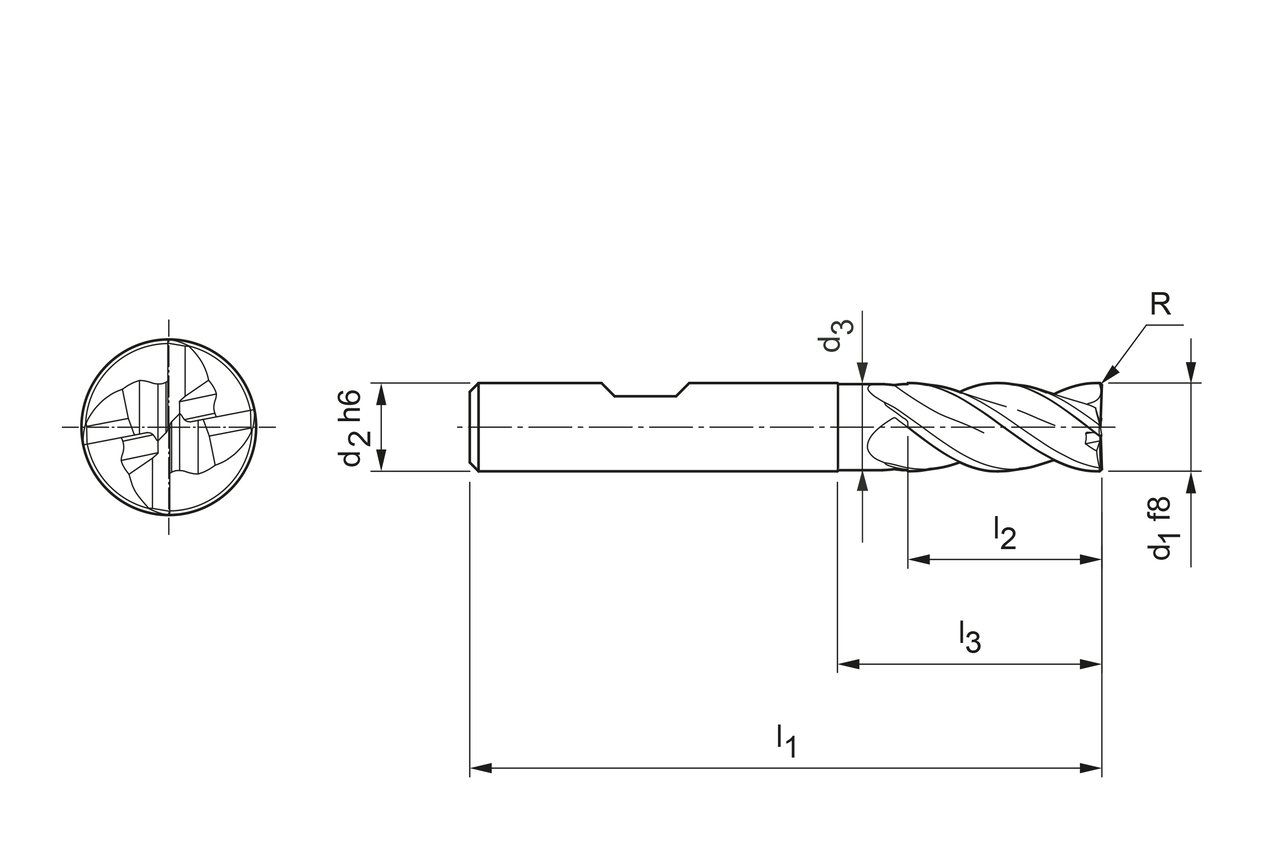

Technical specifications

Produktklasse
Performance-Line
Schneidendurchmesser (d1)
8   mm
Schaftdurchmesser (d2)
8   mm
Durchmesser zylindrischer Anteil (d3)
7.8   mm
Gesamtlänge (l1)
63   mm
Schneidenlänge (l2)
21   mm
Halslänge (l3)
25   mm
Eckfasenbreite Cx45°
0.16   mm
Anzahl Schneiden (z)
4
Kühlmittelzufuhr
äußere Kühlmittelzufuhr
Schaft Typ
HB
Schneidstoff
HP920
Materialgruppe
MV
Spezifikation
SCM770-0800Z04R-F0016HB-HP920

Downloads

3D Hüllkontur in stp
30787380_607669914-000-00-E43.STP
3D Hüllkontur in stp
30787380_607669914-000-00-E43.STP
Technical drawing in tif
30787380_606896034-000-00-ED1.tif
Cutting data recommendations
30787380_OptiMill-Uni-HPC-Plus_EN.pdf
