OptiMill®-Uni-HPC-Plus

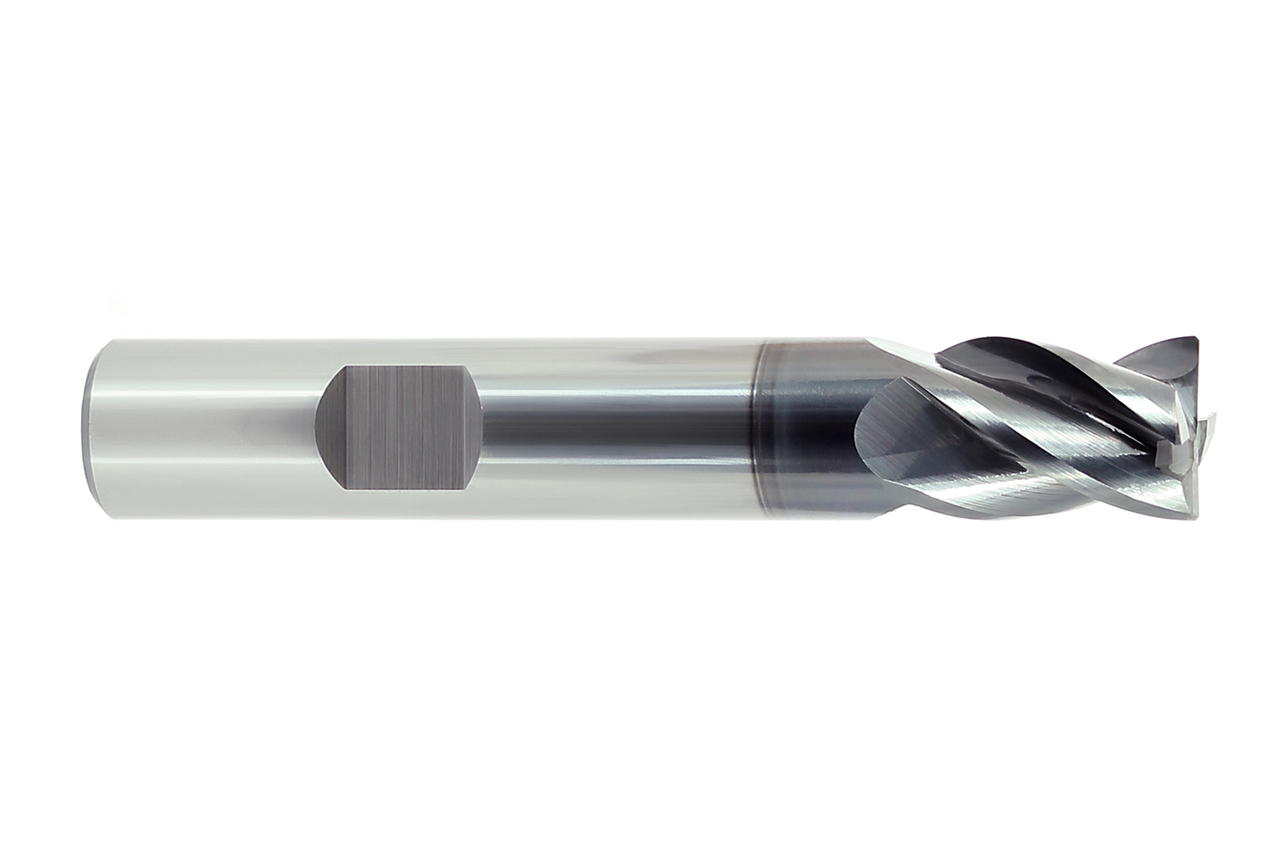

  • Product image OptiMill®-Uni-HPC-Plus
  • Product image OptiMill®-Uni-HPC-Plus

Diameter d1 (mm)

3.0

Your unit price

*Login required

Article

30787363

Quantity

Added to Your Shopping Cart

We recommend:

Product description

The OptiMill-Uni-HPC-Plus is designed for highly economical universal machining of steel, stainless steel and cast iron. A high-performance substrate in combination with a newly developed coating guarantee excellent tool life. The precise rounding of the cutting edges ensures low wear while maintaining good surface quality. During machining, the unequal pitch and tooth pitch achieve smooth running, large cutting volumes, high process reliability and low machine load.

Material suitability

Technical specifications

Product class
Performance-Line
Diameter (d1)
3   mm
Shaft diameter (d2)
6   mm
Total length (l1)
50   mm
Length of cutting edge (l2)
6   mm
Neck length (l3)
8.4   mm
Corner bevel width Cx45°
0.06   mm
Number of cutting edges (z)
4
Cooling
external cooling
Shank type
HB
Cutting material
HP920
Material group
MV

Downloads

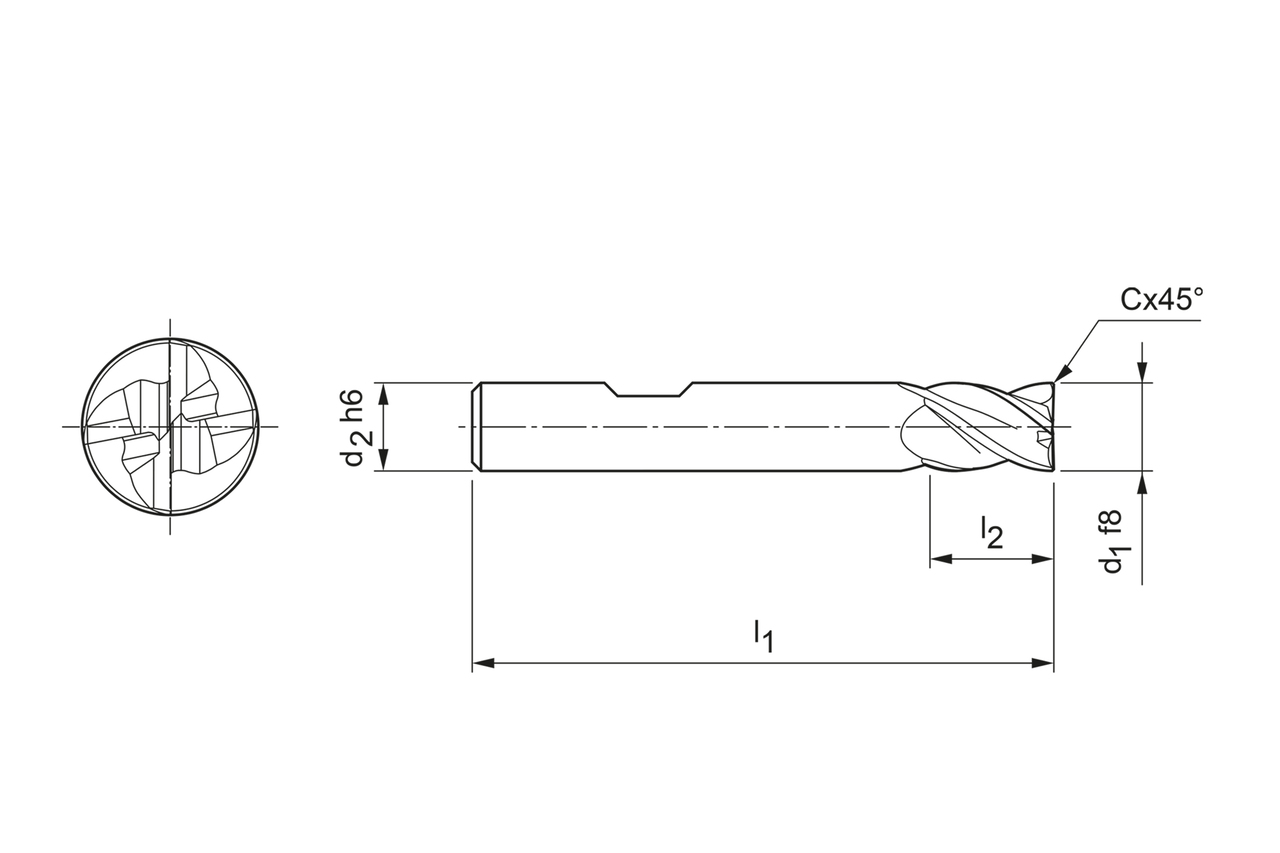

Technical drawing in dxf
30787363_607156366-000-00-ED1.DXF
Technical drawing in tif
30787363_607156366-000-00-ED1.TIF
