OptiMill®-Uni-HPC-Finish
Diameter d1 (mm)
20.0
Your unit price
*Login requiredProduct description
The OptiMill-Uni-HPC-Finish finishing cutter with seven cutting edges produces the highest surface finishes in the shortest possible time. Due to a stable core diameter, the tool tool stiffness is considerably increased, which prevents the tool from being displaced. As a result, the highest surface finishes are achieved in a process-safe manner even with infeeds of up to 5xD.

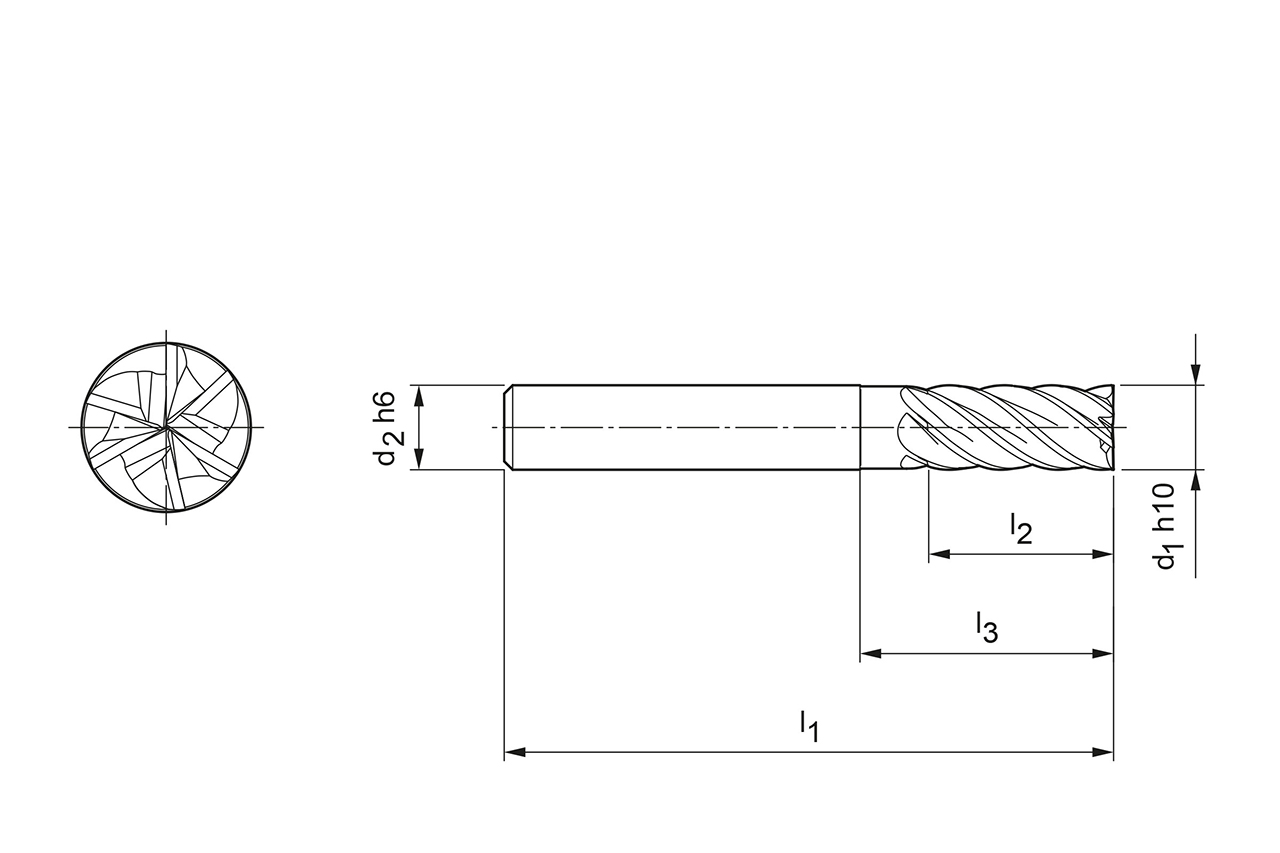

Technical specifications
- Product class
- Performance-Line
- Diameter (d1)
- 20 mm
- Shaft diameter (d2)
- 20 mm
- Cylindrical part diameter (d3)
- 19.8 mm
- Total length (l1)
- 104 mm
- Length of cutting edge (l2)
- 41 mm
- Neck length (l3)
- 55 mm
- Cylindrical length (l5)
- 55 mm
- Number of cutting edges (z)
- 6
- Cooling
- external cooling
- Shank type
- HA
- Cutting material
- HP213
- Material group
- MV
Downloads
- Technical drawing in dxf
- 30393546_606444789-000-00-ED1.DXF
- Technical drawing in tif
- 30393546_606444789-000-00-ED1.TIF
- 3D envelope in stp
- 30393546_607747956-000-00-E43.STP
