OptiMill®-Tro-Titan
Durchmesser d1 (mm)
10.0
Your unit price
*Login erforderlichArticle
30651034
Quantity
Added to Your Shopping Cart
Product description

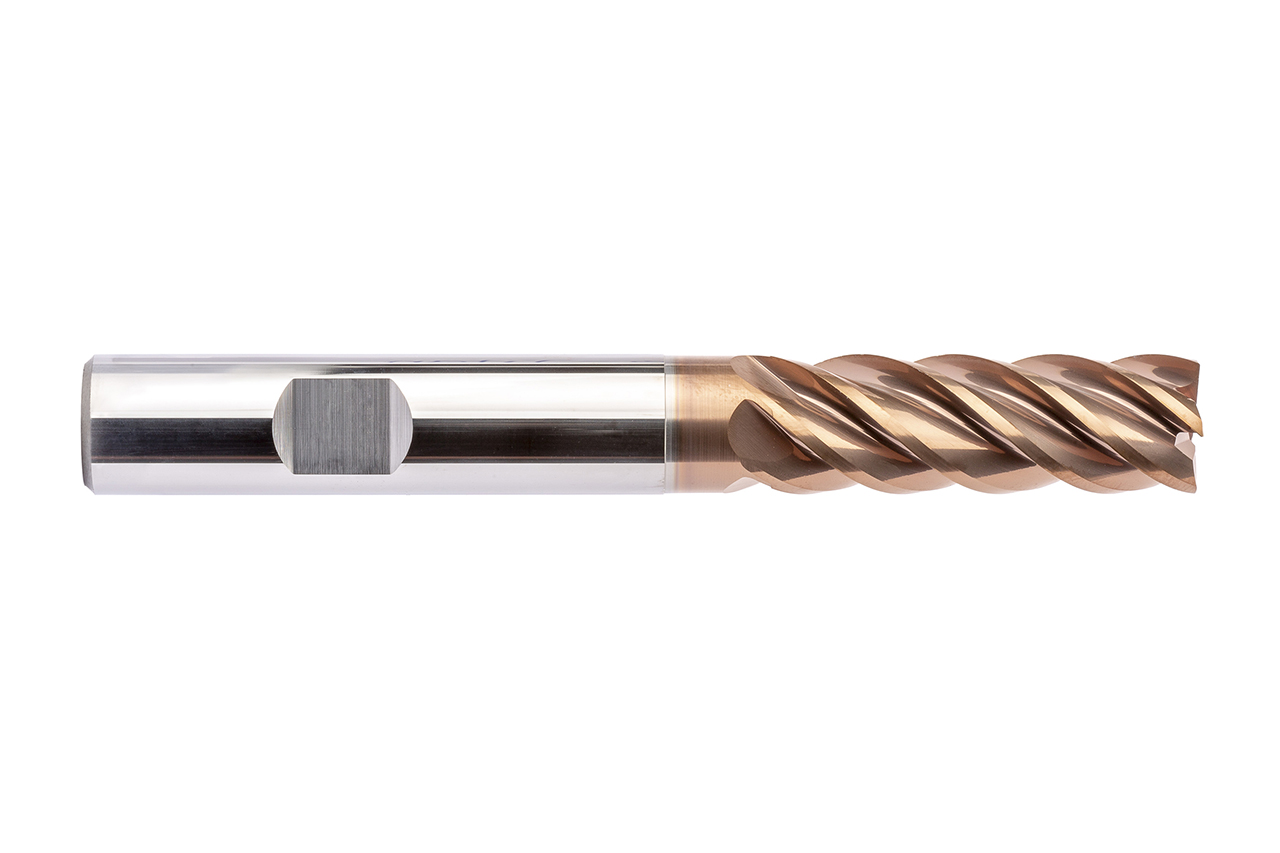

The OptiMill-Tro-Titan five-edged corner milling cutter is characterized by maximum material removal rates while maintaining high surface quality. The uneven pitch and step avoid vibrations and result in smooth cutting behavior. It is specifically designed for trochoidal milling in partial cuts, trimming, and cutting depths up to 3xD.

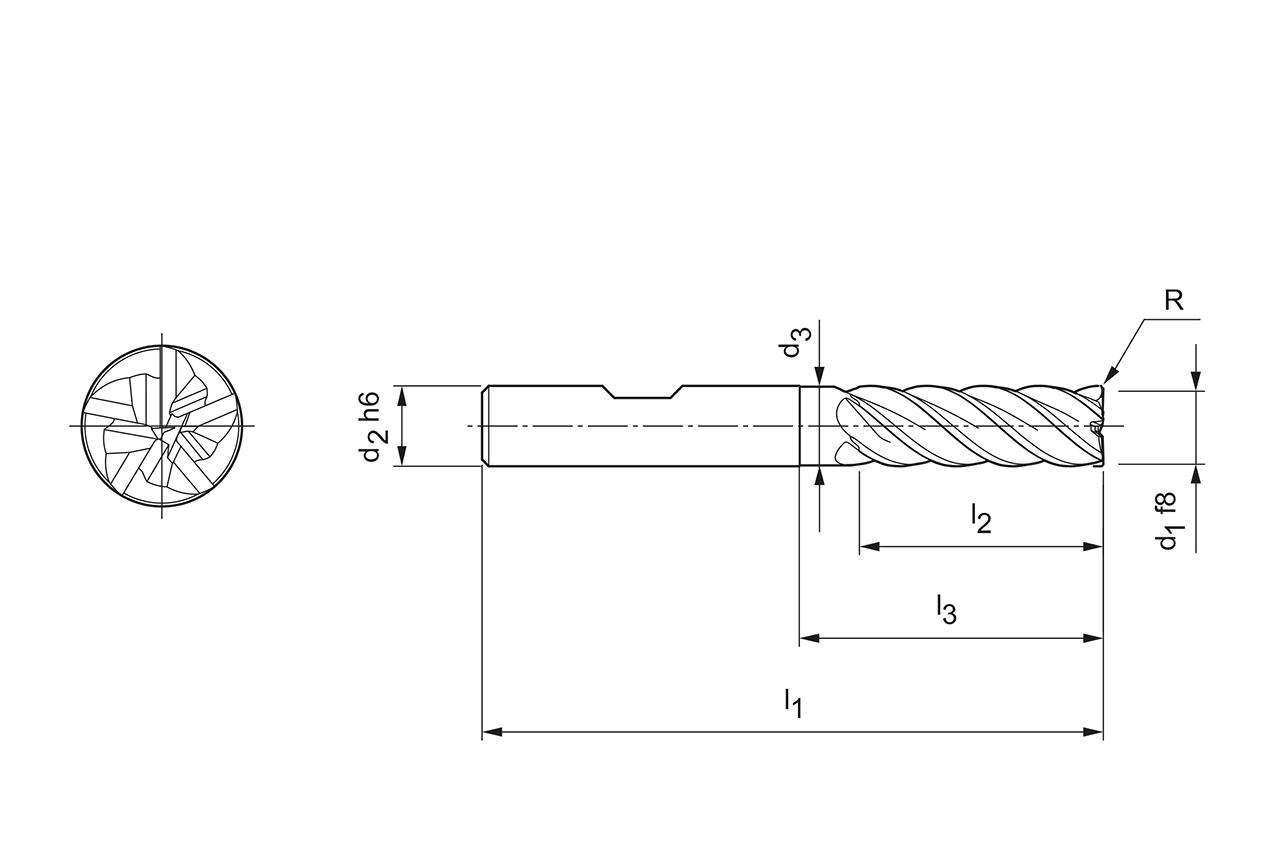

Technical specifications
- Produktklasse
- Expert-Line
- Schneidendurchmesser (d1)
- 10 mm
- Schaftdurchmesser (d2)
- 10 mm
- Durchmesser zylindrischer Anteil (d3)
- 9.8 mm
- Gesamtlänge (l1)
- 80 mm
- Schneidenlänge (l2)
- 30 mm
- Halslänge (l3)
- 35 mm
- Eckenradius (R)
- 0.2 mm
- Anzahl Schneiden (z)
- 5
- Kühlmittelzufuhr
- äußere Kühlmittelzufuhr
- Schaft Typ
- HB
- Schneidstoff
- HP826
- Materialgruppe
- MV
- Spezifikation
- SCM630-1000Z05R-R0020HB-HP826
