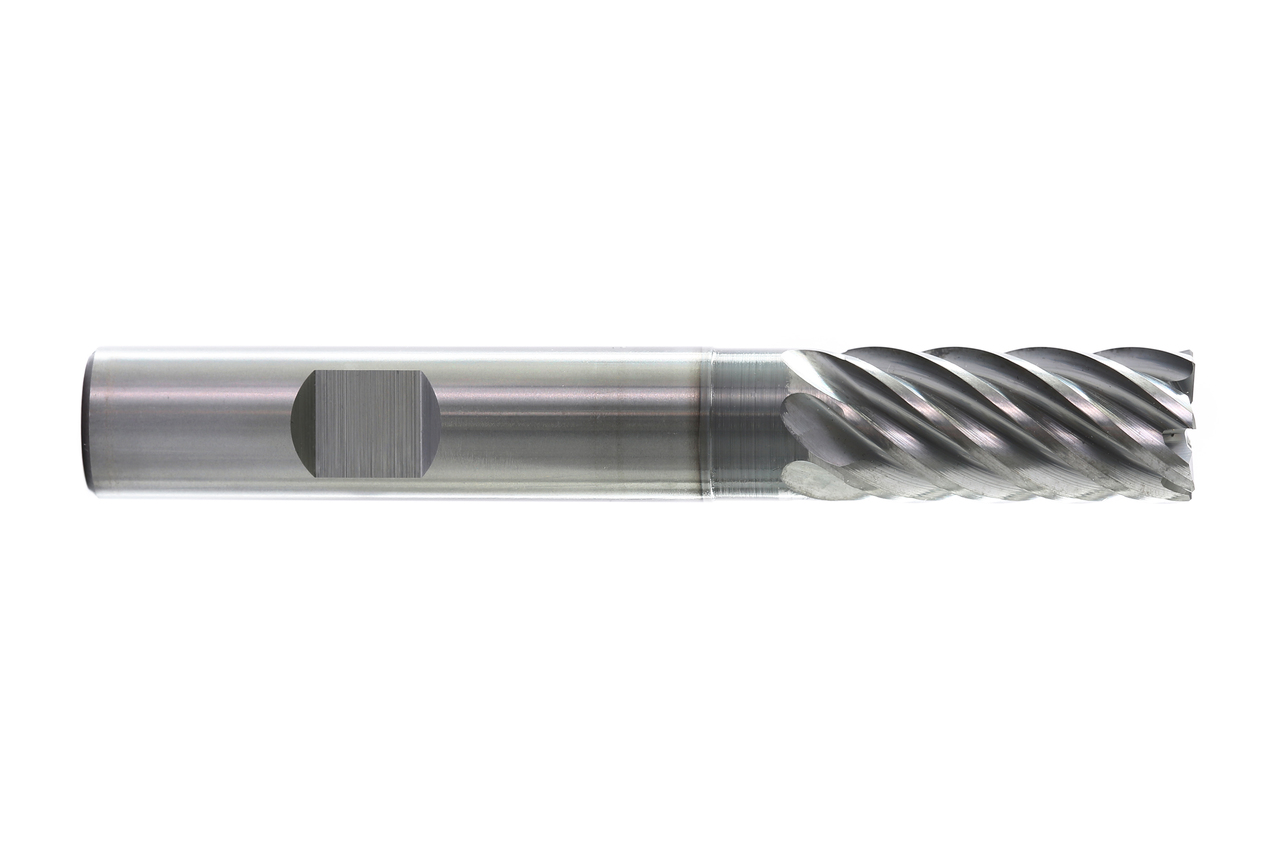

OptiMill®-Tro-PM
Diameter d1 (mm)
12.0
Your unit price
*Login requiredWe recommend:
Product description
The OptiMill-Tro-PM with seven cutting edges convinces with highest precision and unique productivity. The increased number of teeth enables higher total feed rates. This reduces the machining time and significantly increases productivity. The use of a new substrate also ensures a significantly longer tool life.

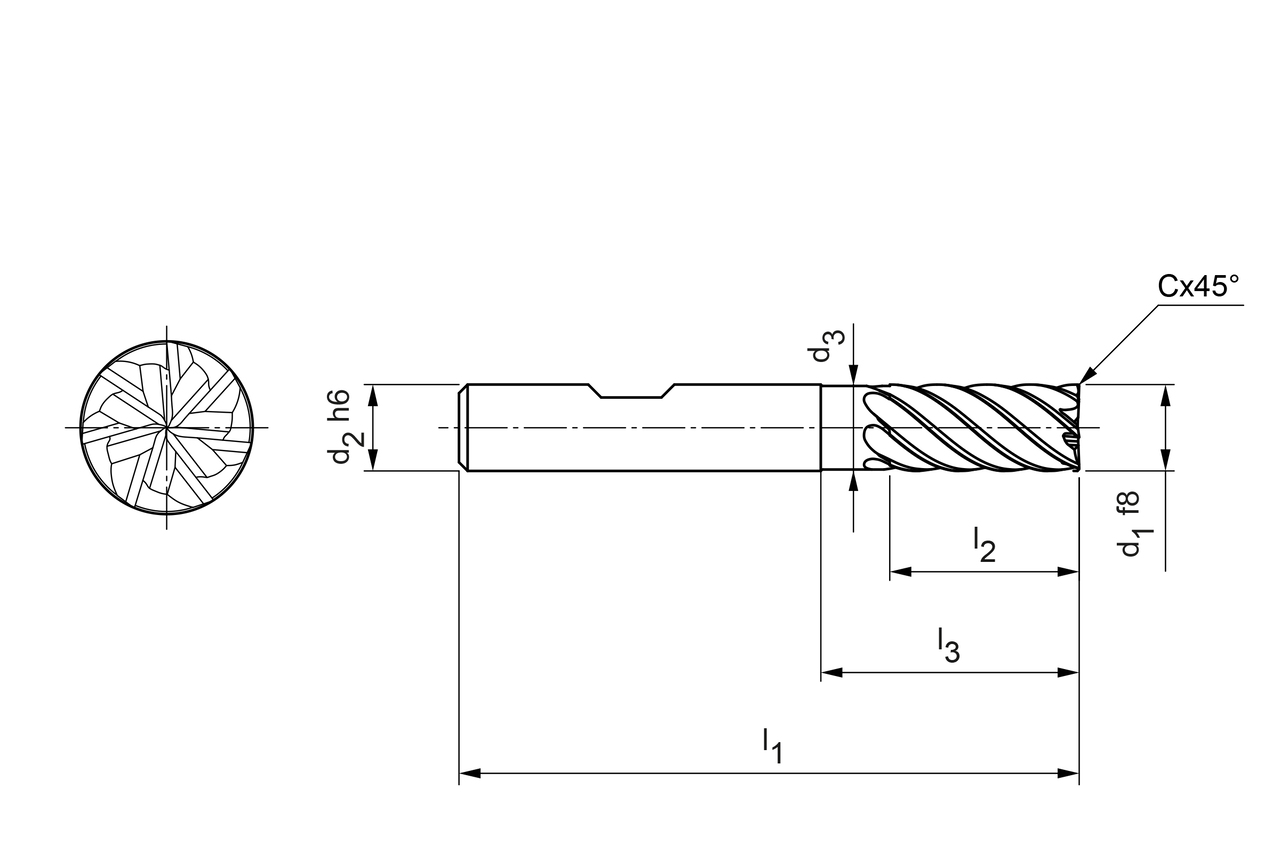

Technical specifications
- Product class
- Expert-Line
- Diameter (d1)
- 12 mm
- Shaft diameter (d2)
- 12 mm
- Cylindrical part diameter (d3)
- 11.8 mm
- Total length (l1)
- 83 mm
- Length of cutting edge (l2)
- 26 mm
- Neck length (l3)
- 36 mm
- Corner bevel width Cx45°
- 0.24 mm
- Number of cutting edges (z)
- 7
- Cooling
- external cooling
- Shank type
- HB
- Cutting material
- HP723
- Material group
- MV
Downloads
- Technical drawing in dxf
- 30855550_607583895-000-00-ED1.DXF
- Technical drawing in pdf
- 30855550_607583895-000-00-ED1.PDF
- Technical drawing in tif
- 30855550_607583895-000-00-ED1.TIF
- 3D envelope in stp
- 30855550_607583894-000-00-E43.STP
