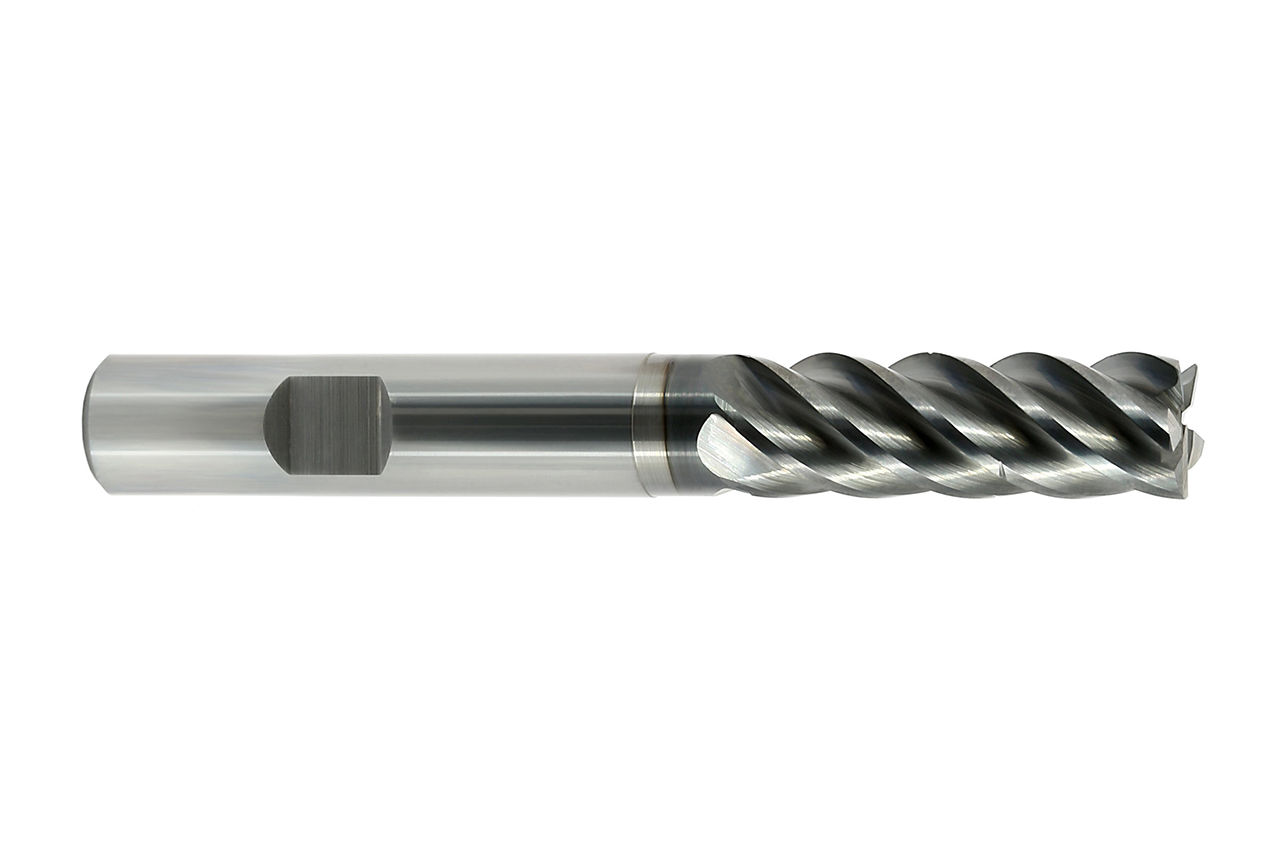

OptiMill®-Tro-PM
Durchmesser d1 (mm)
4.0
Ihr Stückpreis
*Login erforderlichProduktbeschreibung
The OptiMill-Tro-PM with seven cutting edges convinces with highest precision and unique productivity. The increased number of teeth enables higher total feed rates. This reduces the machining time and significantly increases productivity. The use of a new substrate also ensures a significantly longer tool life.

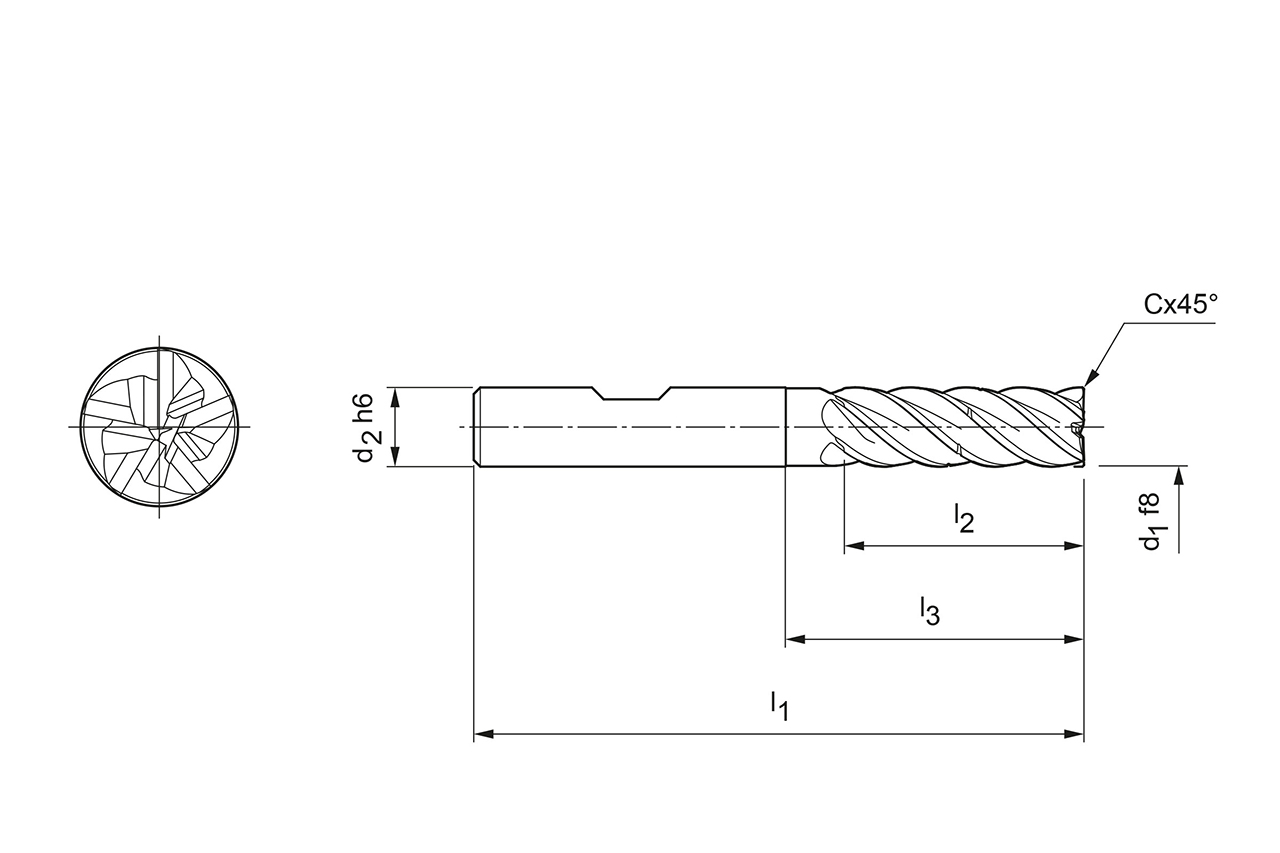

Technische Daten
- Produktklasse
- Expert-Line
- Schneidendurchmesser (d1)
- 4 mm
- Schaftdurchmesser (d2)
- 6 mm
- Durchmesser zylindrischer Anteil (d3)
- 3.9 mm
- Gesamtlänge (l1)
- 62 mm
- Schneidenlänge (l2)
- 16 mm
- Halslänge (l3)
- 23 mm
- Eckfasenbreite Cx45°
- 0.08 mm
- Konuswinkel (φ)
- 36.9 °
- Anzahl Schneiden (z)
- 5
- Kühlmittelzufuhr
- äußere Kühlmittelzufuhr
- Schaft Typ
- HB
- Schneidstoff
- HP723
- Materialgruppe
- MV
- Spezifikation
- SCM590-0400Z05R-F0008HB-HP723
Downloads
- Technische Zeichnung in dxf
- 30563364_607156359-000-00-ED1.DXF
- Technische Zeichnung in tif
- 30563364_607156359-000-00-ED1.TIF
- Cutting data recommendations
- 30563364_OptiMill-Tro-PM_EN.pdf
