OptiMill®-Tro-Inox
Diameter d1 (mm)
16.0
Your unit price
*Login requiredWe recommend:
Product description

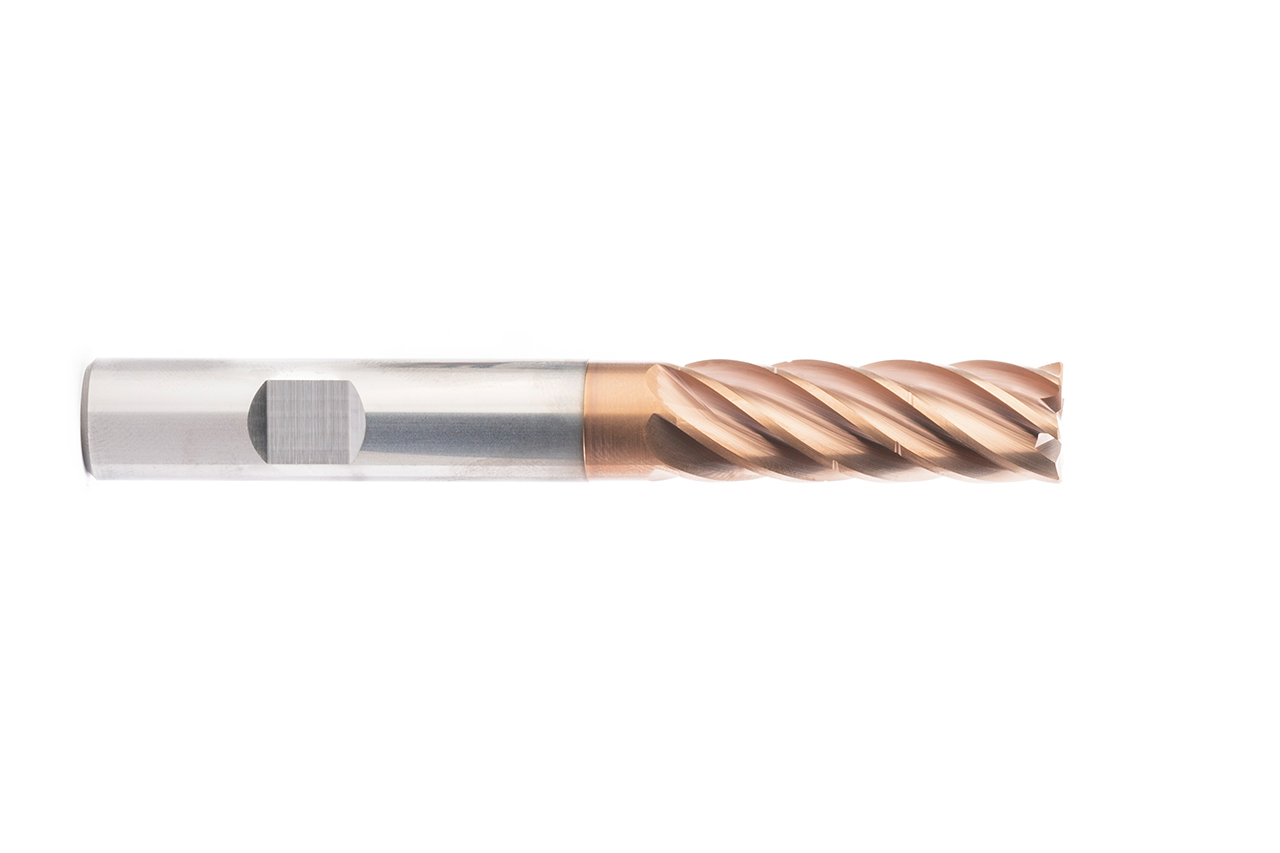

The OptiMill-Tro-Inox® corner milling cutter has been specially developed for trochoidal machining of stainless steel. The cutter has six cutting edges with optimized unevenness and geometry. These features, combined with the balancing of the cutting part to G2.5, ensure reduced vibration and high surface finishes. Material-specific chip splitters ensure trouble-free chip removal.
Technical specifications
- Product class
- Expert-Line

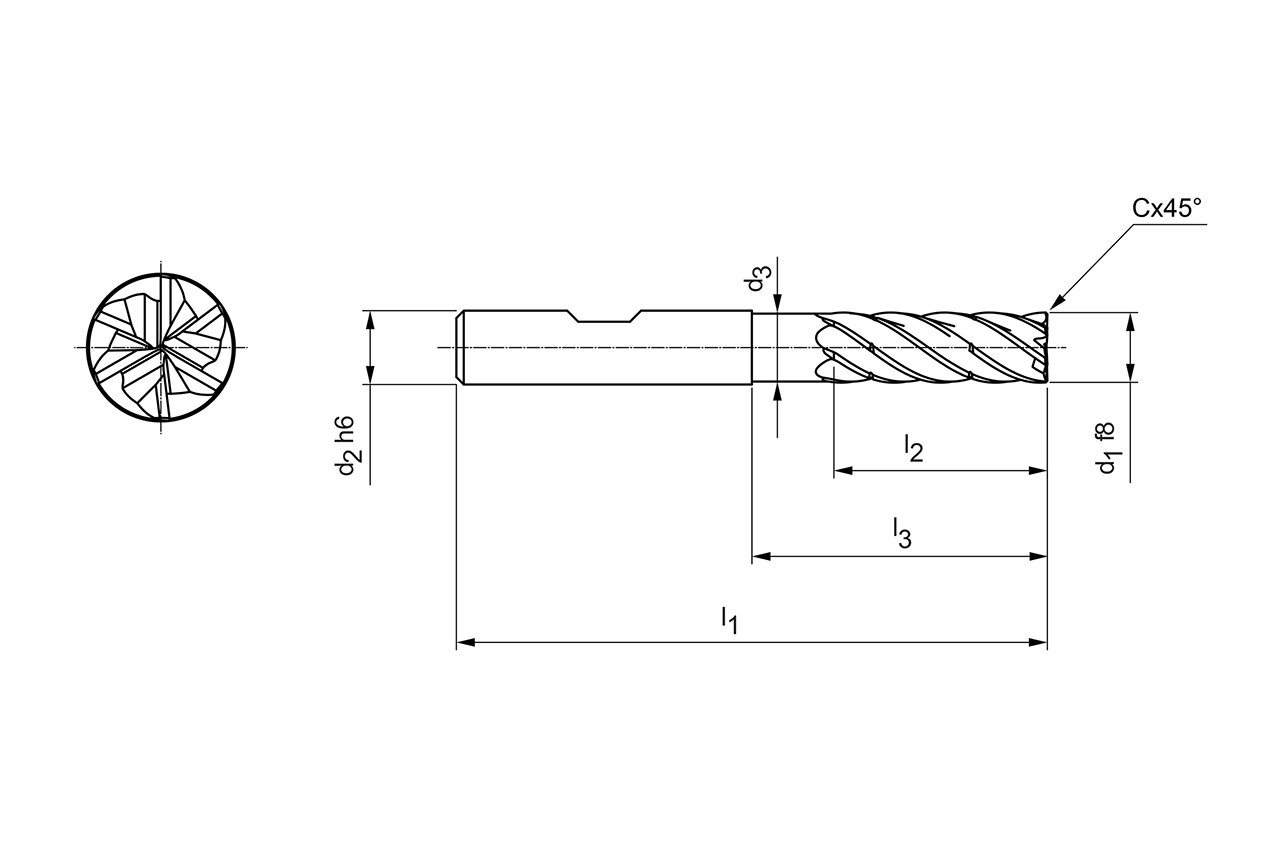

- Diameter (d1)
- 16 mm
- Shaft diameter (d2)
- 16 mm
- Cylindrical part diameter (d3)
- 15.8 mm
- Total length (l1)
- 108 mm
- Length of cutting edge (l2)
- 48 mm
- Neck length (l3)
- 55 mm
- Corner bevel width Cx45°
- 0.32 mm
- Number of cutting edges (z)
- 6
- Cooling
- external cooling
- Shank type
- HB
- Material group
- MV
