OptiMill®-Inox-HPC
Diameter d1 (mm)
8.0
Your unit price
*Login requiredWe recommend:
Product description

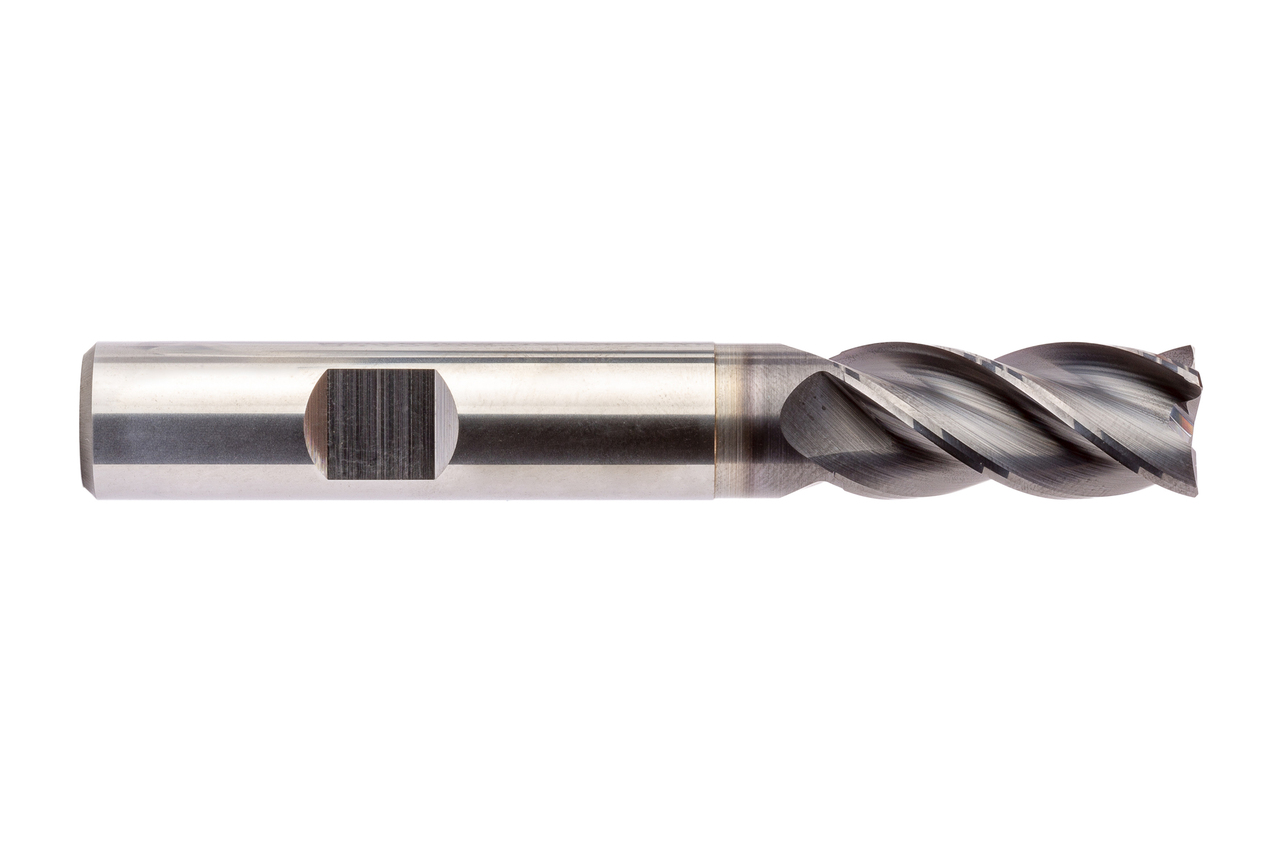

The OptiMill-Inox-HPC four-edged corner cutter is a versatile tool. The solid carbide end mill can perform both roughing and finishing operations. Its special cutting edge preparation generates optimal surfaces with particularly low vibration running. Thanks to its AlTiN-based multilayer coating, it is ideally suited for machining stainless steel.
Technical specifications
- Product class
- Performance-Line

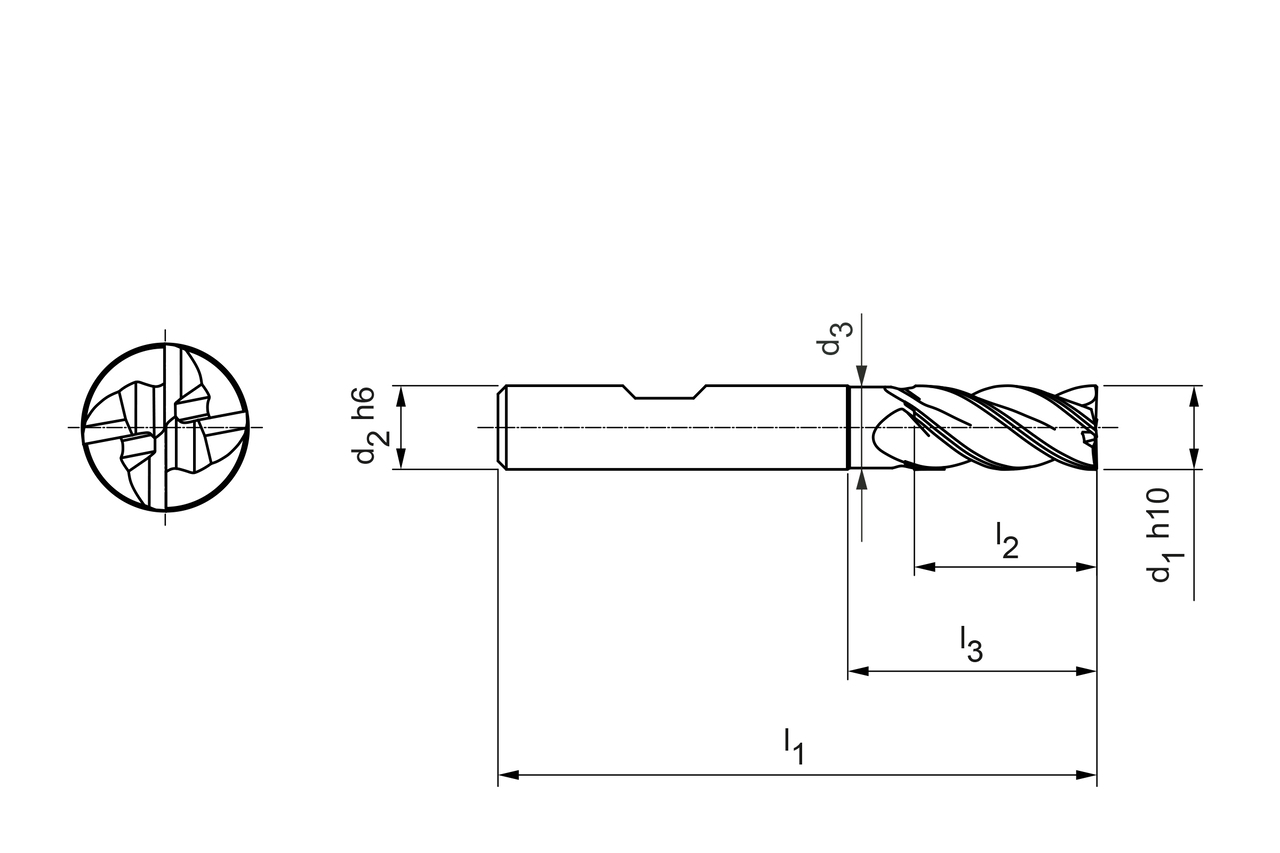

- Diameter (d1)
- 8 mm
- Shaft diameter (d2)
- 8 mm
- Cylindrical part diameter (d3)
- 7.8 mm
- Total length (l1)
- 63 mm
- Length of cutting edge (l2)
- 19 mm
- Neck length (l3)
- 25 mm
- Corner bevel width Cx45°
- 0.16 mm
- Number of cutting edges (z)
- 4
- Cooling
- external cooling
- Shank type
- HB
- Material group
- MV
Downloads
- 3D envelope in stp
- 31181482_608080576-000-00-E43.STP
- Technical drawing in tif
- 31181482_608080577-000-00-ED1.TIF
- Technical drawing in pdf
- 31181482_608080577-000-00-ED1.PDF
- Technical drawing in dxf
- 31181482_608080577-000-00-ED1.DXF
- Brochure OptiMill-Inox-HPC
- 31181482_OptiMill-Inox-HPC__EN.pdf
