OptiMill®-Hardened
Diameter d1 (mm)
20.0
Your unit price
*Login requiredUnsere Produktempfehlung:
Product description

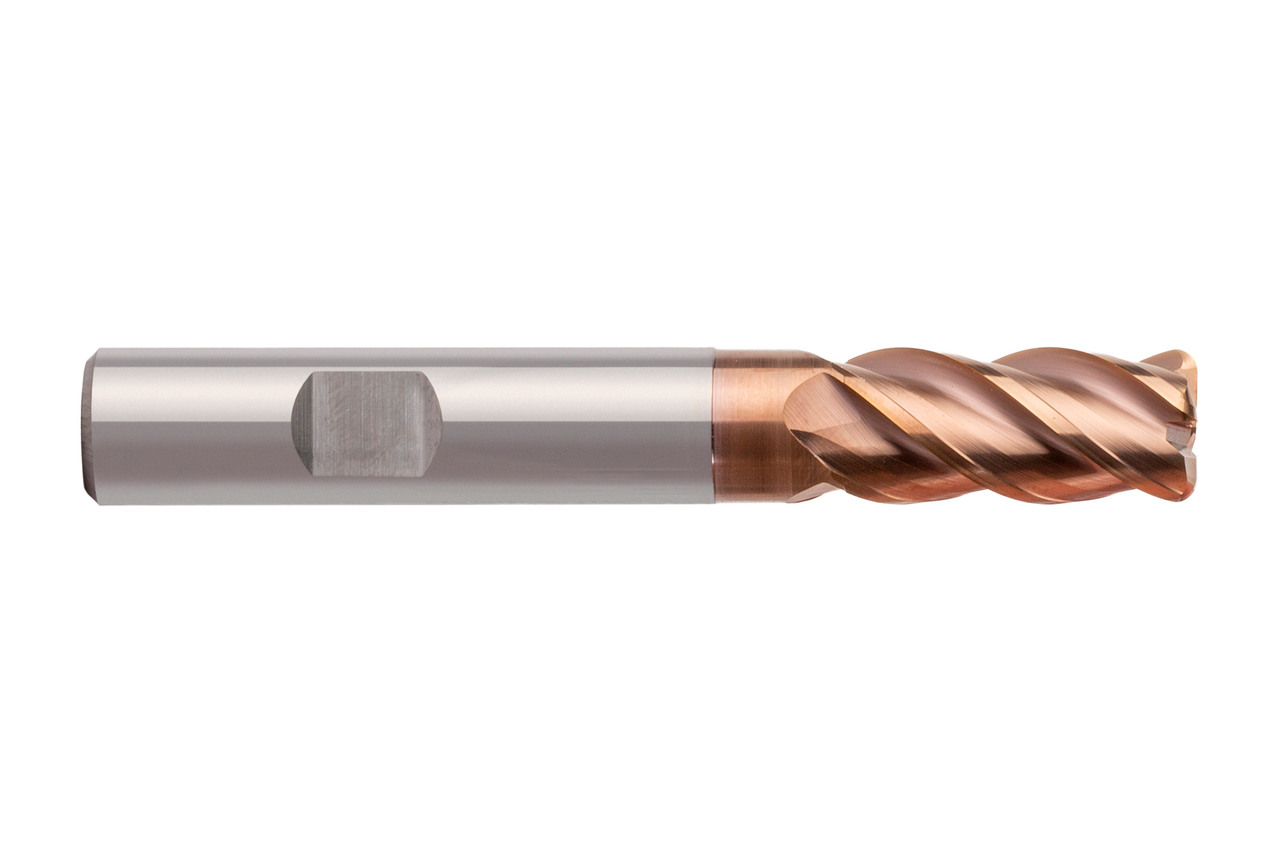

The OptiMill-Hardened® corner milling cutter has been specially developed for roughing hardened steel. The 4-edged milling cutter has a robust cutting edge and, thanks to a very wear-resistant coating, is ideal for roughing components with a hardness of 45 HRC or more.
Material suitability
P
P1
P2
P3
P4
P5
P6
M
M1
M2
M3
K
K1
K2
K3
N
N1
N2
N3
N4
S
S1
S2
S3
S4
S5
H
H1
H2
H3

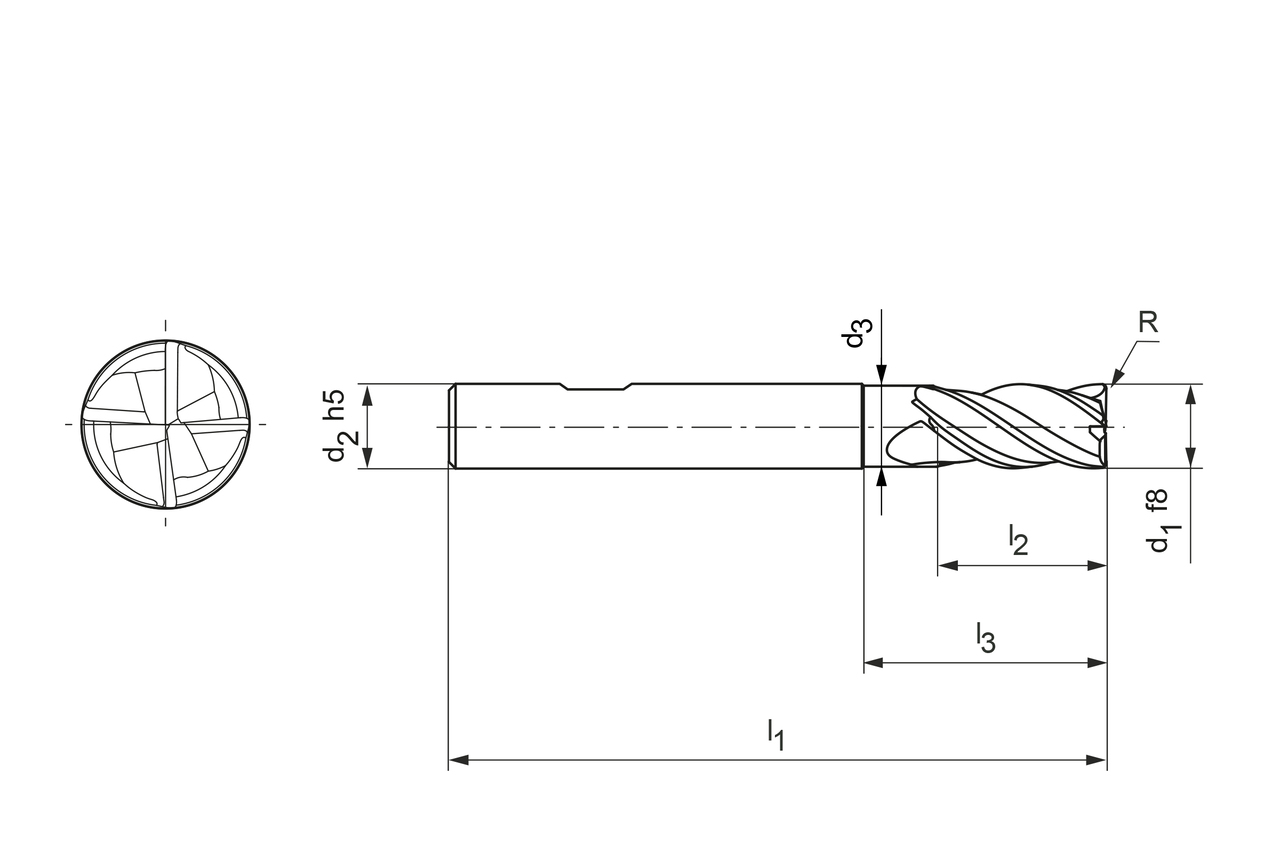

Technical specifications
- Produktklasse
- Performance-Line
- Schneidendurchmesser (d1)
- 20 mm
- Schaftdurchmesser (d2)
- 20 mm
- Durchmesser zylindrischer Anteil (d3)
- 19.8 mm
- Gesamtlänge (l1)
- 104 mm
- Schneidenlänge (l2)
- 41 mm
- Halslänge (l3)
- 52 mm
- Eckenradius (R)
- 2 mm
- Anzahl Schneiden (z)
- 4
- Kühlmittelzufuhr
- äußere Kühlmittelzufuhr
- Schaft Typ
- HB
- Schneidstoff
- HP810
- Materialgruppe
- MV
- Spezifikation
- SCM102-2000Z04R-R0200HB-HP810
Downloads
- Technische Zeichnung in dxf
- 31152735_608039951-000-00-ED1.DXF
- Technische Zeichnung in pdf
- 31152735_608039951-000-00-ED1.PDF
- Technische Zeichnung in tif
- 31152735_608039951-000-00-ED1.TIF
- Technische Zeichnung in dxf
- 31152735_608039951-000-00-ED1_SILHOUETTE.DXF
- Technische Zeichnung in dxf
- 31152735_608039951-000-00-ED1_TG.DXF
- 3D Hüllkontur in stp
- 31152735_608039953-000-00-E43.STP
- 3D Hüllkontur in stp
- 31152735_608039954-000-00-E43.STP
- Cutting data recommendations
- 31152735_OptiMill-Hardened_EN.pdf
