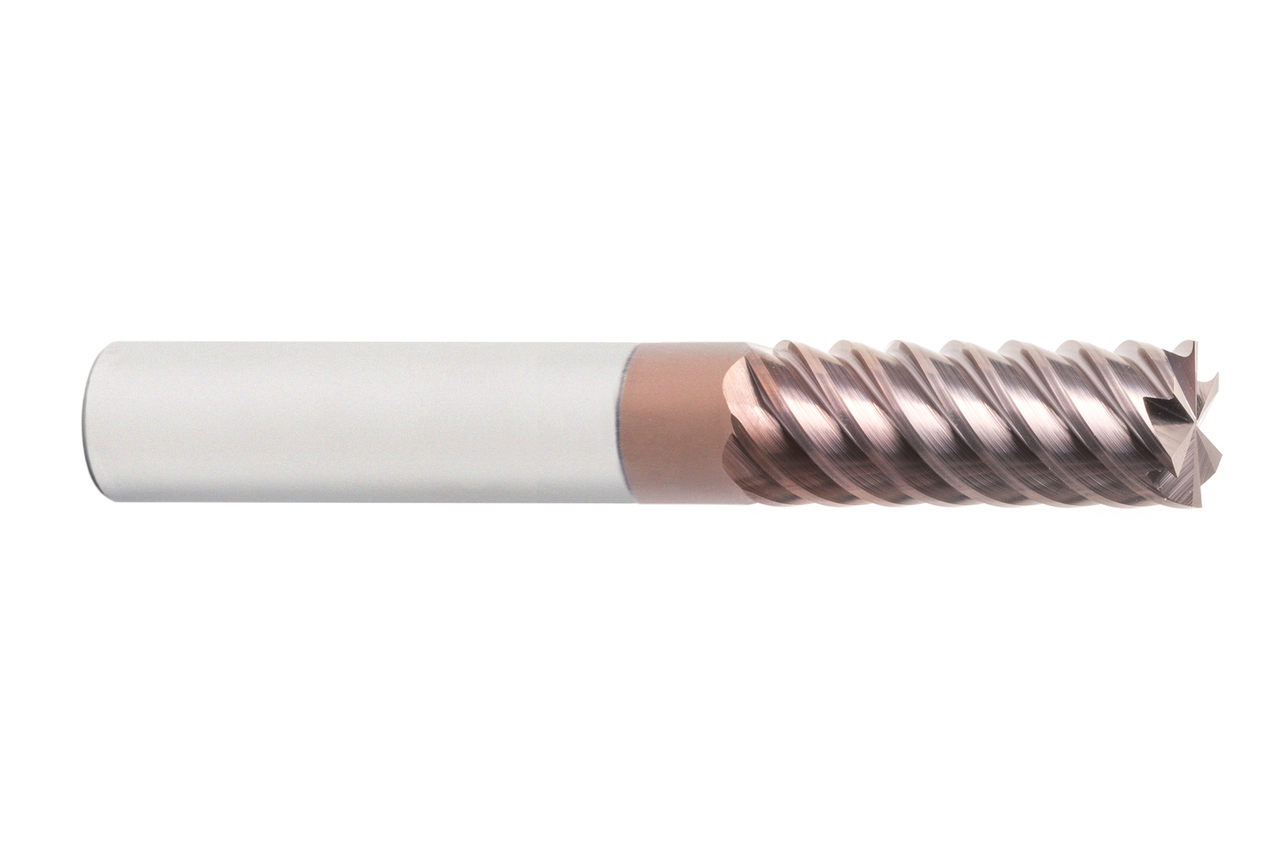

OptiMill®-Hardened-Finish
Diameter d1 (mm)
16.0
Your unit price
*Login requiredWe recommend:
Technical specifications
- Product class
- Performance-Line
- Diameter (d1)
- 16 mm
- Shaft diameter (d2)
- 16 mm
- Total length (l1)
- 92 mm
- Length of cutting edge (l2)
- 32 mm
- Corner radius (R)
- 0.5 mm
- Number of cutting edges (z)
- 6
- Cooling
- external cooling
- Shank type
- HA
- Material group
- MV
Downloads
- Technical drawing in dxf
- 31199109_608035406-000-00-ED1.DXF
- Technical drawing in pdf
- 31199109_608035406-000-00-ED1.PDF
- Technical drawing in tif
- 31199109_608035406-000-00-ED1.TIF
- Technical drawing in dxf
- 31199109_608035406-000-00-ED1_SILHOUETTE.DXF
- Technical drawing in dxf
- 31199109_608035406-000-00-ED1_TG.DXF
- 3D envelope in stp
- 31199109_608035408-000-00-E43.STP
- 3D envelope in stp
- 31199109_608035409-000-00-E43.STP
