OptiMill®-Alu-Wave
Diameter d1 (mm)
25.0
Your unit price
*Login requiredUnsere Produktempfehlung:
Product description

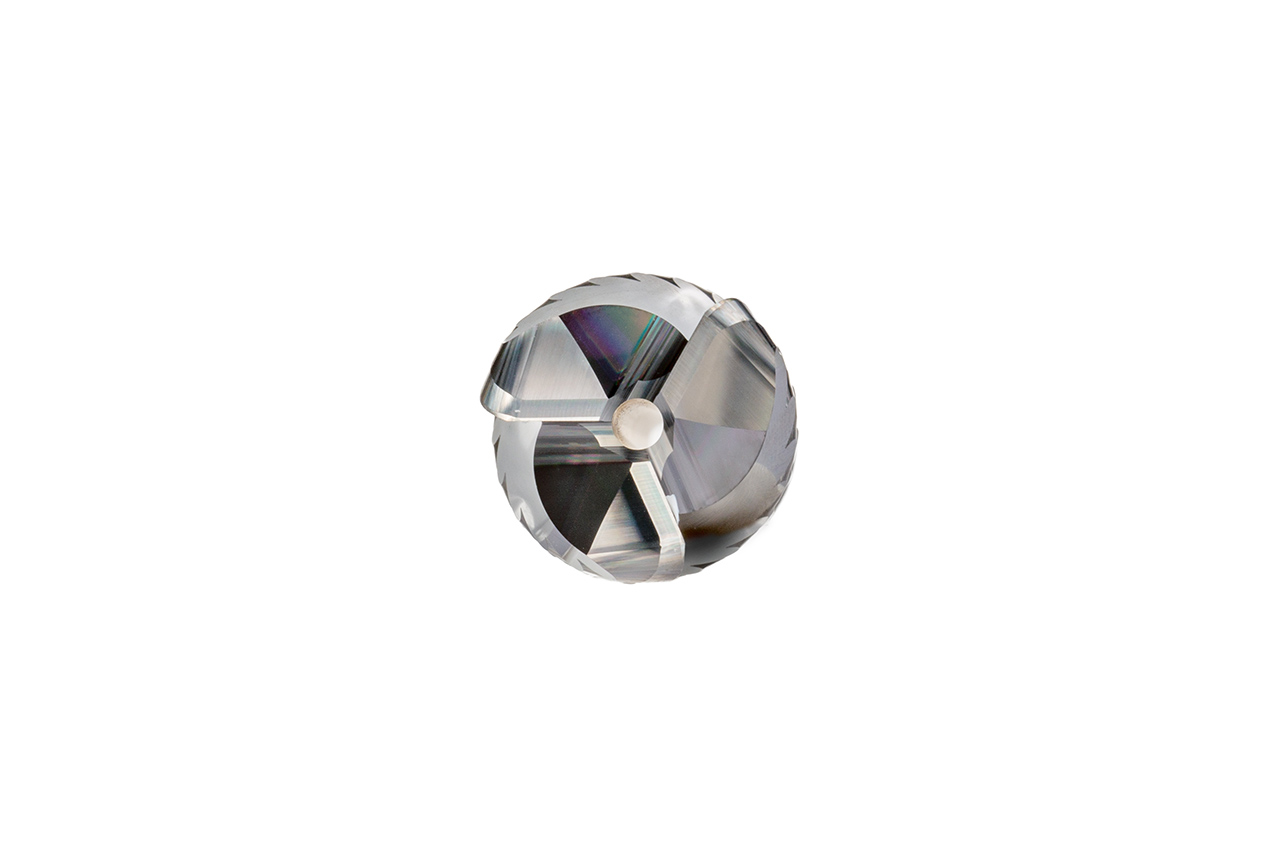

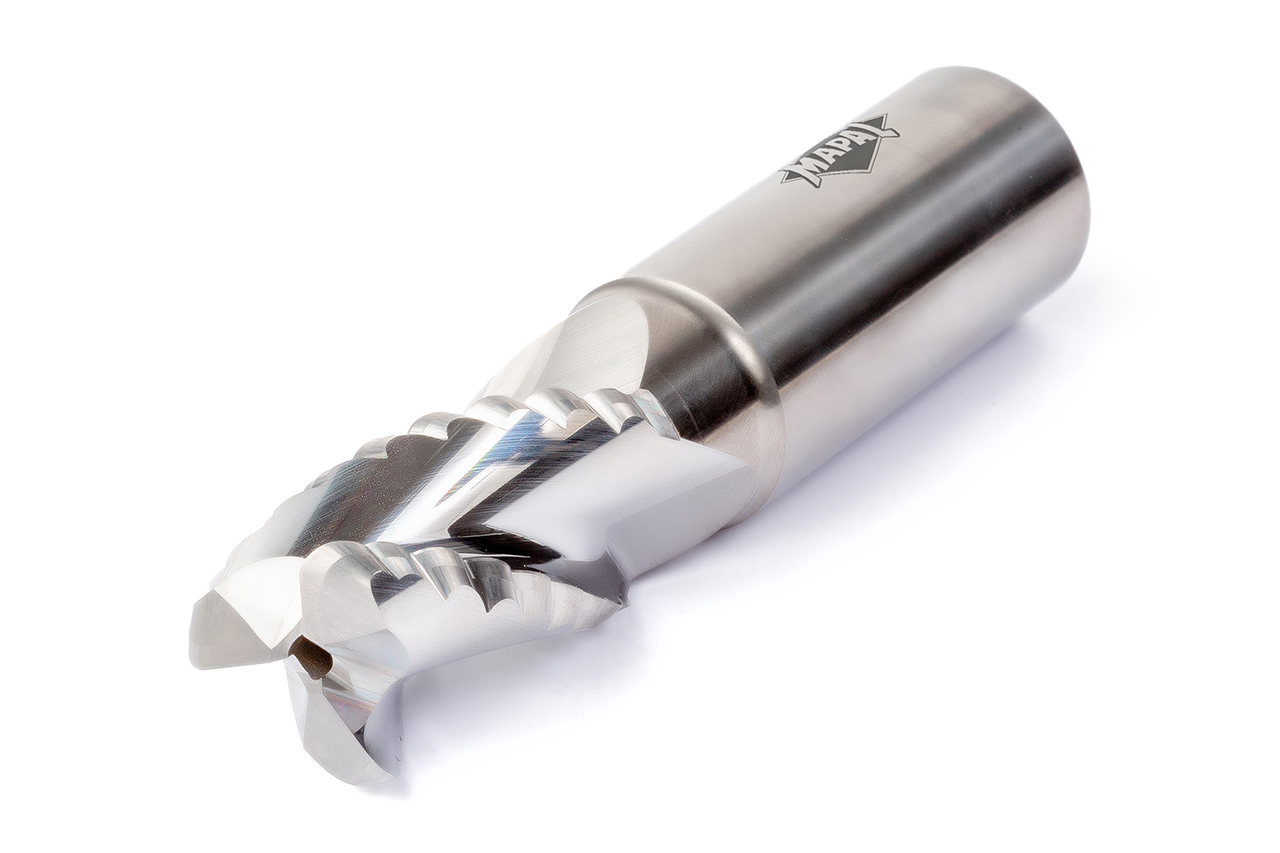

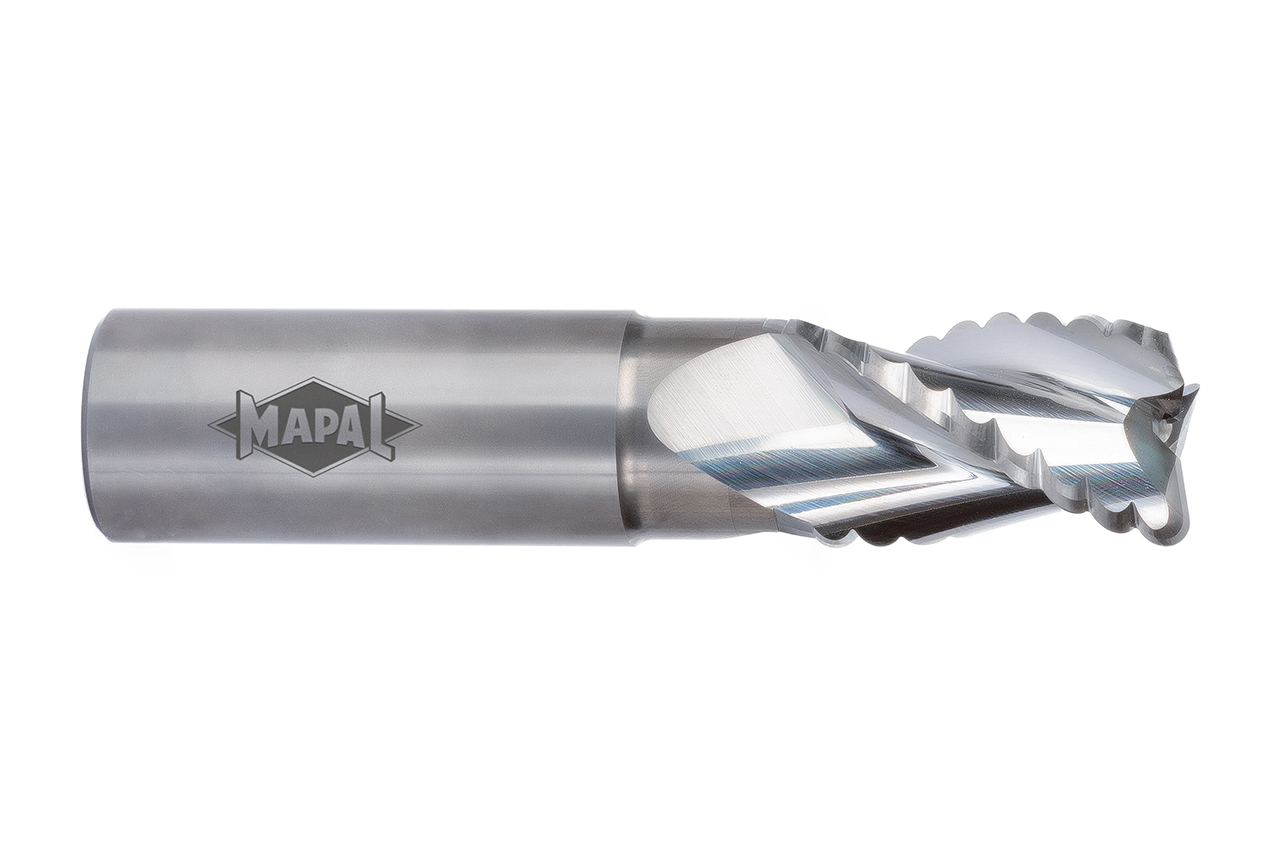

The OptiMill-Alu-Wave corner milling cutter is a newly developed roughing cutter for machining aluminum materials. With its unique cord roughing geometry, it produces short chips and ensures a smooth cutting behavior. The cutter has a central cooling channel that minimizes the formation of build-up cutting edges and safely remove the chips.

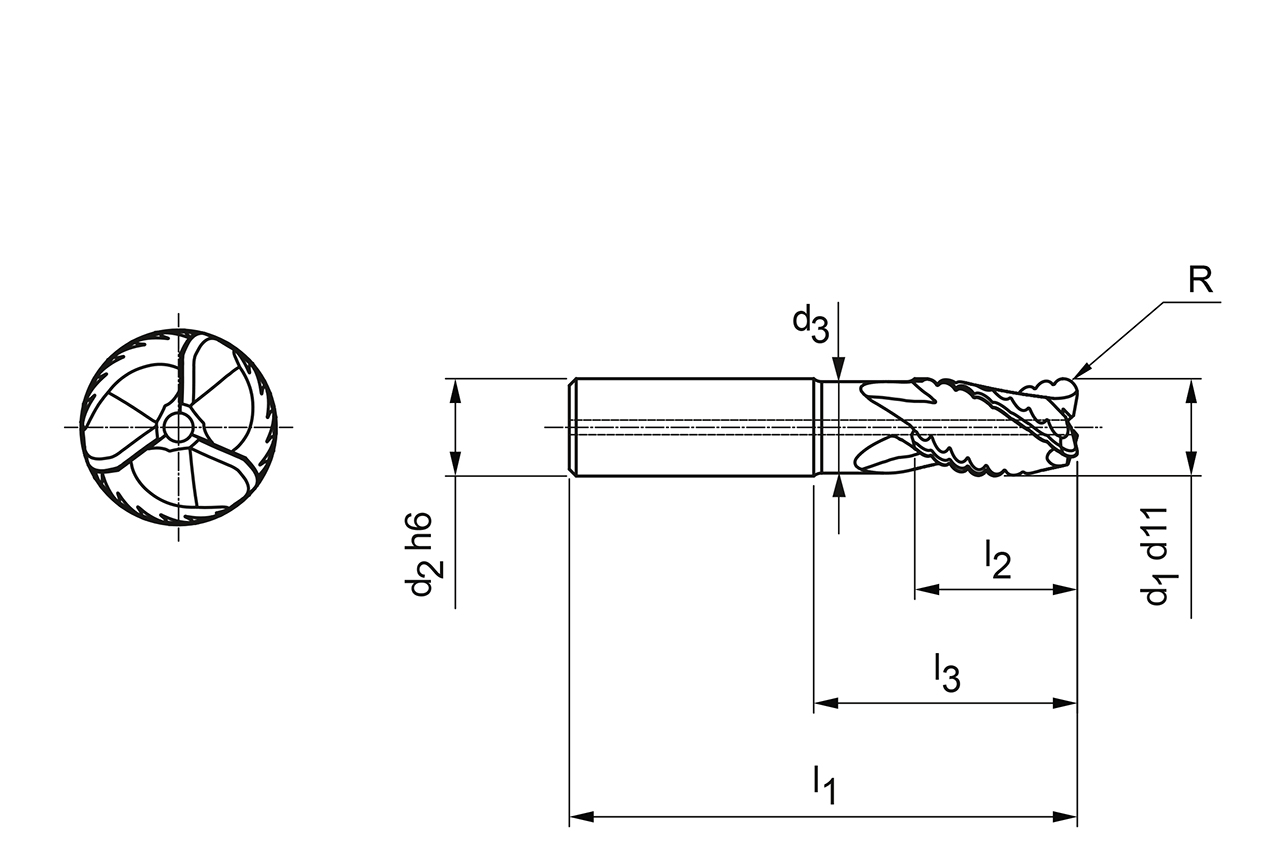

Technical specifications
- Produktklasse
- Performance-Line
- Schneidendurchmesser (d1)
- 25 mm
- Schaftdurchmesser (d2)
- 25 mm
- Durchmesser zylindrischer Anteil (d3)
- 23.5 mm
- Gesamtlänge (l1)
- 114 mm
- Schneidenlänge (l2)
- 40 mm
- Halslänge (l3)
- 58 mm
- Eckenradius (R)
- 4 mm
- Anzahl Schneiden (z)
- 3
- Kühlmittelzufuhr
- innere Kühlmittelzufuhr
- Schaft Typ
- HA
- Schneidstoff
- HU318
- Materialgruppe
- MV
- Spezifikation
- SCM109-2500Z03R-R0400HA-HU318
Downloads
- 3D Hüllkontur in stp
- 31430834_608133777-000-00-E43.STP
- Technische Zeichnung in tif
- 31430834_608133776-000-00-ED1.TIF
- Technische Zeichnung in dxf
- 31430834_608133776-000-00-ED1.DXF
- Brochure OptiMill®-Alu-Wave
- 31430834_MAPAL_OptiMill-Alu-Wave_EN.pdf
