OptiMill®-Alu-Wave
Diameter d1 (mm)
16.0
Your unit price
*Login requiredWe recommend:
Product description

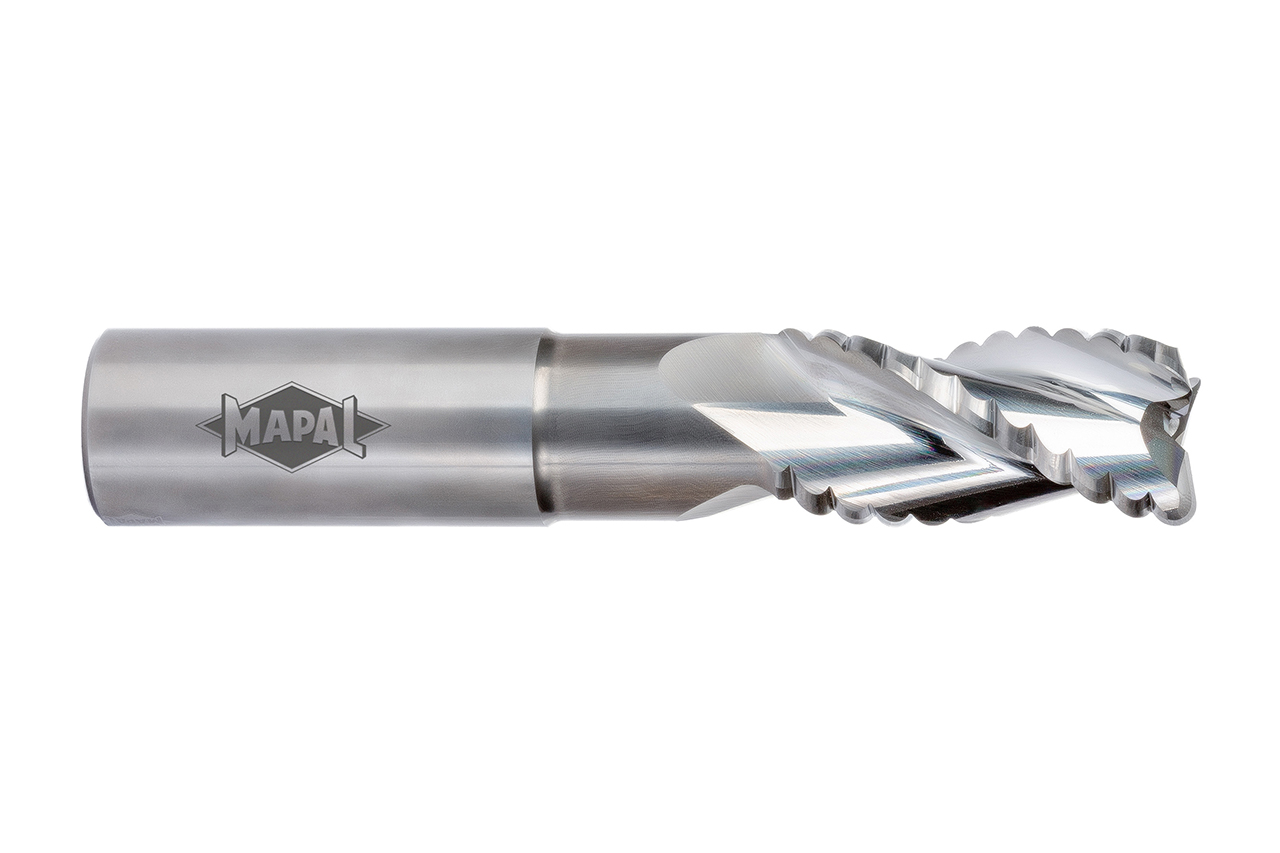

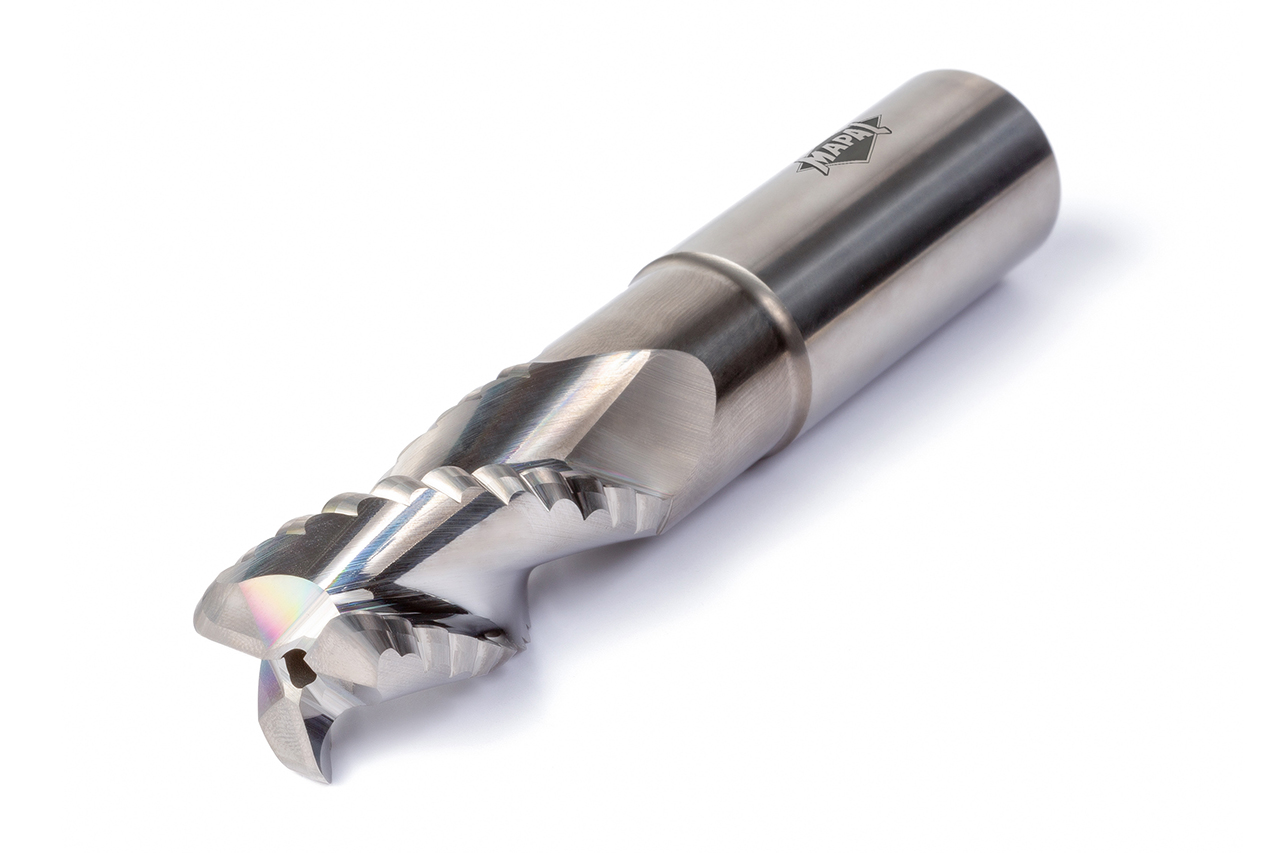

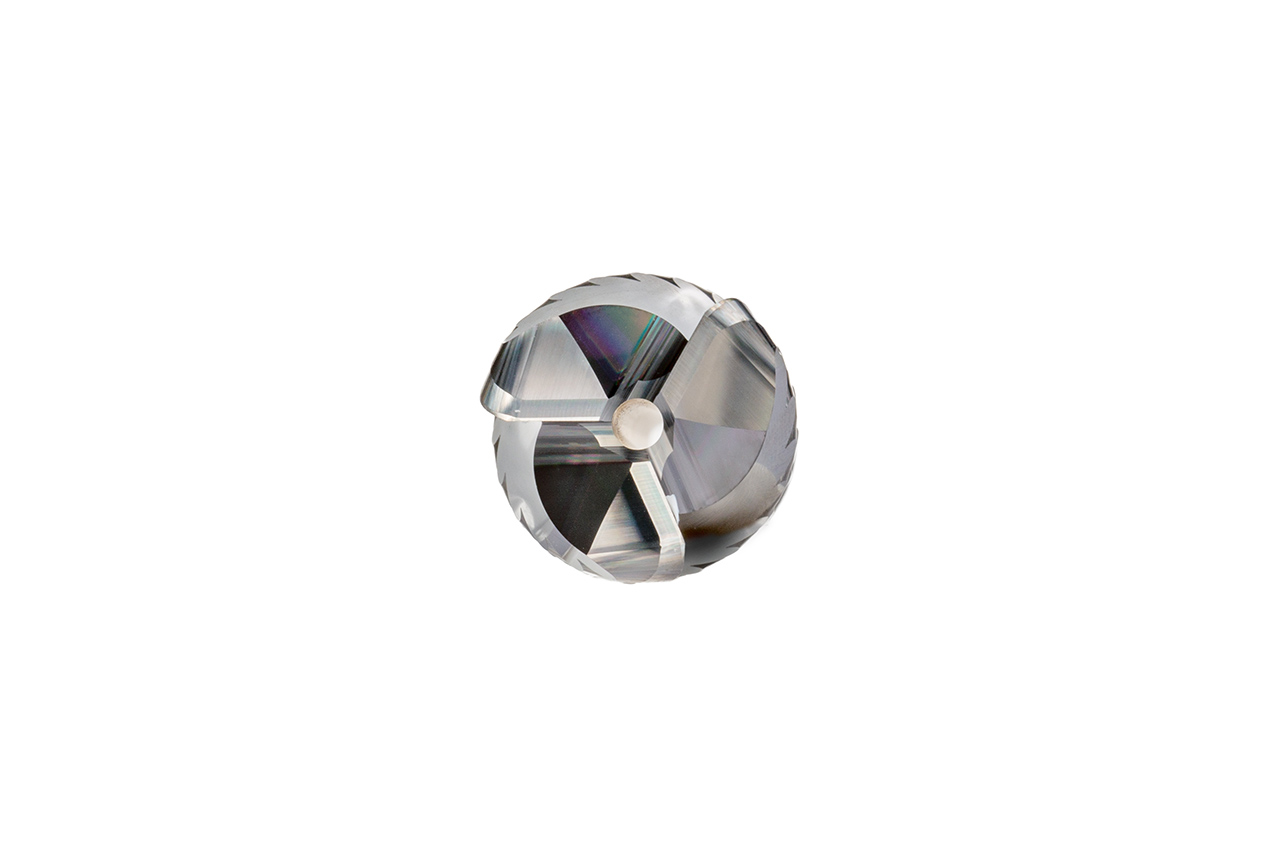

The OptiMill-Alu-Wave corner milling cutter is a newly developed roughing cutter for machining aluminum materials. With its unique cord roughing geometry, it produces short chips and ensures a smooth cutting behavior. The cutter has a central cooling channel that minimizes the formation of build-up cutting edges and safely remove the chips.
Technical specifications
- Product class
- Performance-Line
- Diameter (d1)
- 16 mm
- Shaft diameter (d2)
- 16 mm
- Cylindrical part diameter (d3)
- 15.1 mm
- Total length (l1)
- 115 mm
- Length of cutting edge (l2)
- 32 mm
- Neck length (l3)
- 65 mm
- Corner radius (R)
- 3 mm
- Number of cutting edges (z)
- 3
- Shank type
- HA
- Cutting material
- HU318
- Material group
- MV
Downloads

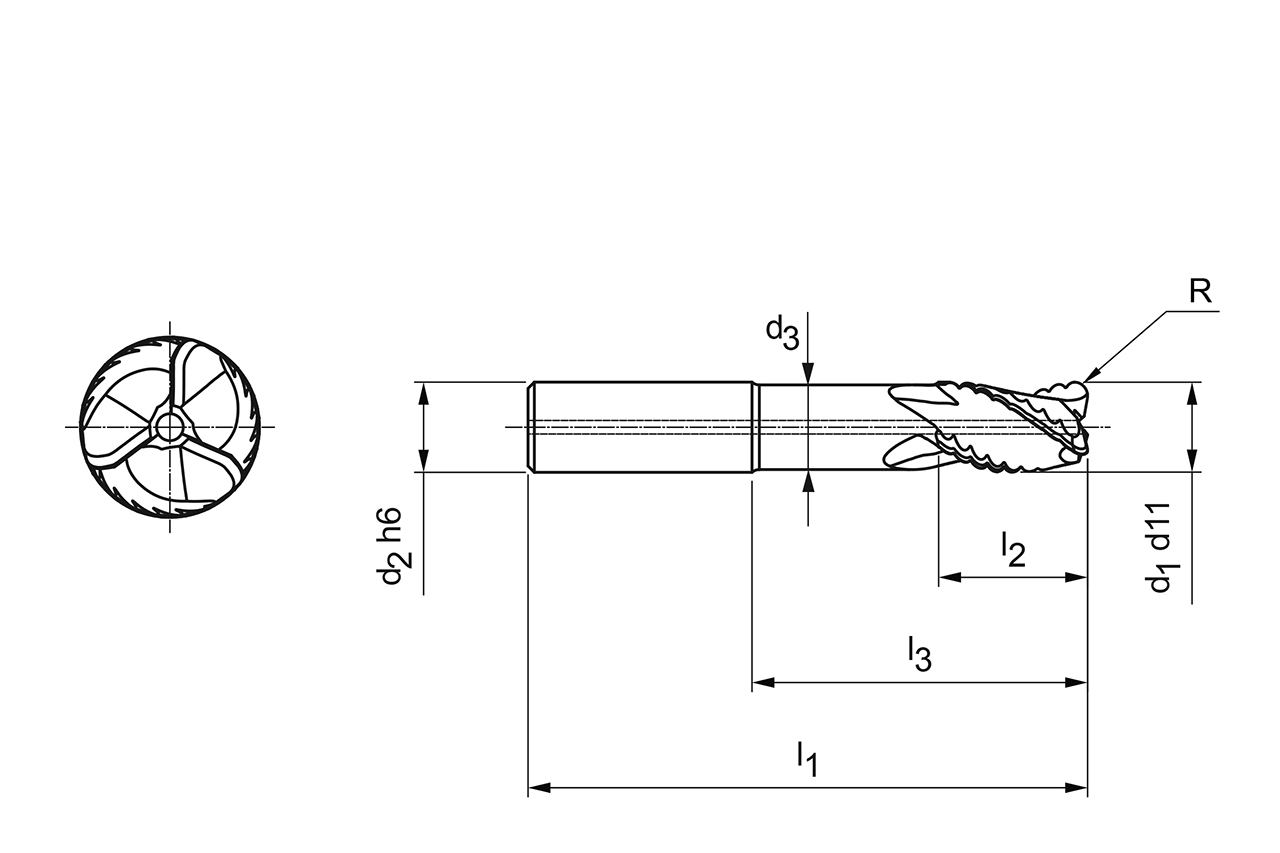

- Technical drawing in tif
- 31430825_608055491-000-00-ED1.TIF
- Technical drawing in pdf
- 31430825_608055491-000-00-ED1.PDF
- Technical drawing in dxf
- 31430825_608055491-000-00-ED1.DXF
- 3D envelope in stp
- 31430825_608055492-000-00-E43.STP
- Brochure OptiMill®-Alu-Wave
- 31430825_MAPAL_OptiMill-Alu-Wave_EN.pdf
