OptiMill®-3D-HF
Diameter d1 (mm)
2.0
Your unit price
*Login requiredProduct description

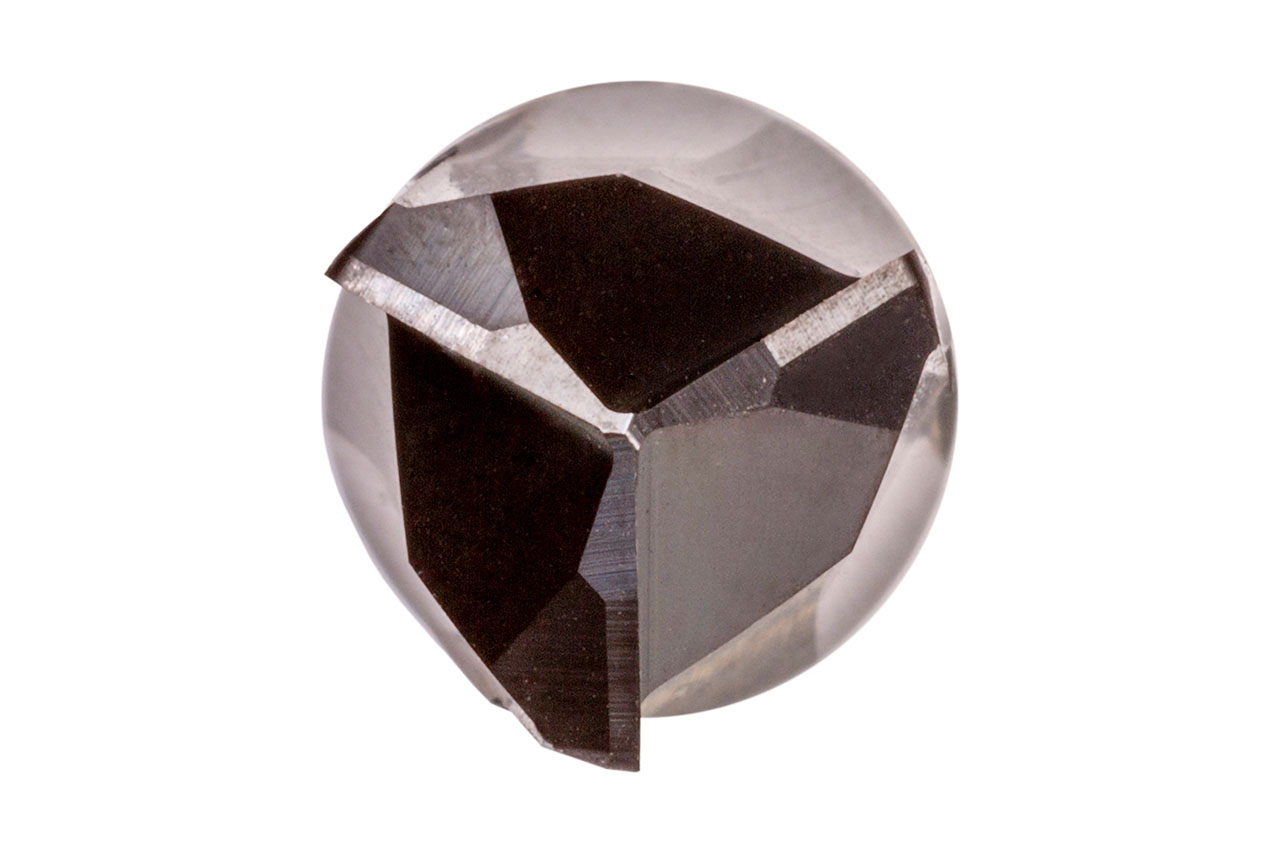

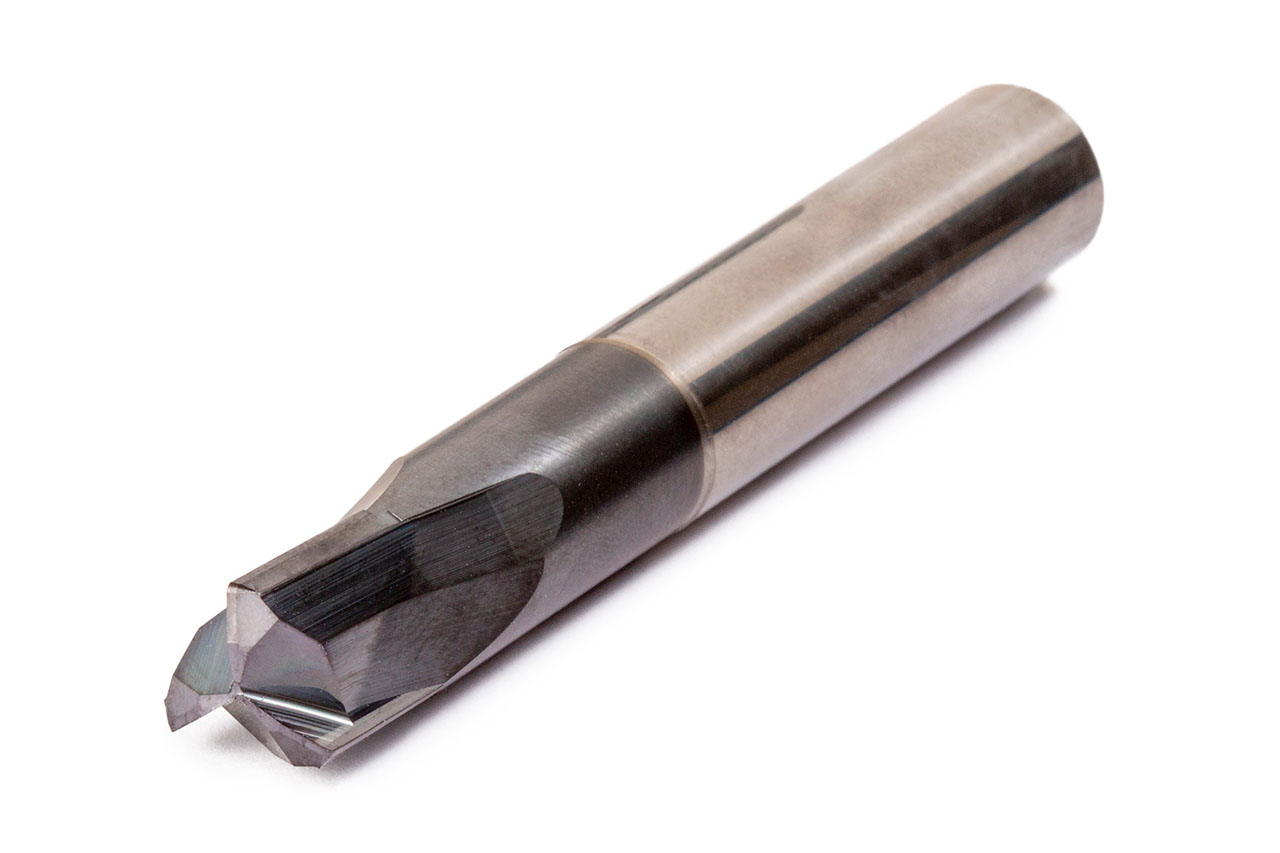

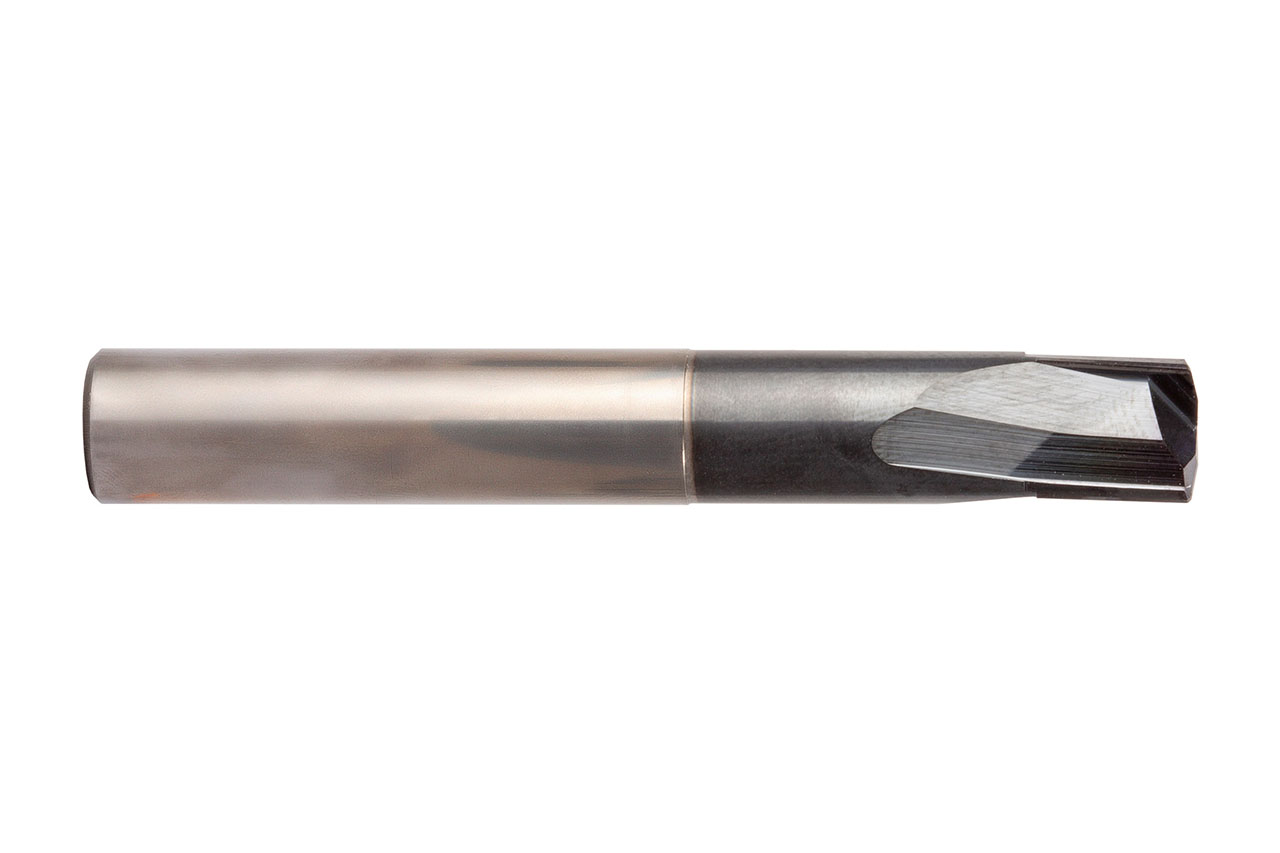

The OptiMill®-3D-HF high feed milling cutter was specially developed for roughing components with a hardness of up to 55 HRC. The high feed cutter is characterised by its proven face geometry and smooth running and is ideally suited for high feed machining with large metal removal rates and high process reliability.

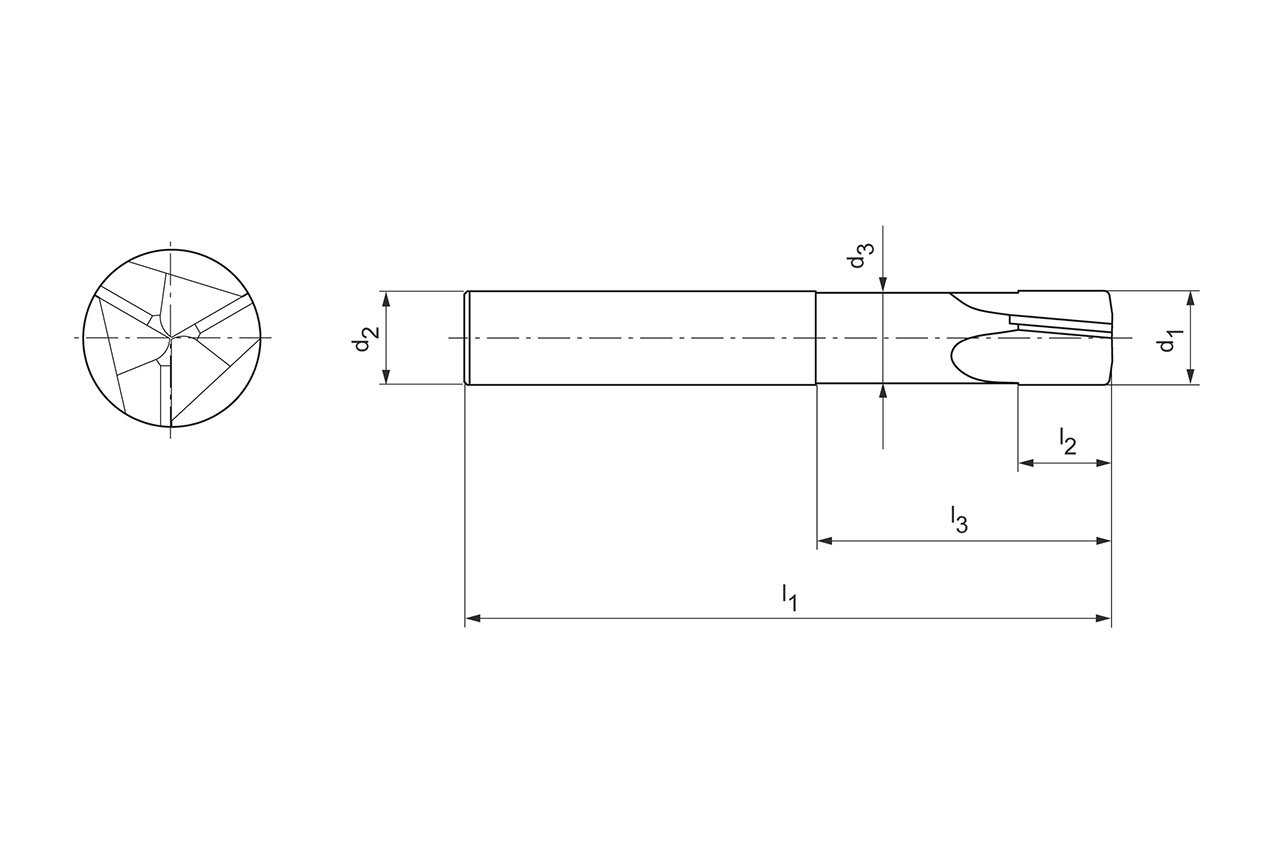

Technical specifications
- Product class
- Performance-Line
- Diameter (d1)
- 2 mm
- Shaft diameter (d2)
- 4 mm
- Cylindrical part diameter (d3)
- 1.9 mm
- Total length (l1)
- 50 mm
- Length of cutting edge (l2)
- 2 mm
- Neck length (l3)
- 6 mm
- Corner radius (R)
- 0.1 mm
- Number of cutting edges (z)
- 3
- Cooling
- external cooling
- Shank type
- HA
- Material group
- RC
Downloads
- Technical drawing in tif
- 31150882_608083166-000-00-ED1.TIF
- Technical drawing in pdf
- 31150882_608083166-000-00-ED1.PDF
- Technical drawing in dxf
- 31150882_608083166-000-00-ED1.DXF
- 3D envelope in stp
- 31150882_608083168-000-00-E43.STP
