OptiMill®-3D-CR
Price reduction %
Diameter d1 (mm)
2.0
Your unit price

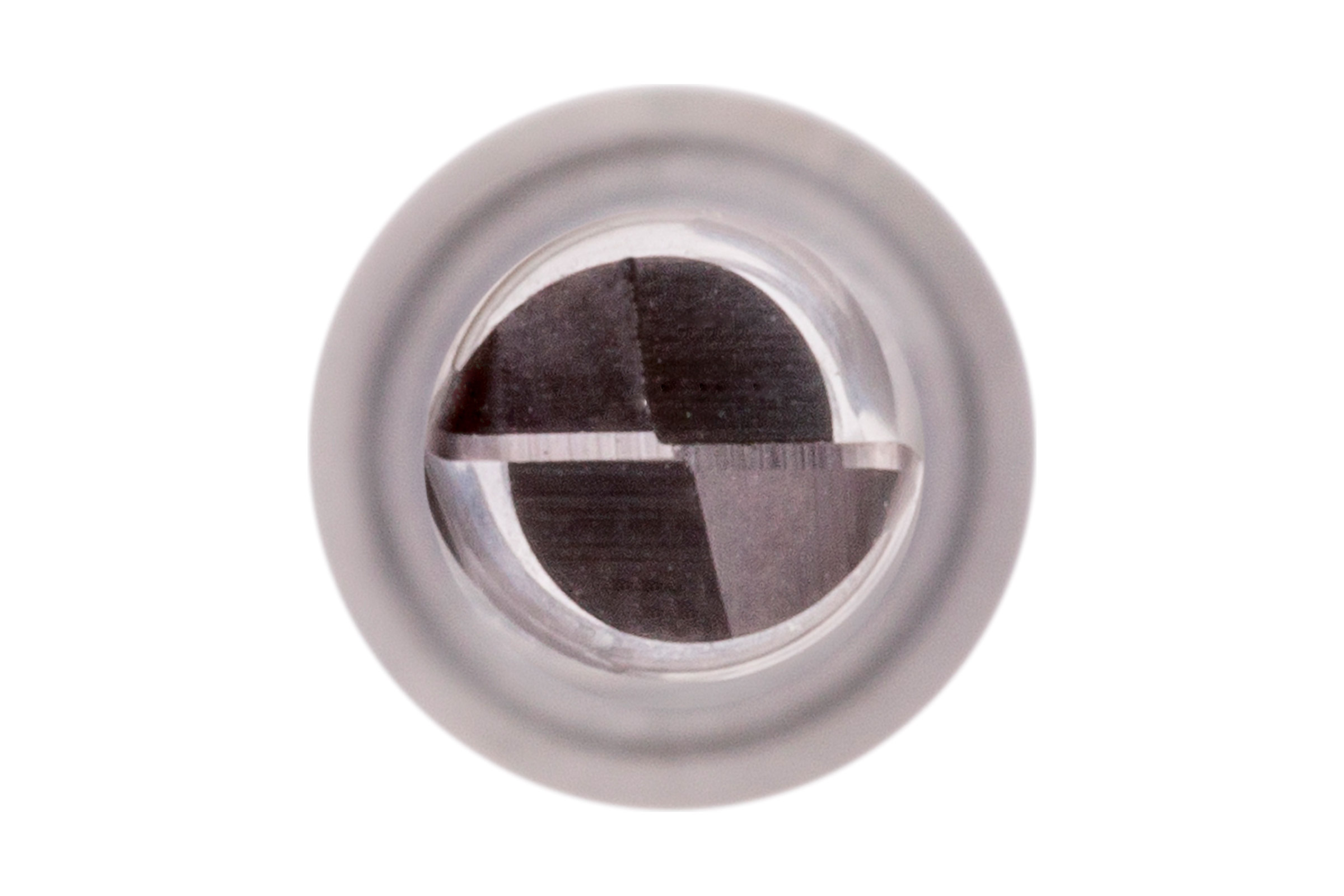

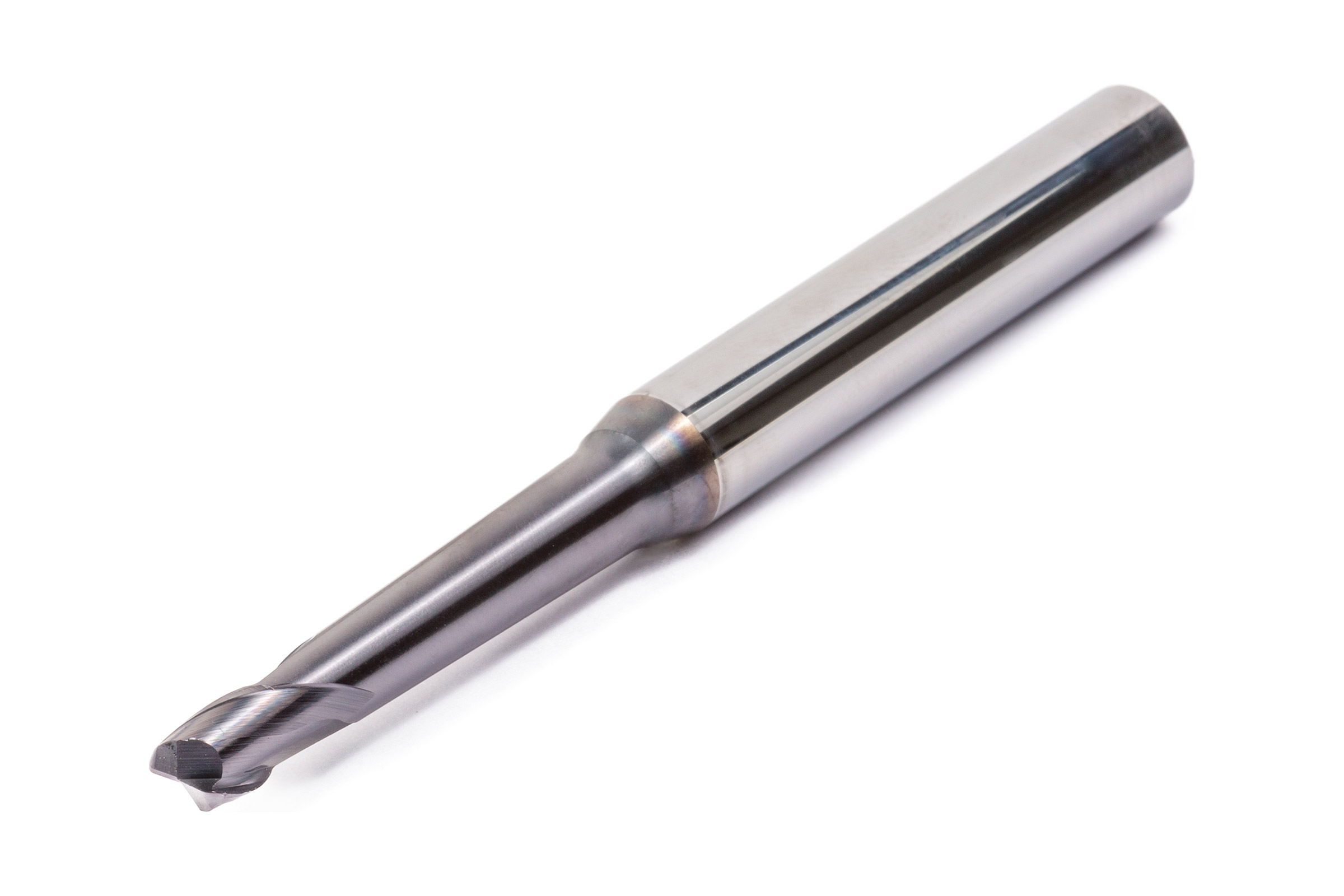

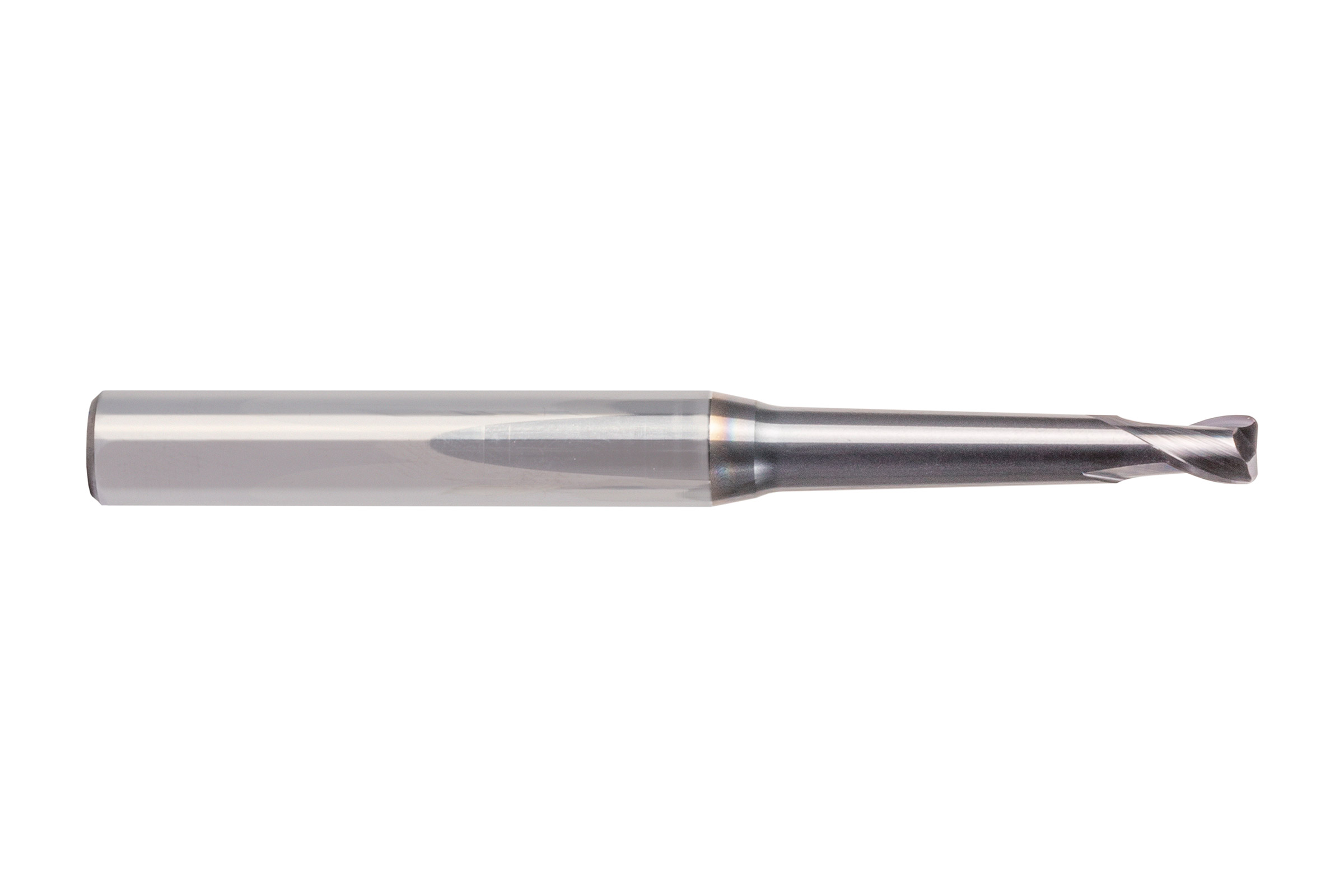

*Login requiredProduct description
The OptiMill-3D-CR corner radius milling cutter has been specially developed for machining materials up to 55 HRC. It is characterized by a high-precision corner radius with high radius accuracy, making it ideal for finishing 3D shapes. In addition to an extremely heat-resistant coating and a special carbide substrate, these tools are characterized by the dimensions and geometries specially adapted to mold making.
Material suitability
P
P1
P2
P3
P4
P5
P6
M
M1
M2
M3
K
K1
K2
K3
N
N1
N2
N3
N4
S
S1
S2
S3
S4
S5
H
H1
H2
H3
Technical specifications
- Produktklasse
- Performance-Line
- Schneidendurchmesser (d1)
- 2 mm
- Schaftdurchmesser (d2)
- 6 mm
- Gesamtlänge (l1)
- 60 mm
- Schneidenlänge (l2)
- 2.3 mm
- Halslänge (l3)
- 20 mm
- Eckenradius (R)
- 0.5 mm
- Konuswinkel (φ)
- 1 °
- Anzahl Schneiden (z)
- 2
- Kühlmittelzufuhr
- äußere Kühlmittelzufuhr
- Schaft Typ
- HA
- Schneidstoff
- HP803
- Materialgruppe
- RC
- Spezifikation
- MCR102-020-0050-2000B060-HP803
Downloads
- 3D Hüllkontur in stp
- 31154083_607641440-000-01-E43.STP

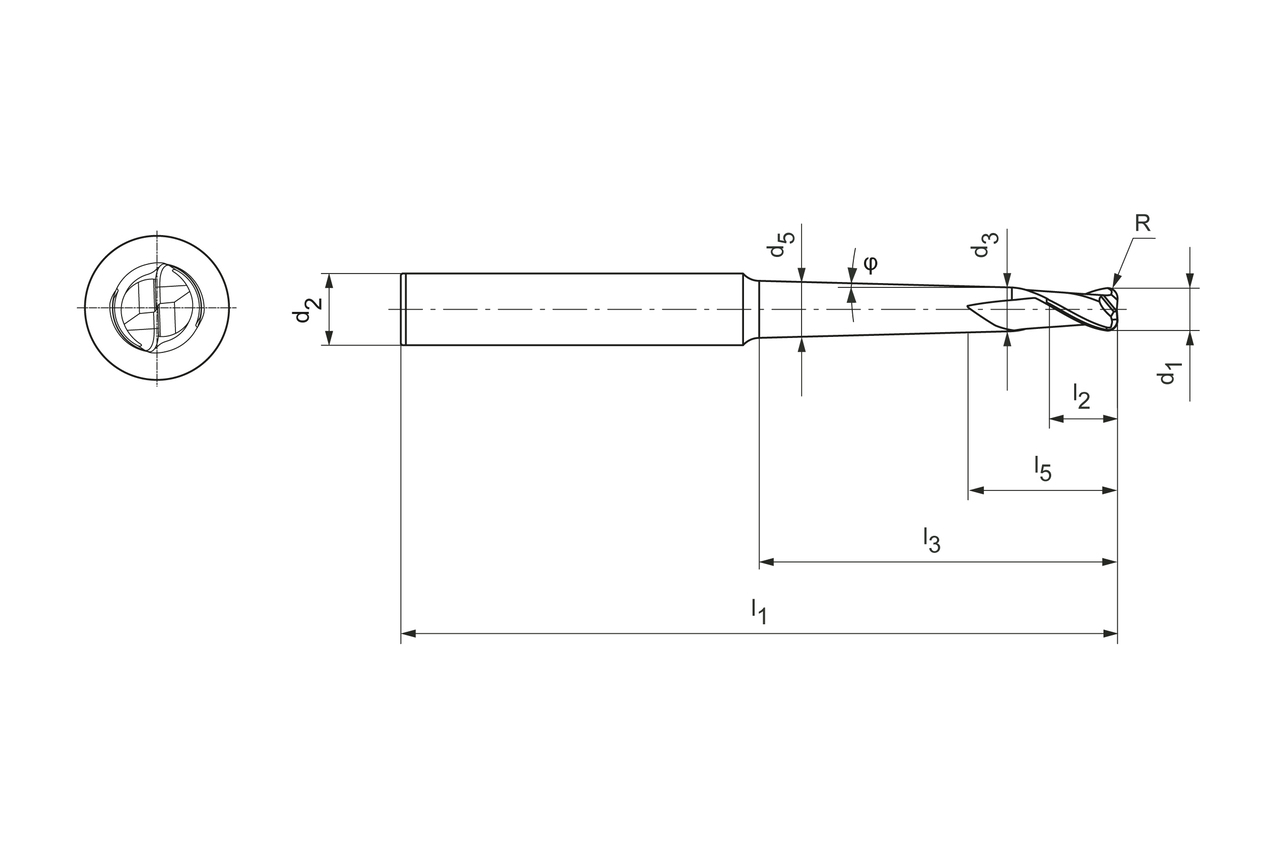

- Technische Zeichnung in dxf
- 31154083_607410004-000-02-ED1-MM.DXF
- Technische Zeichnung in pdf
- 31154083_607410004-000-02-ED1-MM.PDF
- Technische Zeichnung in tif
- 31154083_607410004-000-02-ED1-MM.TIF
- Cutting data recommendations
- 31154083_OptiMill-3D-CR_Schnittwertempfehlung.pdf
- Technical drawing in tif
- 31154083_607410004-000-02-ED1-MM.tif
- Cutting data recommendations
- 31154083_OptiMill-3D-CR_EN.pdf
