OptiMill®-3D-CR
Diameter d1 (mm)
0.2
Your unit price
*Login requiredProduct description

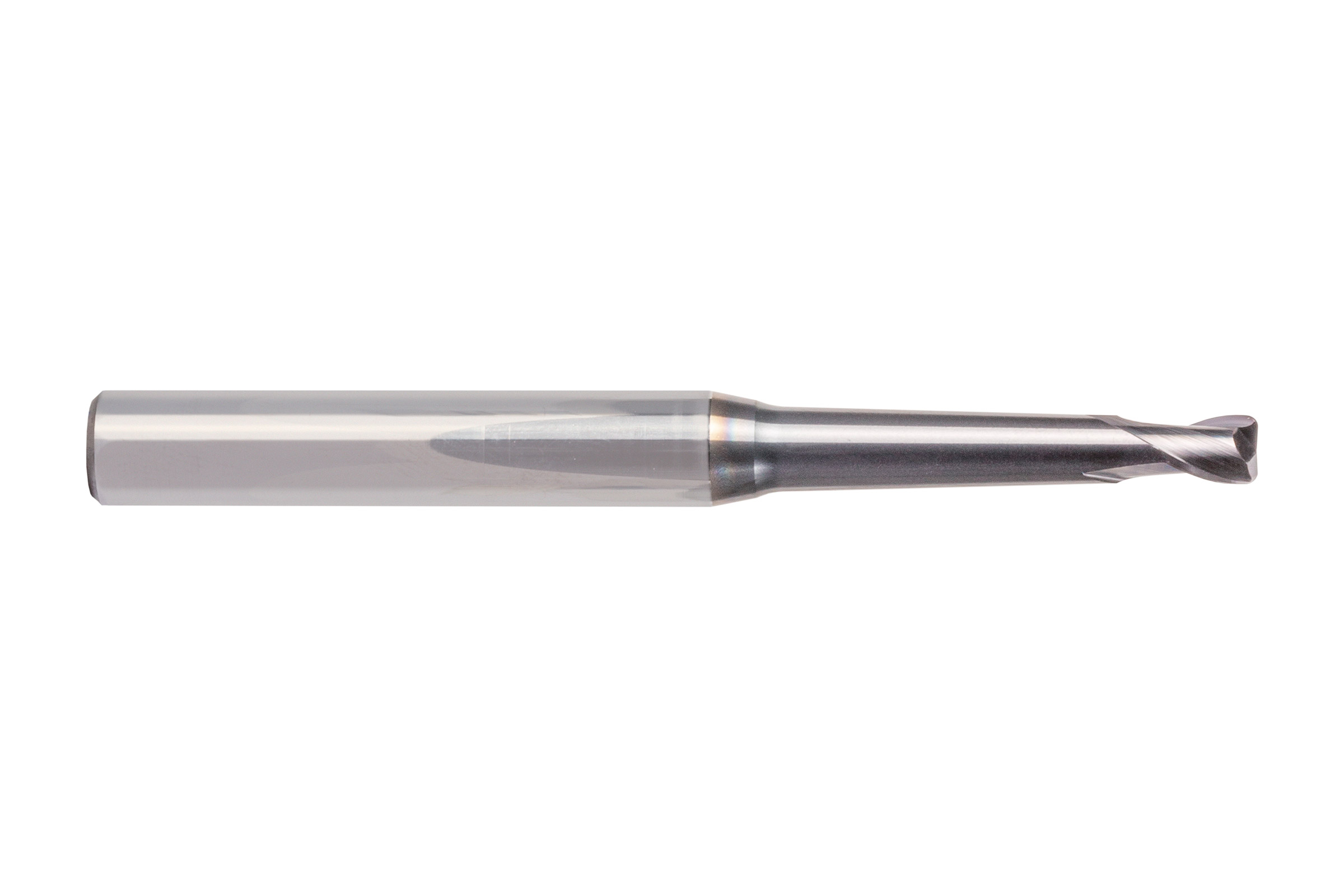

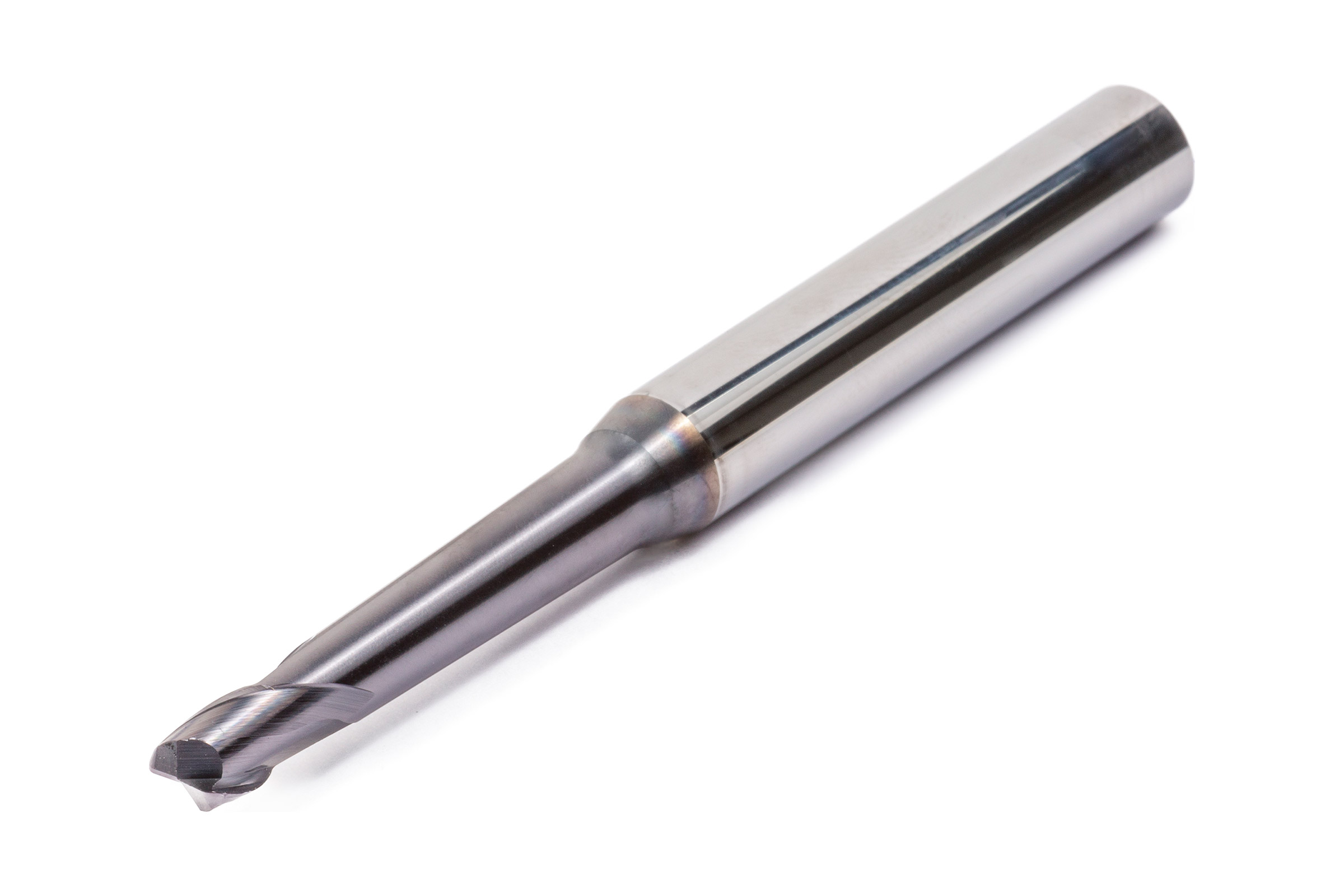

The OptiMill-3D-CR corner radius milling cutter has been specially developed for machining materials up to 55 HRC. It is characterized by a high-precision corner radius with high radius accuracy, making it ideal for finishing 3D shapes. In addition to an extremely heat-resistant coating and a special carbide substrate, these tools are characterized by the dimensions and geometries specially adapted to mold making.

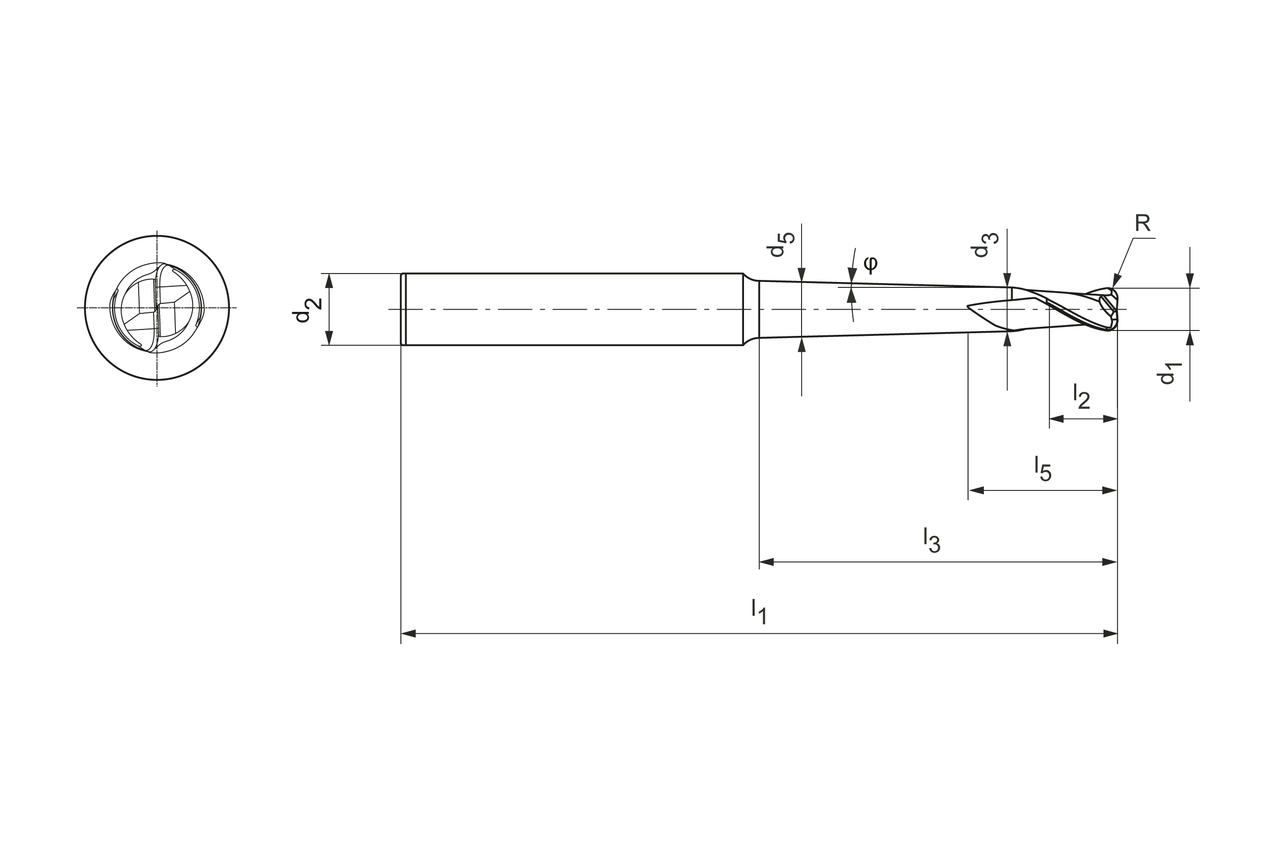

Technical specifications
- Product class
- Performance-Line
- Diameter (d1)
- 0.2 mm
- Shaft diameter (d2)
- 6 mm
- Total length (l1)
- 60 mm
- Length of cutting edge (l2)
- 0.2 mm
- Neck length (l3)
- 1.5 mm
- Corner radius (R)
- 0.05 mm
- Taper angle (φ)
- 1 °
- Number of cutting edges (z)
- 2
- Cooling
- external cooling
- Shank type
- HA
- Material group
- RC
Downloads
- 3D envelope in stp
- 31154001_607641209-000-01-E43.STP
- Technical drawing in dxf
- 31154001_607408790-000-02-ED1-MM.DXF
- Technical drawing in pdf
- 31154001_607408790-000-02-ED1-MM.PDF
- Technical drawing in tif
- 31154001_607408790-000-02-ED1-MM.TIF
