OptiMill®-3D-CR

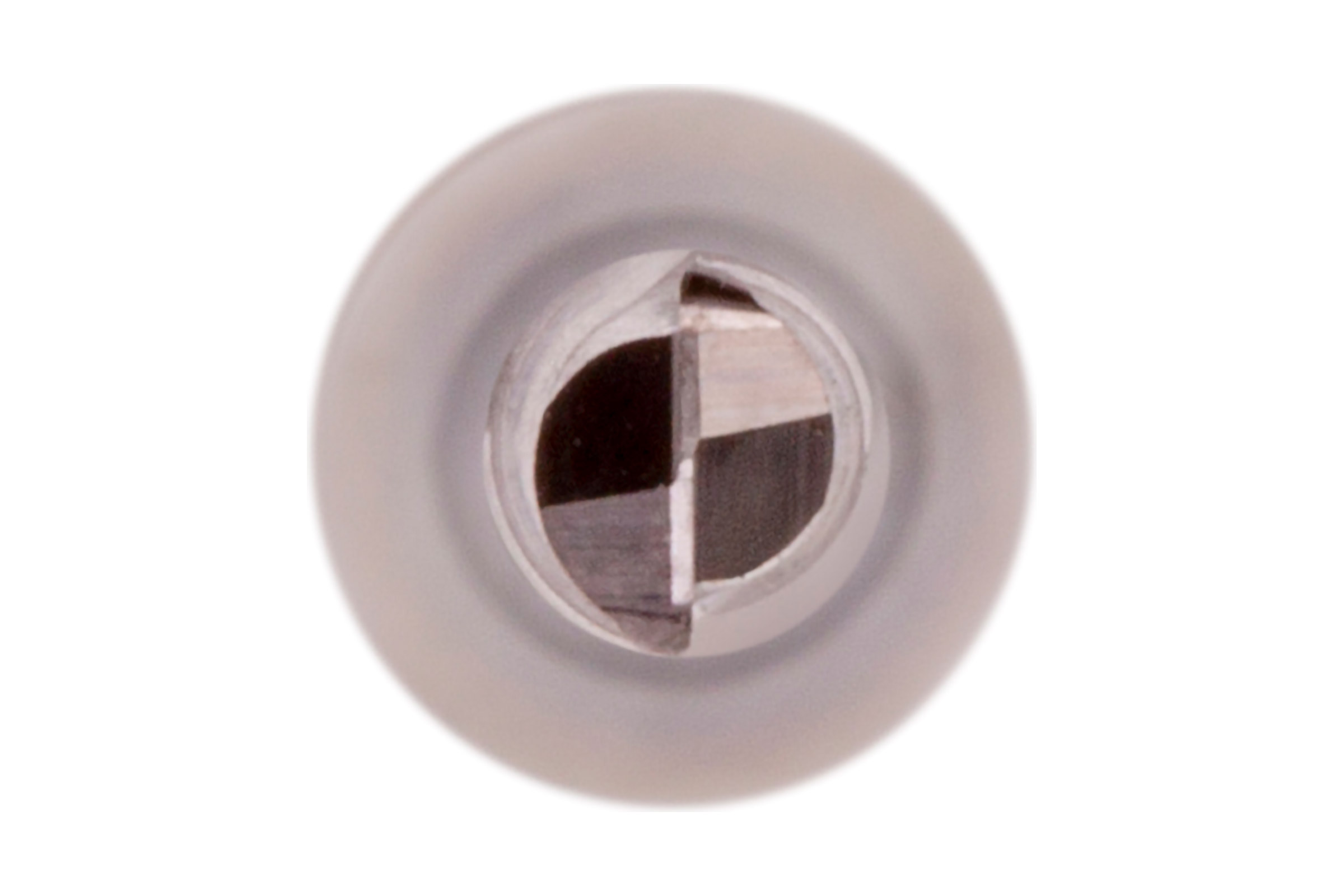

  • Product image OptiMill®-3D-CR

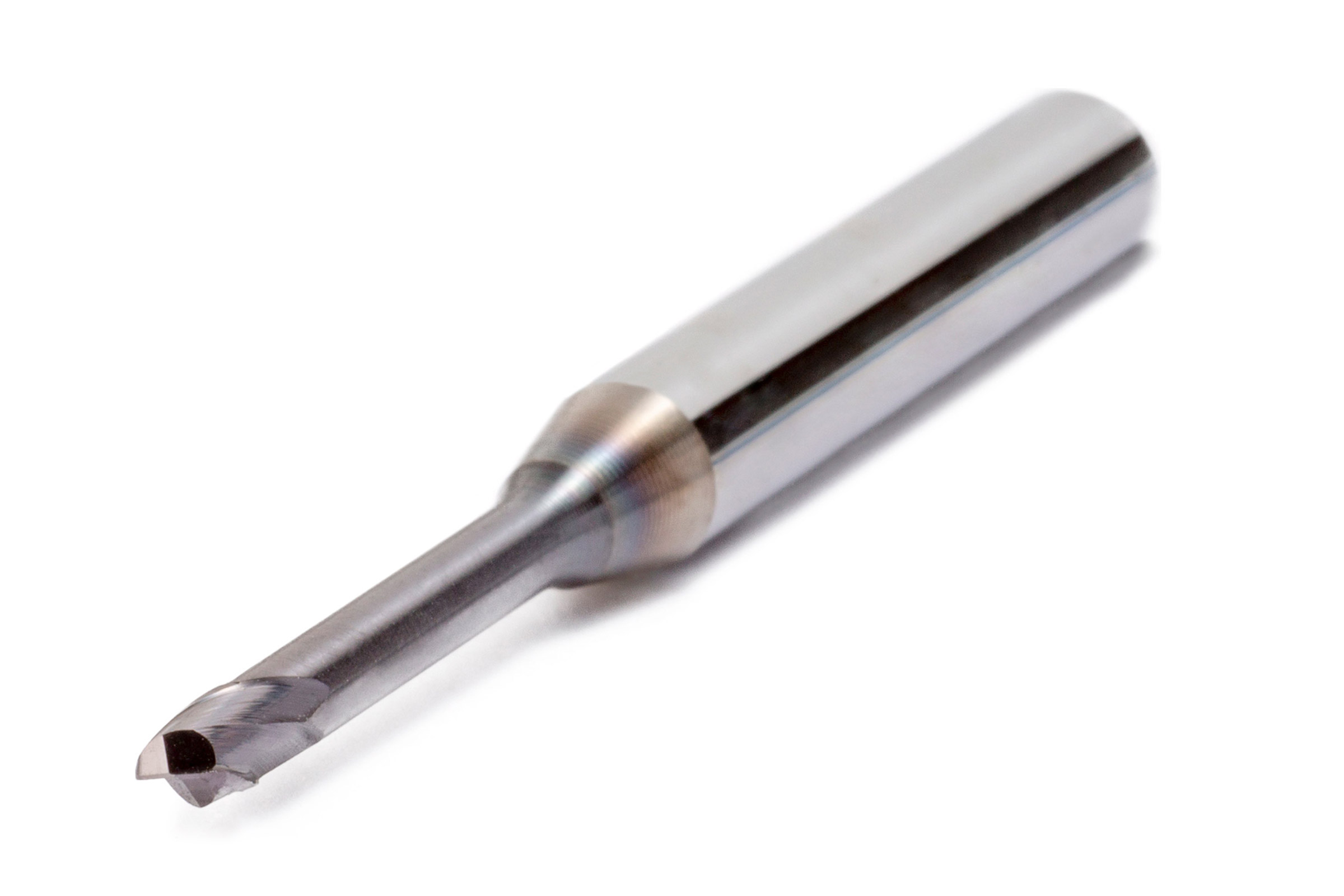

  • Product image OptiMill®-3D-CR

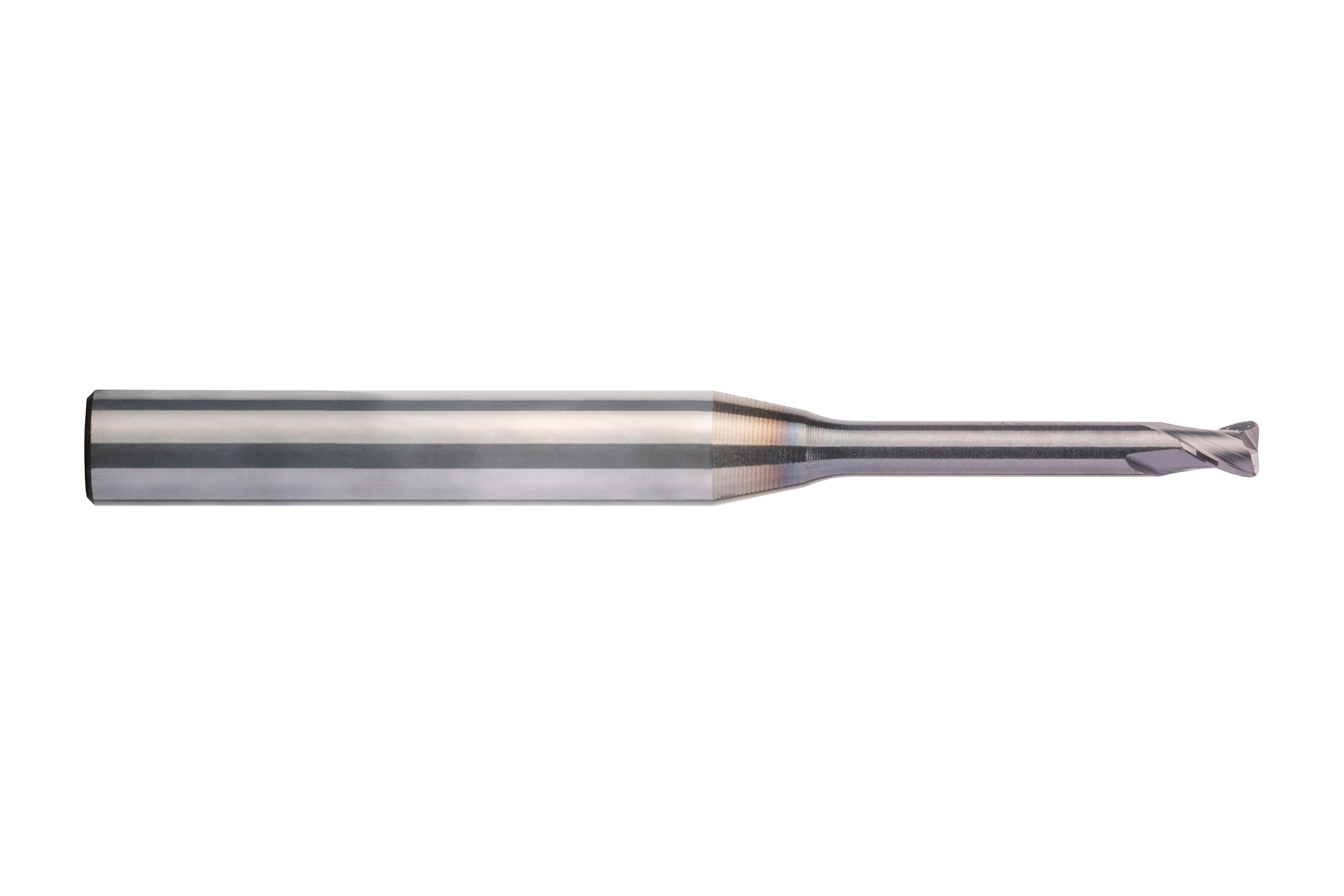

  • Product image OptiMill®-3D-CR

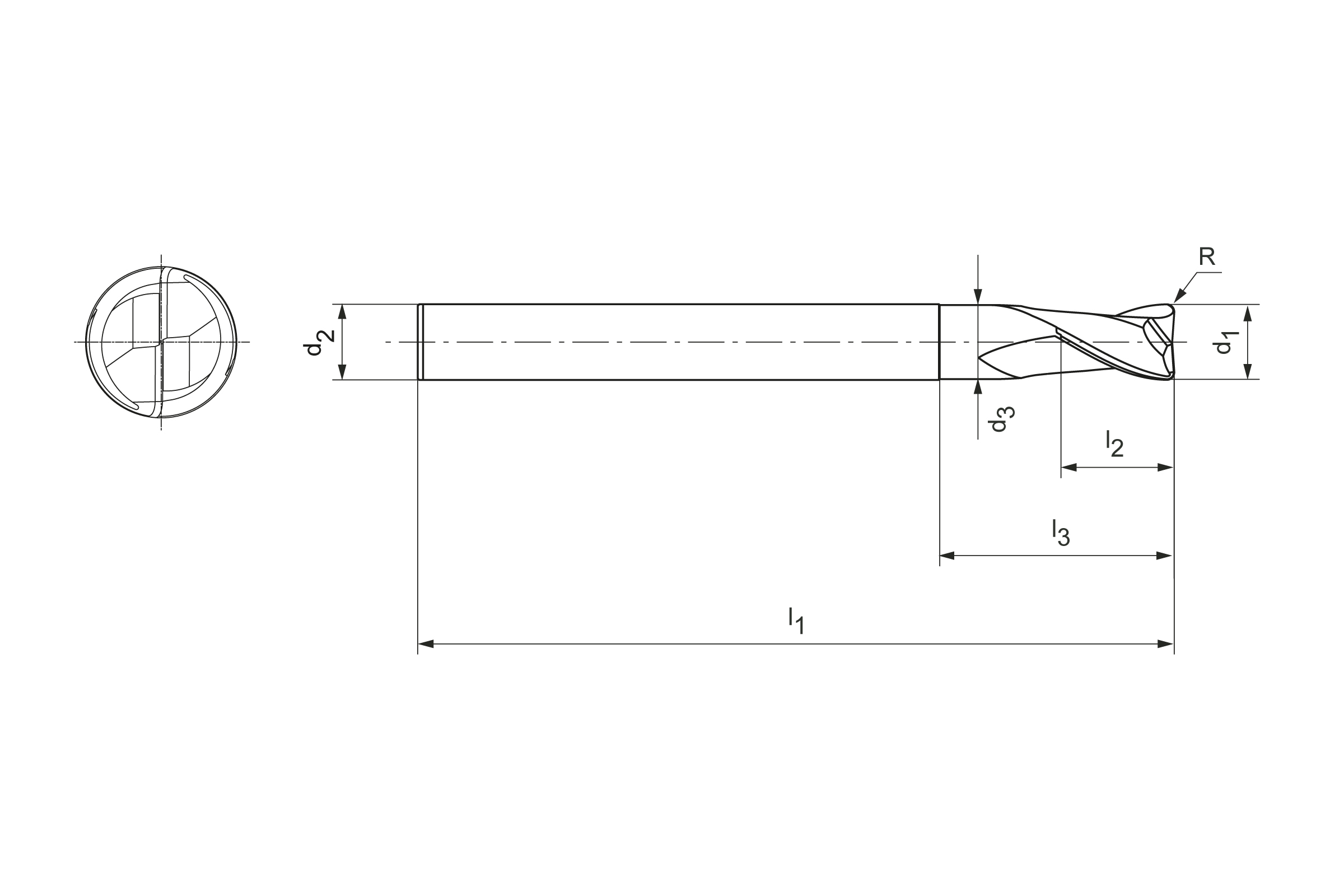

  • Technical drawing OptiMill®-3D-CR

Diameter d1 (mm)

10.0

Your unit price

*Login required

Article

31153989

Quantity

Added to Your Shopping Cart

Product description

The OptiMill-3D-CR corner radius milling cutter has been specially developed for machining materials up to 55 HRC. It is characterized by a high-precision corner radius with high radius accuracy, making it ideal for finishing 3D shapes. In addition to an extremely heat-resistant coating and a special carbide substrate, these tools are characterized by the dimensions and geometries specially adapted to mold making.

Material suitability

Technical specifications

Product class
Performance-Line
Diameter (d1)
10   mm
Shaft diameter (d2)
10   mm
Total length (l1)
100   mm
Length of cutting edge (l2)
11.5   mm
Neck length (l3)
50   mm
Corner radius (R)
0.5   mm
Number of cutting edges (z)
2
Cooling
external cooling
Shank type
HA
Cutting material
HP803
Material group
RC

Downloads

3D envelope in stp
31153989_607640902-000-00-E43.STP
Technical drawing in dxf
31153989_607410273-000-01-ED1-MM.DXF
Technical drawing in pdf
31153989_607410273-000-01-ED1-MM.PDF
Technical drawing in tif
31153989_607410273-000-01-ED1-MM.TIF
