OptiMill®-3D-CR-Hardened

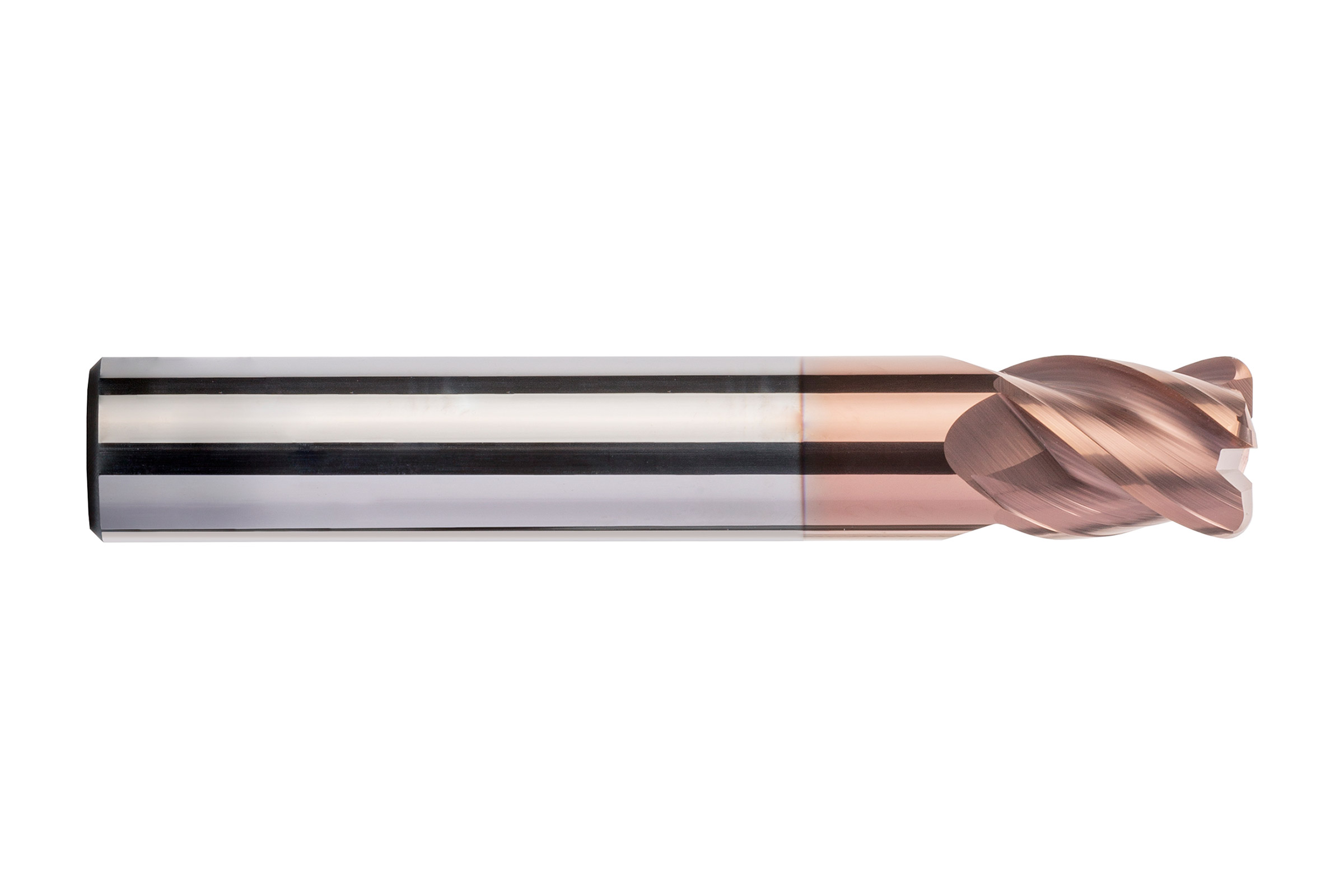

  • Product image OptiMill®-3D-CR-Hardened

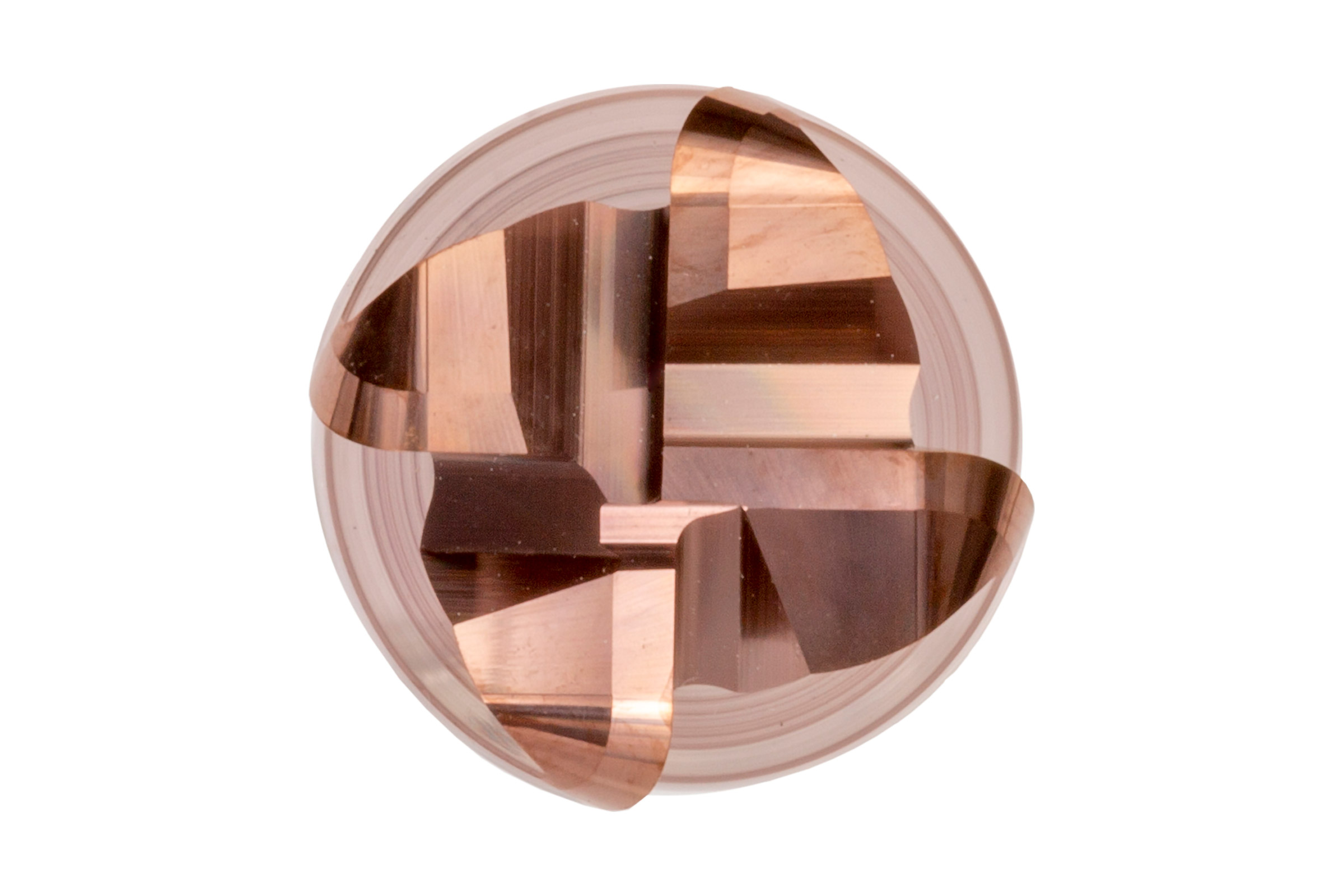

  • Produktbild OptiMill®-3D-CR-Hardened

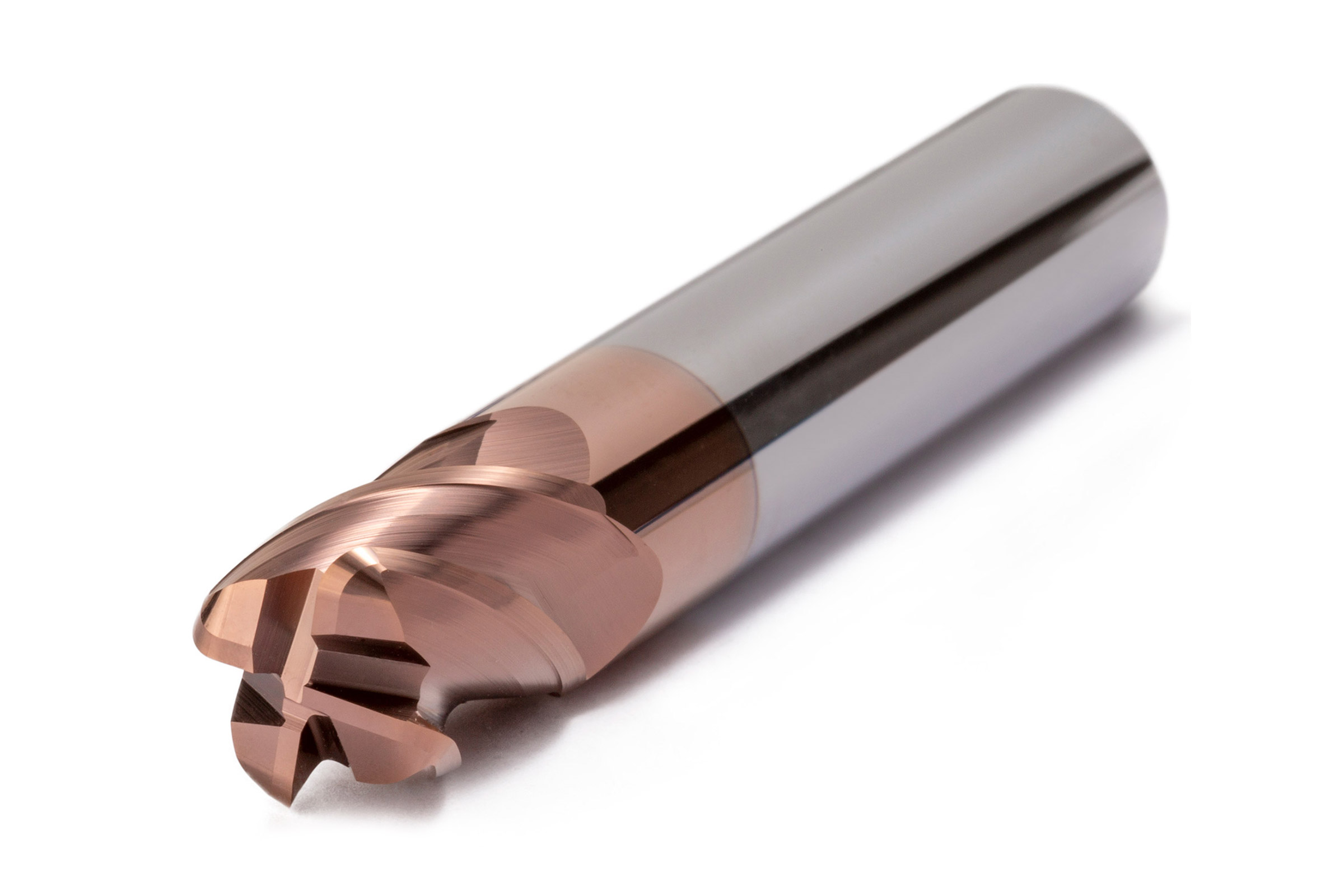

  • Produktbild OptiMill®-3D-CR-Hardened

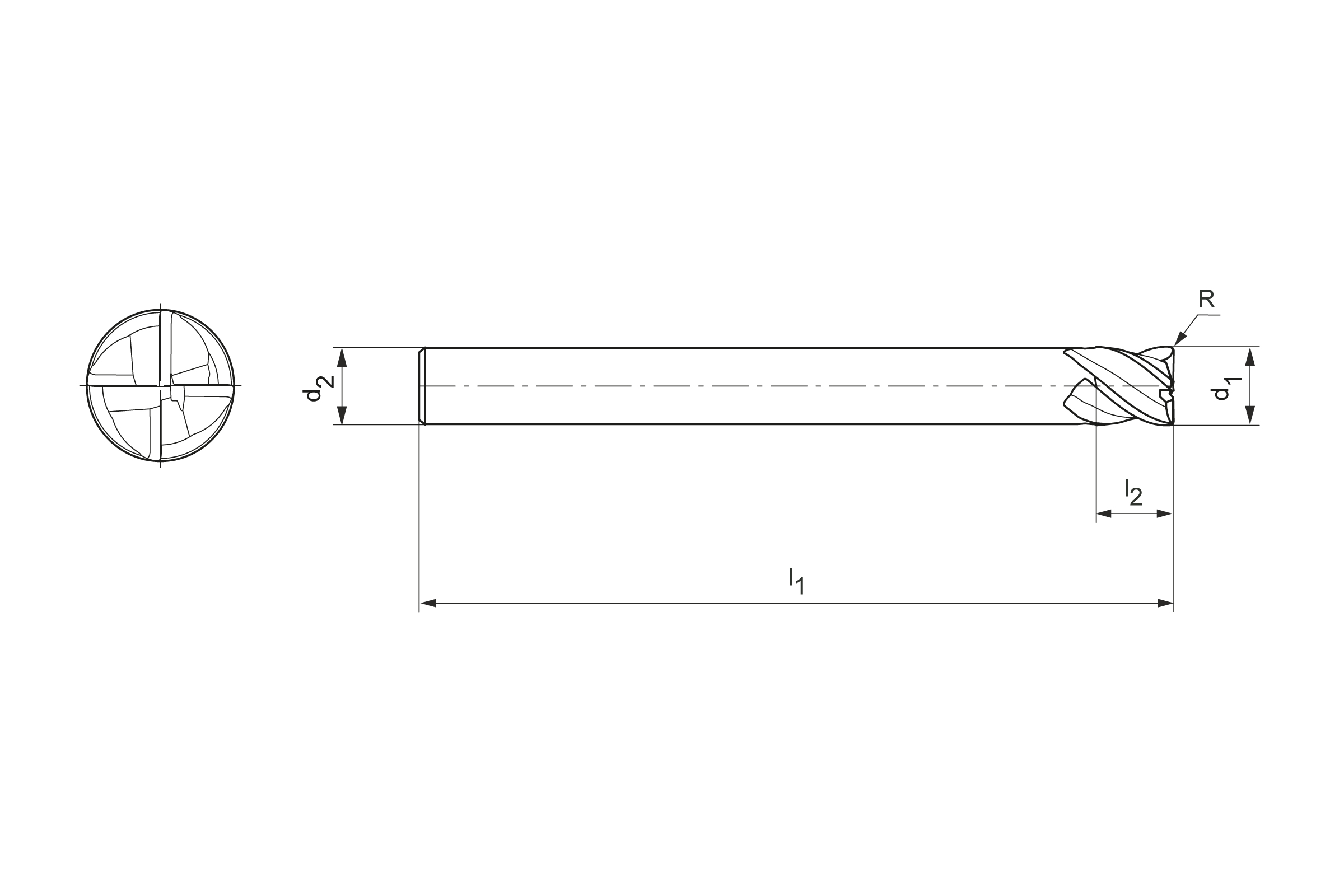

  • Produktzeichnung OptiMill®-3D-CR-Hardened

Durchmesser d1 (mm)

12.0

Ihr Stückpreis

*Login erforderlich

Bestellnummer

31154709

Menge

Ihrem Warenkorb hinzugefügt

We recommend:

Produktbeschreibung

The OptiMill-3D-CR-Hardened corner radius cutter has been specially developed for machining materials up to 68 HRC. It is characterized by a high-precision corner radius with high radius accuracy, making it ideal for finishing 3D shapes. In addition to an extremely heat-resistant coating and a special carbide substrate, these tools are characterized by the dimensions and geometries specially adapted to mold making.

Materialeignung

Technische Daten

Product class
Performance-Line
Diameter (d1)
12   mm
Shaft diameter (d2)
12   mm
Total length (l1)
120   mm
Length of cutting edge (l2)
13.8   mm
Corner radius (R)
0.5   mm
Number of cutting edges (z)
4
Cooling
external cooling
Shank type
HA
Cutting material
HP808
Material group
RC
Specification
MCR108-120-0050-X120-HP808

Downloads

3D envelope in stp
31154709_607642094-000-00-E43.STP
Technical drawing in dxf
31154709_607409870-000-01-ED1-MM.DXF
Technical drawing in pdf
31154709_607409870-000-01-ED1-MM.PDF
Technical drawing in tif
31154709_607409870-000-01-ED1-MM.TIF
Cutting data recommendations
31154709_OptiMill-3D-CR-Hardened_EN.pdf
