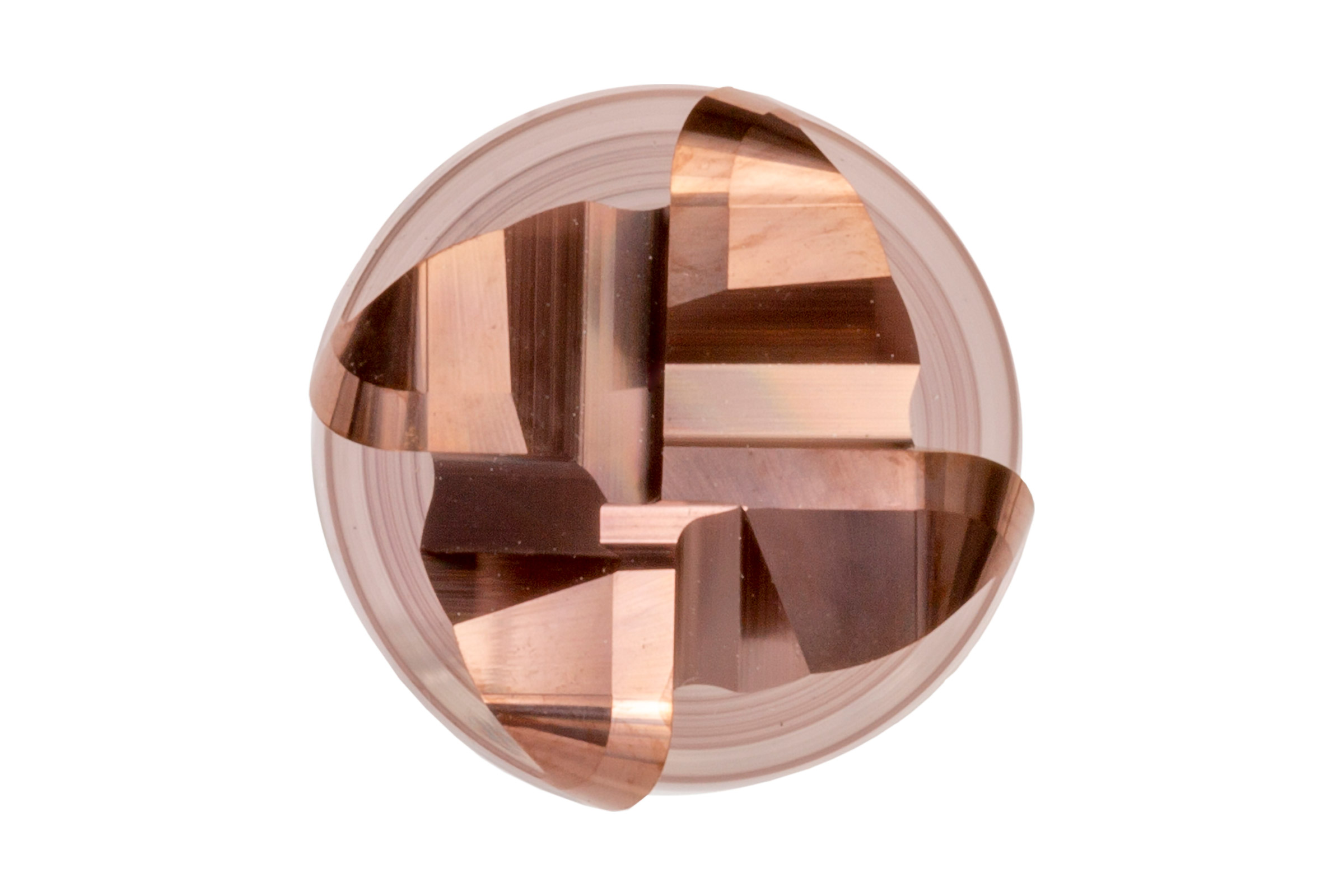

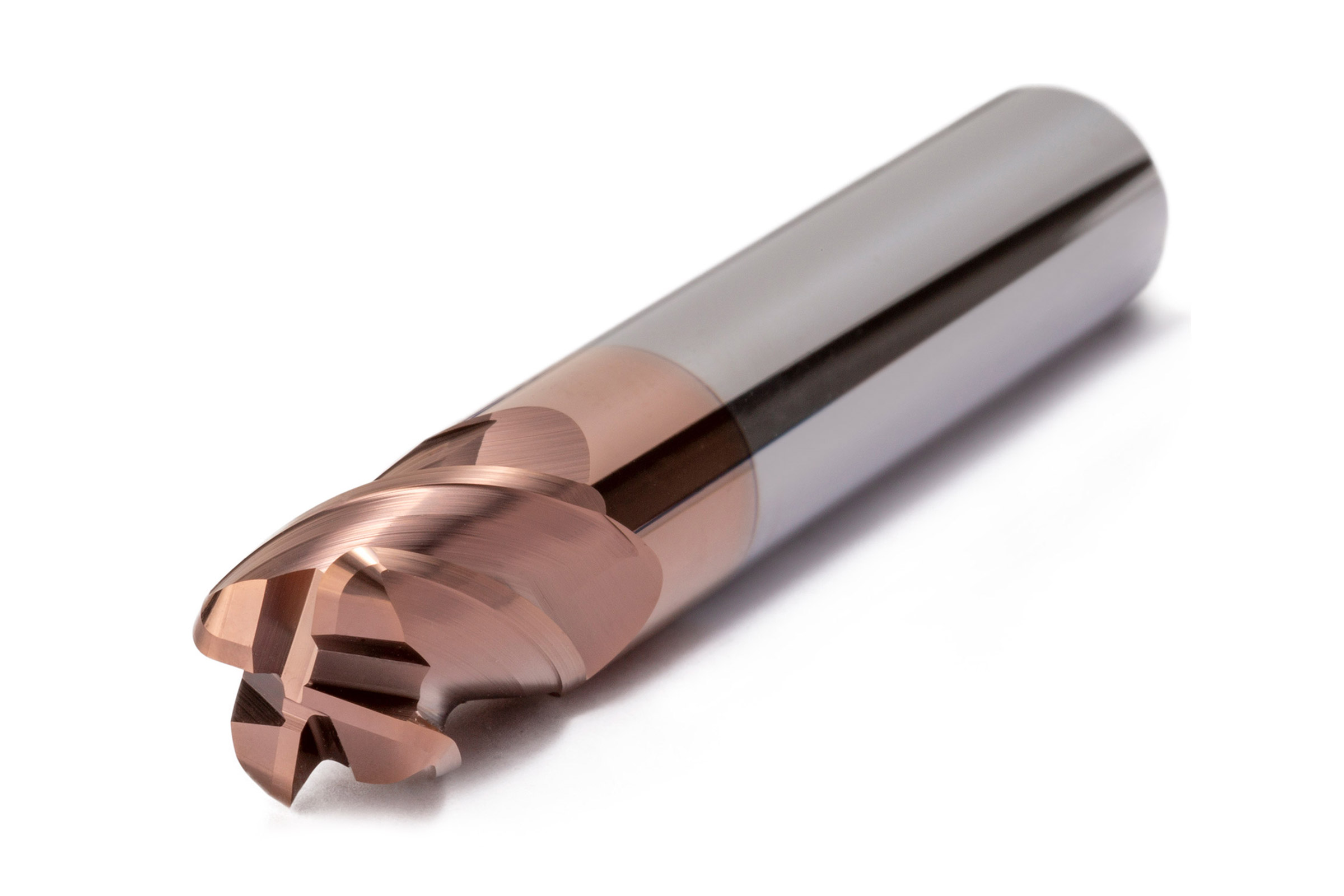

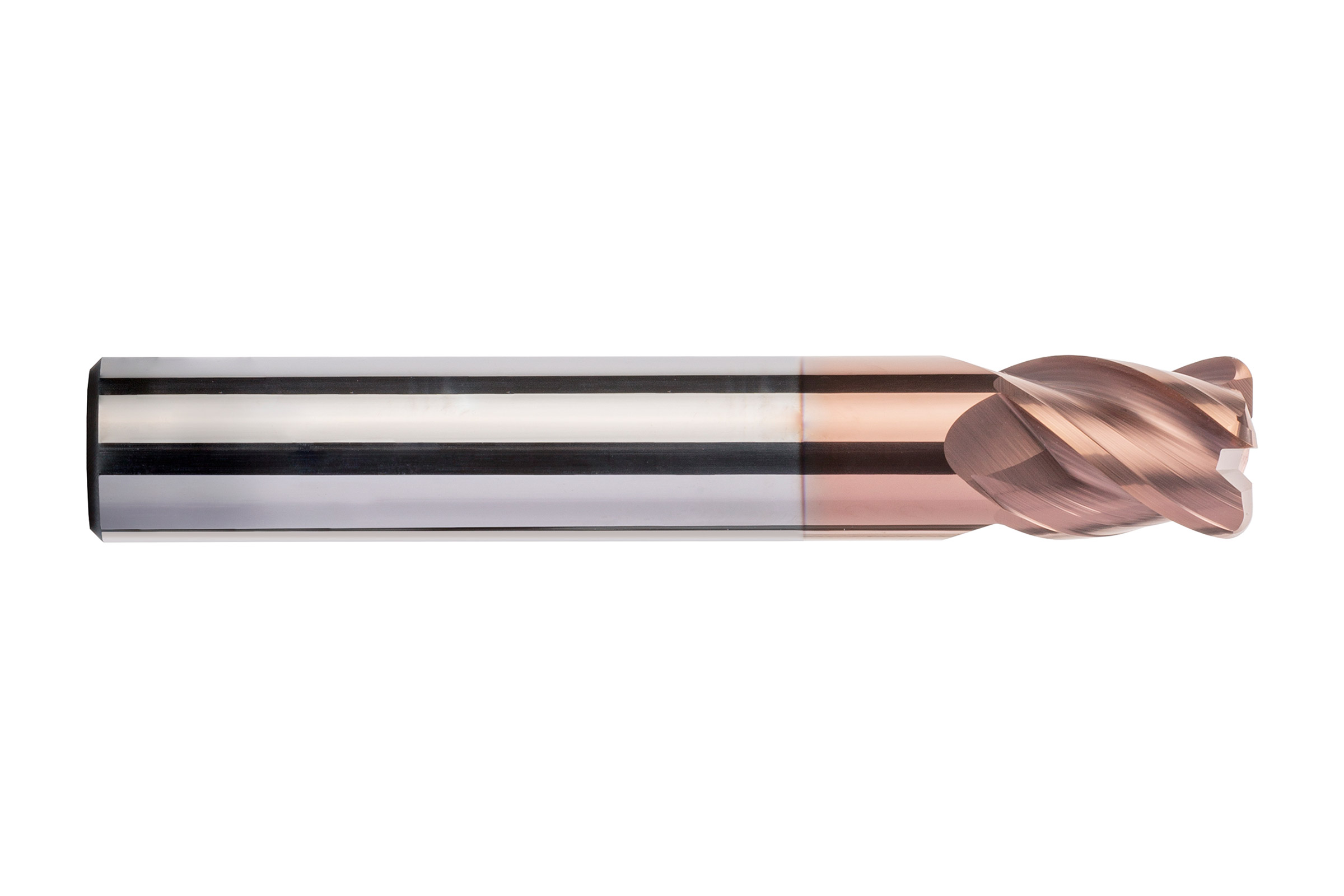

OptiMill®-3D-CR-Hardened
Diameter d1 (mm)
10.0
Your unit price
*Login requiredWe recommend:
Product description
The OptiMill-3D-CR-Hardened corner radius cutter has been specially developed for machining materials up to 68 HRC. It is characterized by a high-precision corner radius with high radius accuracy, making it ideal for finishing 3D shapes. In addition to an extremely heat-resistant coating and a special carbide substrate, these tools are characterized by the dimensions and geometries specially adapted to mold making.
Technical specifications
- Product class
- Performance-Line

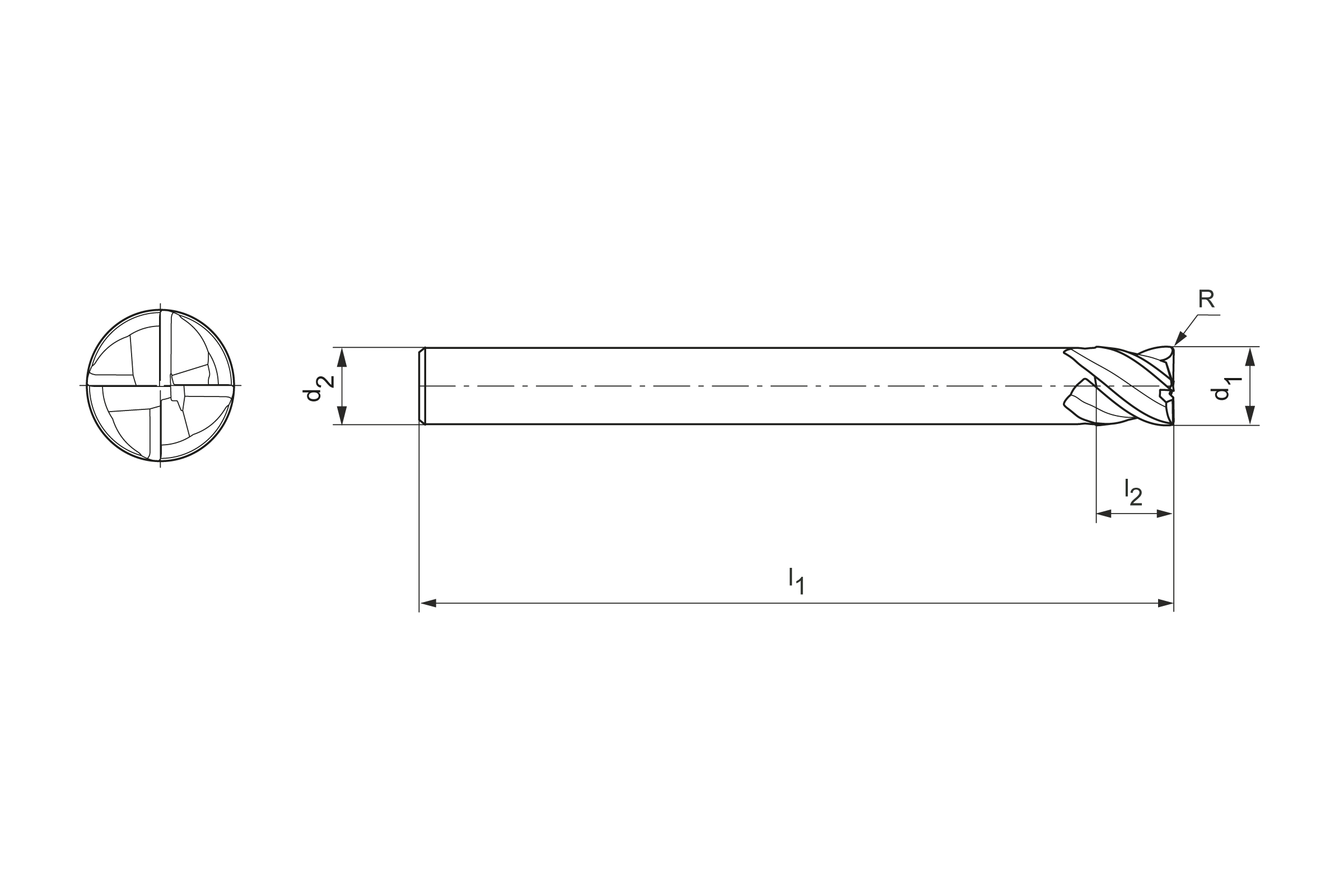

- Diameter (d1)
- 10 mm
- Shaft diameter (d2)
- 10 mm
- Total length (l1)
- 75 mm
- Length of cutting edge (l2)
- 11.5 mm
- Corner radius (R)
- 1 mm
- Number of cutting edges (z)
- 4
- Cooling
- external cooling
- Shank type
- HA
- Material group
- RC
Downloads
- 3D envelope in stp
- 31154704_607642088-000-00-E43.STP
- Technical drawing in dxf
- 31154704_607409373-000-01-ED1-MM.DXF
- Technical drawing in pdf
- 31154704_607409373-000-01-ED1-MM.PDF
- Technical drawing in tif
- 31154704_607409373-000-01-ED1-MM.TIF
