OptiMill®-3D-CR-Graphite
Diameter d1 (mm)
3.0
Your unit price
*Login requiredArticle
31152958
Quantity
Added to Your Shopping Cart
We recommend:
Product description

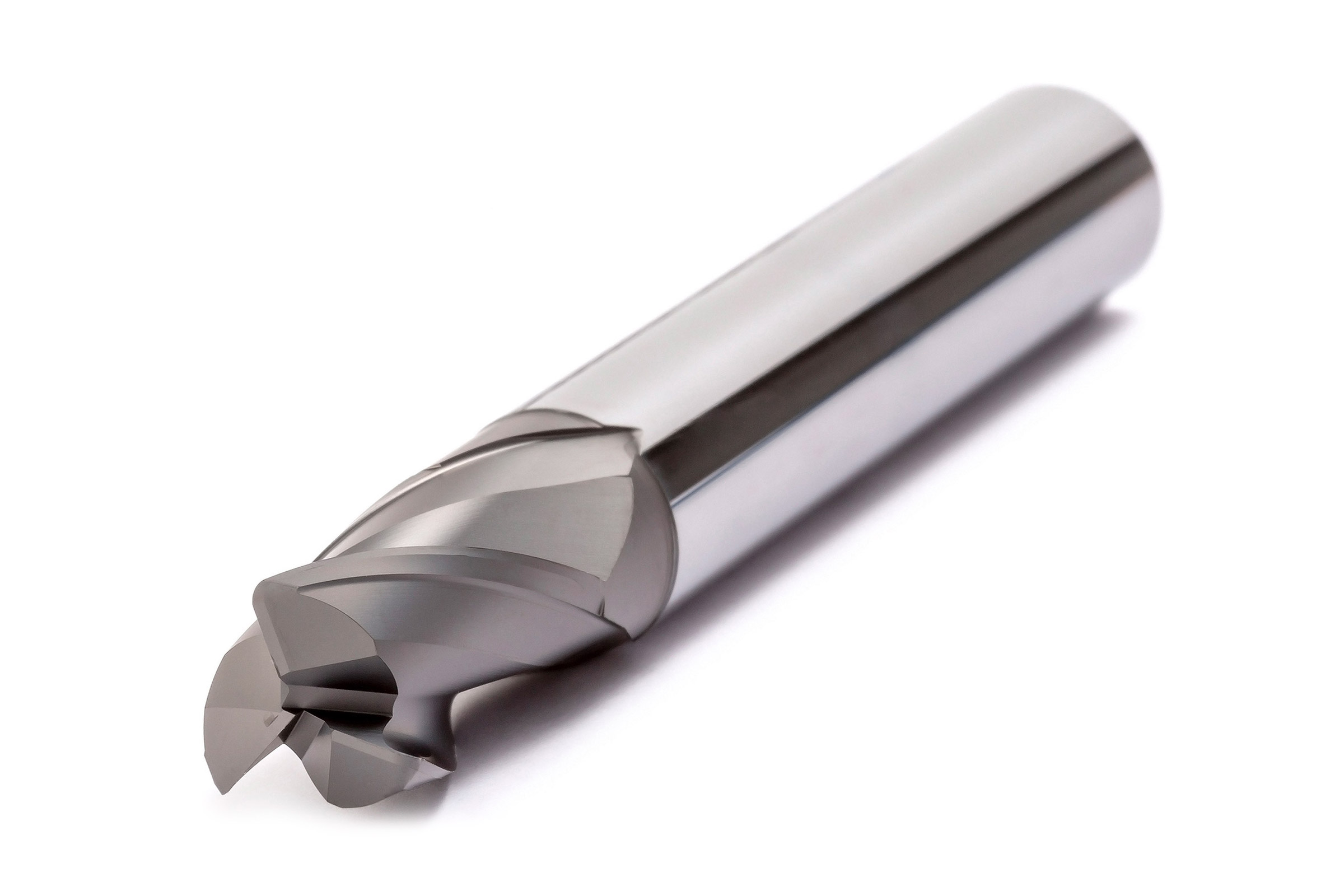

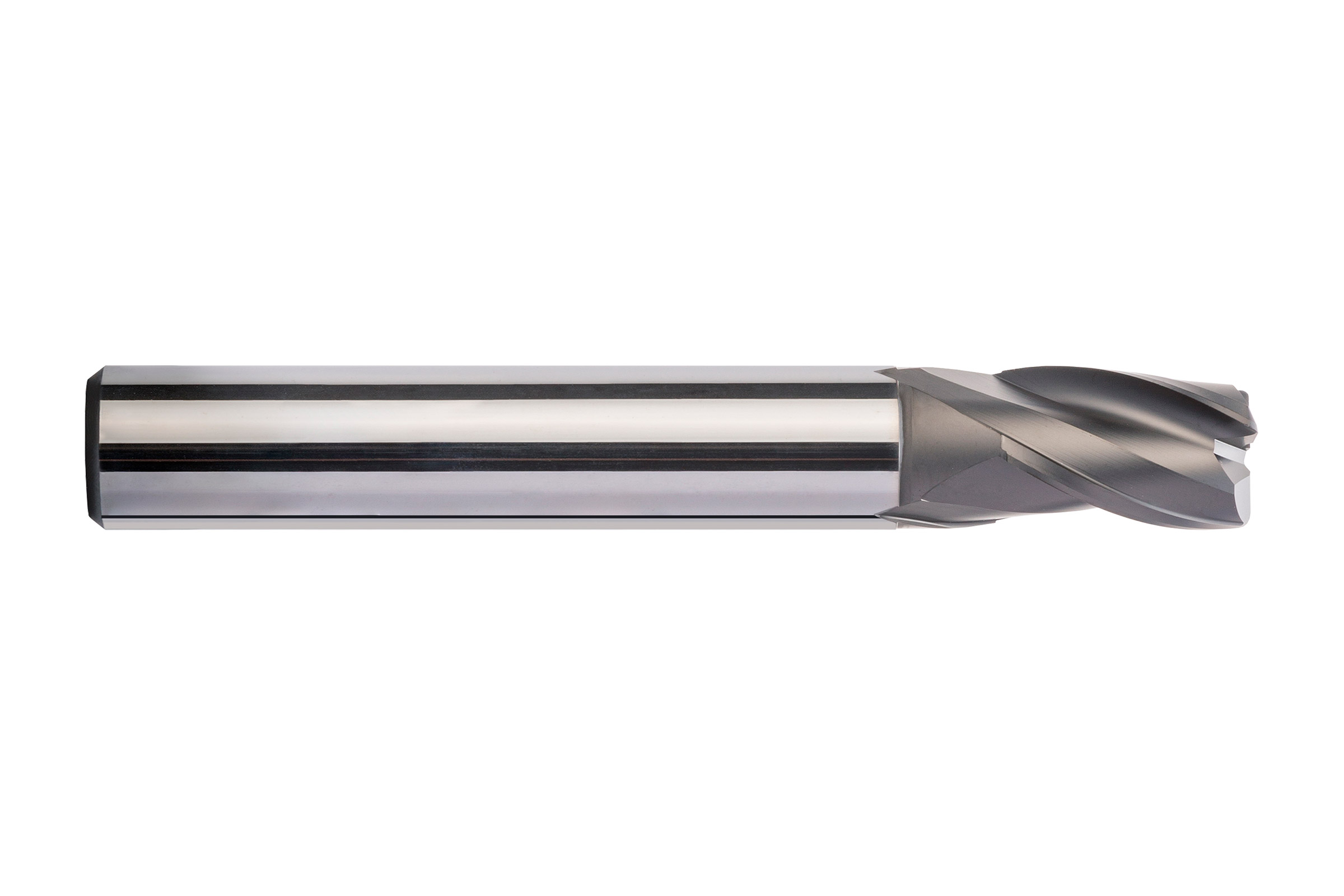

The OptiMill®-3D-CR-Graphite corner radius milling cutter was specially developed for machining graphite electrodes. It is characterised by a special geometry and diamond coating which prevents chipping and thus damage to the sensitive profiles even after longer milling.

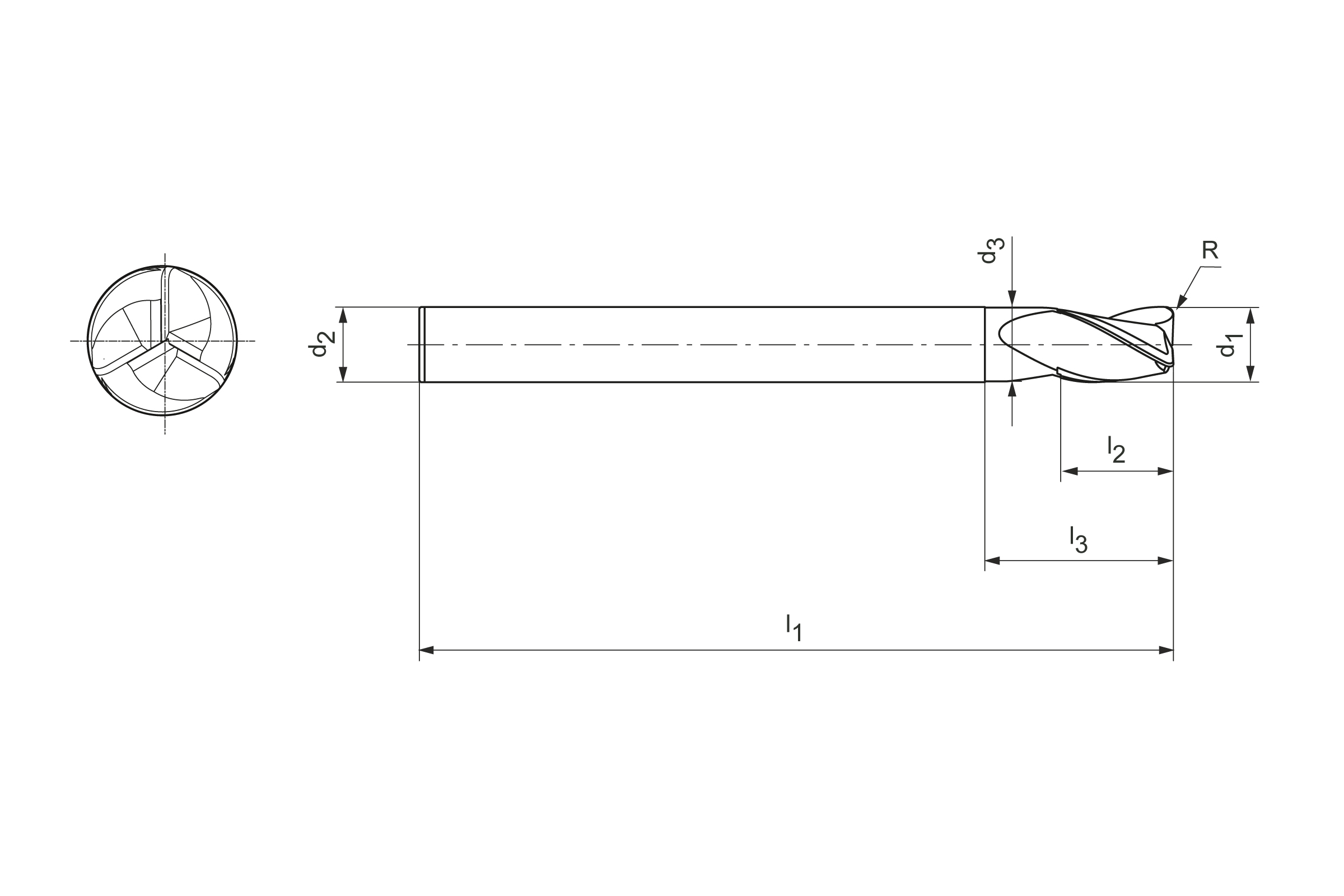

Technical specifications
- Product class
- Expert-Line
- Diameter (d1)
- 3 mm
- Shaft diameter (d2)
- 4 mm
- Total length (l1)
- 50 mm
- Length of cutting edge (l2)
- 4.5 mm
- Neck length (l3)
- 10 mm
- Corner radius (R)
- 0.3 mm

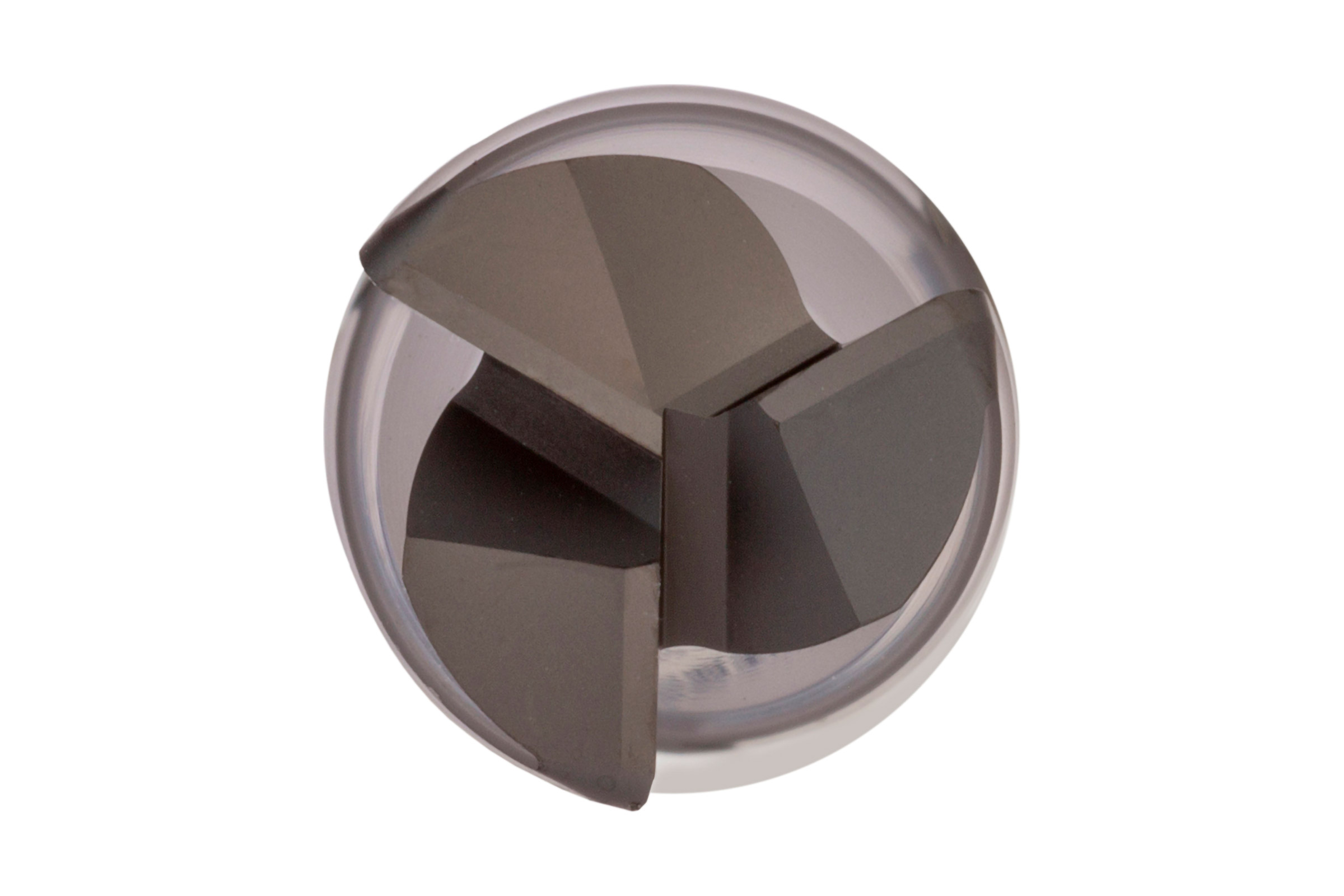

- Number of cutting edges (z)
- 3
- Cooling
- external cooling
- Shank type
- HA
- Material group
- RC
