OptiMill®-3D-CR-Graphite

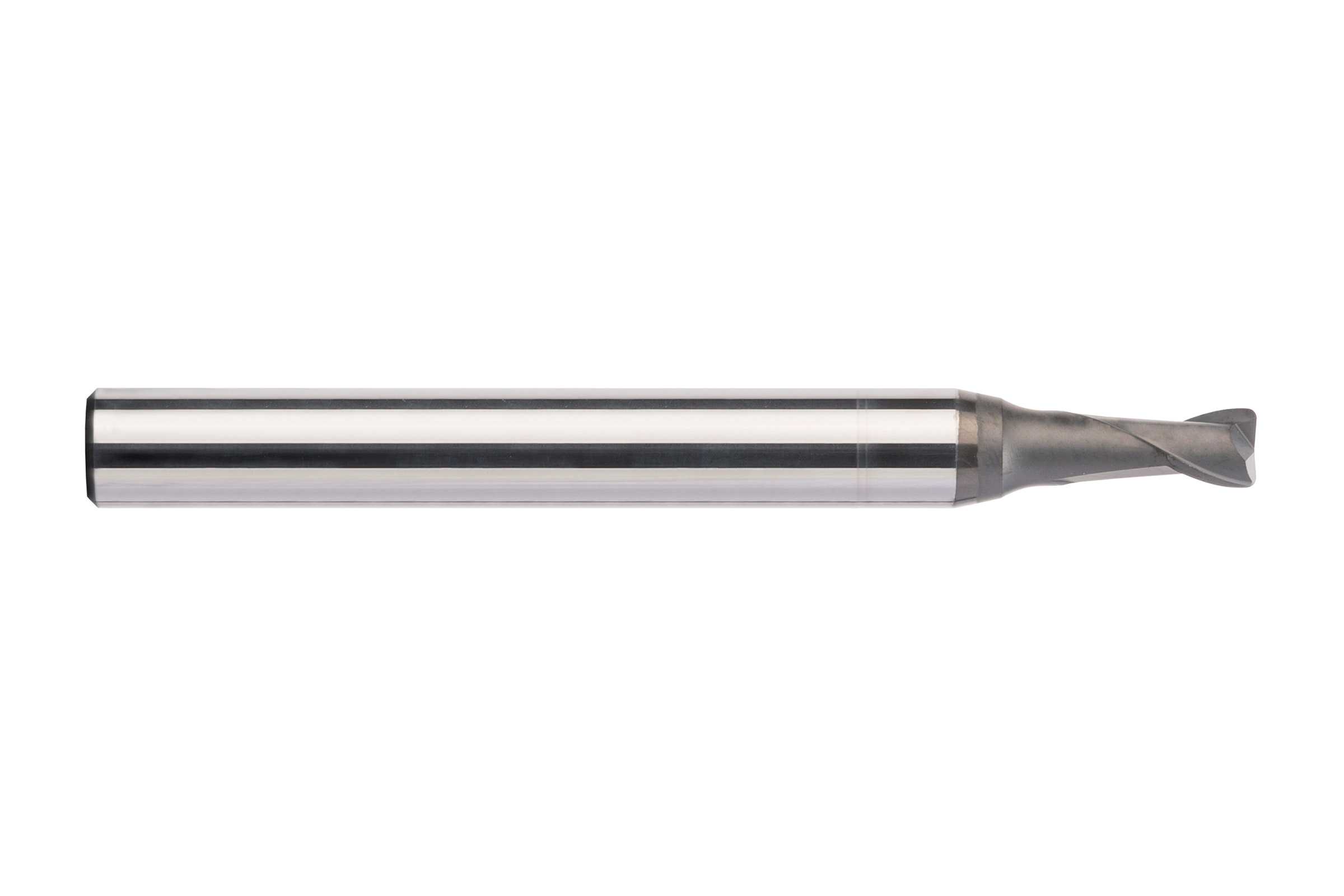

  • Product image OptiMill®-3D-CR-Graphite

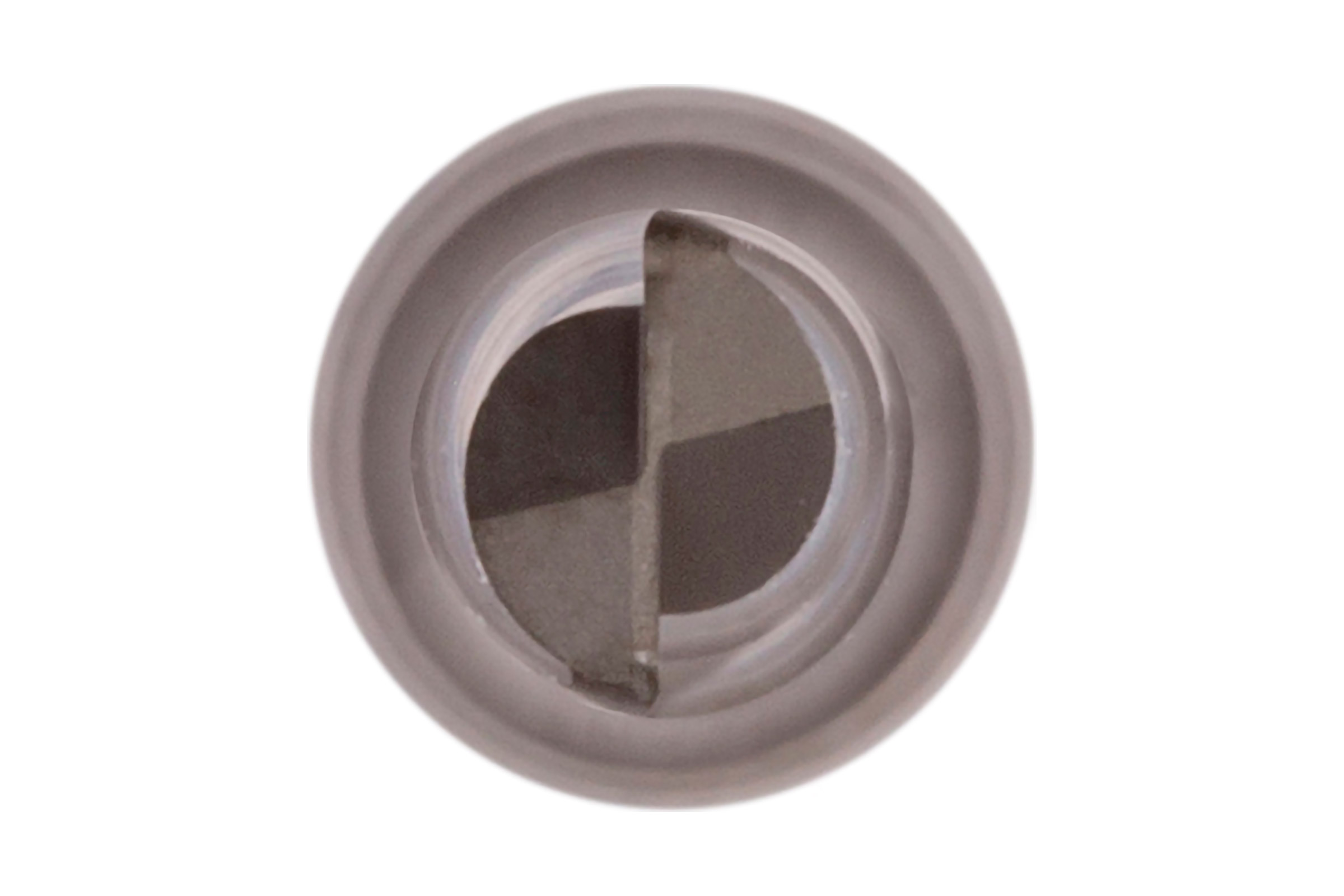

  • Product image OptiMill®-3D-CR-Graphite

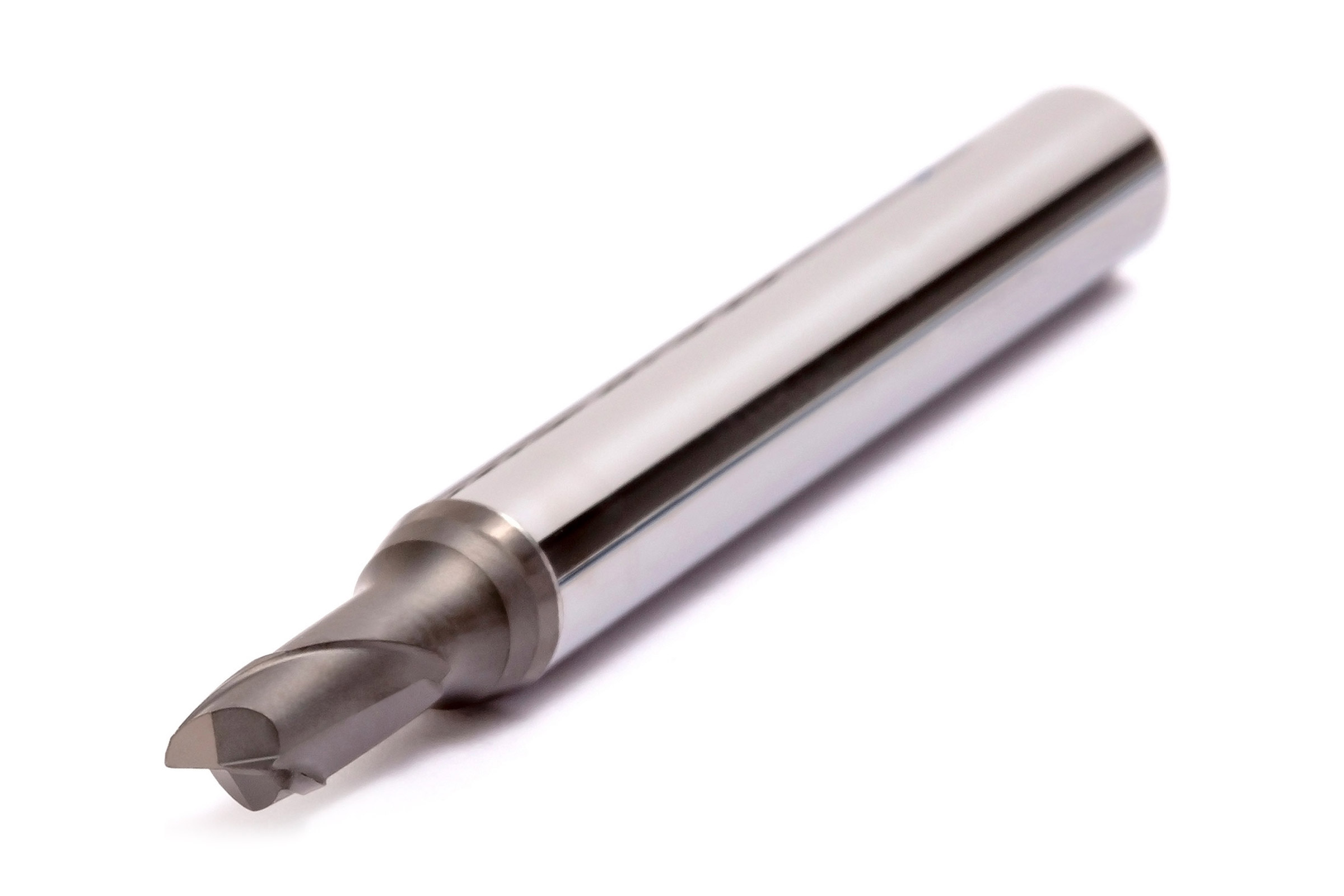

  • Product image OptiMill®-3D-CR-Graphite

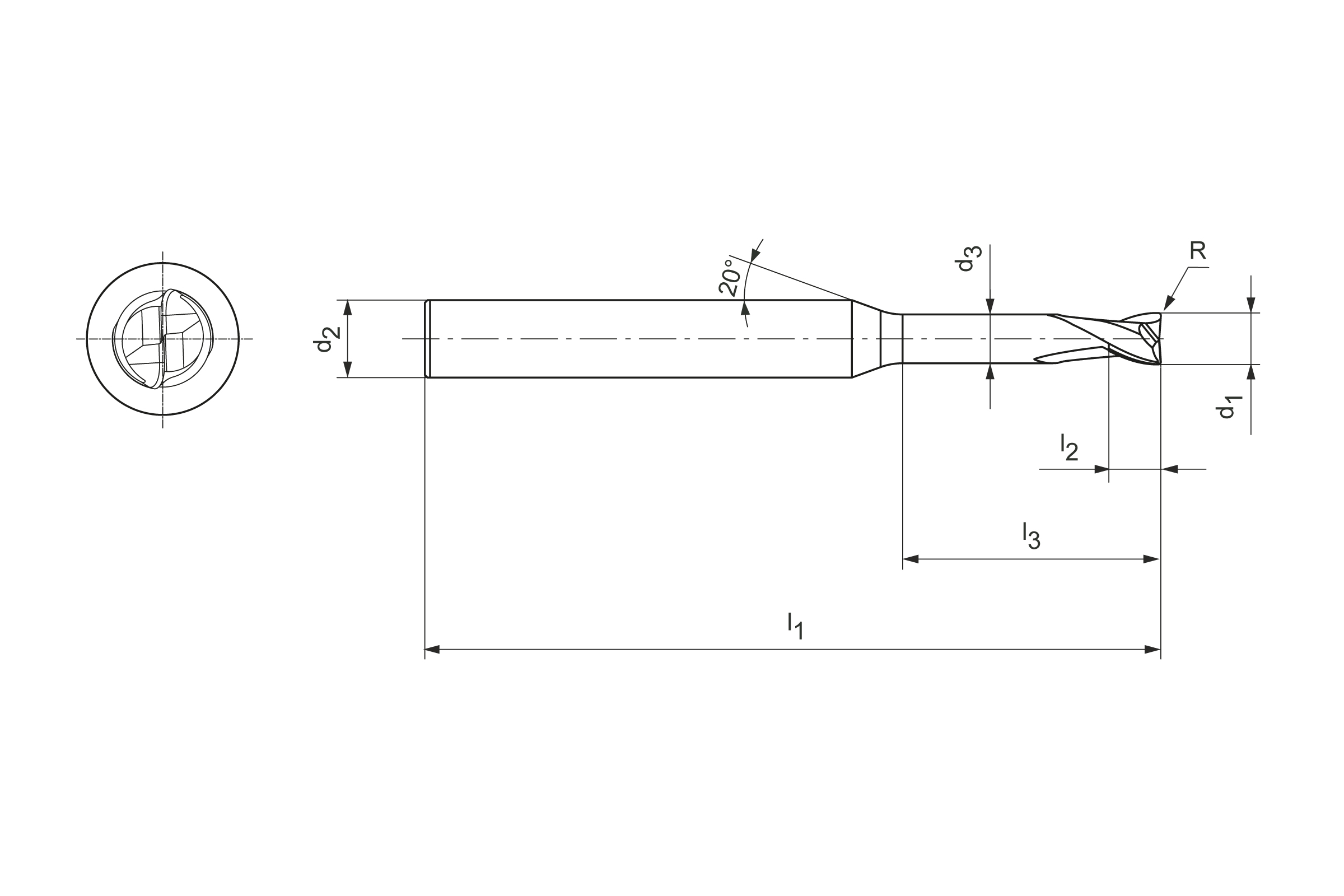

  • Technical drawing OptiMill®-3D-CR-Graphite

Durchmesser d1 (mm)

4.0

Your unit price

*Login erforderlich

Article

31152953

Quantity

Added to Your Shopping Cart

Unsere Produktempfehlung:

Product description

The OptiMill®-3D-CR-Graphite corner radius milling cutter was specially developed for machining graphite electrodes. It is characterised by a special geometry and diamond coating which prevents chipping and thus damage to the sensitive profiles even after longer milling.

Material suitability

Technical specifications

Produktklasse
Expert-Line
Schneidendurchmesser (d1)
4   mm
Schaftdurchmesser (d2)
6   mm
Gesamtlänge (l1)
75   mm
Schneidenlänge (l2)
4   mm
Halslänge (l3)
30   mm
Corner radius (R)
0.3   mm
Number of cutting edges (z)
2
Cooling
external cooling
Shank type
HA
Cutting material
HC116
Material group
RC
Specification
MCR111-040-0030-3000X075-HC116

Downloads

Technical drawing in dxf
31152953_607906594-000-00-ED1-MM.DXF
Technical drawing in pdf
31152953_607906594-000-00-ED1-MM.PDF
Technical drawing in tif
31152953_607906594-000-00-ED1-MM.TIF
3D envelope in stp
31152953_607906595-000-00-E43.STP
Cutting data recommendations
31152953_OptiMill-3D-CR-Graphite_EN.pdf
