OptiMill®-3D-CR-Graphite

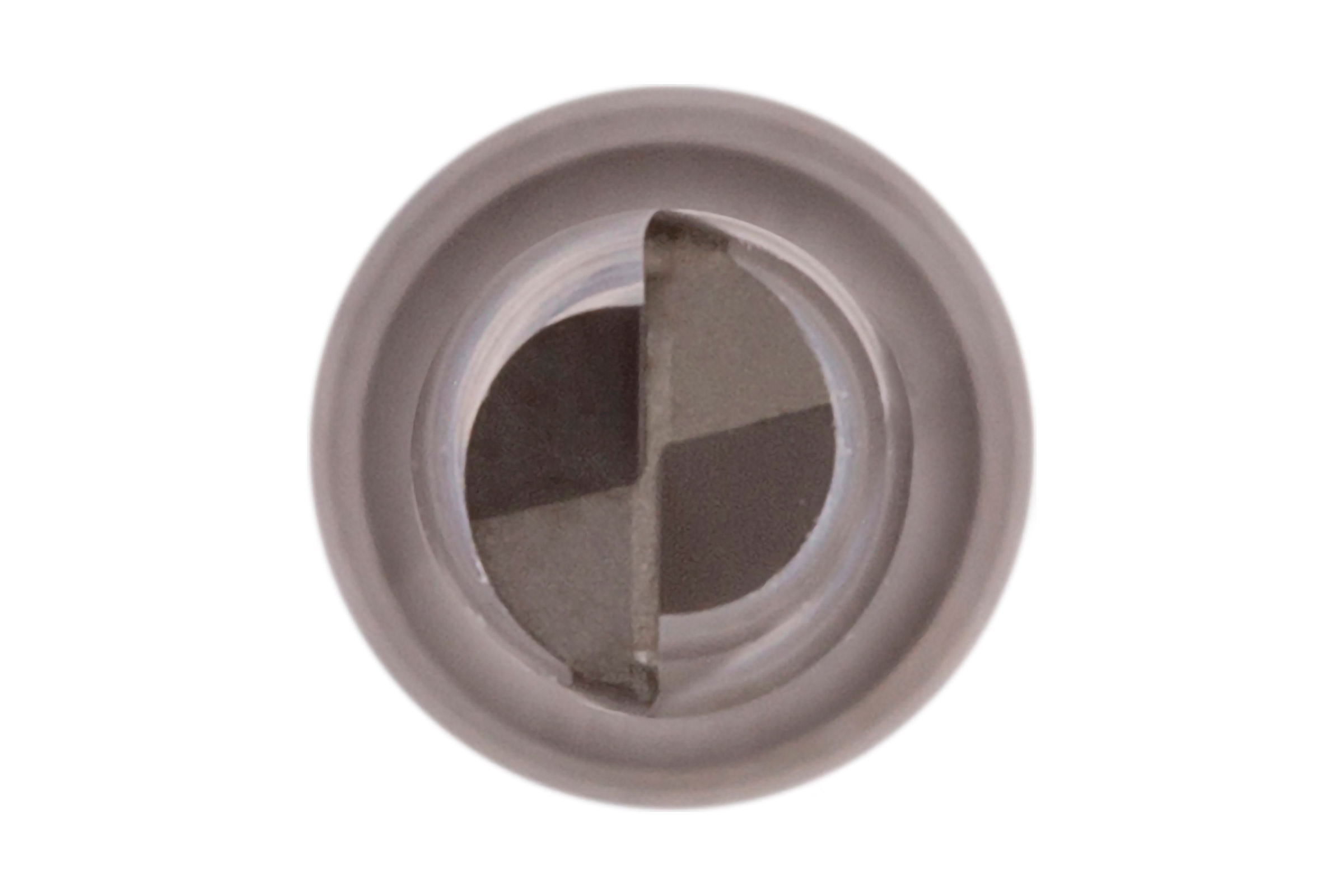

  • Product image OptiMill®-3D-CR-Graphite

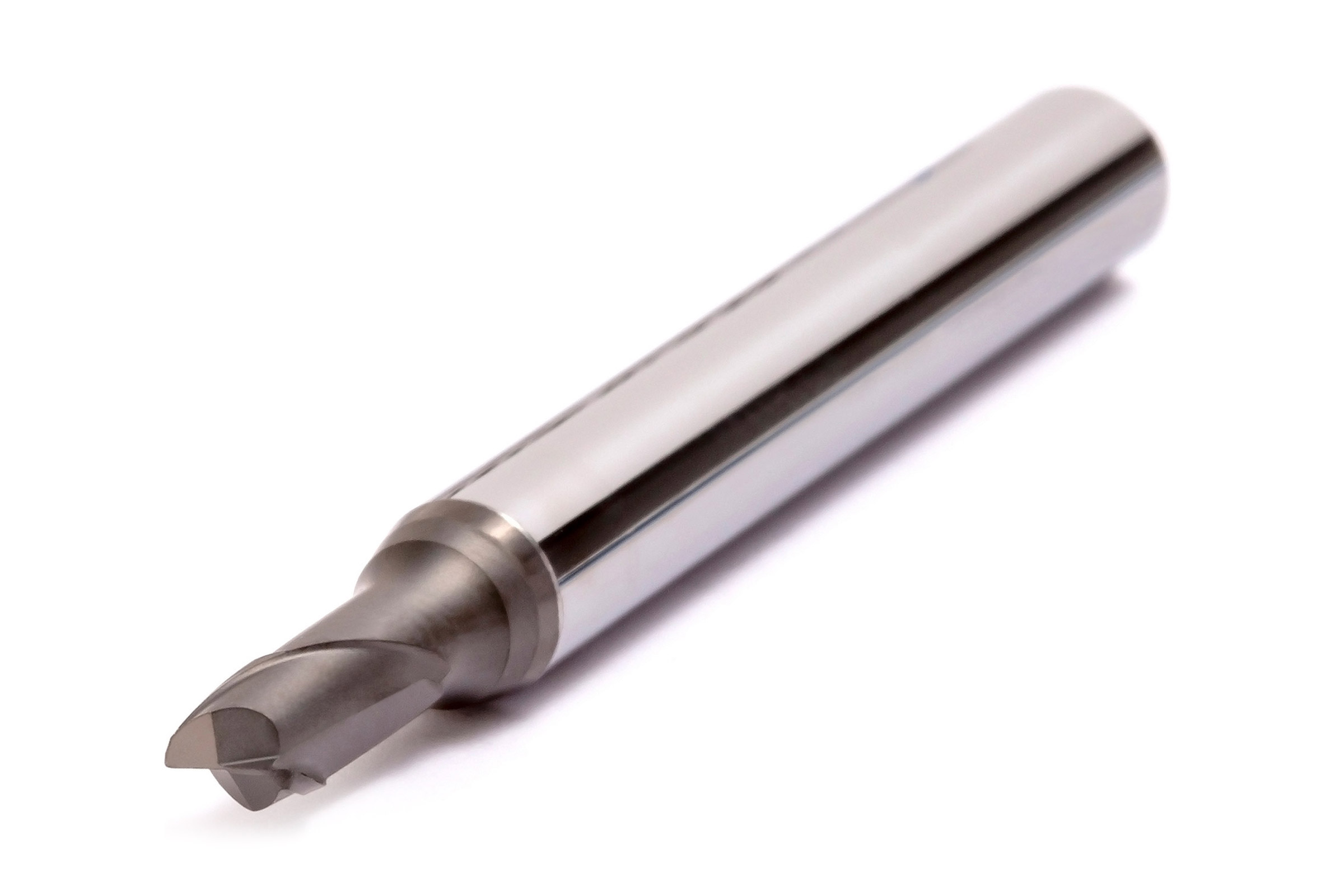

  • Product image OptiMill®-3D-CR-Graphite

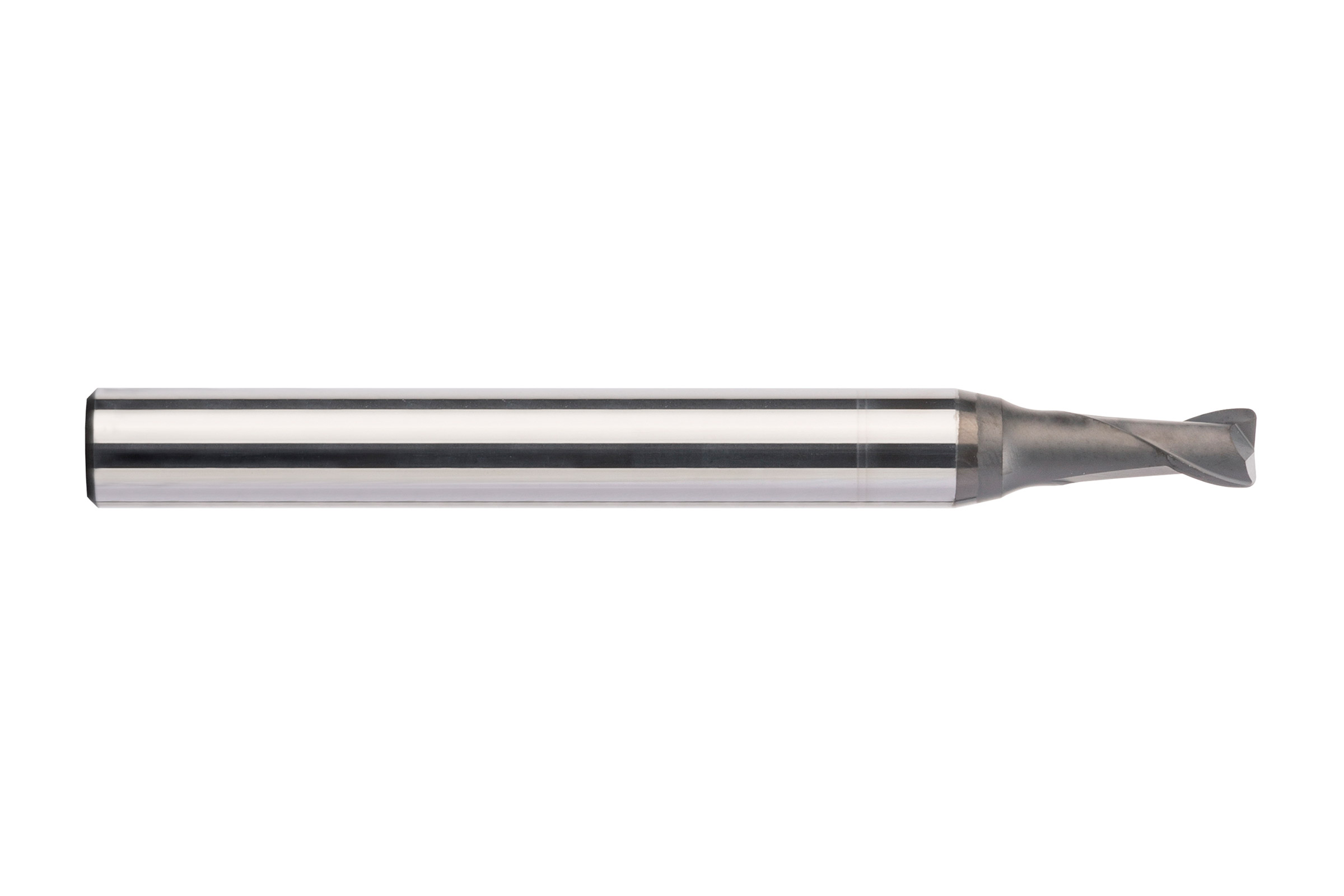

  • Product image OptiMill®-3D-CR-Graphite

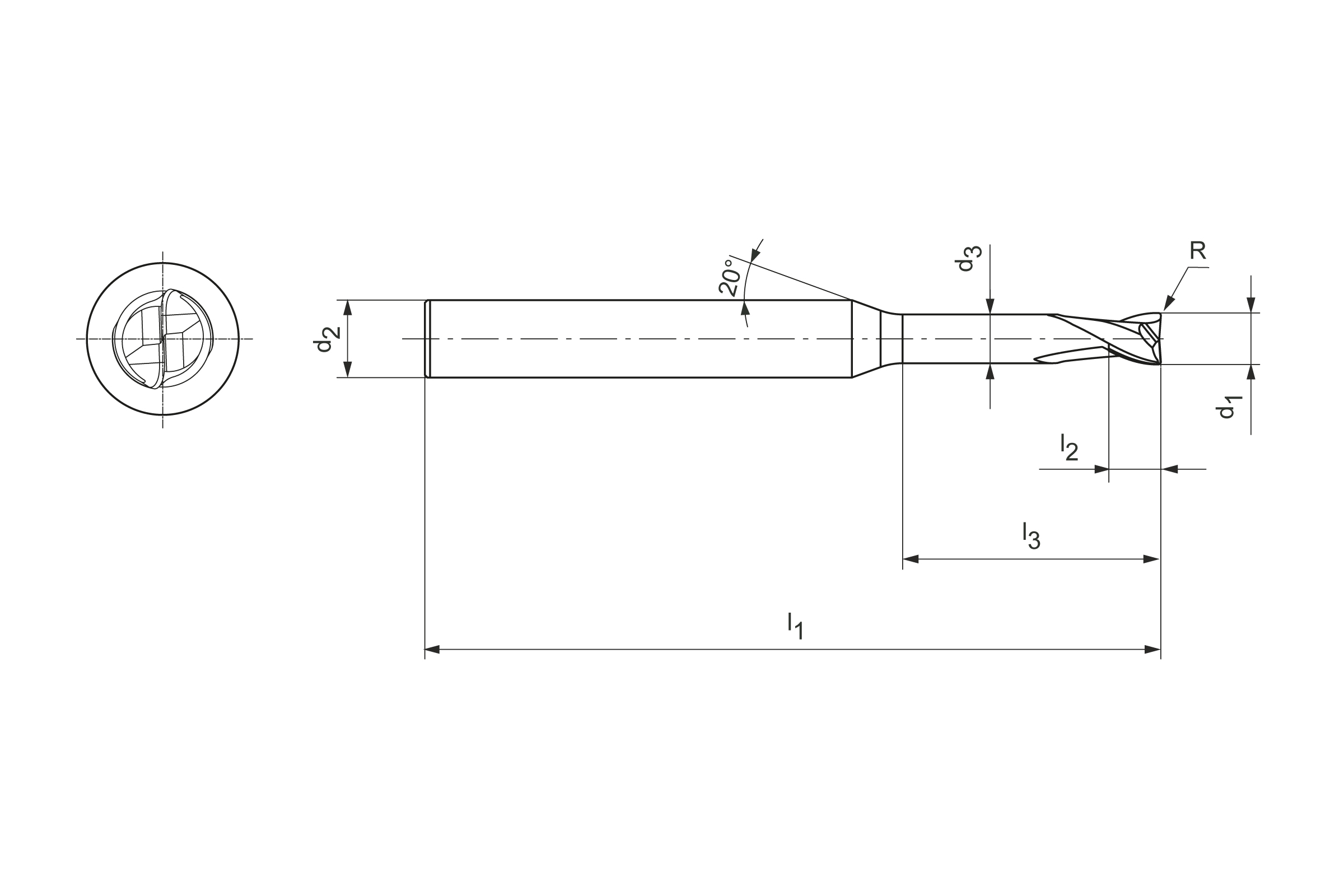

  • Technical drawing OptiMill®-3D-CR-Graphite

Diameter d1 (mm)

3.0

Your unit price

*Login required

Article

31152943

Quantity

Added to Your Shopping Cart

We recommend:

Product description

The OptiMill®-3D-CR-Graphite corner radius milling cutter was specially developed for machining graphite electrodes. It is characterised by a special geometry and diamond coating which prevents chipping and thus damage to the sensitive profiles even after longer milling.

Material suitability

Technical specifications

Product class
Expert-Line
Diameter (d1)
3   mm
Shaft diameter (d2)
6   mm
Total length (l1)
75   mm
Length of cutting edge (l2)
3   mm
Neck length (l3)
30   mm
Corner radius (R)
0.3   mm
Number of cutting edges (z)
2
Cooling
external cooling
Shank type
HA
Material group
RC

Downloads

Technical drawing in dxf
31152943_607906563-000-00-ED1-MM.DXF
Technical drawing in pdf
31152943_607906563-000-00-ED1-MM.PDF
Technical drawing in tif
31152943_607906563-000-00-ED1-MM.TIF
3D envelope in stp
31152943_607906564-000-00-E43.STP
