OptiMill®-3D-CR-Copper
Diameter d1 (mm)
6.0
Your unit price
*Login requiredWe recommend:
Product description

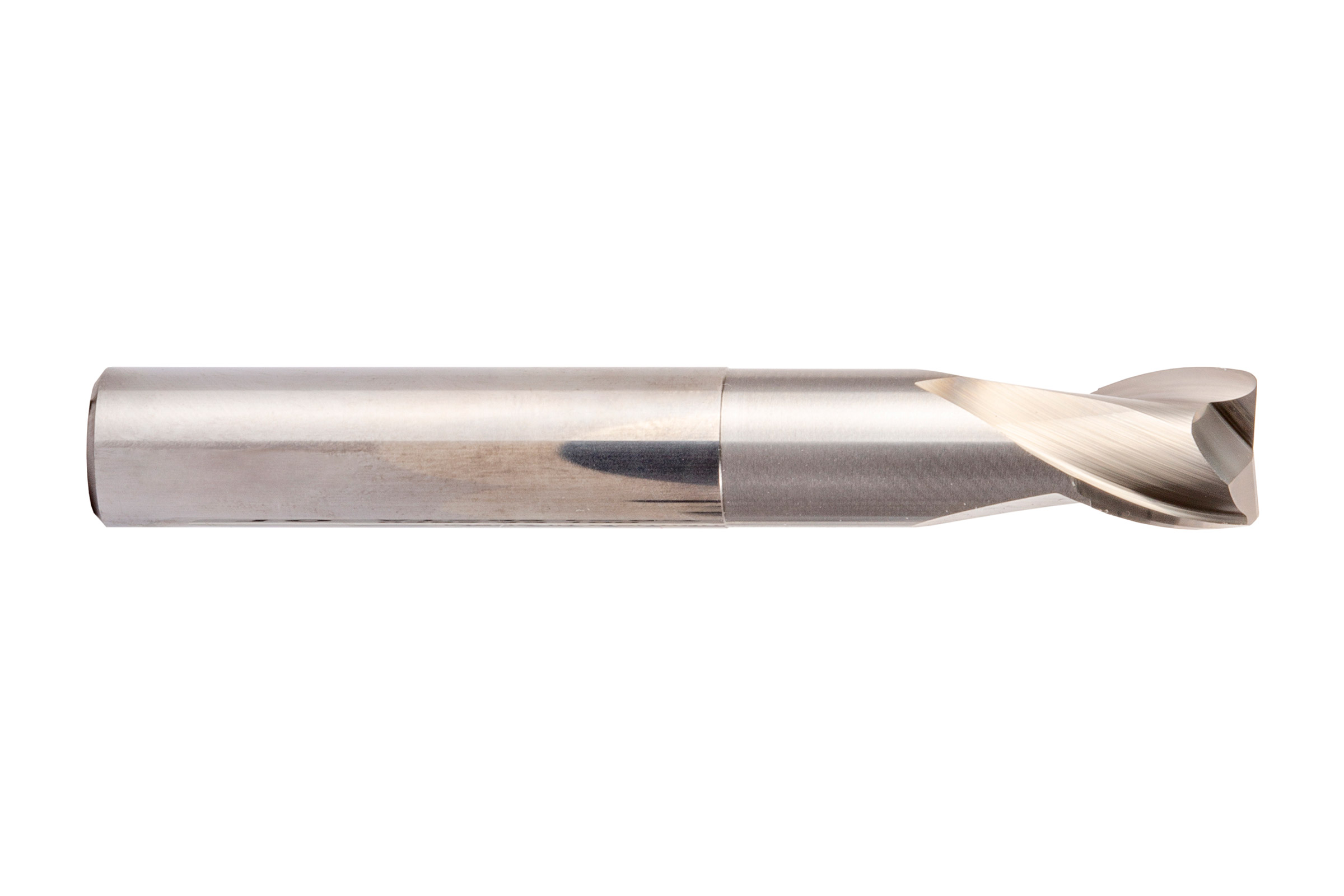

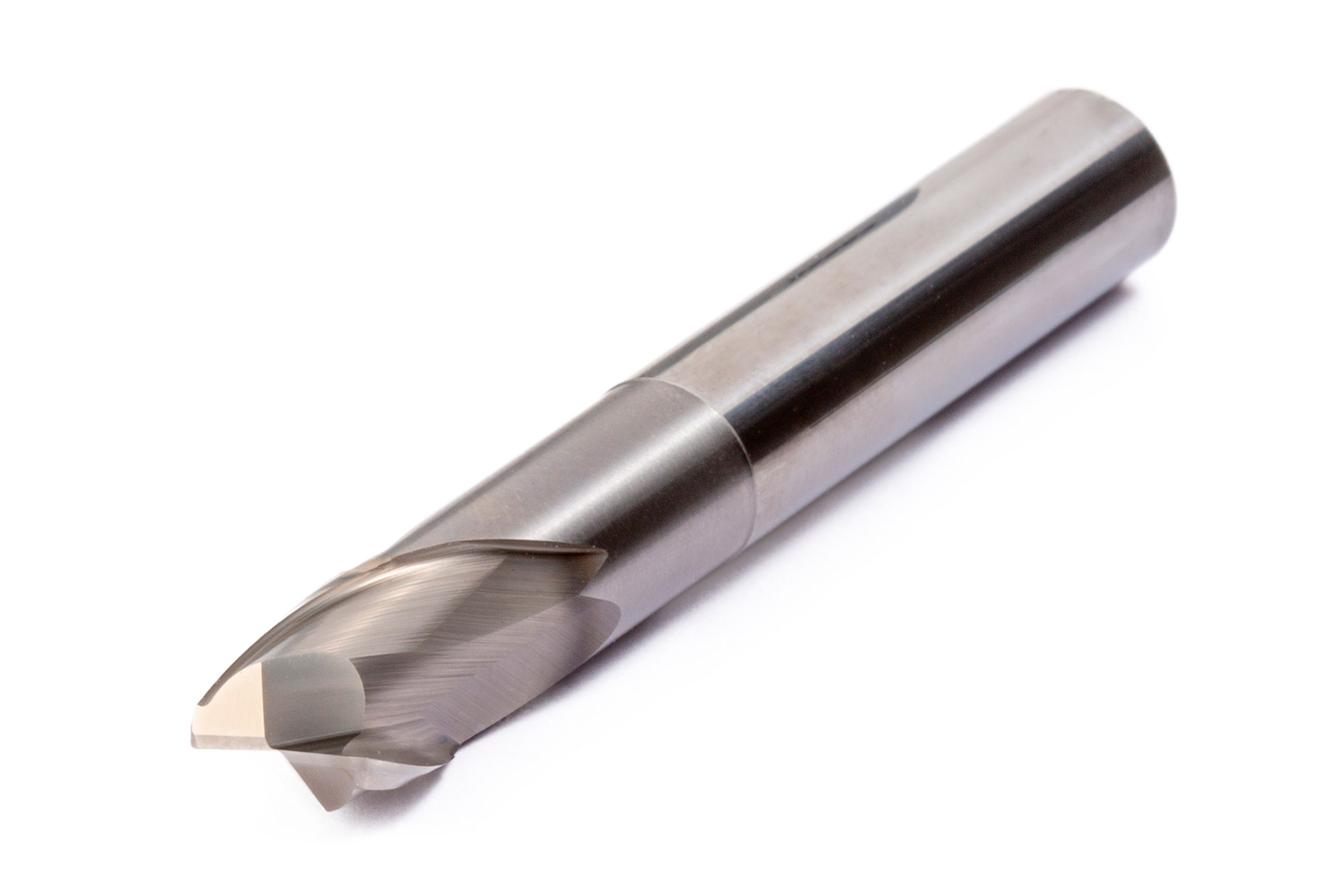

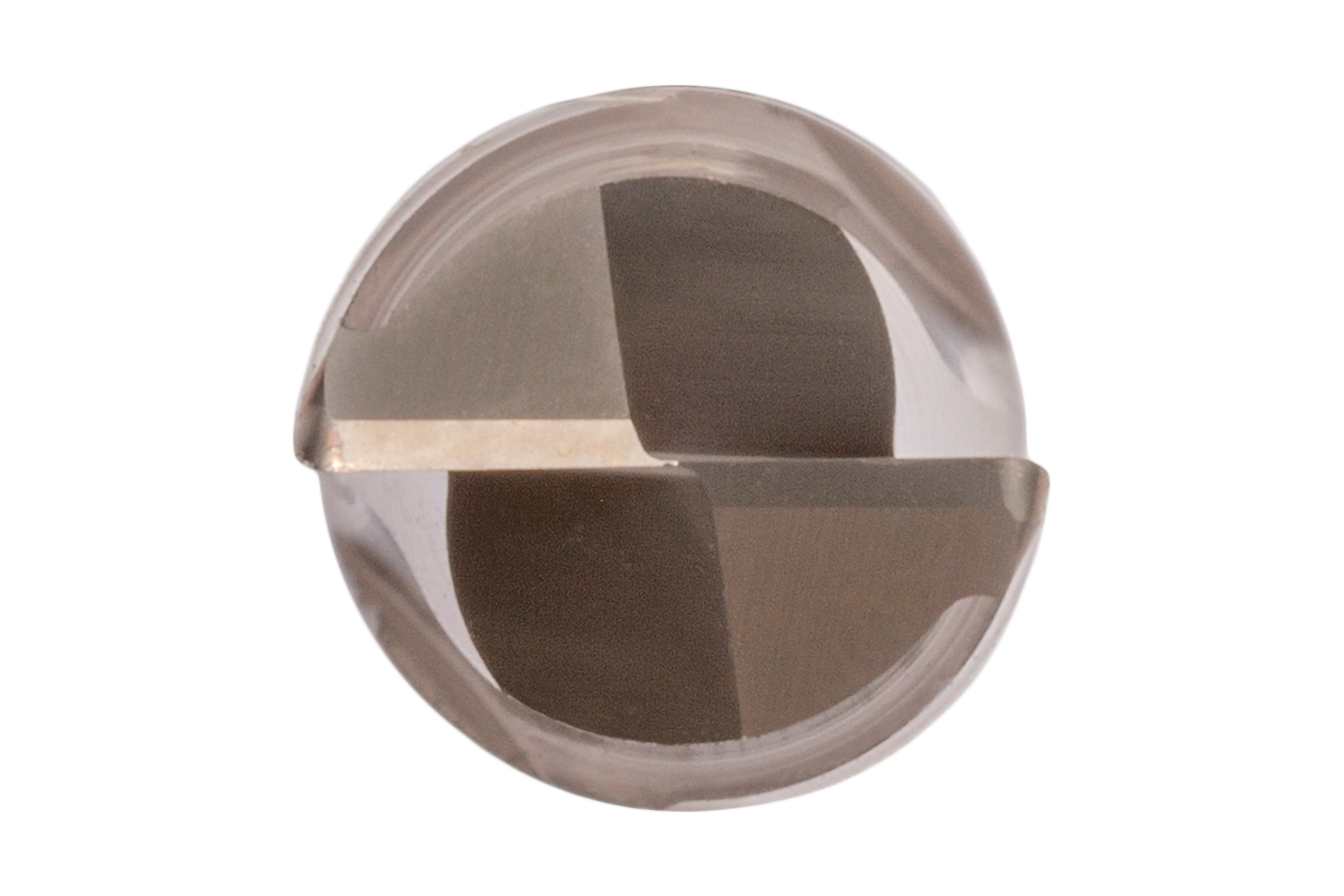

The two-flute corner radius cutter OptiMill-3D-CR-Copper has been specifically designed for machining copper and tough non-ferrous alloys. With a special geometry, these tools are ideal for machining copper electrodes. Versions with and without cutting depth enable a wide range of applications.

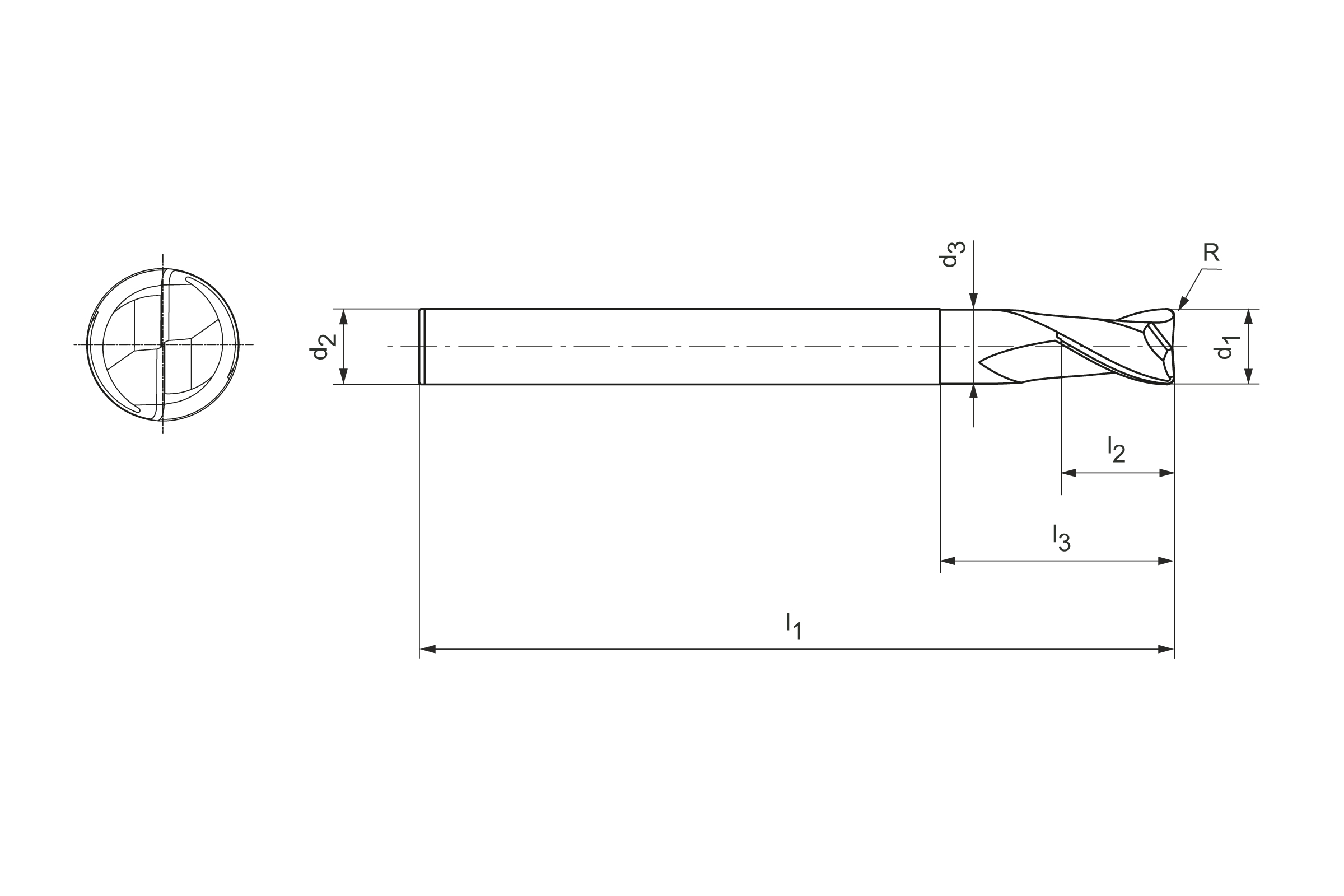

Technical specifications
- Product class
- Basic-Line
- Diameter (d1)
- 6 mm
- Shaft diameter (d2)
- 6 mm
- Total length (l1)
- 57 mm
- Length of cutting edge (l2)
- 6 mm
- Neck length (l3)
- 21 mm
- Corner radius (R)
- 0.7 mm
- Number of cutting edges (z)
- 2
- Cooling
- external cooling
- Shank type
- HA
- Material group
- RC
Downloads
- Technical drawing in dxf
- 31153107_607907236-000-00-ED1-MM.DXF
- Technical drawing in pdf
- 31153107_607907236-000-00-ED1-MM.PDF
- Technical drawing in tif
- 31153107_607907236-000-00-ED1-MM.TIF
- 3D envelope in stp
- 31153107_607907237-000-00-E43.STP
