OptiMill®-3D-CR-Copper

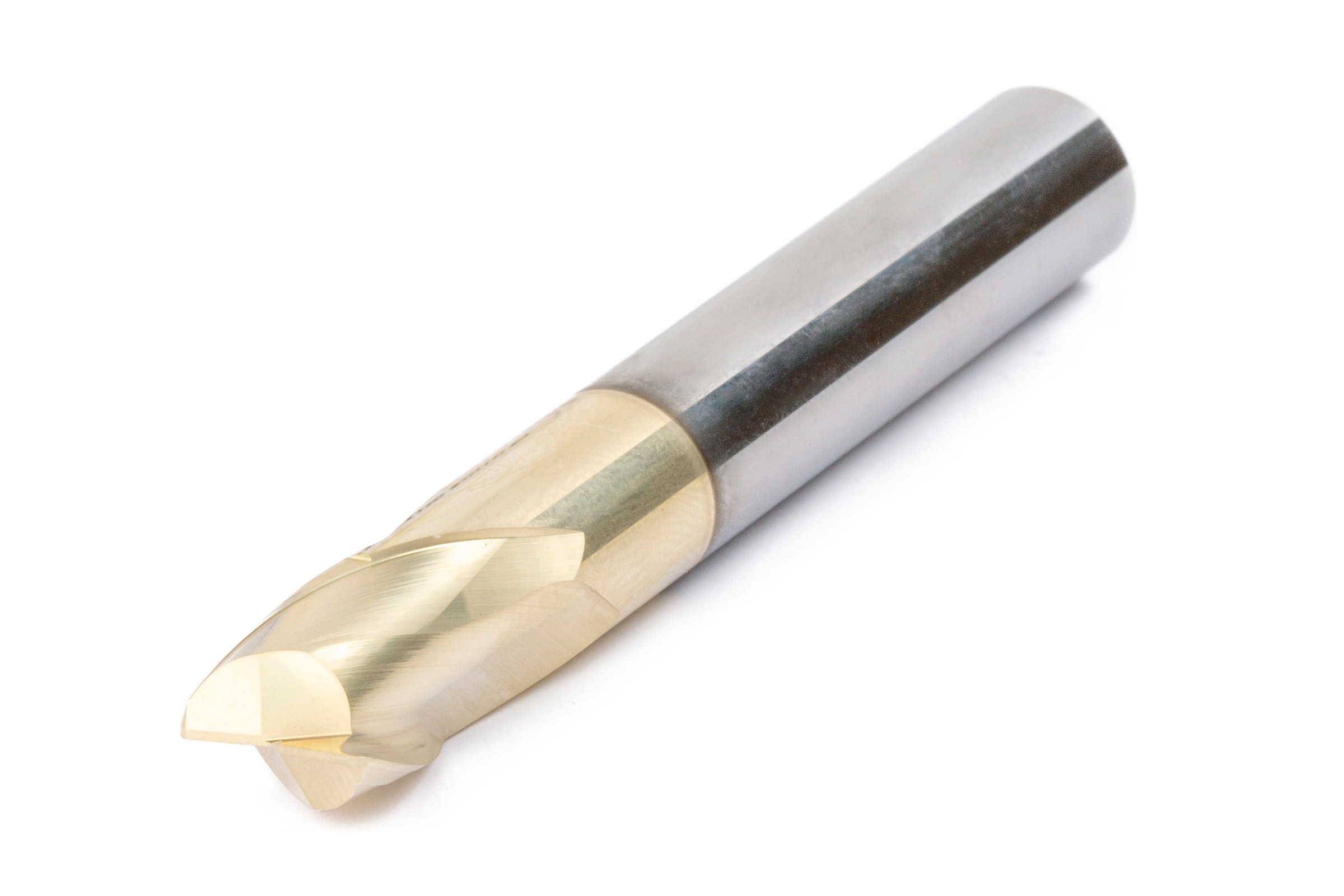

  • Produktbild OptiMill®-3D-CR-Copper

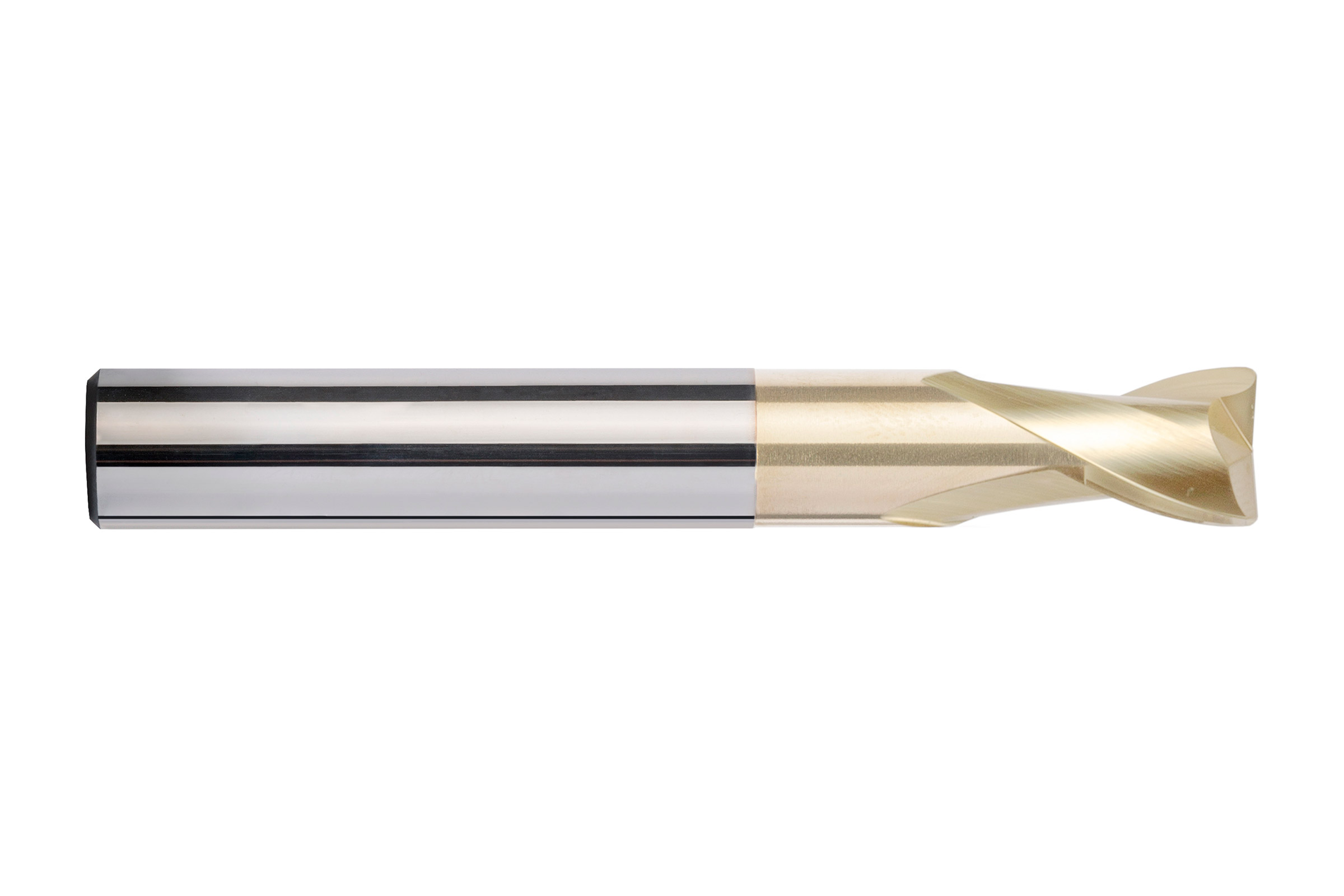

  • Produktbild OptiMill®-3D-CR-Copper

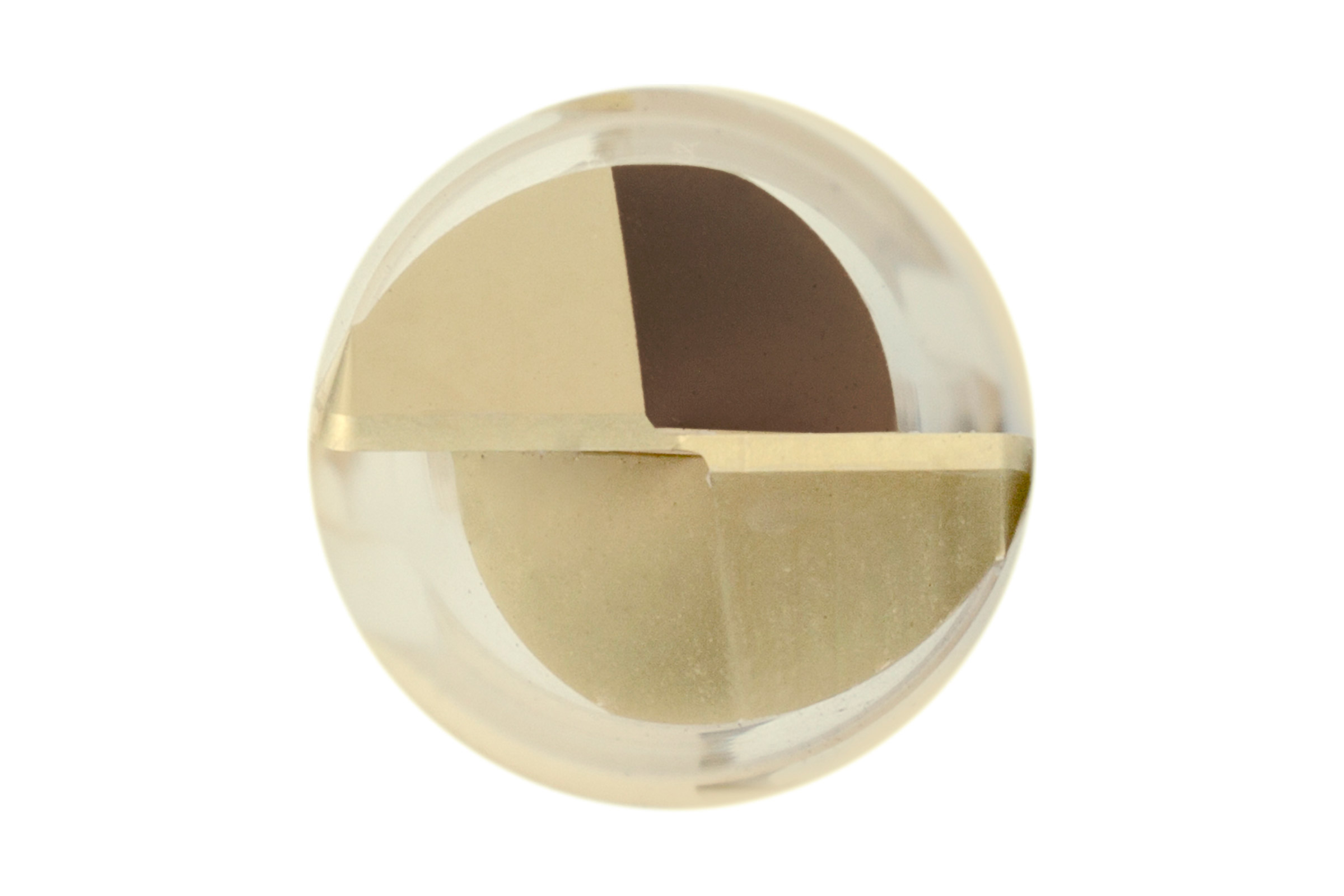

  • Produktbild OptiMill®-3D-CR-Copper

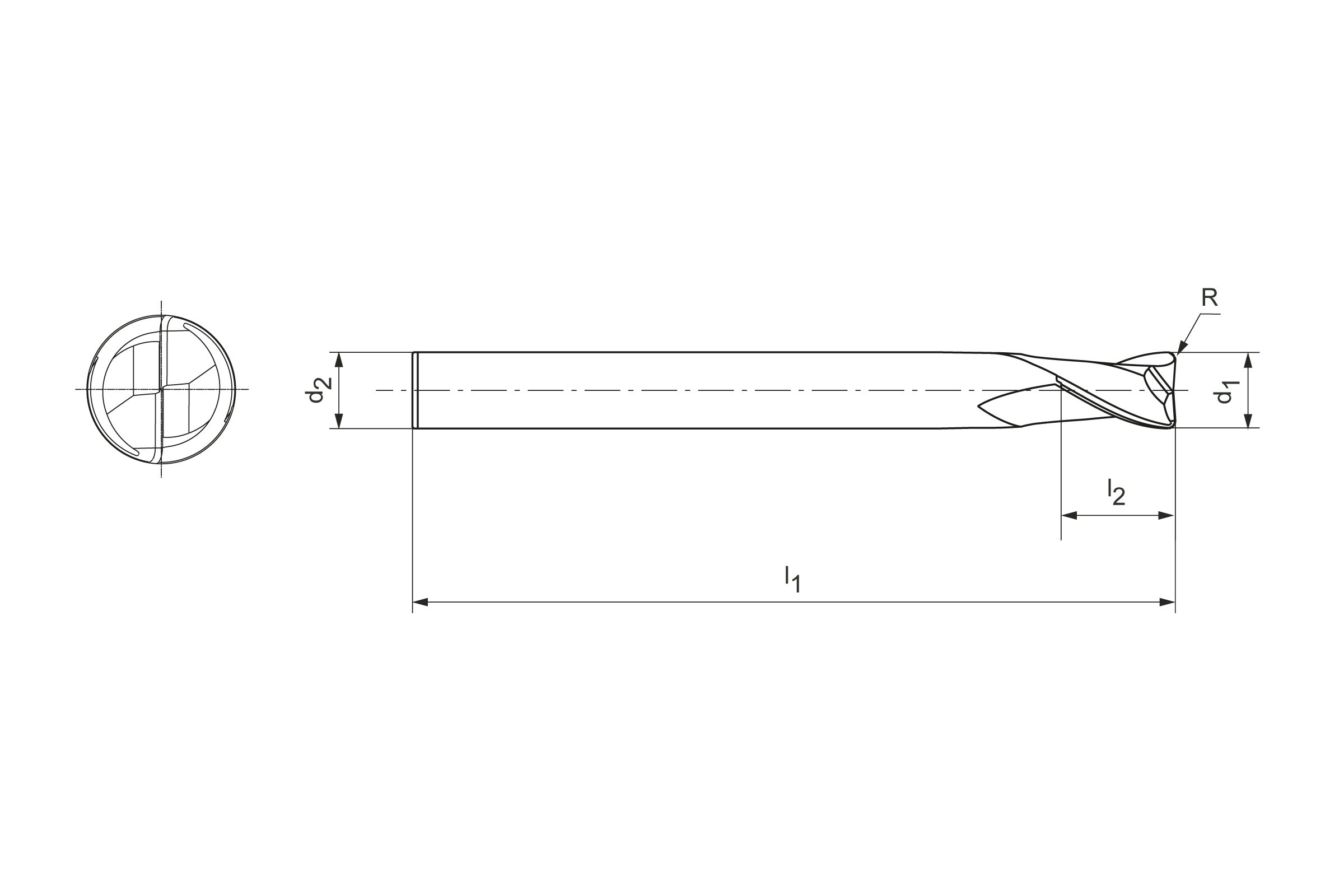

  • Produktzeichnung OptiMill®-3D-CR-Copper

Durchmesser d1 (mm)

4.0

Ihr Stückpreis

*Login erforderlich

Bestellnummer

31153080

Menge

Ihrem Warenkorb hinzugefügt

Unsere Produktempfehlung:

Produktbeschreibung

The two-flute corner radius cutter OptiMill-3D-CR-Copper has been specifically designed for machining copper and tough non-ferrous alloys. With a special geometry, these tools are ideal for machining copper electrodes. Versions with and without cutting depth enable a wide range of applications.

Materialeignung

Technische Daten

Produktklasse
Basic-Line
Schneidendurchmesser (d1)
4   mm
Schaftdurchmesser (d2)
4   mm
Gesamtlänge (l1)
50   mm
Schneidenlänge (l2)
4   mm
Eckenradius (R)
0.2   mm
Anzahl Schneiden (z)
2
Kühlmittelzufuhr
äußere Kühlmittelzufuhr
Schaft Typ
HA
Schneidstoff
HP804
Materialgruppe
RC
Spezifikation
MCR117-040-0020-X050-HP804

Downloads

Technische Zeichnung in dxf
31153080_607907174-000-00-ED1-MM.DXF
Technische Zeichnung in pdf
31153080_607907174-000-00-ED1-MM.PDF
Technische Zeichnung in tif
31153080_607907174-000-00-ED1-MM.TIF
3D Hüllkontur in stp
31153080_607907175-000-00-E43.STP
Cutting data recommendations
31153080_OptiMill-3D-CR-Copper_EN.pdf
