OptiMill®-3D-BN

Price reduction %

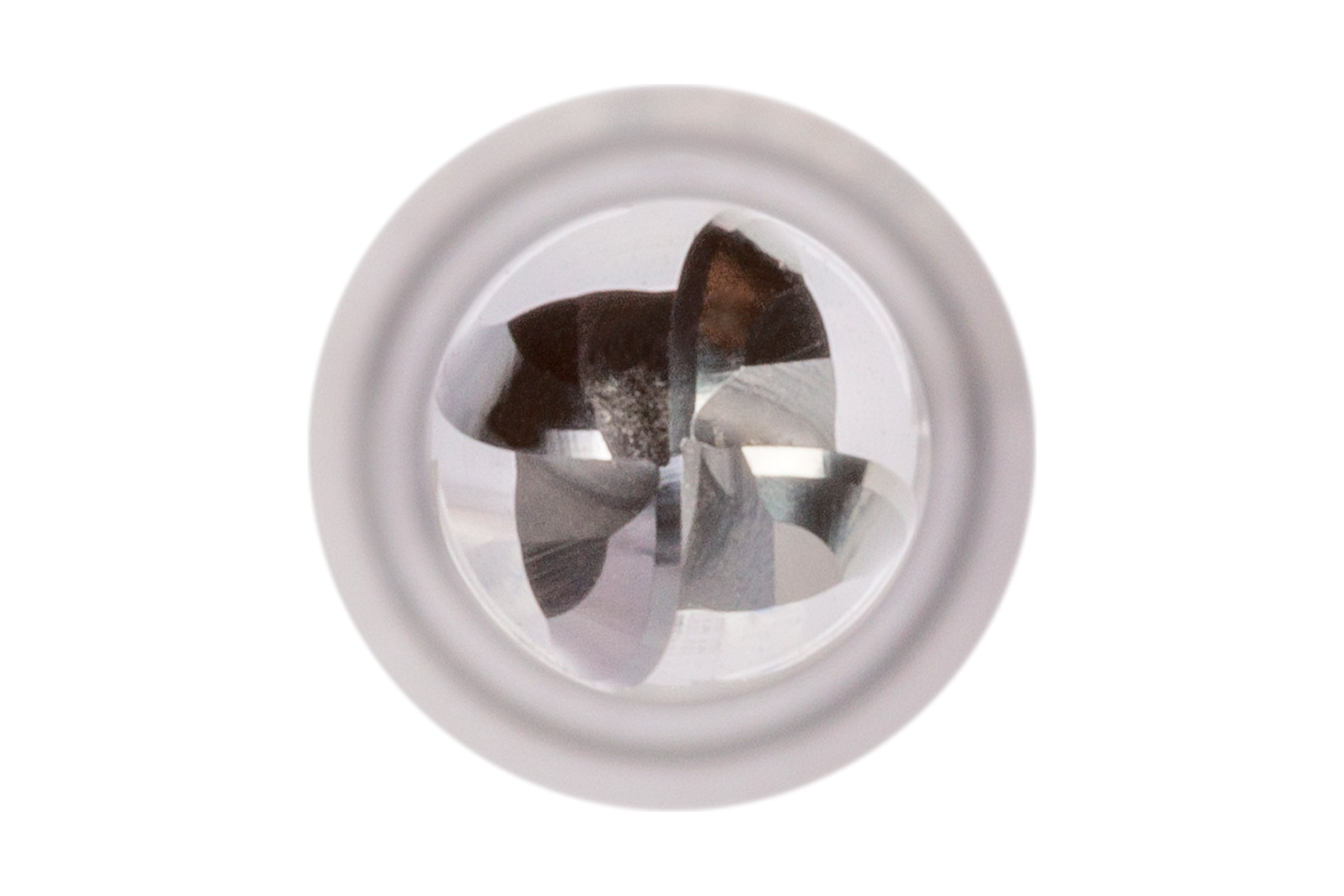

  • Product image OptiMill®-3D-BN

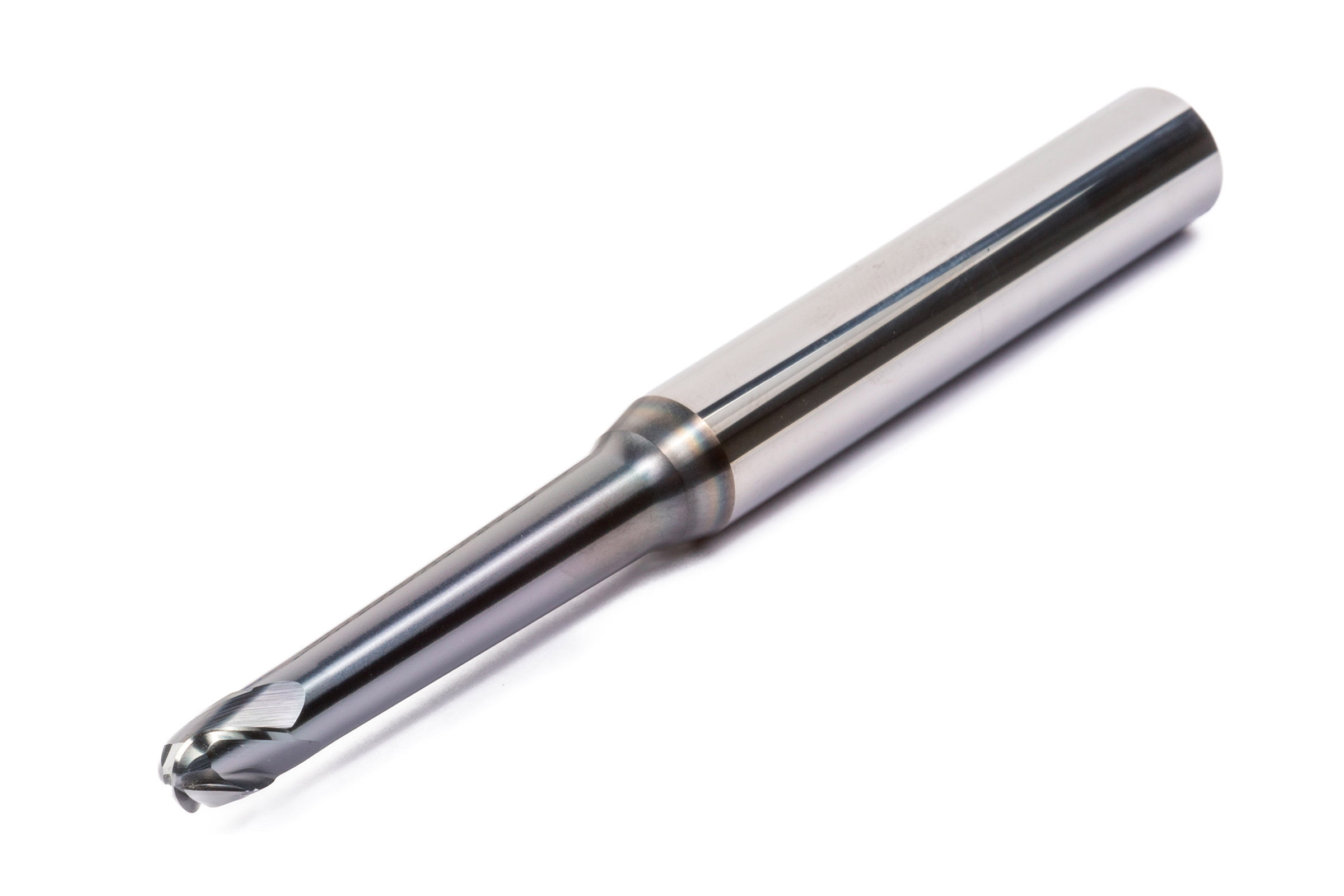

  • Product image OptiMill®-3D-BN

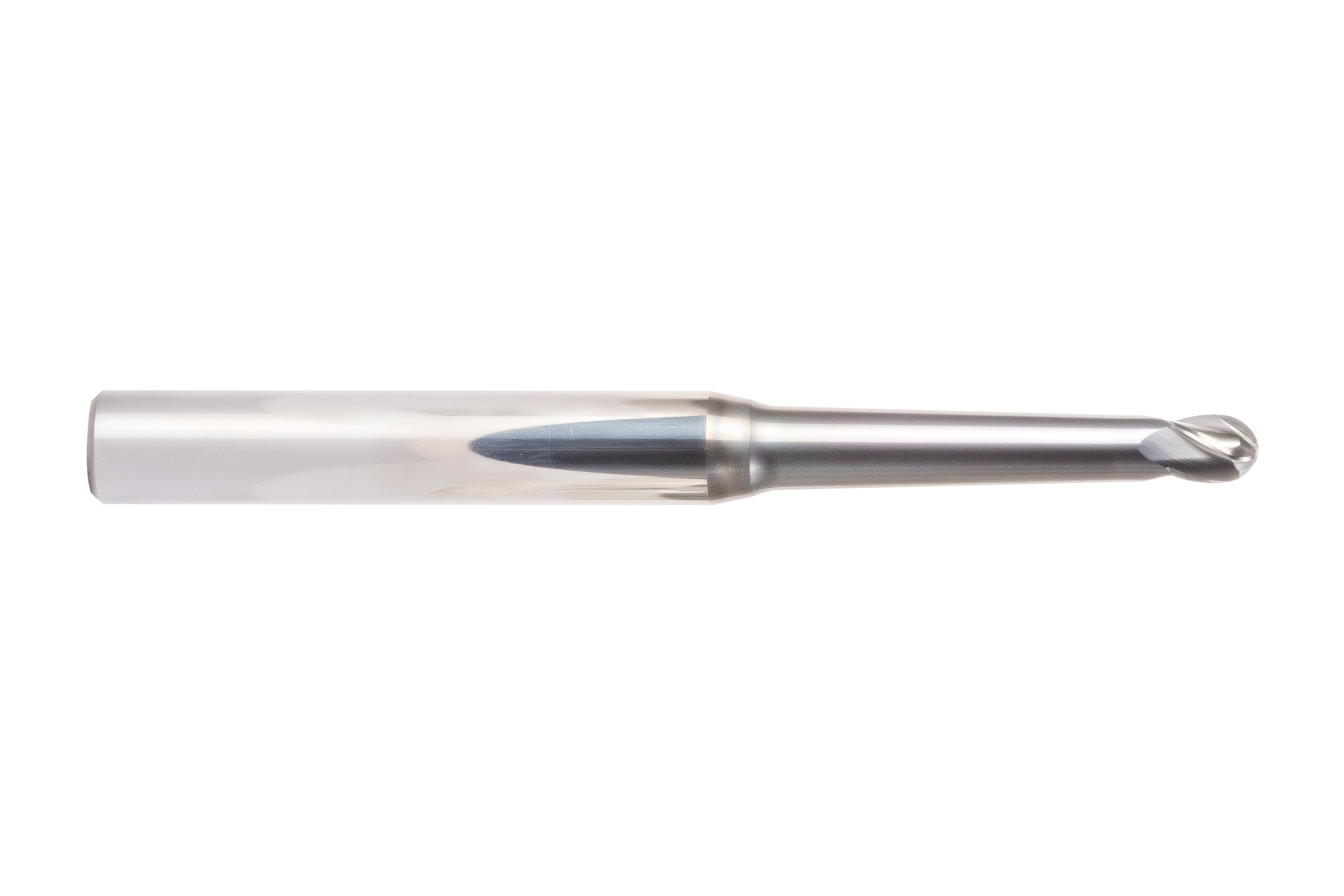

  • Product image OptiMill®-3D-BN

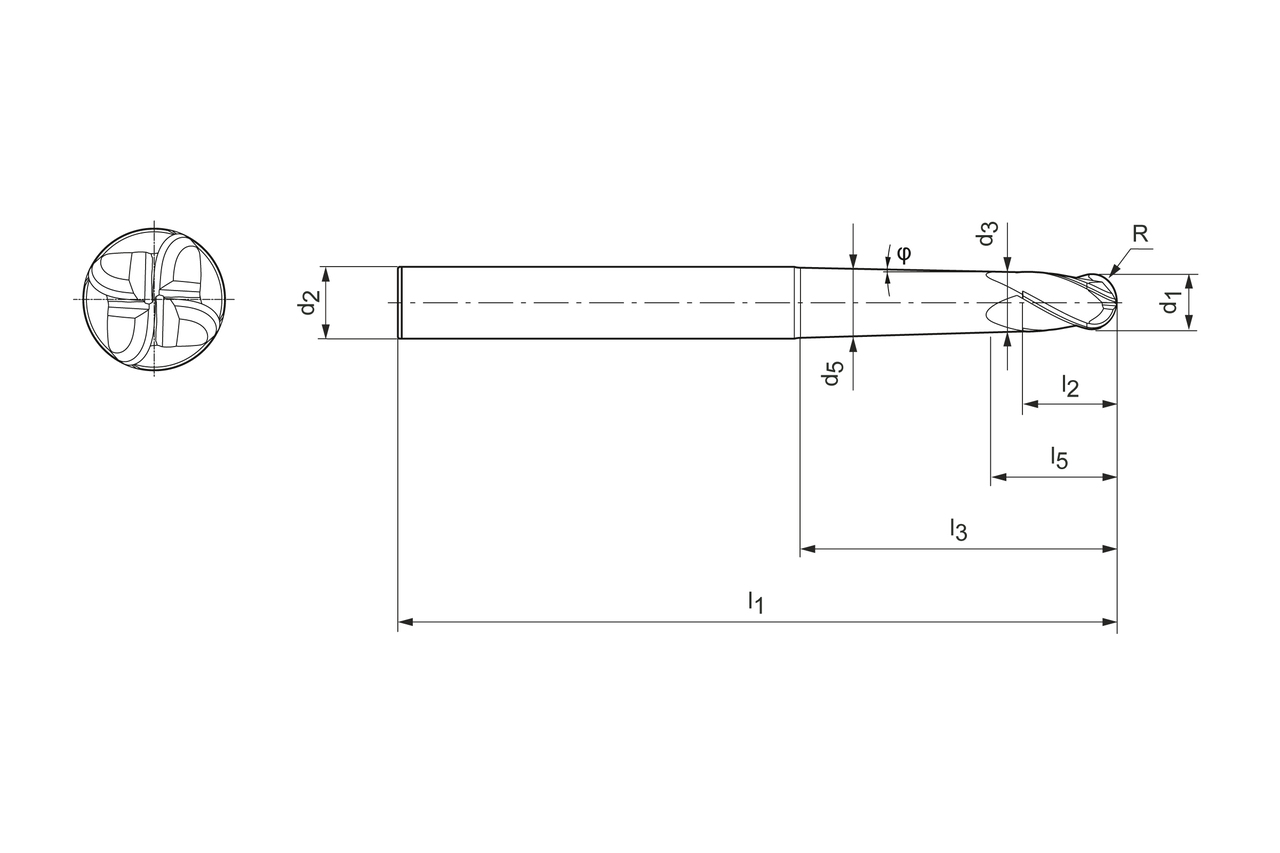

  • Technical drawing OptiMill®-3D-BN

Diameter d1 (mm)

3.0

Your unit price

*Login required

Article

31153556

Quantity

Added to Your Shopping Cart

Product description

The OptiMill-3D-BN ball nose mill cutter has been specifically developed for machining materials up to 55 HRC. It is characterized by high radius accuracy, making it ideal for high-precision machining of 3D contours. In addition to an extremely heat-resistant coating and a special carbide substrate, these tools are distinguished by dimensions and geometries tailored specifically to mold making.

Material suitability

P
P1
highly suitable
P2
highly suitable
P3
highly suitable
P4
highly suitable
P5
highly suitable
P6
highly suitable
M
M1
suitable in some situations
M2
suitable in some situations
M3
suitable in some situations
K
K1
highly suitable
K2
highly suitable
K3
highly suitable
N
N1
N2
N3
N4
S
S1
S2
S3
S4
S5
H
H1
highly suitable
H2
suitable in some situations
H3

Technical specifications

Produktklasse
Performance-Line
Schneidendurchmesser (d1)
3   mm
Schaftdurchmesser (d2)
6   mm
Durchmesser zylindrischer Anteil (d3)
2.94   mm
Gesamtlänge (l1)
60   mm
Schneidenlänge (l2)
3.5   mm
Halslänge (l3)
20   mm
Länge zylindrischer Anteil (l5)
6   mm
Eckenradius (R)
1.5   mm
Konuswinkel (φ)
1.5   °
Anzahl Schneiden (z)
4
Kühlmittelzufuhr
äußere Kühlmittelzufuhr
Schaft Typ
HA
Schneidstoff
HP801
Materialgruppe
RC
Spezifikation
MBN105-030-0150-2000C060-HP801

Downloads

3D Hüllkontur in stp
31153556_607643548-000-00-E43.STP
Technische Zeichnung in dxf
31153556_607409433-000-01-ED1-MM.DXF
Technische Zeichnung in pdf
31153556_607409433-000-01-ED1-MM.PDF
Technische Zeichnung in tif
31153556_607409433-000-01-ED1-MM.TIF
Cutting data recommendations
31153556_OptiMill-3D-BN_Schnittwertempfehlung.pdf
Technical drawing in tif
31153556_607409433-000-01-ED1-MM.tif
