OptiMill®-3D-BN

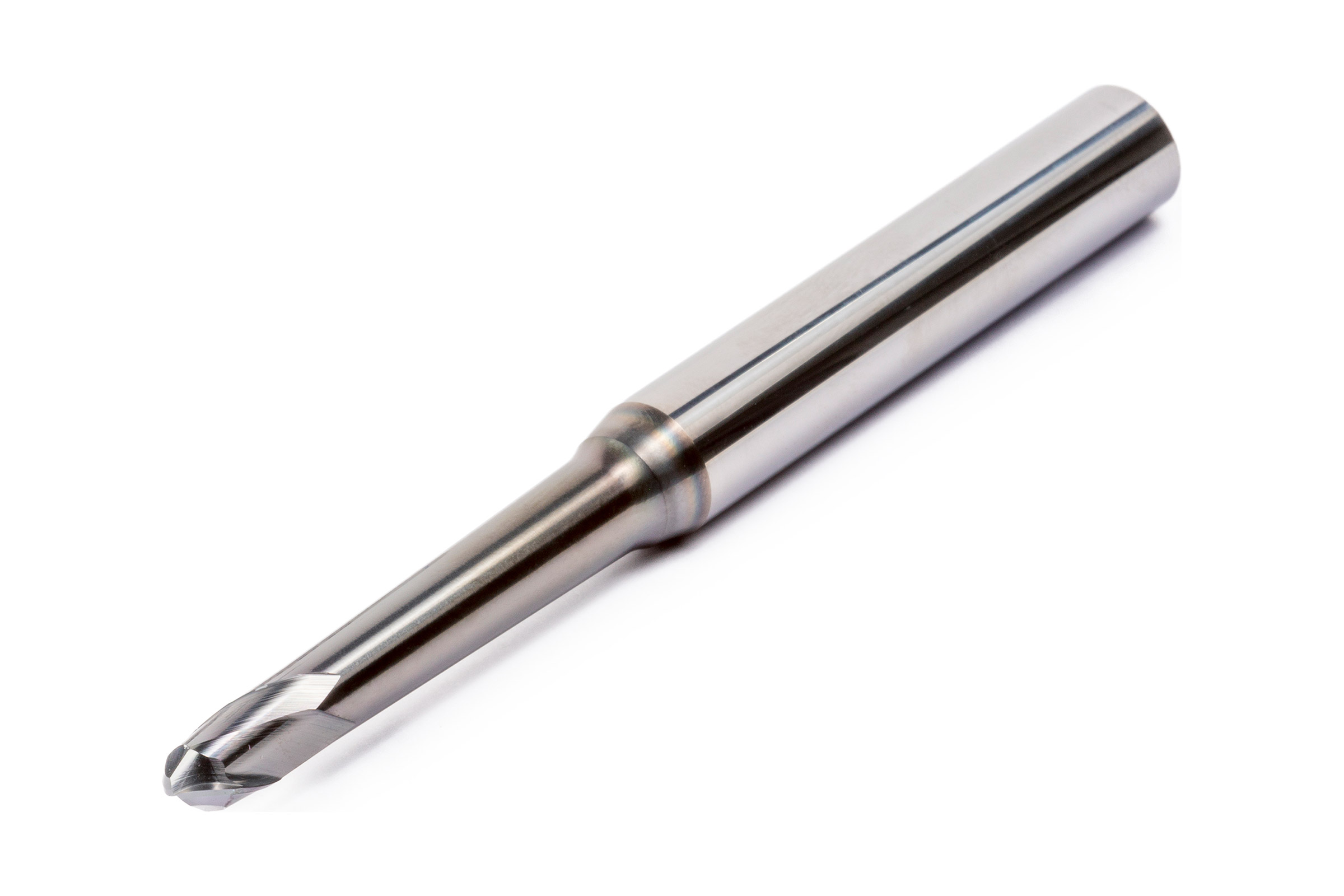

  • Product image OptiMill®-3D-BN

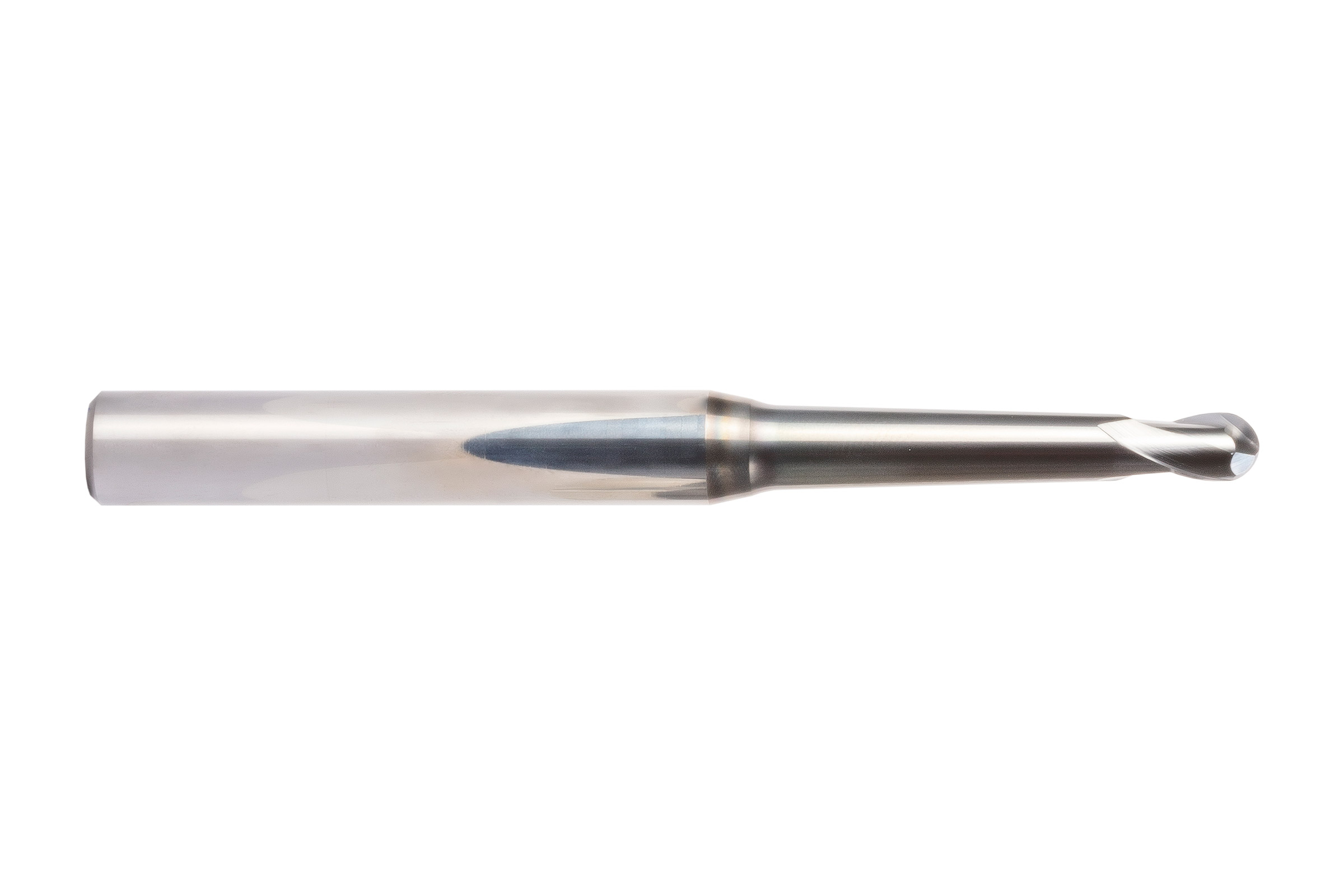

  • Product image OptiMill®-3D-BN

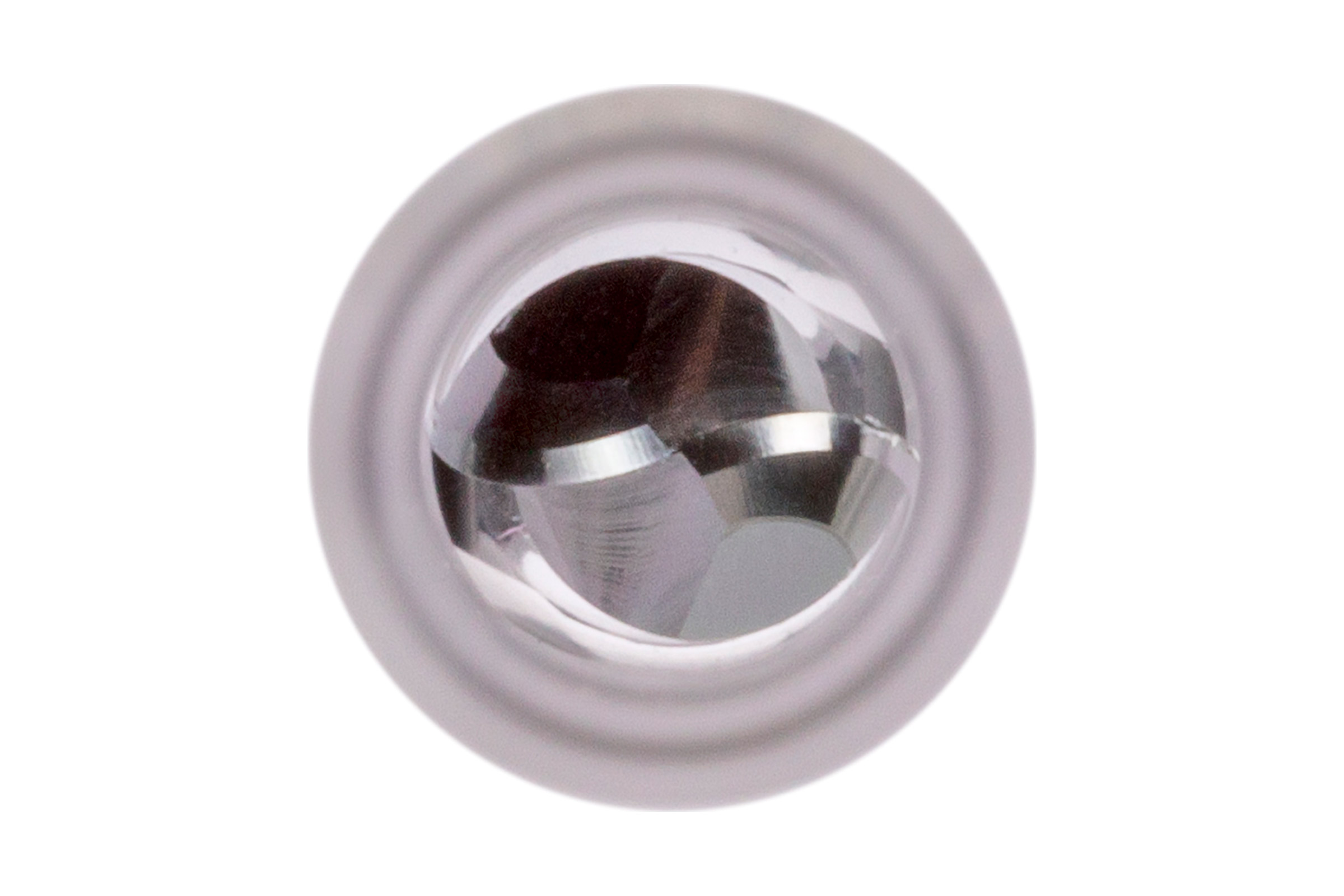

  • Produktbild OptiMill®-3D-BN

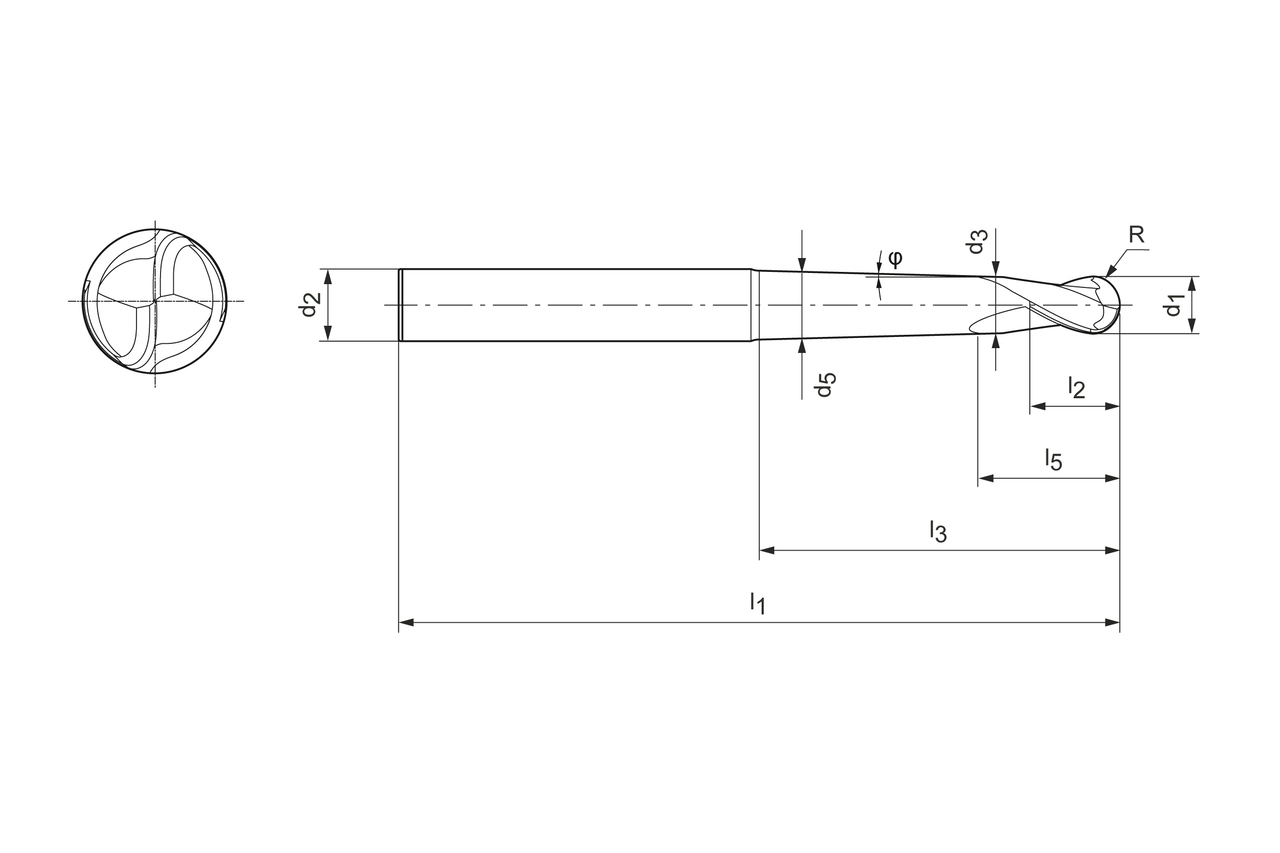

  • Produktzeichnung OptiMill®-3D-BN

Diameter d1 (mm)

6.0

Ihr Stückpreis

*Login required

Bestellnummer

31153490

Menge

Ihrem Warenkorb hinzugefügt

Produktbeschreibung

The OptiMill-3D-BN ball nose mill cutter has been specifically developed for machining materials up to 55 HRC. It is characterized by high radius accuracy, making it ideal for high-precision machining of 3D contours. In addition to an extremely heat-resistant coating and a special carbide substrate, these tools are distinguished by dimensions and geometries tailored specifically to mold making.

Materialeignung

Technische Daten

Product class
Performance-Line
Diameter (d1)
6   mm
Shaft diameter (d2)
10   mm
Cylindrical part diameter (d3)
5.9   mm
Total length (l1)
100   mm
Length of cutting edge (l2)
6.9   mm
Neck length (l3)
35   mm
Cylindrical length (l5)
12   mm
Corner radius (R)
3   mm
Taper angle (φ)
1.5   °
Number of cutting edges (z)
2
Cooling
external cooling
Shank type
HA
Cutting material
HP801
Material group
RC
Specification
MBN102-060-0300-3500C100-HP801

Downloads

3D envelope in stp
31153490_607640278-000-01-E43.STP
Technical drawing in dxf
31153490_607410395-000-02-ED1-MM.DXF
Technical drawing in pdf
31153490_607410395-000-02-ED1-MM.PDF
Technical drawing in tif
31153490_607410395-000-02-ED1-MM.TIF
