OptiMill®-3D-BN
Diameter d1 (mm)
3.0
Your unit price
*Login requiredProduct description

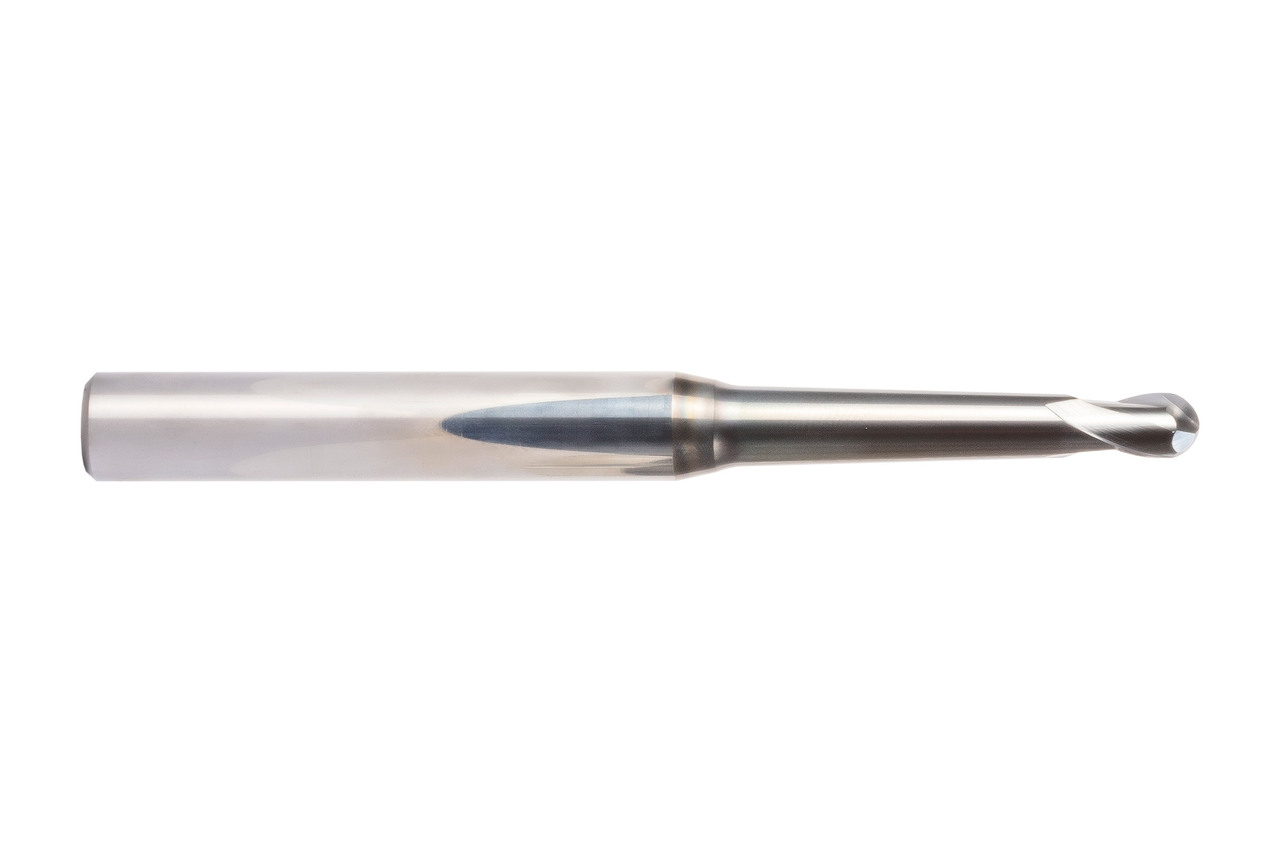

The OptiMill-3D-BN ball end mill cutter has been specifically developed for machining materials up to 55 HRC. It is characterized by high radius accuracy, making it ideal for high-precision machining of 3D contours. In addition to an extremely heat-resistant coating and a special carbide substrate, these tools are distinguished by dimensions and geometries tailored specifically to mold making.

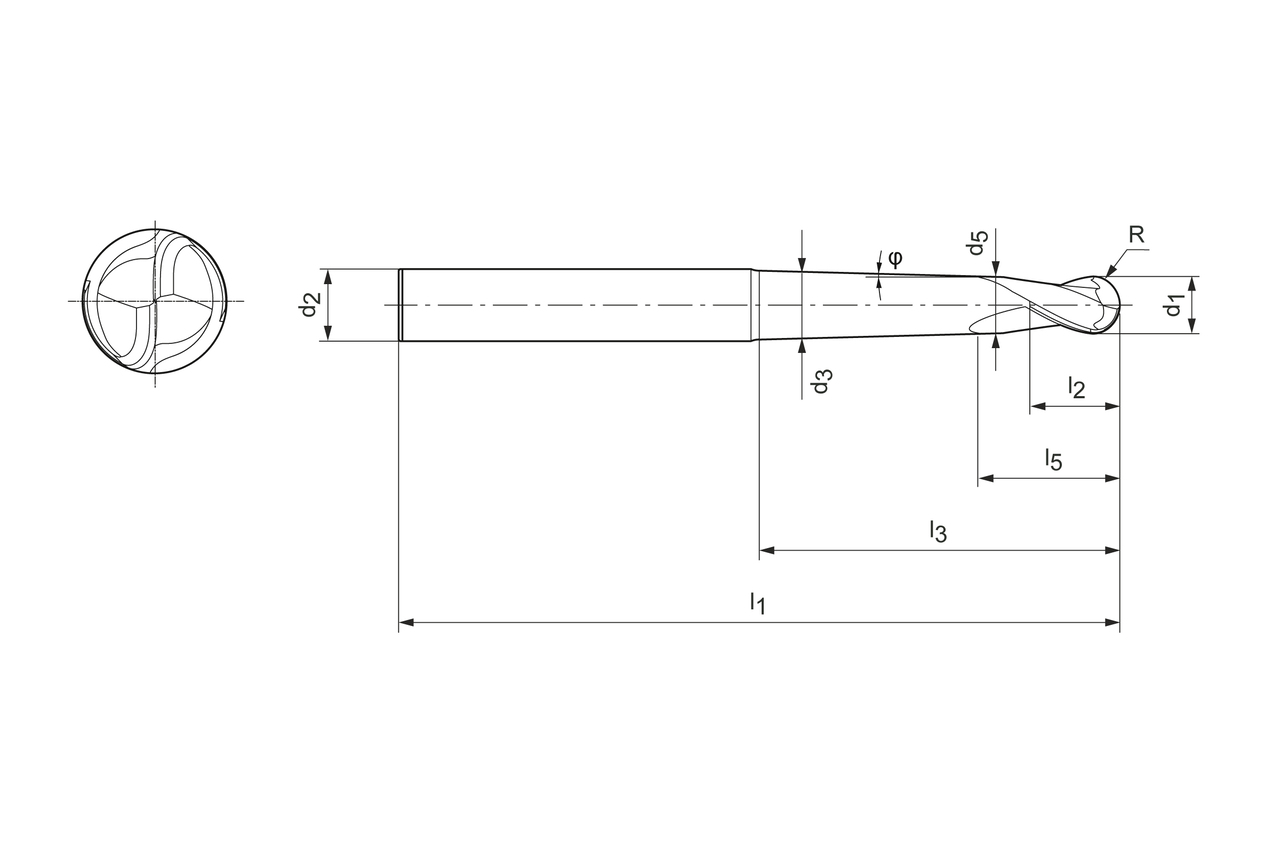

Technical specifications
- Product class
- Performance-Line
- Diameter (d1)
- 3 mm
- Shaft diameter (d2)
- 6 mm
- Total length (l1)
- 75 mm
- Length of cutting edge (l2)
- 3.5 mm
- Neck length (l3)
- 35 mm
- Corner radius (R)
- 1.5 mm
- Taper angle (φ)
- 0.5 °
- Number of cutting edges (z)
- 2
- Cooling
- external cooling
- Shank type
- HA
- Material group
- RC
Downloads
- 3D envelope in stp
- 31153438_607640165-000-01-E43.STP
- Technical drawing in dxf
- 31153438_607408726-000-02-ED1-MM.DXF
- Technical drawing in pdf
- 31153438_607408726-000-02-ED1-MM.PDF
- Technical drawing in tif
- 31153438_607408726-000-02-ED1-MM.TIF
