OptiMill®-3D-BN

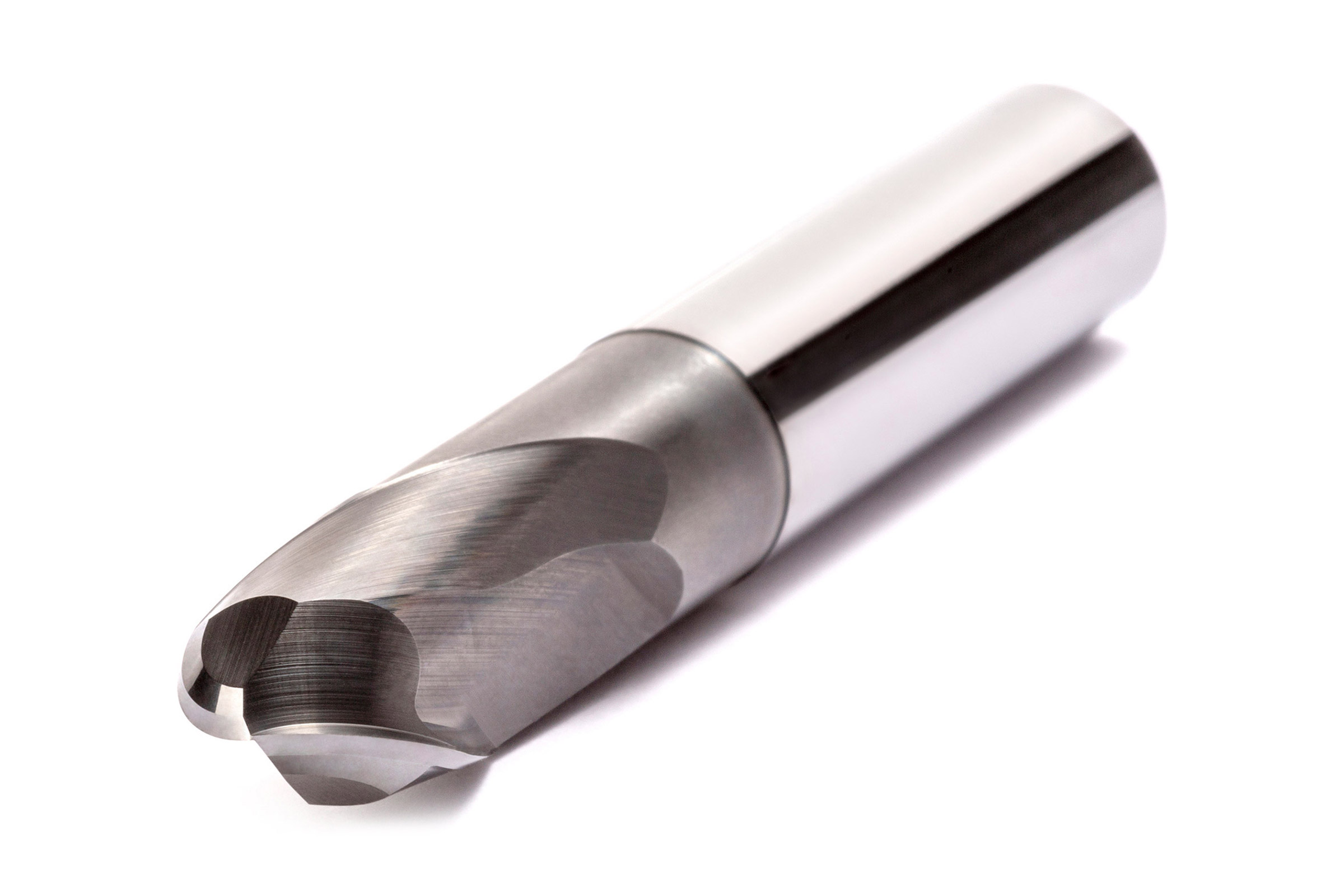

  • Produktbild OptiMill®-3D-BN

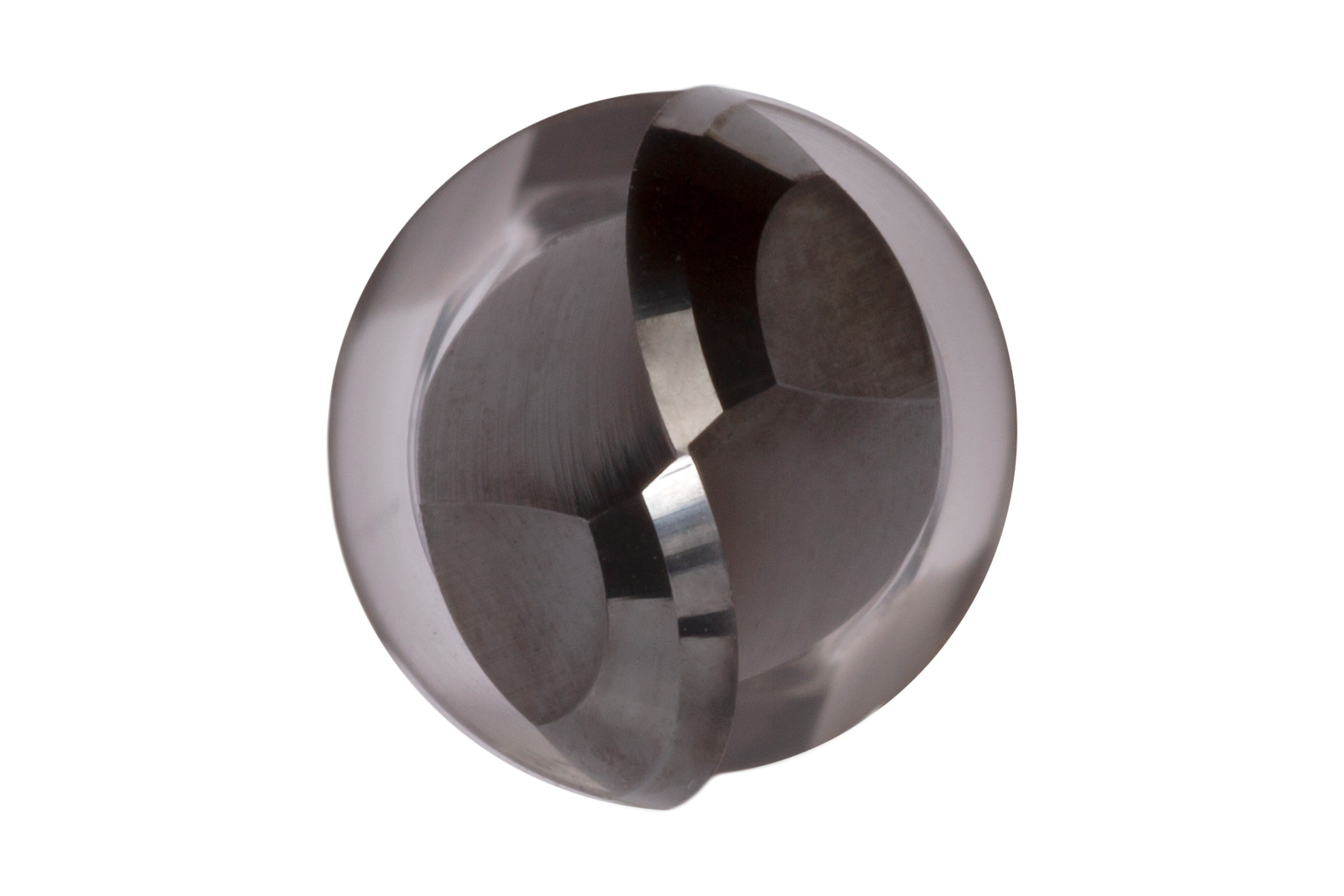

  • Produktbild OptiMill®-3D-BN

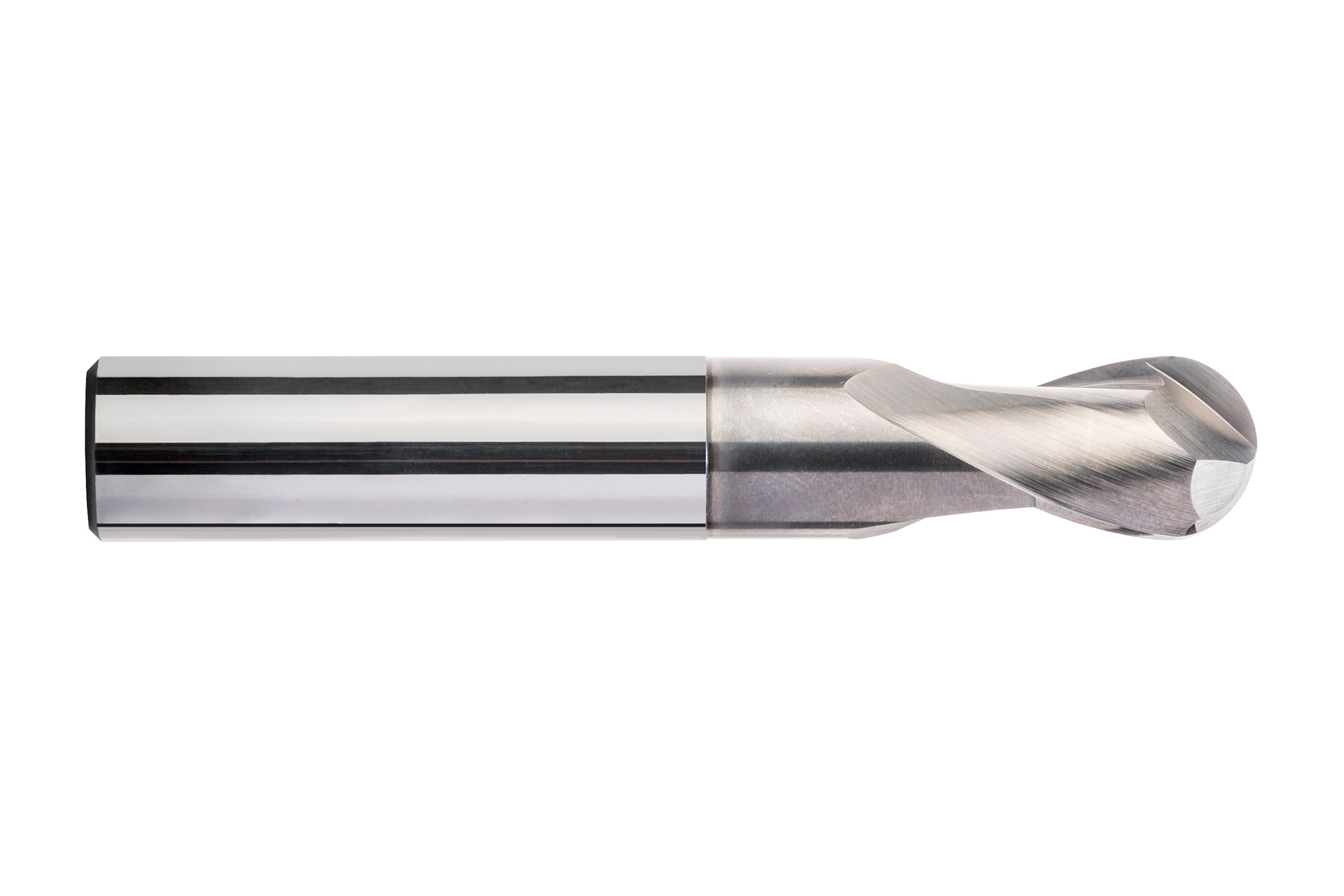

  • Produktbild OptiMill®-3D-BN

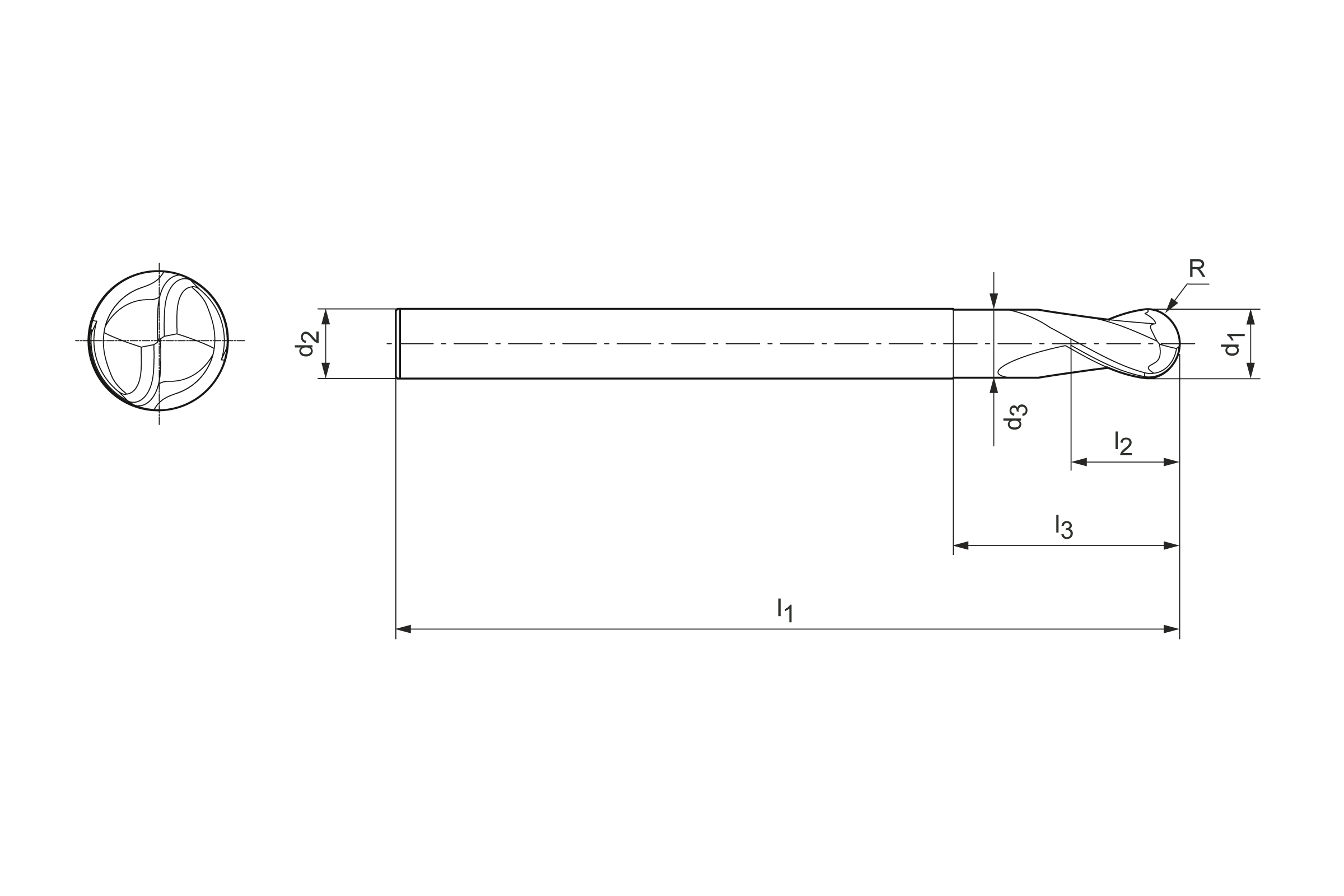

  • Produktzeichnung OptiMill®-3D-BN

Durchmesser d1 (mm)

3.0

Ihr Stückpreis

*Login erforderlich

Bestellnummer

31153331

Menge

Ihrem Warenkorb hinzugefügt

We recommend:

Produktbeschreibung

The OptiMill-3D-BN ball nose mill cutter has been specifically developed for machining materials up to 55 HRC. It is characterized by high radius accuracy, making it ideal for high-precision machining of 3D contours. In addition to an extremely heat-resistant coating and a special carbide substrate, these tools are distinguished by dimensions and geometries tailored specifically to mold making.

Materialeignung

Technische Daten

Product class
Performance-Line
Diameter (d1)
3   mm
Shaft diameter (d2)
6   mm
Cylindrical part diameter (d3)
2.94   mm
Total length (l1)
60   mm
Length of cutting edge (l2)
3.5   mm
Neck length (l3)
20   mm
Corner radius (R)
1.5   mm
Number of cutting edges (z)
2
Cooling
external cooling
Shank type
HA
Cutting material
HP801
Material group
RC
Specification
MBN101-030-0150-2000X060-HP801

Downloads

3D envelope in stp
31153331_607639908-000-00-E43.STP
Technical drawing in dxf
31153331_607409743-000-01-ED1-MM.DXF
Technical drawing in pdf
31153331_607409743-000-01-ED1-MM.PDF
Technical drawing in tif
31153331_607409743-000-01-ED1-MM.TIF
