OptiMill®-3D-BN-Hardened

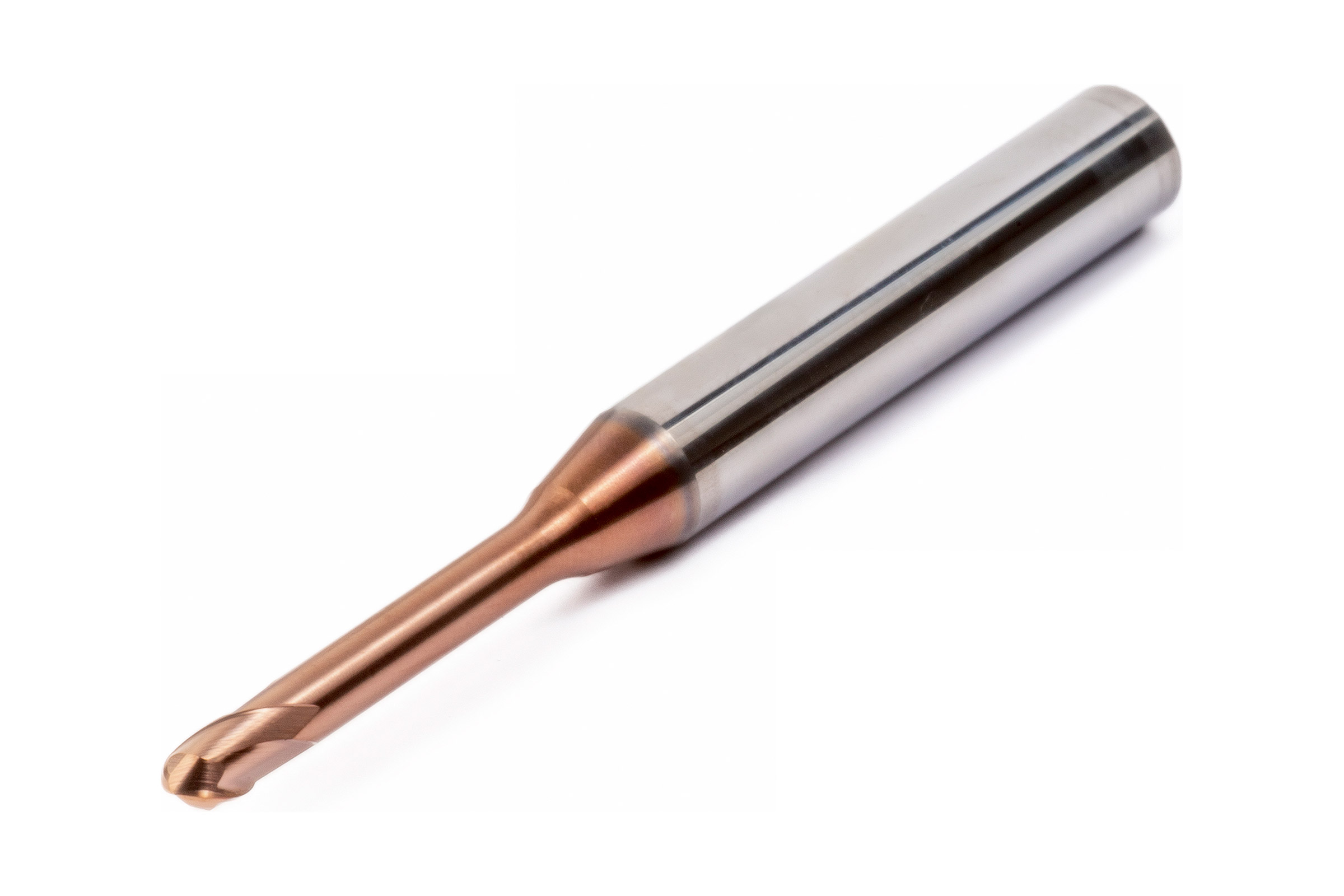

  • Produktbild OptiMill®-3D-BN-Hardened

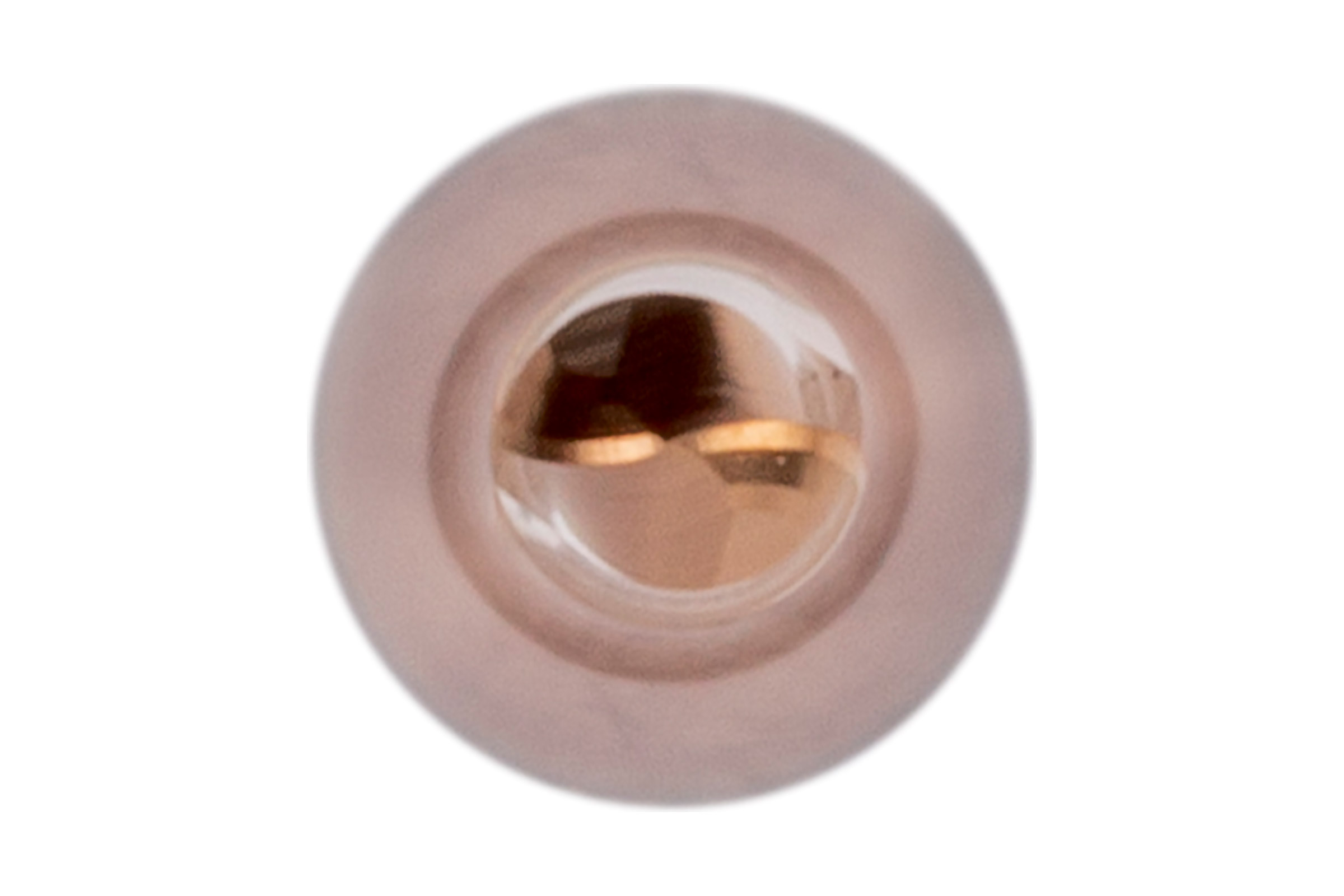

  • Produktbild OptiMill®-3D-BN-Hardened

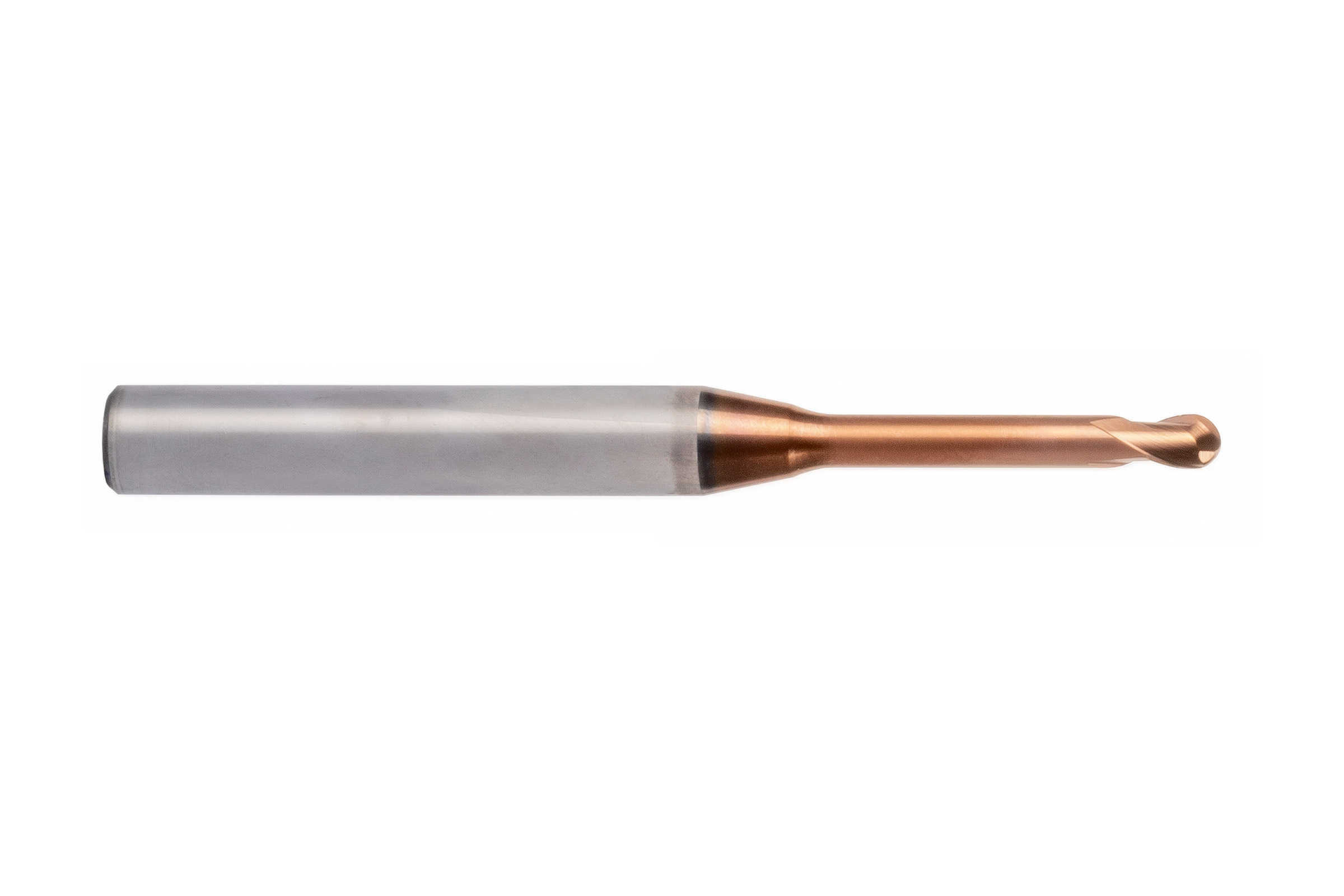

  • Produktbild OptiMill®-3D-BN-Hardened

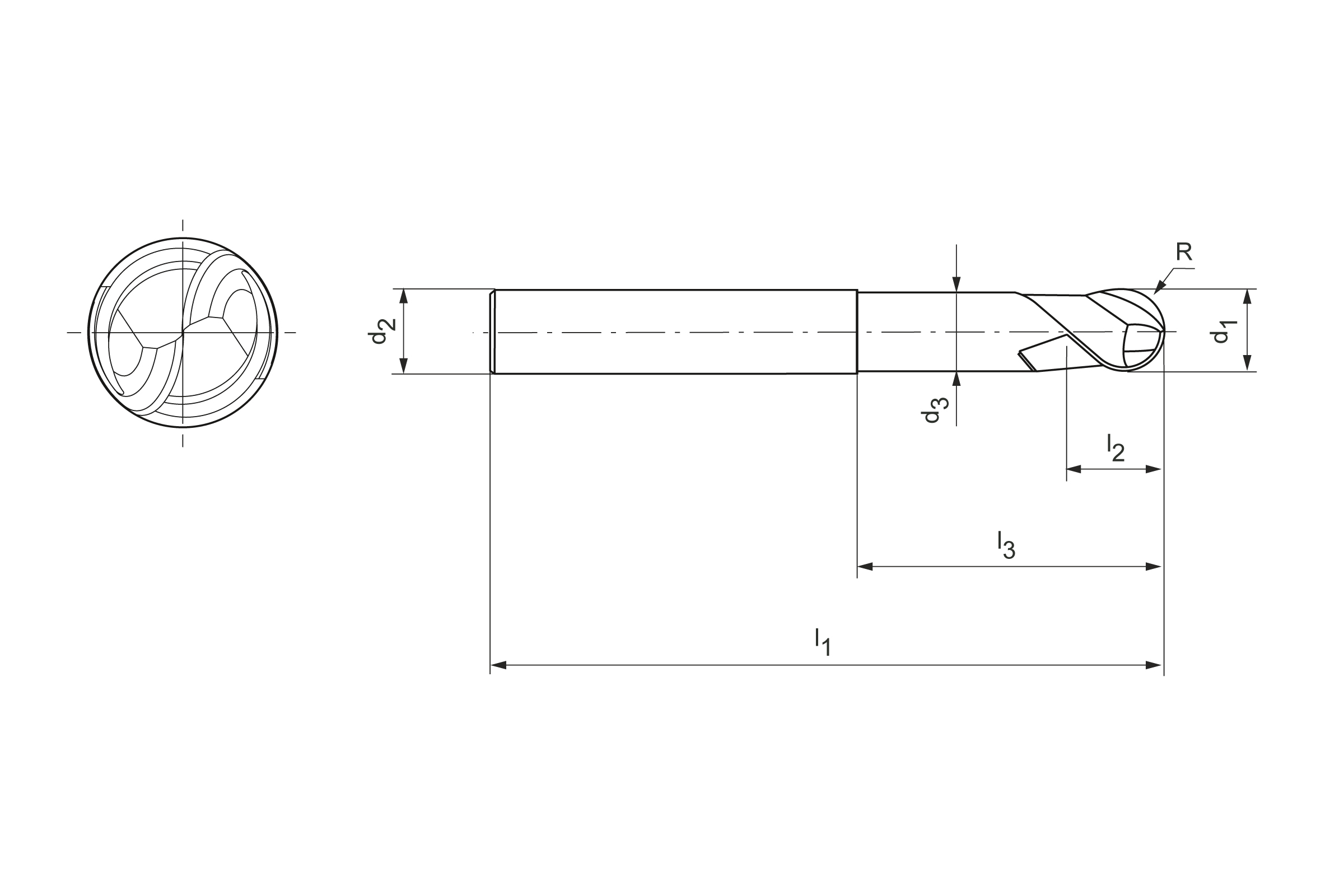

  • Produktzeichnung OptiMill®-3D-BN-Hardened

Durchmesser d1 (mm)

10.0

Ihr Stückpreis

*Login erforderlich

Bestellnummer

31153766

Menge

Ihrem Warenkorb hinzugefügt

Unsere Produktempfehlung:

Produktbeschreibung

The OptiMill®-3D-BN-Hardened ball nose mill cutter has been specifically designed for machining materials up to 68 HRC. It is characterized by high radius accuracy, making it ideal for high-precision machining of 3D contours. In addition to an extremely heat-resistant coating and a special carbide substrate, these tools are distinguished by dimensions and geometries tailored specifically to mold making.

Materialeignung

Technische Daten

Produktklasse
Performance-Line
Schneidendurchmesser (d1)
10   mm
Schaftdurchmesser (d2)
10   mm
Durchmesser zylindrischer Anteil (d3)
9.8   mm
Gesamtlänge (l1)
75   mm
Schneidenlänge (l2)
11.5   mm
Halslänge (l3)
30   mm
Eckenradius (R)
5   mm
Anzahl Schneiden (z)
2
Kühlmittelzufuhr
äußere Kühlmittelzufuhr
Schaft Typ
HA
Schneidstoff
HP808
Materialgruppe
RC
Spezifikation
MBN107-100-0500-3000X075-HP808

Downloads

3D Hüllkontur in stp
31153766_607644414-000-00-E43.STP
Technische Zeichnung in dxf
31153766_607409067-000-01-ED1-MM.DXF
Technische Zeichnung in pdf
31153766_607409067-000-01-ED1-MM.PDF
Technische Zeichnung in tif
31153766_607409067-000-01-ED1-MM.TIF
Cutting data recommendations
31153766_OptiMill-3D-BN-Hardened_EN.pdf
