OptiMill®-3D-BN-Alu
Diameter d1 (mm)
2.0
Your unit price
*Login requiredWe recommend:
Product description

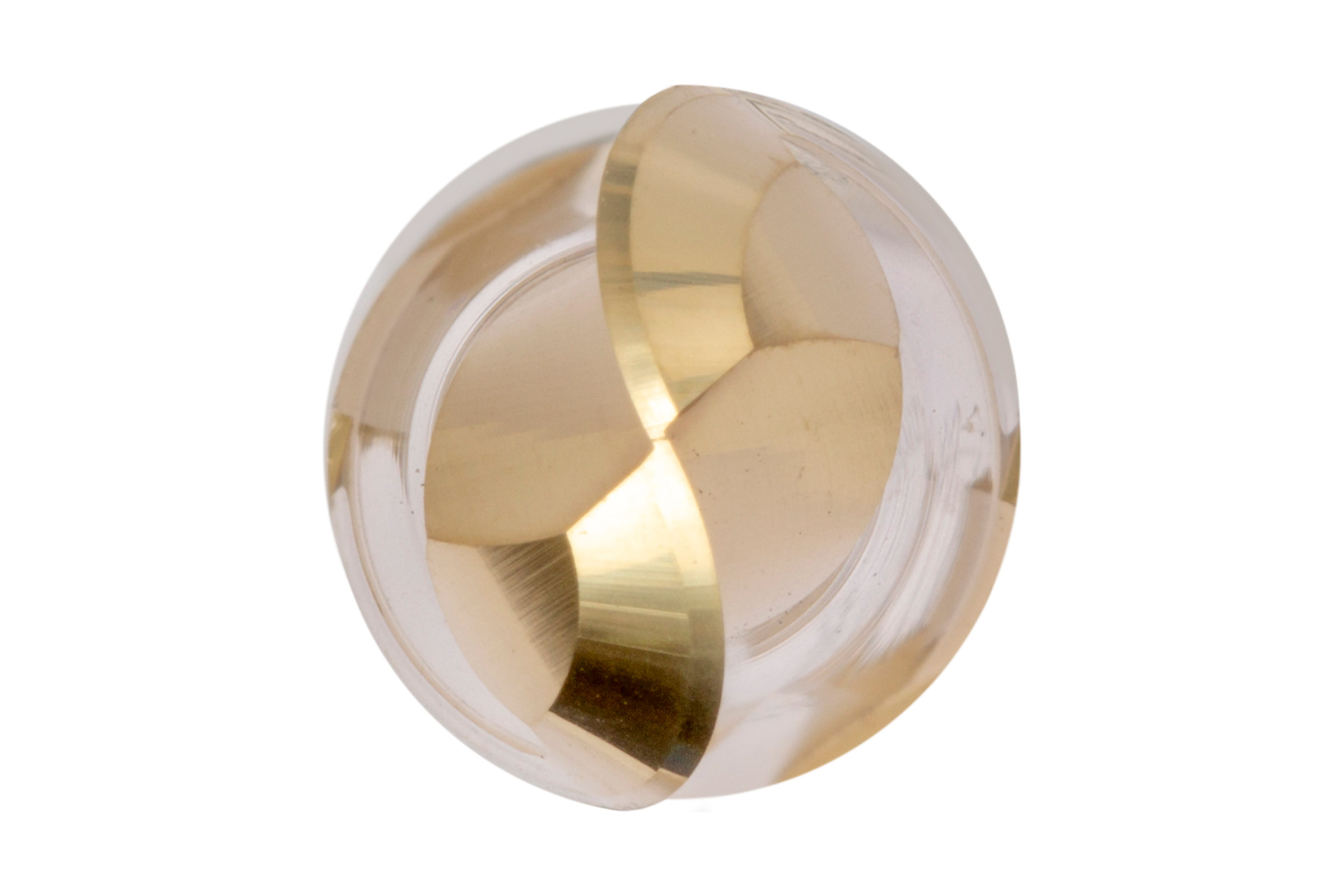

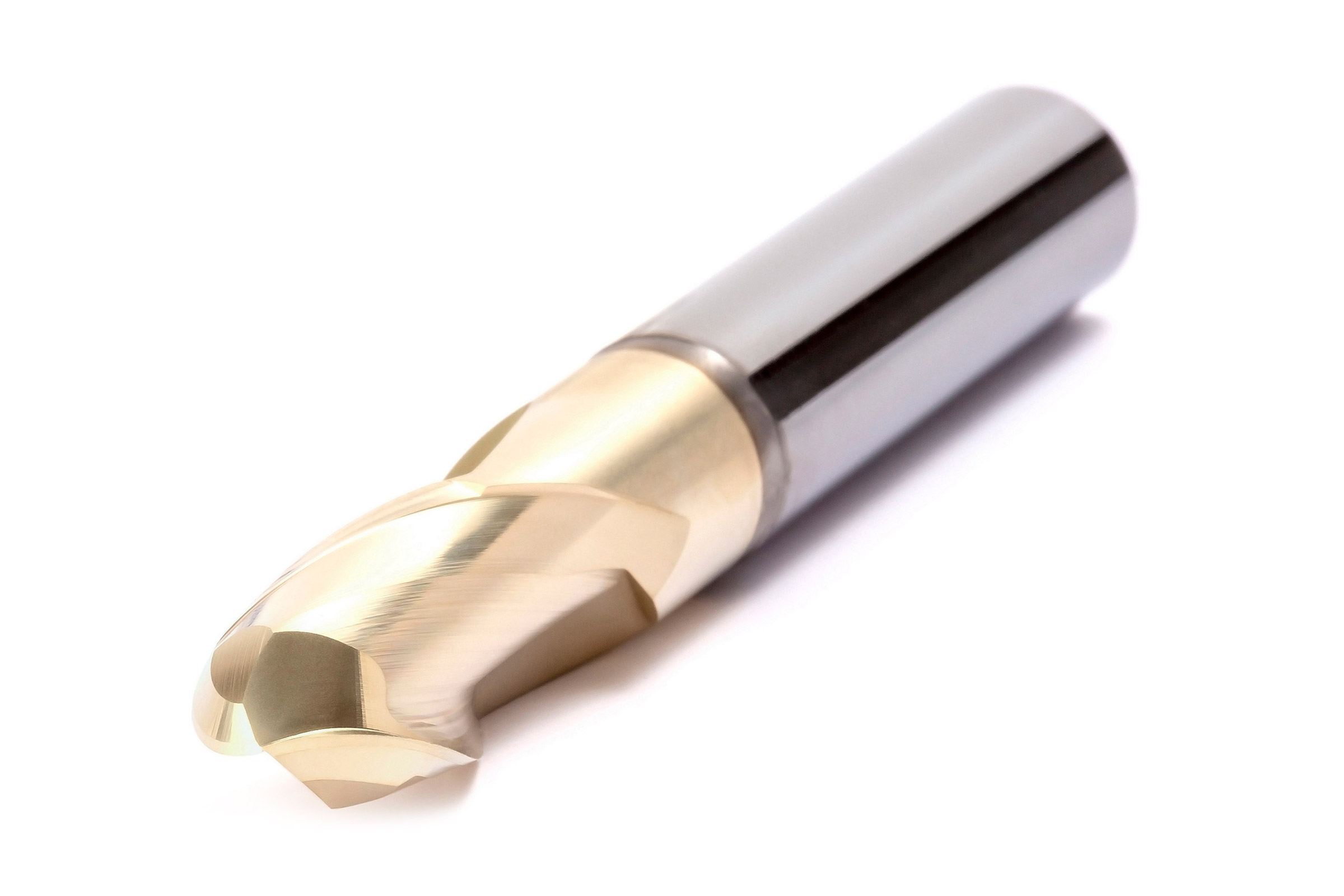

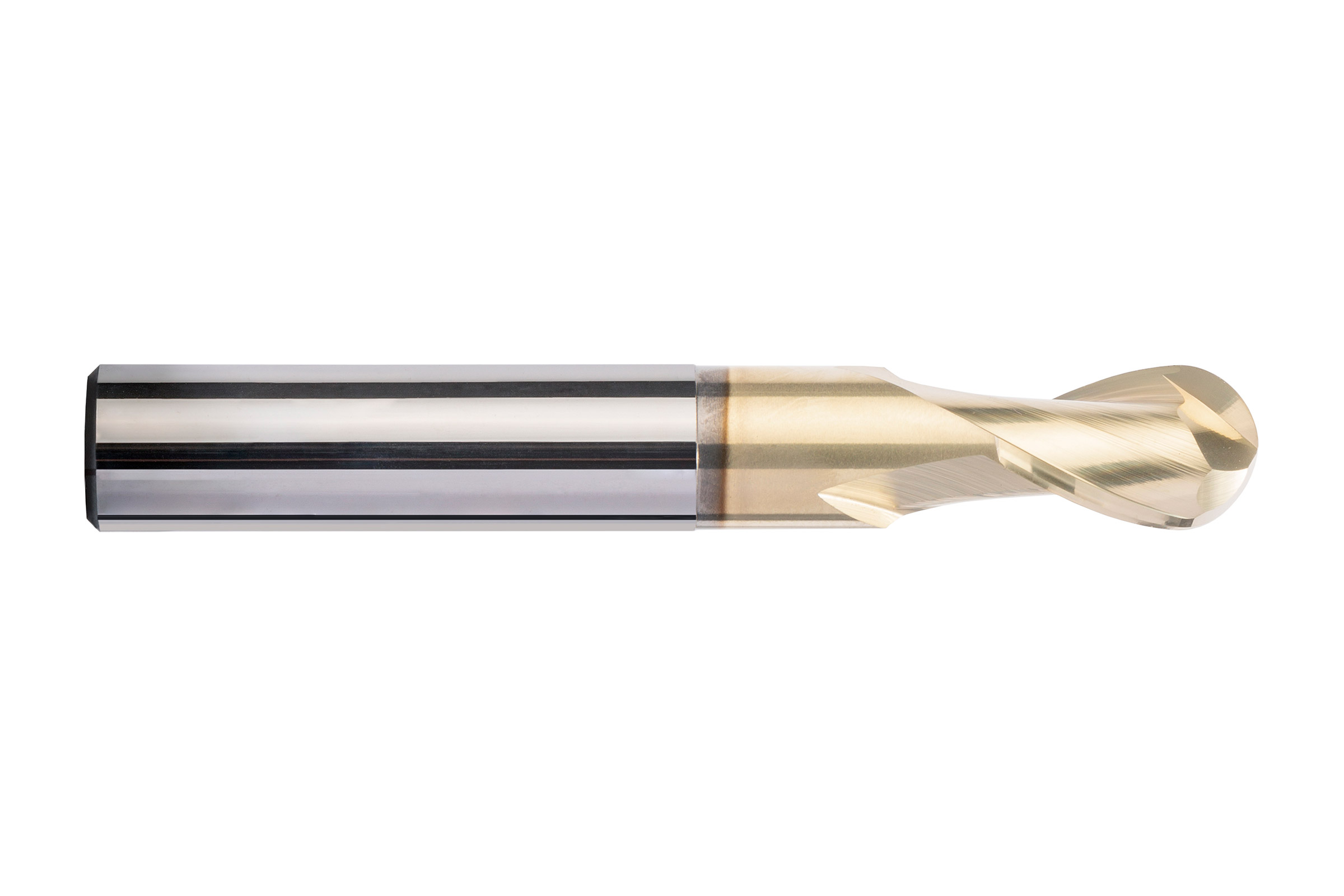

The OptiMill®-3D-BN-Alu ball nose end mill was specially developed for machining high-strength aluminium alloys. Thanks to its positive and partially polished cutting edges, it is ideally suited for high-precision machining of 3D contours.
Technical specifications
- Product class
- Basic-Line

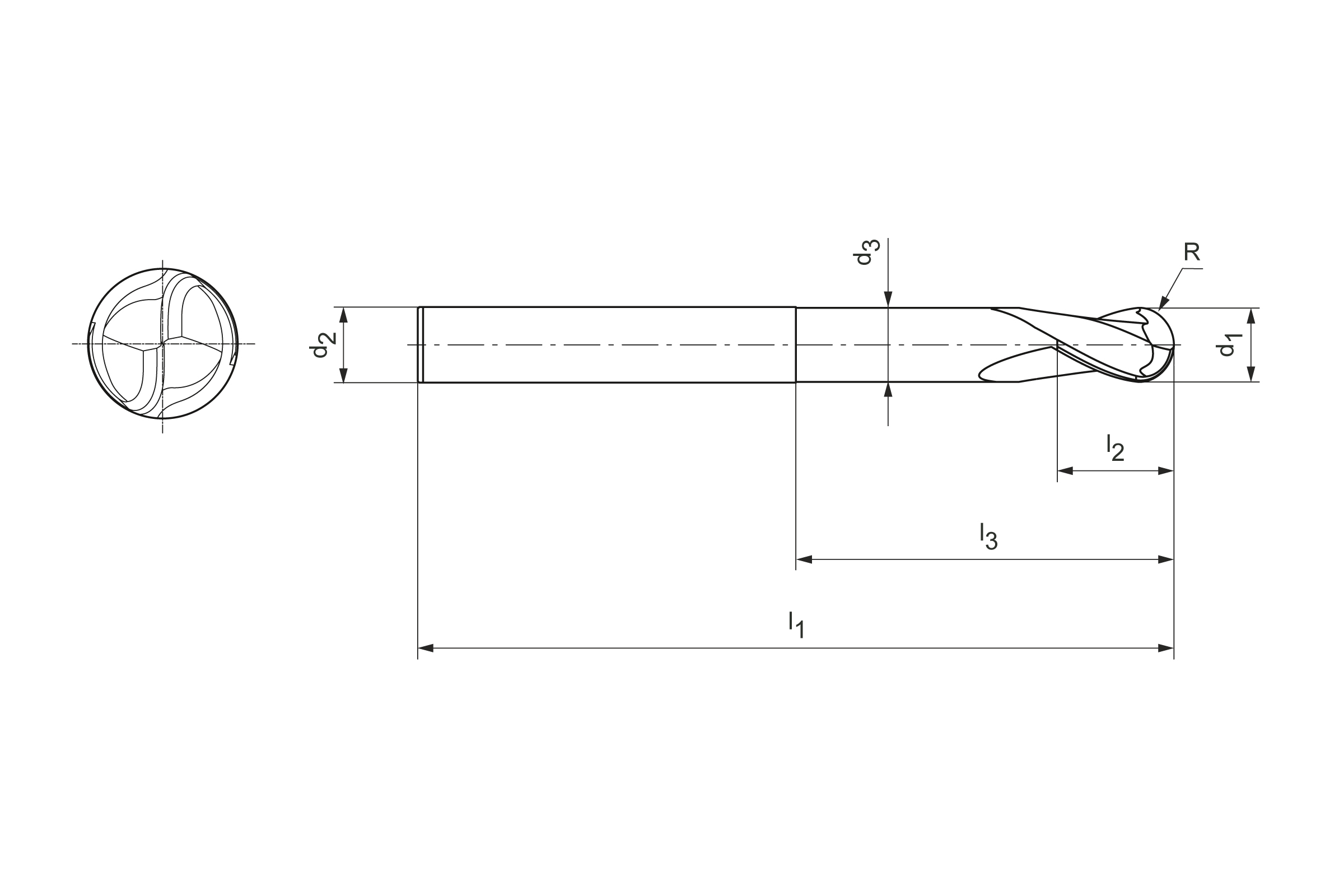

- Diameter (d1)
- 2 mm
- Shaft diameter (d2)
- 4 mm
- Cylindrical part diameter (d3)
- 1.9 mm
- Total length (l1)
- 75 mm
- Length of cutting edge (l2)
- 3 mm
- Neck length (l3)
- 25 mm
- Corner radius (R)
- 1 mm
- Number of cutting edges (z)
- 2
- Cooling
- external cooling
- Shank type
- HA
- Cutting material
- HP807
- Material group
- RC
Downloads
- 3D envelope in stp
- 31153163_607950703-000-00-E43.STP
- Technical drawing in tif
- 31153163_607950702-000-01-ED1.TIF
- Technical drawing in dxf
- 31153163_607950702-000-01-ED1.DXF
- Technical drawing in pdf
- 31153163_607950702-000-01-ED1.PDF
