NeoMill®-ISO-360

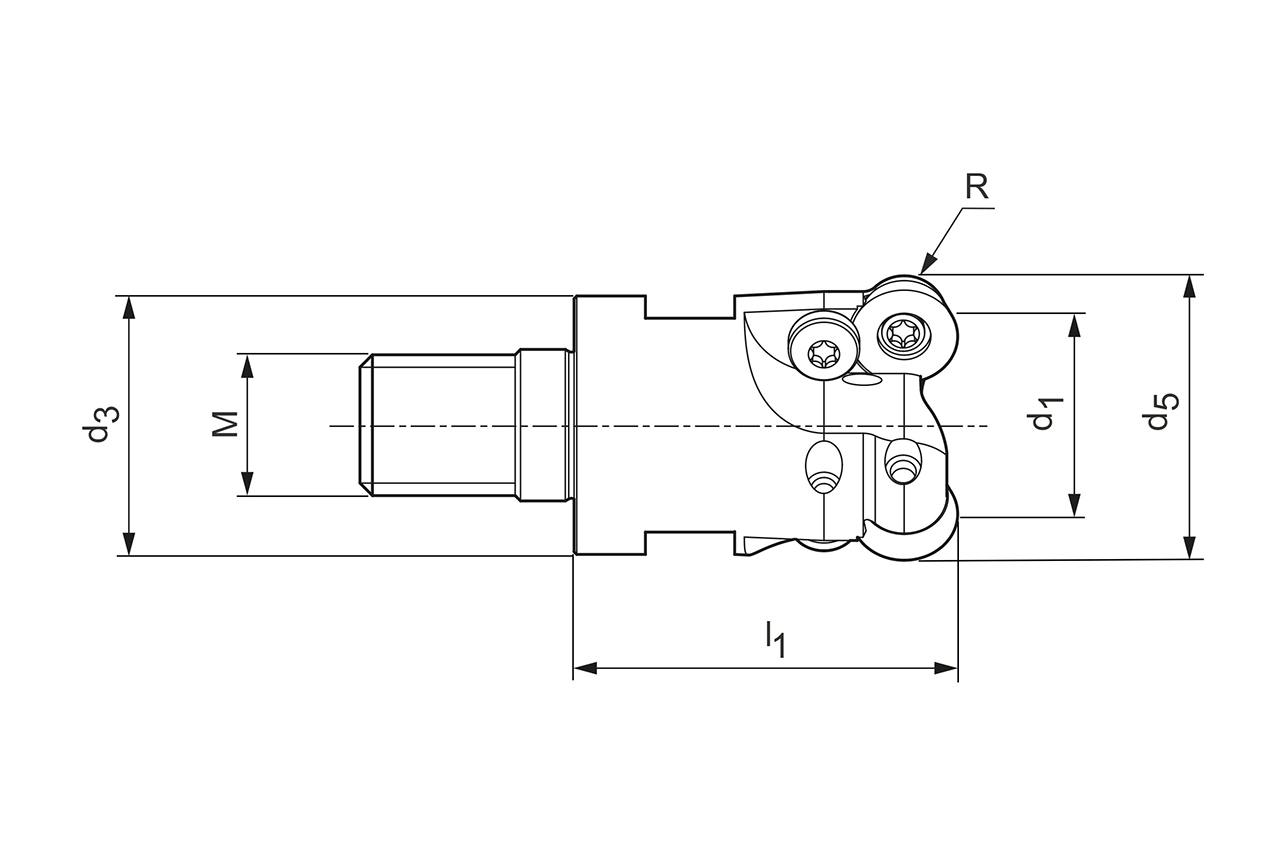

  • Technical drawing NeoMill®-ISO-360

Durchmesser d1 (mm)

30.0

Your unit price

*Login erforderlich

Article

31144193

Quantity

Added to Your Shopping Cart

Product description

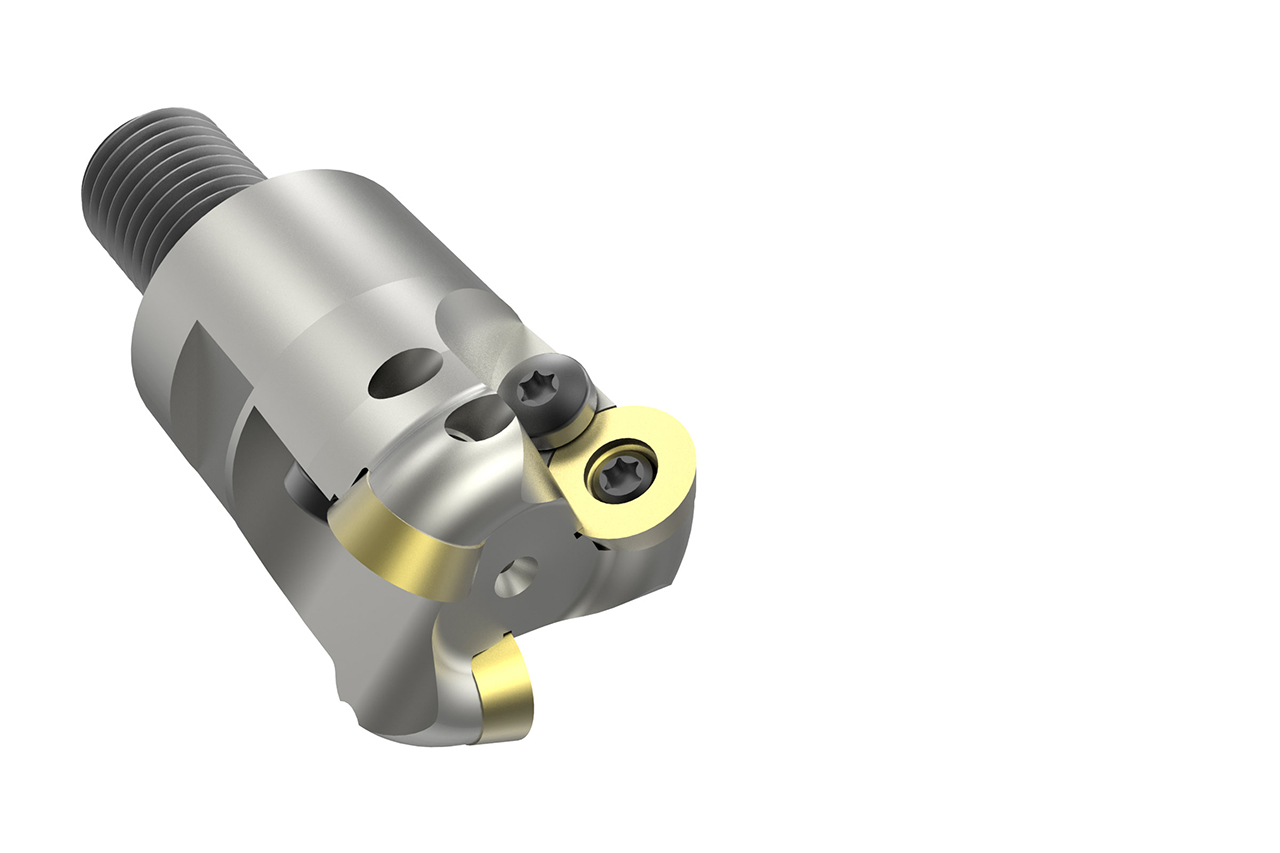

The NeoMill-ISO-360 is a universally applicable milling system for general mechanical engineering and mold making. The neutral insert position ensures the highest contour accuracy, while a special seat protection prevents the cutting edge from chip impact. Thanks to a wide selection of indexable inserts and tool holders, the system offers maximum flexibility. The optimized cutting edge geometry guarantees smooth cutting behavior and process-secure machining.

Technical specifications

Fräsertyp
Rundplattenfräser mit WSP
d1
30   mm
d2
17   mm
d3
29   mm
d5
42   mm
Schneidplattentyp
RD__12
Eckenradius (R)
6   mm
Anzahl Schneiden (z)
4
Kühlmittelzufuhr
interne Kühlmittelzufuhr
Schlüsselweite
24
Maschinenschnittstelle
Schraubaufnahme
Gewindegröße (M)
M16X2
Materialgruppe
90
Spezifikation
IMR001-042-M016-Z04R-RD__12

Downloads

3D Hüllkontur in stp
31144193_607398779-000-00-E43.STP
Technische Zeichnung in pdf
31144193_607420465-000-00-ED1.PDF
Technische Zeichnung in dxf
31144193_607420465-000-00-ED1.DXF
Technische Zeichnung in tif
31144193_607420465-000-00-ED1.TIF
