NeoMill®-4-HiFeed90

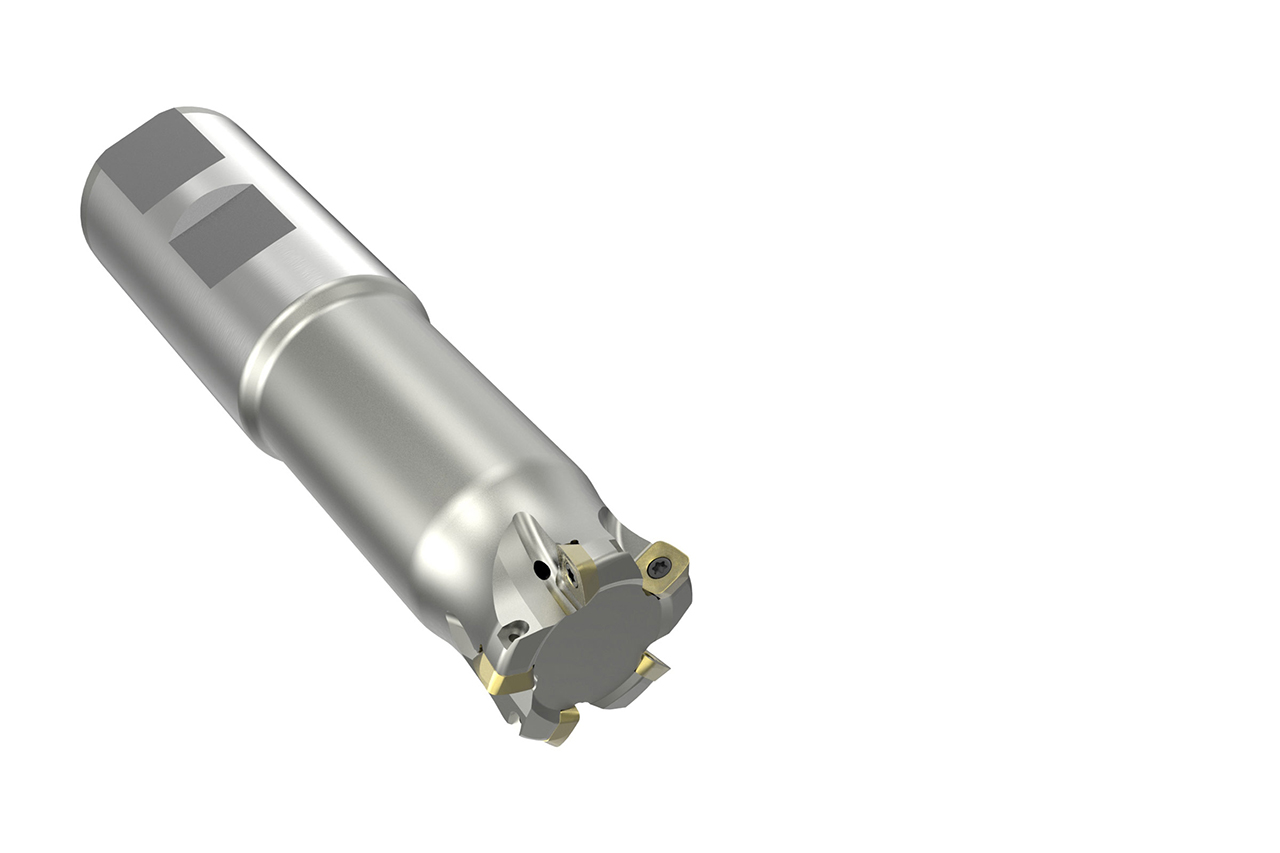

  • Product image NeoMill®-4-HiFeed90

Durchmesser d1 (mm)

25.0

Ihr Stückpreis

*Login erforderlich

Bestellnummer

31146634

Menge

Ihrem Warenkorb hinzugefügt

Produktbeschreibung

The NeoMill-4-HiFeed90 is designed for maximum material removal and productivity. With four fully usable cutting edges, it enables particularly high feed rates (up to fz = 3.0 mm) and is ideal for high-feed milling with maximum material removal. The special cutting edge geometry reduces vibrations, ensuring smooth and process-secure machining. Perfect for users who need top performance with maximum stability.

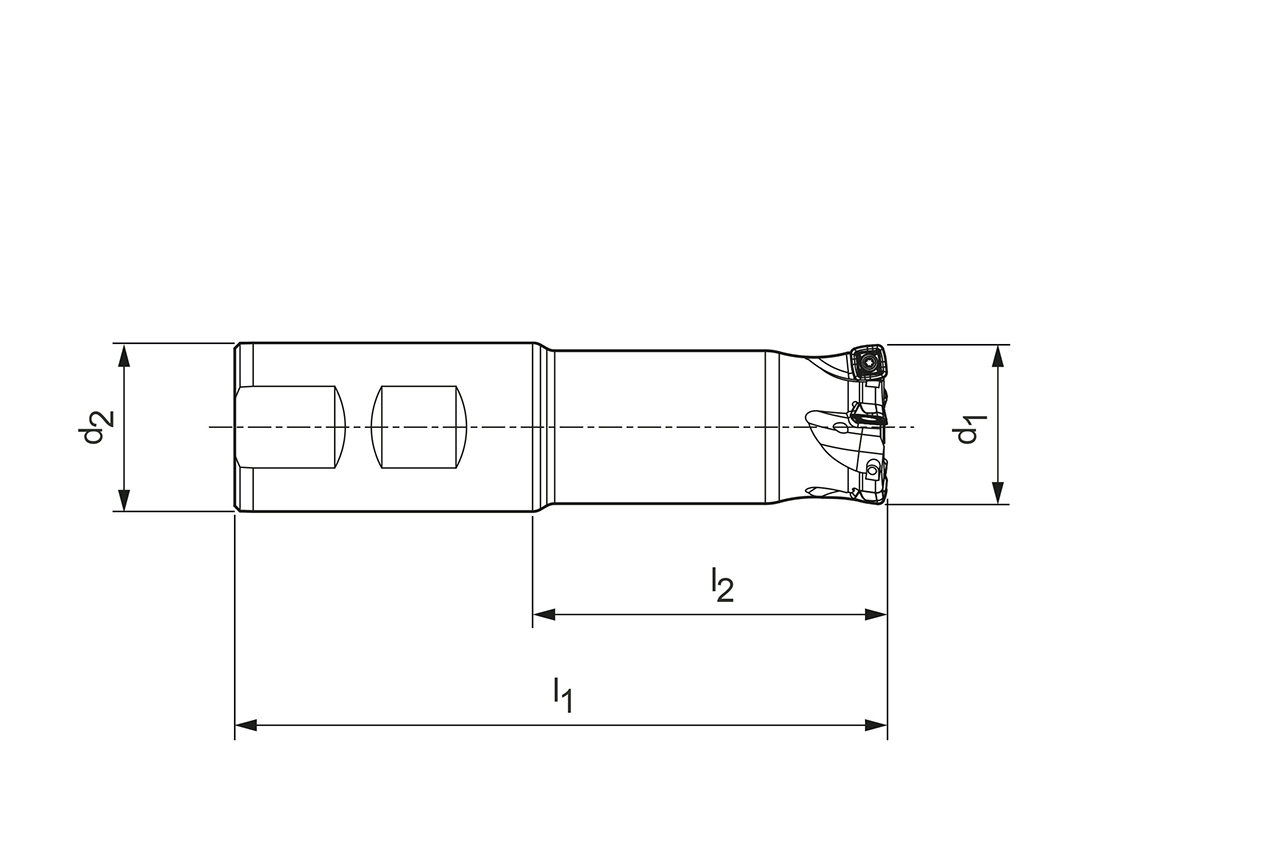

Technische Daten

Fräsertyp
Hochvorschubfräser mit WSP
d1
25   mm
d2
25   mm

Gesamtlänge l1

106   mm

Schaftlänge l2

56   mm

Kopflänge l4

50   mm
Schneidplattentyp
SD__06
Corner radius (R)
1.2   mm
Number of cutting edges (z)
4
Cooling
internal cooling
Machine connection
Cylindrical shank
Material group
90
Specification
IMH901-025-106-HB25-Z4R-SD__06

Downloads

3D envelope in stp
31146634_607386450-000-00-E43.STP
