NeoMill®-4-HiFeed90

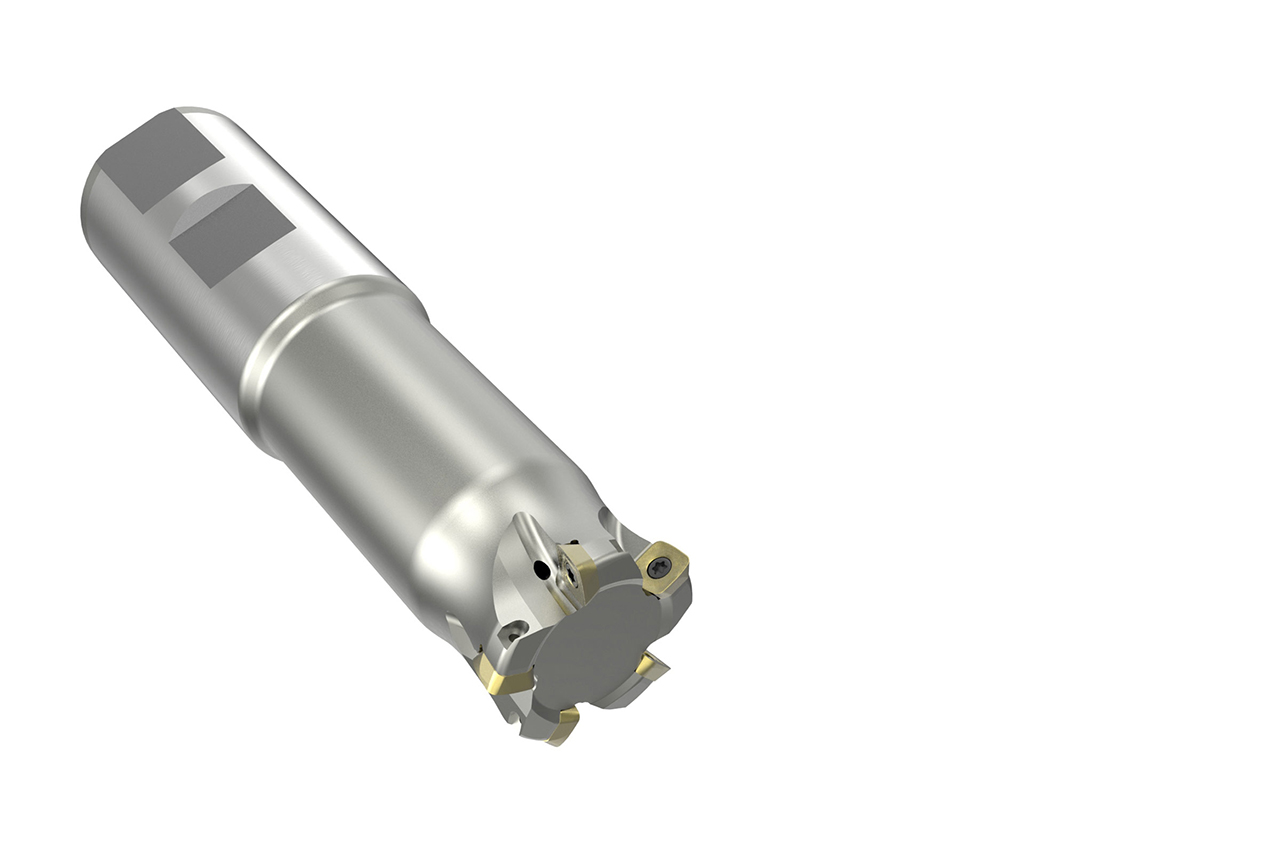

  • Product image NeoMill®-4-HiFeed90

Diameter d1 (mm)

20.0

Your unit price

*Login required

Article

31146633

Quantity

Added to Your Shopping Cart

Product description

The NeoMill-4-HiFeed90 is designed for maximum material removal and productivity. With four fully usable cutting edges, it enables particularly high feed rates (up to fz = 3.0 mm) and is ideal for high-feed milling with maximum material removal. The special cutting edge geometry reduces vibrations, ensuring smooth and process-secure machining. Perfect for users who need top performance with maximum stability.

Material suitability

Technical specifications

Fräsertyp
Hochvorschubfräser

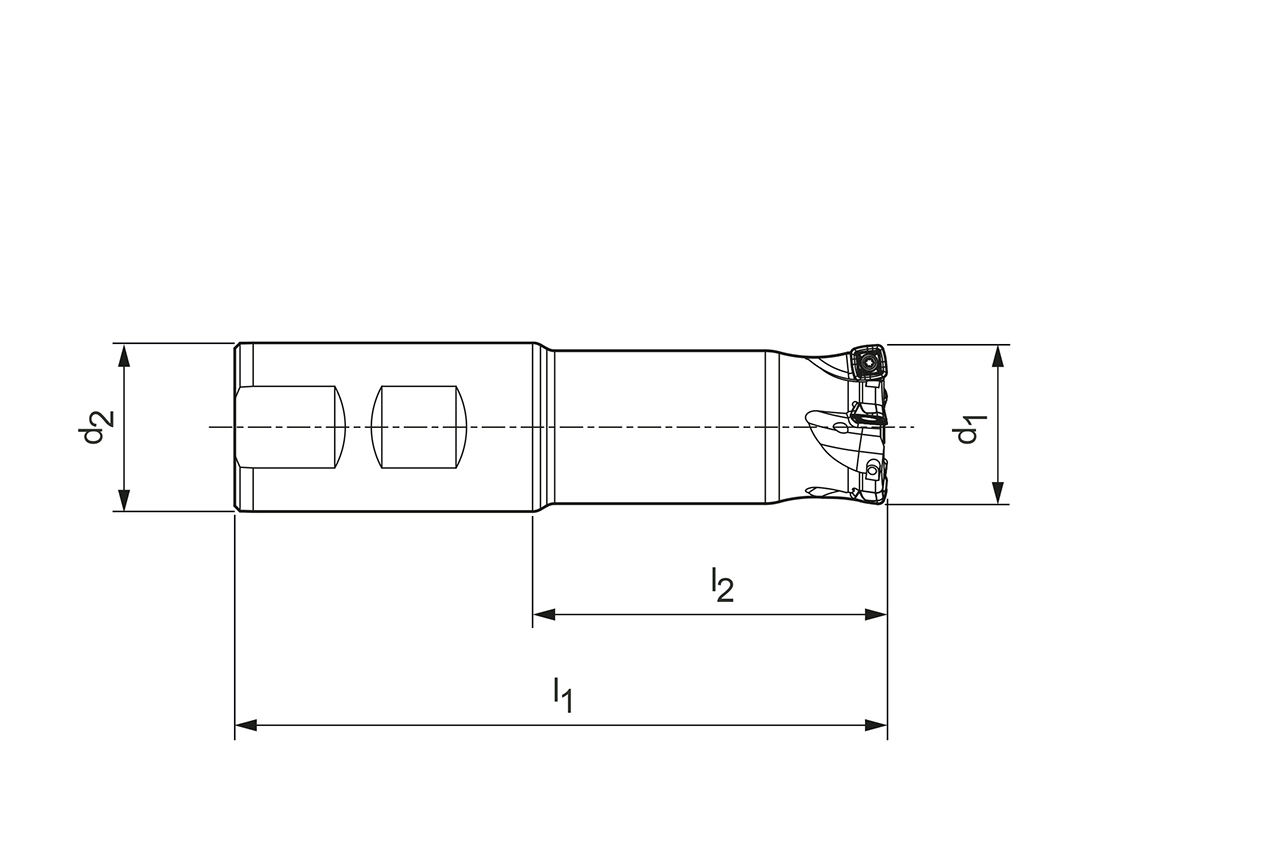

Plandurchmesser d1
20   mm
Aufnahmedurchmesser (MS) d2
20   mm

Gesamtlänge l1

90   mm

Schaftlänge l2

50   mm

Kopflänge l4

40   mm
Schneidplattentyp
SD__06
Anzahl Schneiden (z)
3
Kühlmittelzufuhr
interne Kühlmittelzufuhr
ap max. HFC
1
Maschinenschnittstelle
Zylinderschaft
Schafttyp
HB
Materialgruppe
90
Spezifikation
IMH901-020-090-HB20-Z3R-SD__06

Downloads

3D Hüllkontur in stp
31146633_607386439-000-00-E43.STP
