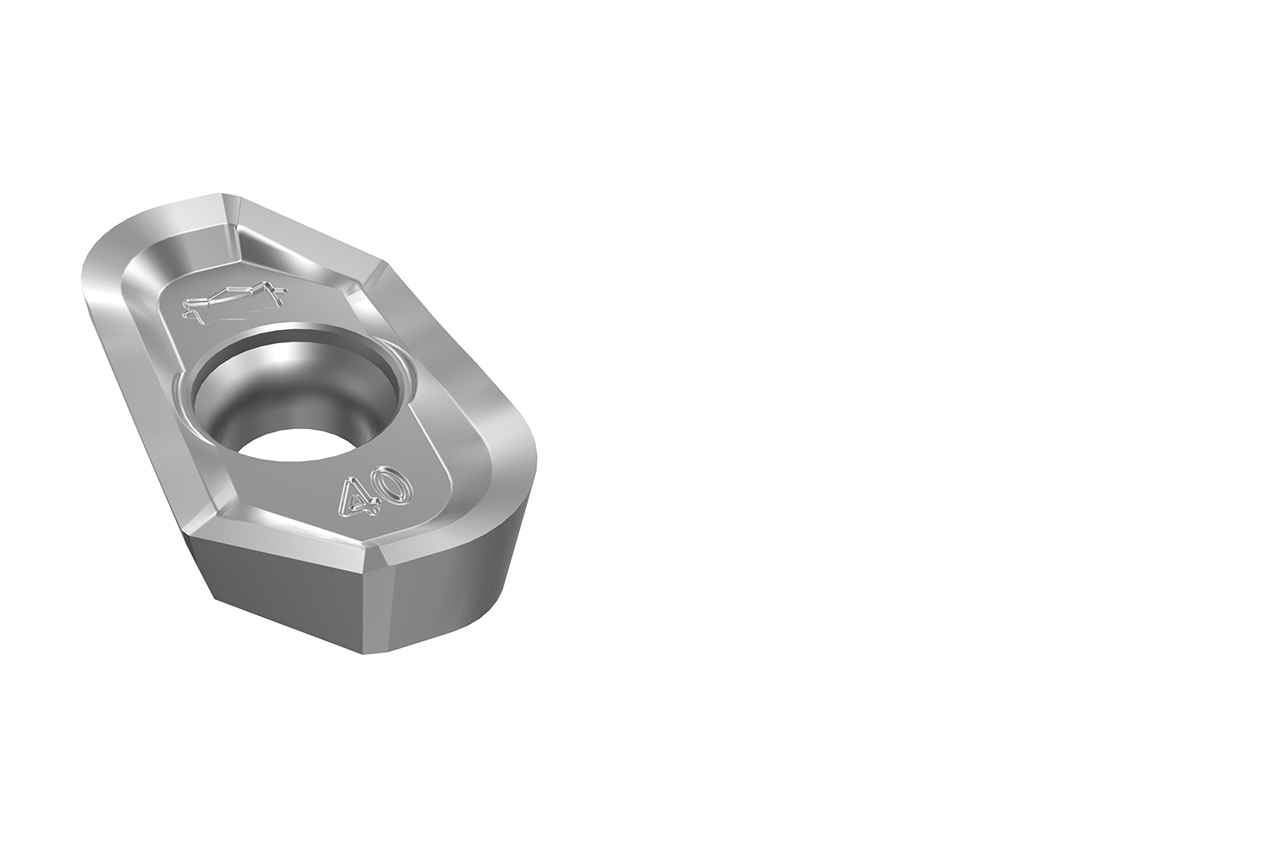

XDHT
Your unit price
*Login requiredWe recommend:
Technical specifications
- Cutting material
- HC660
- Insert form
- X
- Cutting direction
- R
- Insert size
- 15
- Cutting edge height
- 4.76 mm
- Number of cutting edges
- 2
- Longest cutting edge length
- 13.5 mm
- Insert width
- 9.9 mm
- Radius
- 4 mm
- Cutting edge length
- 13.53 mm
- Clearance angle major
- 15 °
- Fixing hole diameter
- 4.4 mm
- Chip former
- U11
- Material group
- 88
- Specification
- XDHT150440R-U11-HC660-P
Downloads
- Technical drawing in pdf
- 31491096_608064606-000-00-ED1.PDF
- Technical drawing in dxf
- 31491096_608064606-000-00-ED1.DXF
- Technical drawing in tif
- 31491096_608064606-000-00-ED1.TIF
