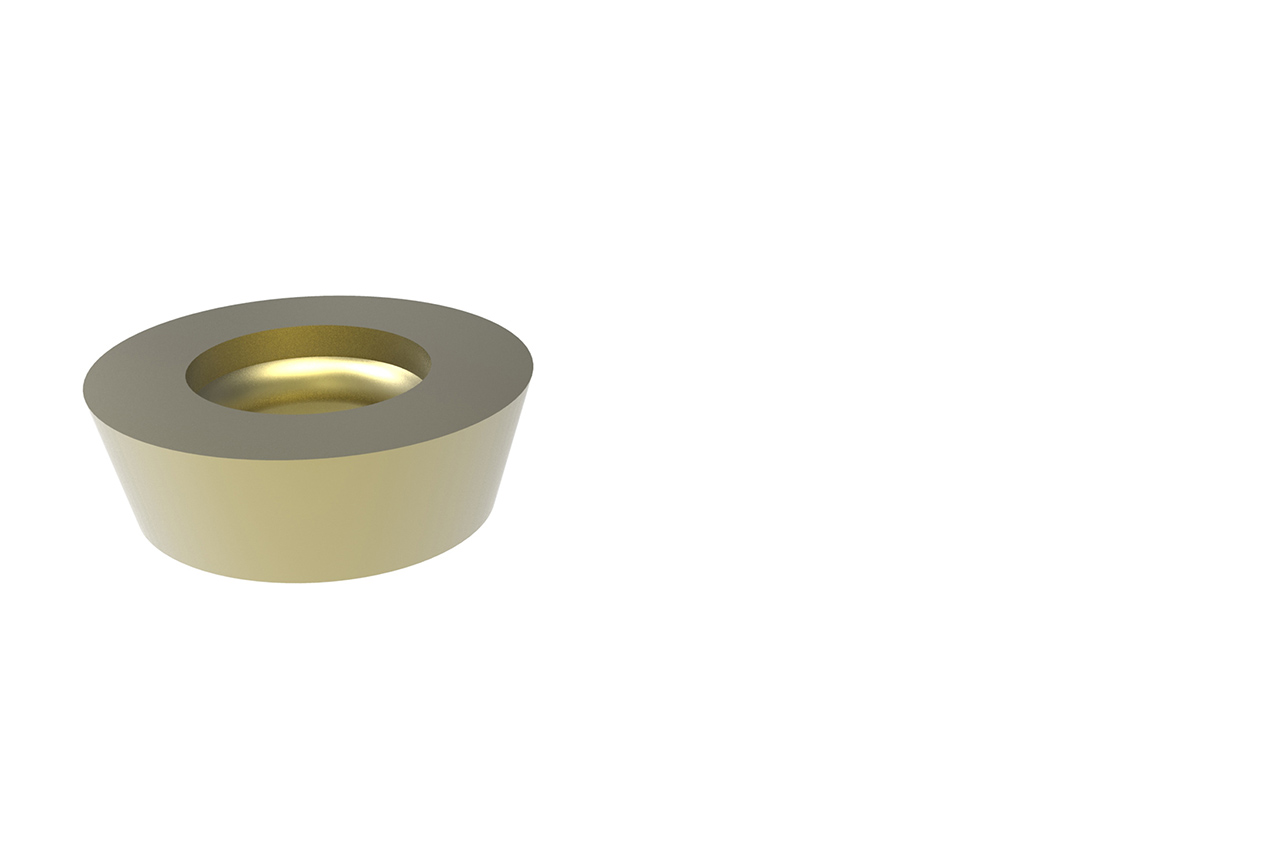

Rundplatte
Ihr Stückpreis
*Login erforderlichTechnische Daten
- Schneidstoff
- HP640
- Insert form
- R
- Cutting direction
- N
- Insert size
- 16
- Cutting edge height
- 4.76 mm
- IC
- 16 mm
- Radius
- 8 mm
- Clearance angle major
- 15 °
- Fixing hole diameter
- 5.2 mm
- Chip former
- PMU
- Material group
- 92
- Specification
- RDKW1604M0N-PMU-HP640
