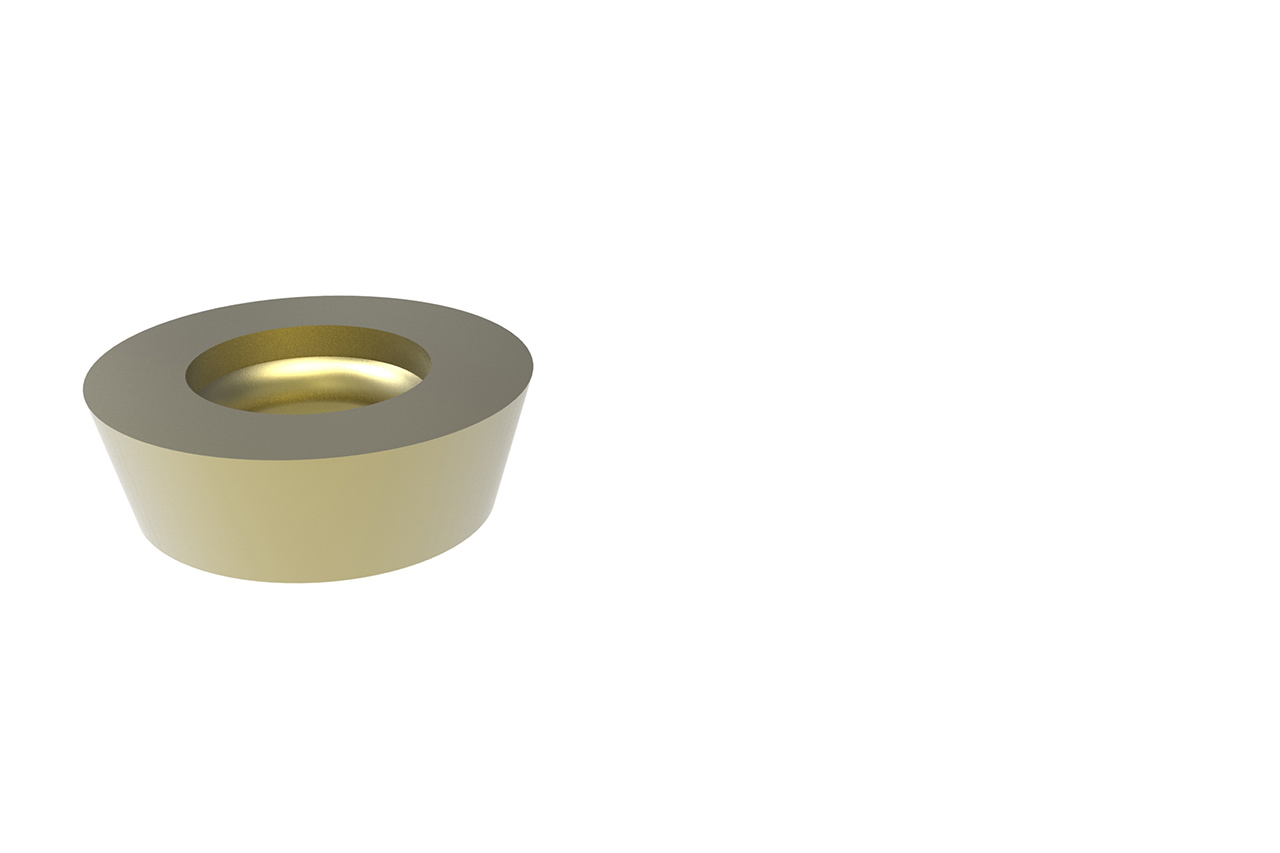

Rundplatte
Ihr Stückpreis
*Login erforderlichTechnische Daten
- Cutting material
- HP650
- Insert form
- R
- Cutting direction
- N
- Insert size
- 05
- Cutting edge height
- 1.5 mm
- IC
- 5 mm
- Radius
- 2.5 mm
- Clearance angle major
- 15 °
- Fixing hole diameter
- 2.2 mm
- Chip former
- MMU
- Material group
- 92
- Specification
- RDKW0501M0N-MMU-HP650
Downloads
- Technical drawing in pdf
- 31144305_607299108-000-00-ED1.PDF
- Technical drawing in dxf
- 31144305_607299108-000-00-ED1.DXF
- Technical drawing in tif
- 31144305_607299108-000-00-ED1.TIF
