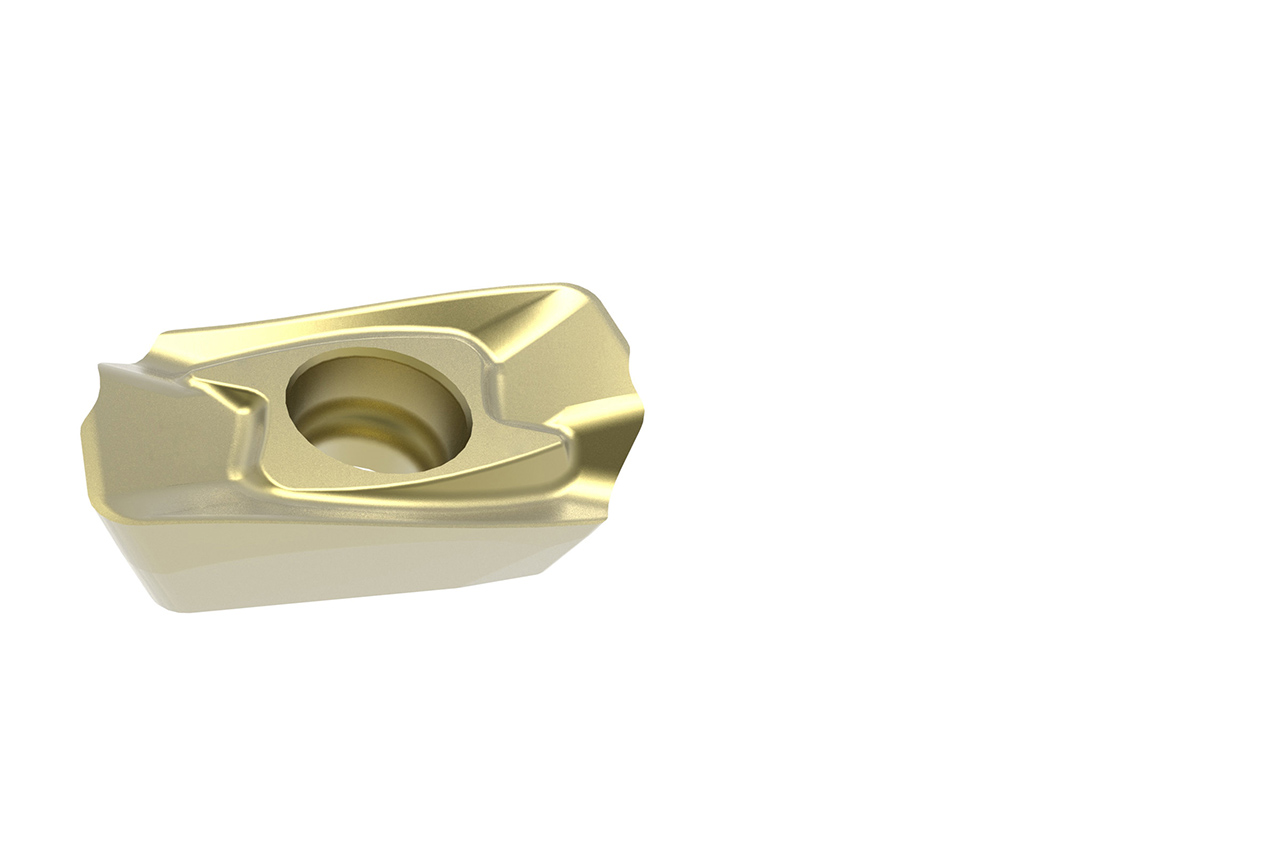

LDMX

Technical specifications

Cutting material

HP640

Insert form

L

Cutting direction

R

Insert size

10

Cutting edge height

4.76   mm

Number of cutting edges

2

Longest cutting edge length

10   mm

Insert width

7.042   mm

Radius

0.4   mm

Trailing edge length

2.7   mm

Insert length

10   mm

Clearance angle major

12   °

Fixing hole diameter

2.8   mm

Chip former

PMU

Material group

91

Specification

LDMX100404R-PMU-HP640
