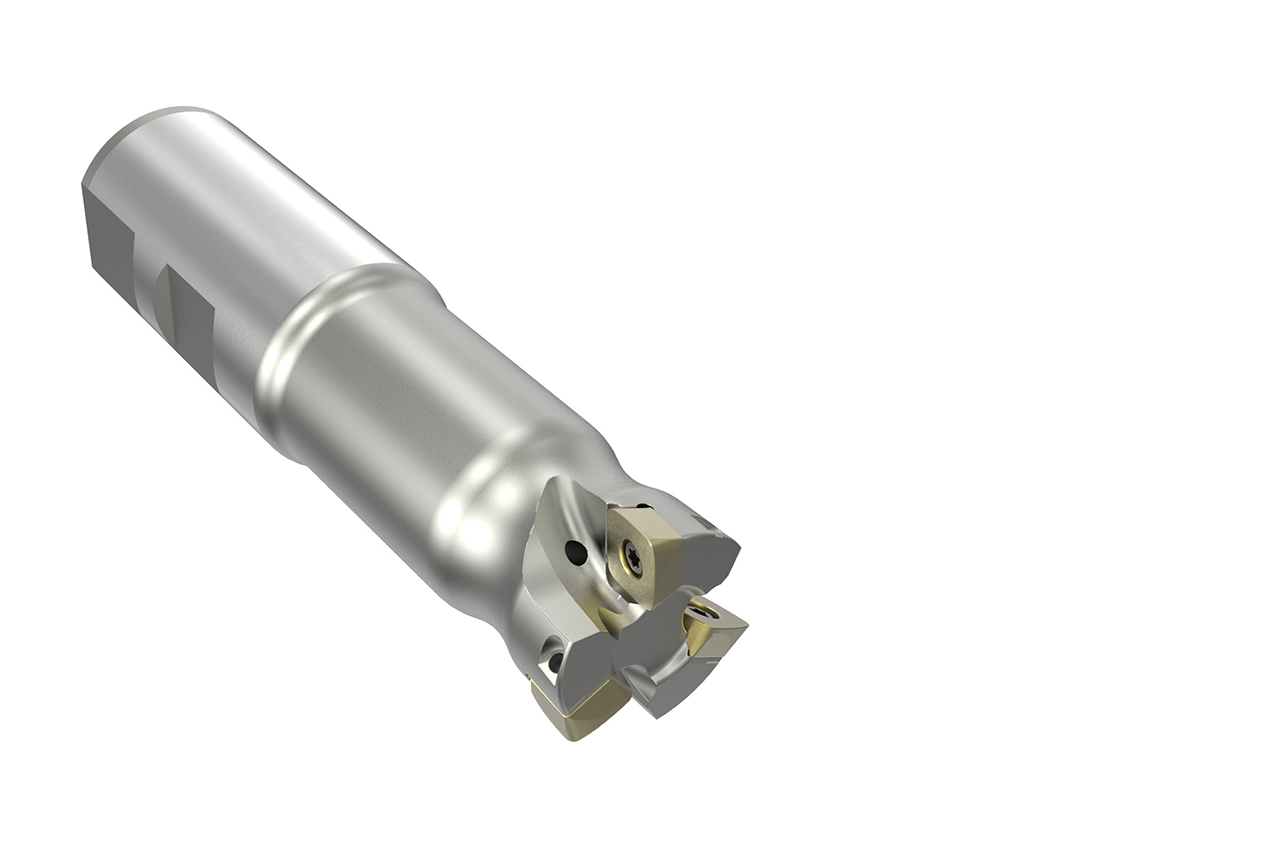

NeoMill®-4-HiFeed90

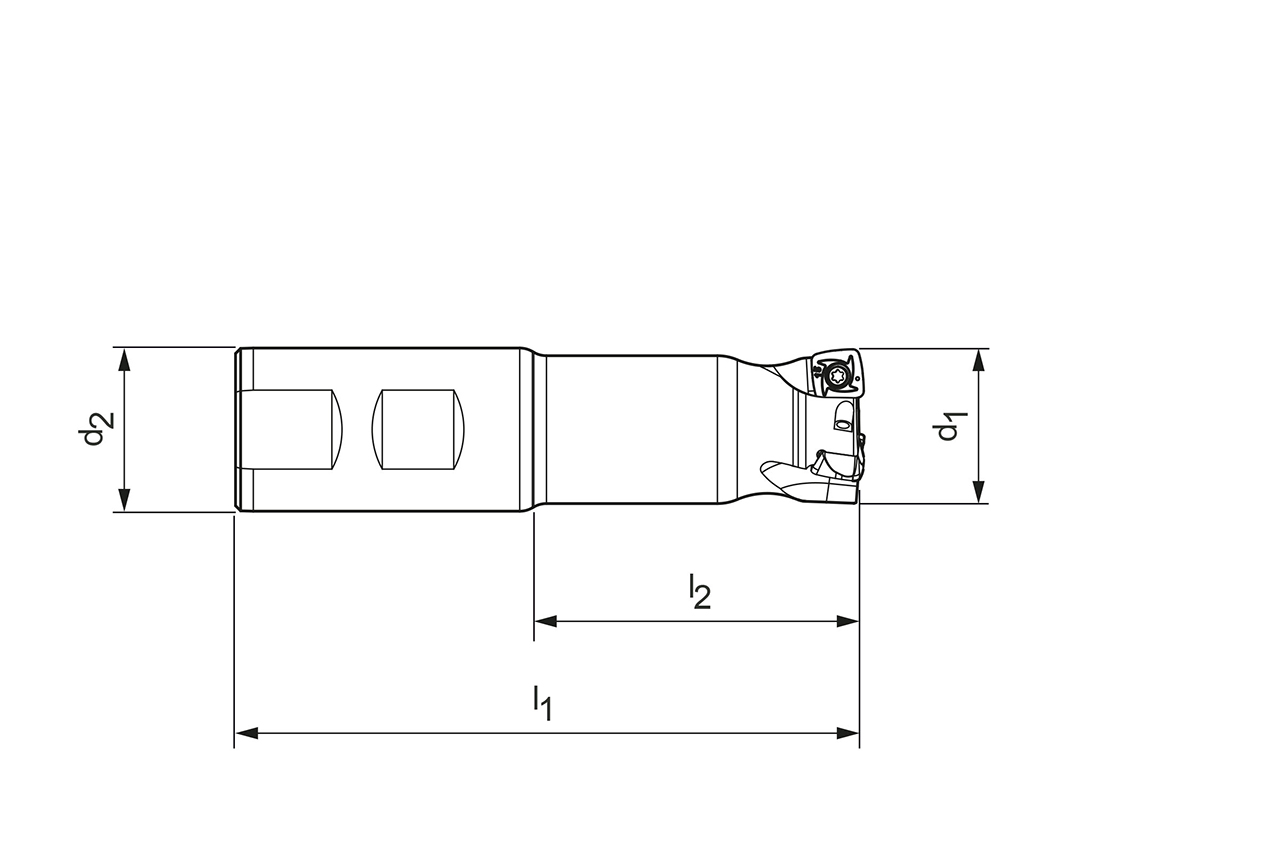

  • Technical drawing NeoMill®-4-HiFeed90

Diameter d1 (mm)

25.0

Your unit price

*Login required

Article

31144157

Quantity

Added to Your Shopping Cart

Product description

The NeoMill-4-HiFeed90 is designed for maximum material removal and productivity. With four fully usable cutting edges, it enables particularly high feed rates (up to fz = 3.0 mm) and is ideal for high-feed milling with maximum material removal. The special cutting edge geometry reduces vibrations, ensuring smooth and process-secure machining. Perfect for users who need top performance with maximum stability.

Technical specifications

Fräsertyp
Hochvorschubfräser mit WSP
d1
25   mm
d2
25   mm
l1
106   mm
l2
50   mm
Schneidplattentyp
SD__10
Eckenradius (R)
1.5   mm
Anzahl Schneiden (z)
3
Kühlmittelzufuhr
interne Kühlmittelzufuhr
ap max.
9   mm
Maschinenschnittstelle
Zylinderschaft
Materialgruppe
90
Spezifikation
IMH901-025-106-HB25-Z3R-SD__10
