OptiMill®-3D-CR-Hardened

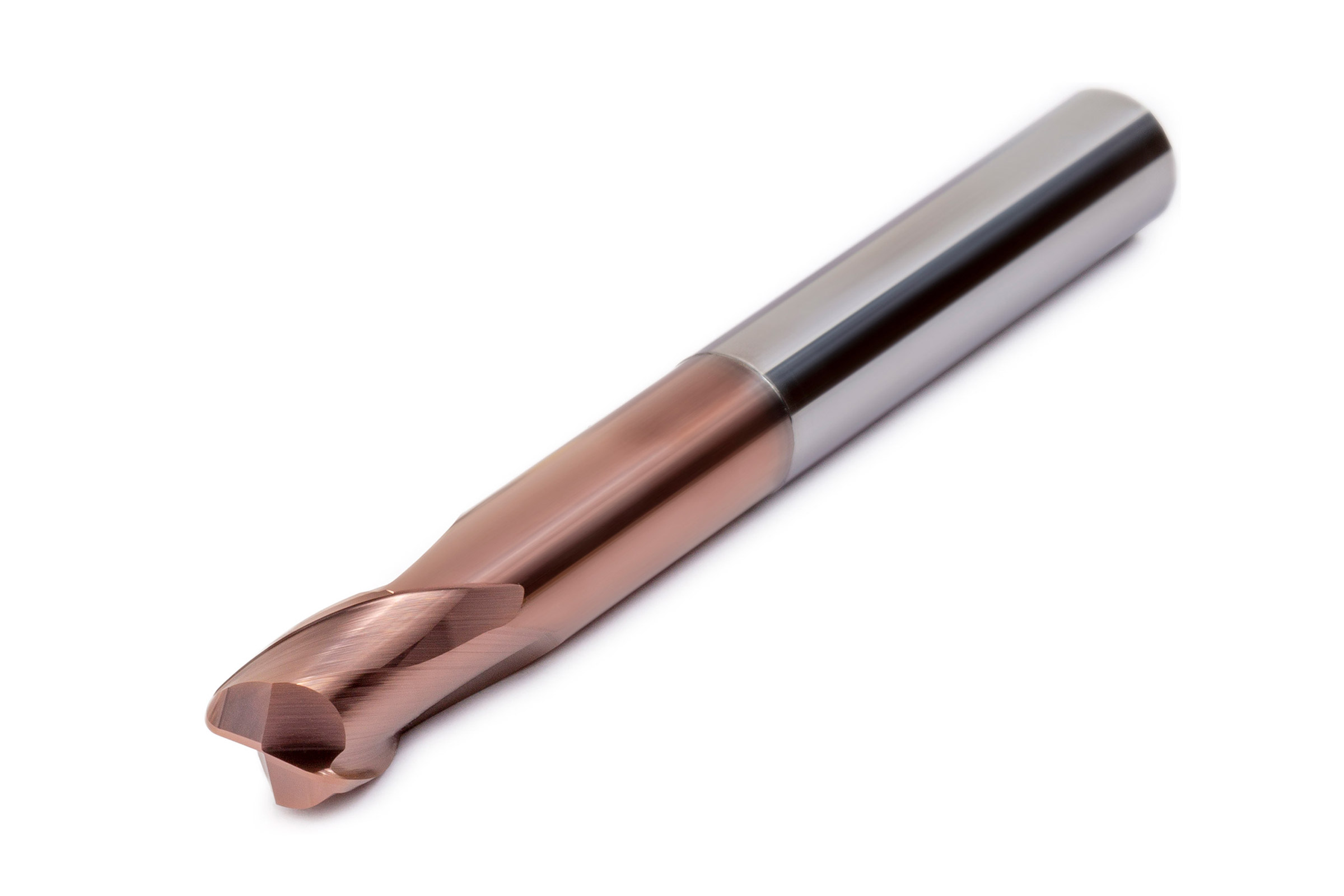

  • Produktbild OptiMill®-3D-CR-Hardened

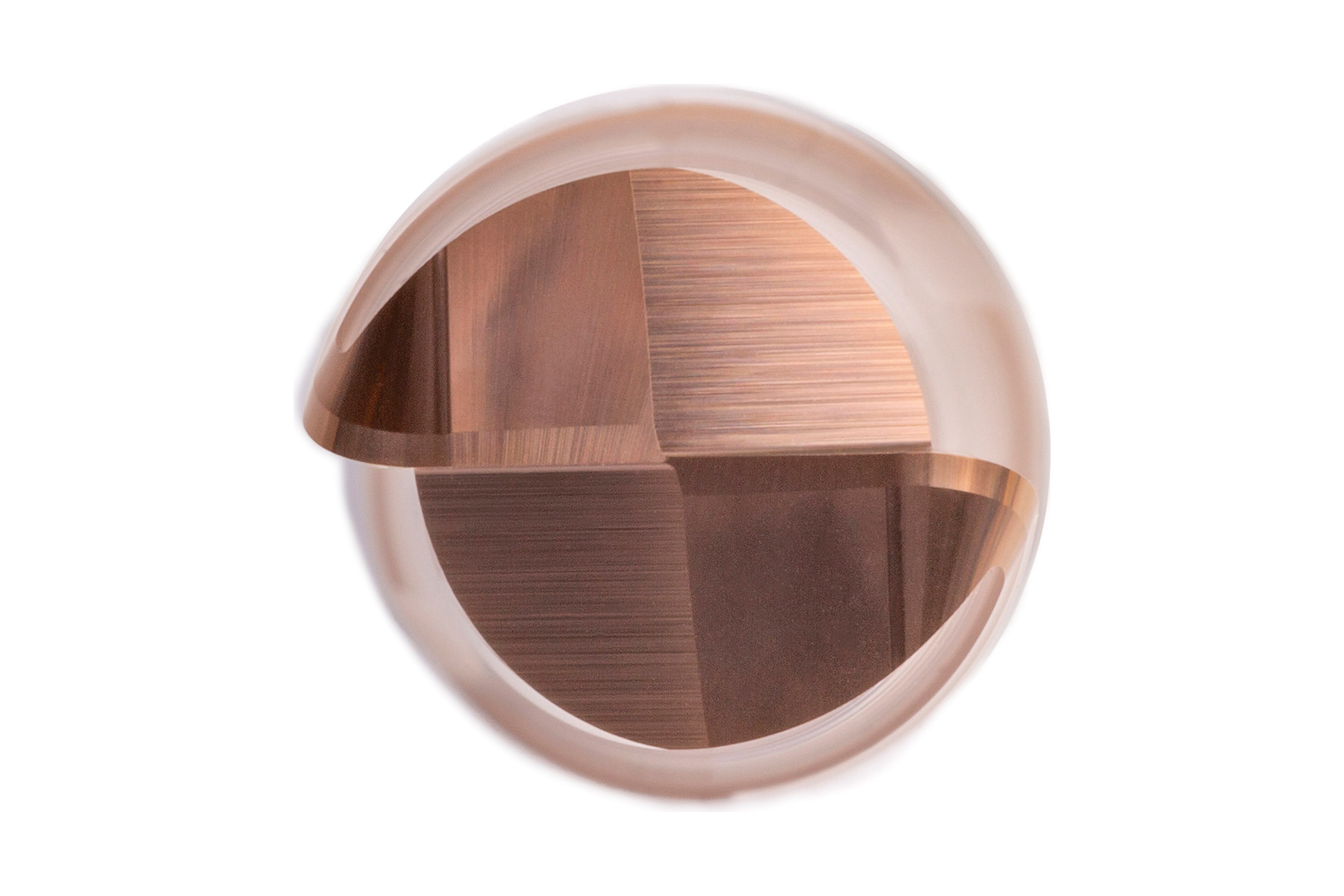

  • Produktbild OptiMill®-3D-CR-Hardened

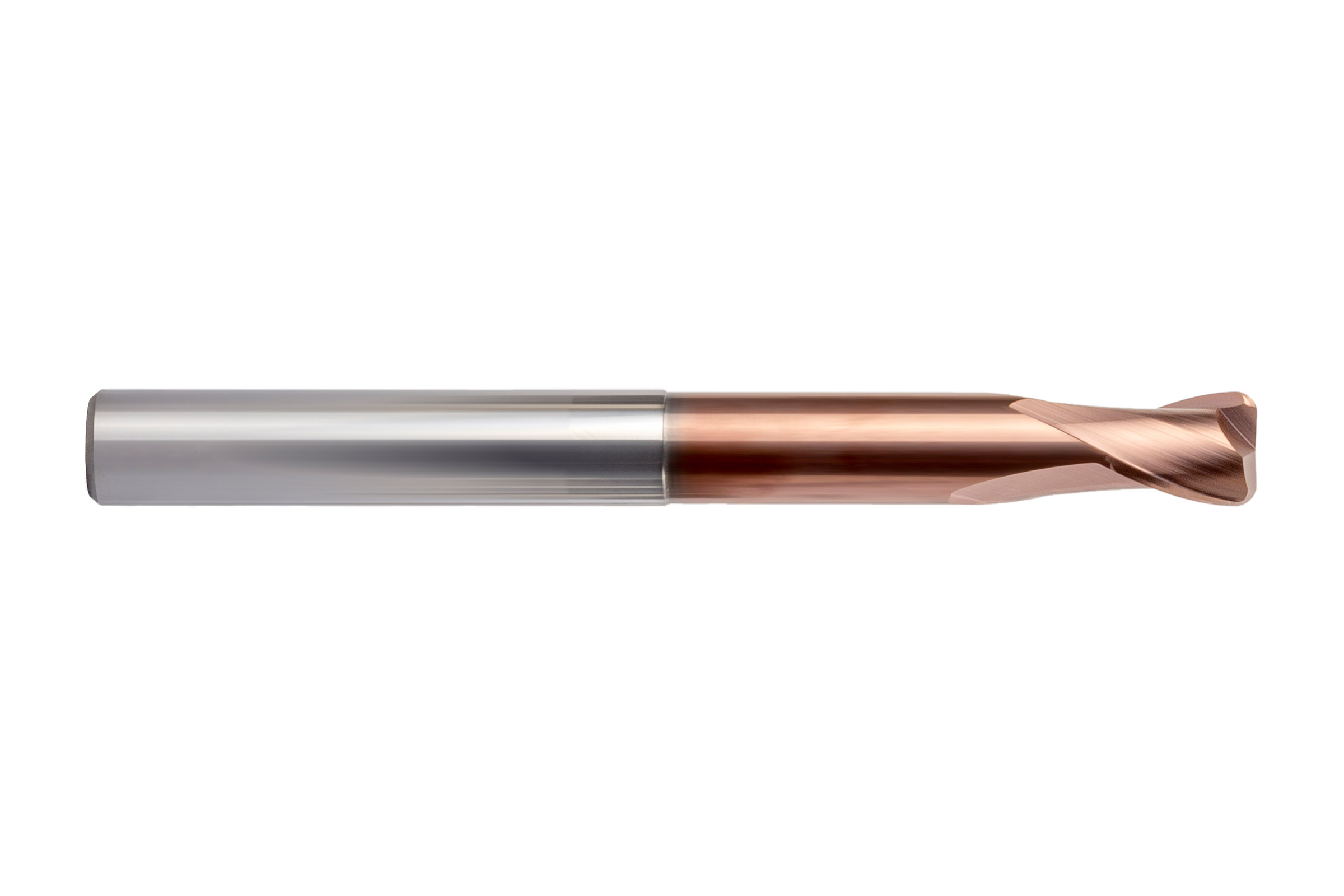

  • Produktbild OptiMill®-3D-CR-Hardened

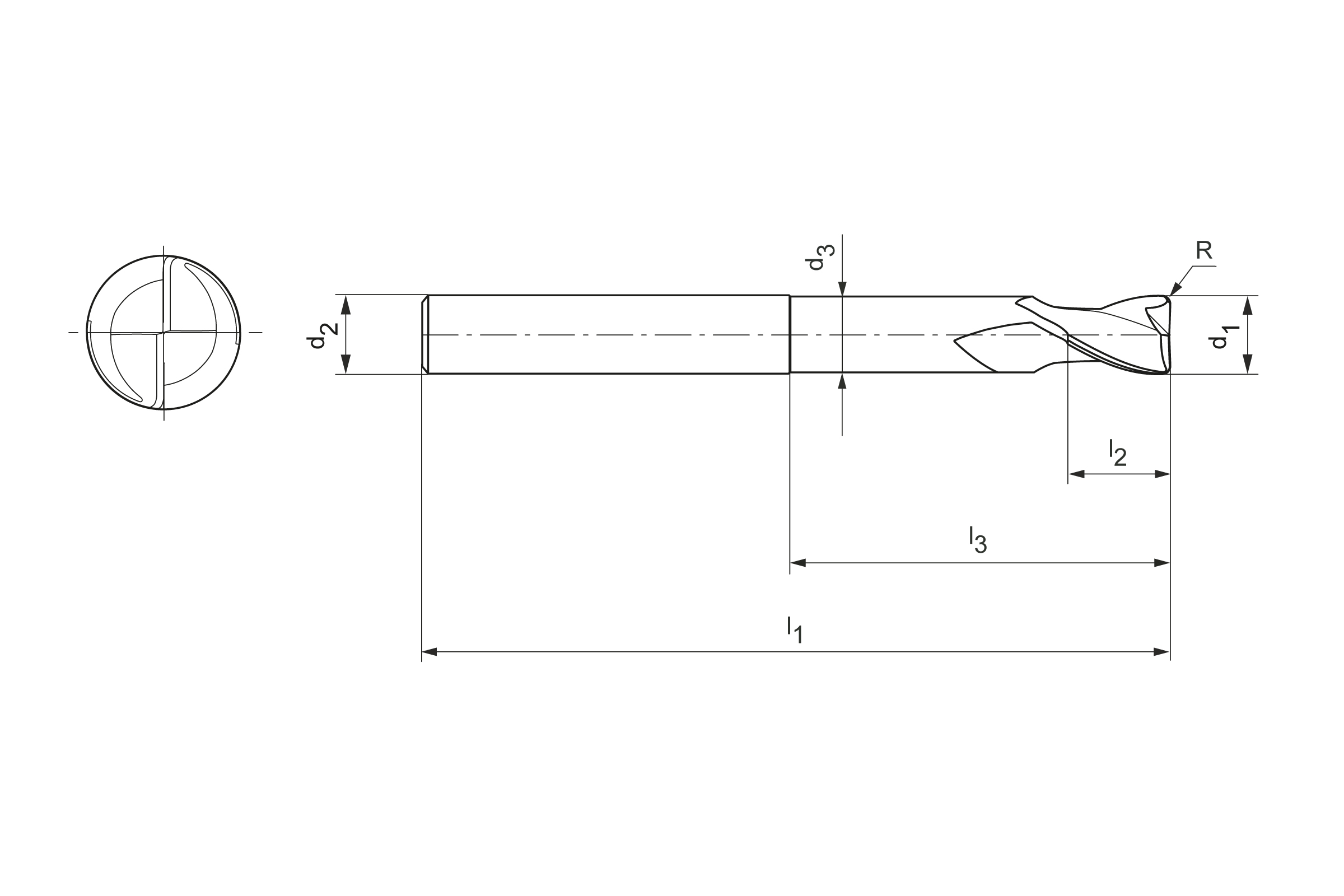

  • Produktzeichnung OptiMill®-3D-CR-Hardened

Diameter d1 (mm)

6.0

Your unit price

*Login required

Article

31154653

Quantity

Added to Your Shopping Cart

Product description

Der Eckradiusfräser OptiMill-3D-CR-Hardened wurde speziell für die Bearbeitung von Werkstoffen bis 68 HRC entwickelt. Er zeichnet sich durch einen hochgenauen Eckradius mit hoher Radiusgenauigkeit aus und ist dadurch ideal zum Schlichten von 3D-Formen geeignet. Neben einer extrem hitzebeständigen Beschichtung und einem speziellen Hartmetallsubstrat zeichnen sich diese Werkzeuge durch die speziell an den Formenbau angepassten Abmessungen und Geometrien aus.

Material suitability

P
P1
suitable in some situations
P2
suitable in some situations
P3
suitable in some situations
P4
suitable in some situations
P5
suitable in some situations
P6
suitable in some situations
M
M1
M2
M3
K
K1
suitable in some situations
K2
suitable in some situations
K3
suitable in some situations
N
N1
N2
N3
N4
S
S1
S2
S3
S4
S5
H
H1
highly suitable
H2
highly suitable
H3
highly suitable

Technical specifications

Product class
Performance-Line
Diameter (d1)
6   mm
Shaft diameter (d2)
6   mm
Total length (l1)
75   mm
Length of cutting edge (l2)
6.9   mm
Neck length (l3)
30   mm
Corner radius (R)
0.2   mm
Number of cutting edges (z)
2
Cooling
external cooling
Shank type
HA
Cutting material
HP808
Material group
RC
Specification
MCR107-060-0020-3000X075-HP808
