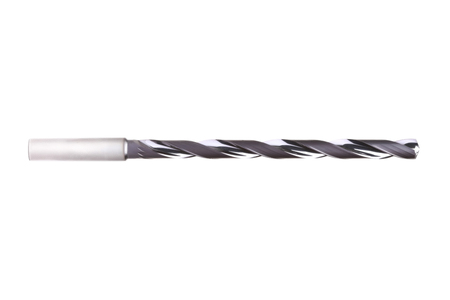

MEGA-Speed-Drill-Inox
The cutting edges of the MEGA-Speed-Drill-Inox are unequally split. In addition, the drill has three guide chamfers. This prevents vibrations and reduces friction. The highly polished flutes guarantee optimum chip flow. The cutting geometry, which is specially adapted to stainless steel, makes it possible to drill holes with up to 30 % higher feed rates compared to conventional drills.
Selected facets:
- 8.0 Shank diameter (d2)
- 12.0 Shank diameter (d2)
- 20.0 Shank diameter (d2)
- 12xD Drilling depth xD
- MEGA-Speed-Drill-Inox family
-
Product Family
-
Diameter (d1)
-
-
Number of cutting edges (z)
-
Cooling
-
Tip angle
-
Product category
-
Bore tolerance
(14)
(14)
(14)-
MEGA-Speed-Drill-Inox
d1: 6,1 mm; d2: 8 mm; l1: 146 mm; l2: 108 mm; l3: 94 mm; z: 2 ; internal cooling; SCD411-0610-2-3-135HA12-HP374
Order number: 31132719
In Stock -
MEGA-Speed-Drill-Inox
d1: 6,2 mm; d2: 8 mm; l1: 146 mm; l2: 108 mm; l3: 94 mm; z: 2 ; internal cooling; SCD411-0620-2-3-135HA12-HP374
Order number: 31132720
In Stock -
MEGA-Speed-Drill-Inox
d1: 6,5 mm; d2: 8 mm; l1: 146 mm; l2: 108 mm; l3: 94 mm; z: 2 ; internal cooling; SCD411-0650-2-3-135HA12-HP374
Order number: 31132723
In Stock -
MEGA-Speed-Drill-Inox
d1: 6,8 mm; d2: 8 mm; l1: 146 mm; l2: 108 mm; l3: 94 mm; z: 2 ; internal cooling; SCD411-0680-2-3-135HA12-HP374
Order number: 31132726
In Stock -
MEGA-Speed-Drill-Inox
d1: 7 mm; d2: 8 mm; l1: 146 mm; l2: 108 mm; l3: 94 mm; z: 2 ; internal cooling; SCD411-0700-2-3-135HA12-HP374
Order number: 31132728
In Stock -
MEGA-Speed-Drill-Inox
d1: 7,5 mm; d2: 8 mm; l1: 146 mm; l2: 108 mm; l3: 94 mm; z: 2 ; internal cooling; SCD411-0750-2-3-135HA12-HP374
Order number: 31132733
In Stock -
MEGA-Speed-Drill-Inox
d1: 7,8 mm; d2: 8 mm; l1: 146 mm; l2: 108 mm; l3: 94 mm; z: 2 ; internal cooling; SCD411-0780-2-3-135HA12-HP374
Order number: 31132736
In Stock -
MEGA-Speed-Drill-Inox
d1: 8 mm; d2: 8 mm; l1: 146 mm; l2: 108 mm; l3: 94 mm; z: 2 ; internal cooling; SCD411-0800-2-3-135HA12-HP374
Order number: 31132738
In Stock -
MEGA-Speed-Drill-Inox
d1: 10,1 mm; d2: 12 mm; l1: 204 mm; l2: 156 mm; l3: 142 mm; z: 2 ; internal cooling; SCD411-1010-2-3-135HA12-HP374
Order number: 31132759
In Stock -
MEGA-Speed-Drill-Inox
d1: 10,2 mm; d2: 12 mm; l1: 204 mm; l2: 156 mm; l3: 142 mm; z: 2 ; internal cooling; SCD411-1020-2-3-135HA12-HP374
Order number: 31132760
In Stock -
MEGA-Speed-Drill-Inox
d1: 10,5 mm; d2: 12 mm; l1: 204 mm; l2: 156 mm; l3: 142 mm; z: 2 ; internal cooling; SCD411-1050-2-3-135HA12-HP374
Order number: 31132763
In Stock -
MEGA-Speed-Drill-Inox
d1: 11 mm; d2: 12 mm; l1: 204 mm; l2: 156 mm; l3: 142 mm; z: 2 ; internal cooling; SCD411-1100-2-3-135HA12-HP374
Order number: 31132768
In Stock -
MEGA-Speed-Drill-Inox
d1: 11,8 mm; d2: 12 mm; l1: 204 mm; l2: 156 mm; l3: 142 mm; z: 2 ; internal cooling; SCD411-1180-2-3-135HA12-HP374
Order number: 31132776
In Stock -
MEGA-Speed-Drill-Inox
d1: 12 mm; d2: 12 mm; l1: 204 mm; l2: 156 mm; l3: 142 mm; z: 2 ; internal cooling; SCD411-1200-2-3-135HA12-HP374
Order number: 31132778
In Stock
