MEGA-Quadro-Drill-Plus
The double-edged solid carbide drill MEGA-Quadro-Drill-Plus has been specifically developed for precise drilling. The total of four guiding phases enables maximum drilling quality in terms of alignment accuracy, coaxiality, and positional accuracy. Through a novel coating and improved sharpening, the MEGA-Quadro-Drill-Plus guarantees consistently reliable drilling results. An optimized edge rounding leads to a significant improvement in service life.
Selected facets:
- 8.0 Shank diameter (d2)
- 20xD Drilling depth xD
- 4.0 Shank diameter (d2)
- 10.0 Shank diameter (d2)
- 12xD Drilling depth xD
- MEGA-Quadro-Drill-Plus family
-
Product Family
-
Diameter (d1)
-
-
Drilling depth (l3)
-
Total length (l1)
-
Number of cutting edges (z)
-
Cooling
-
Tip angle
-
Bore tolerance
(25)
(25)-
MEGA-Quadro-Drill-Plus
d1: 6,1 mm; d2: 8 mm, l1: 146 mm; l2: 108 mm; l3: 94 mm; z: 2; internal cooling; SCD611-0610-2-4-140HA12-HP358
Order number: 31053056
In Stock -
MEGA-Quadro-Drill-Plus
d1: 6,4 mm; d2: 8 mm, l1: 146 mm; l2: 108 mm; l3: 94 mm; z: 2; internal cooling; SCD611-0640-2-4-140HA12-HP358
Order number: 31053059
In Stock -
MEGA-Quadro-Drill-Plus
d1: 6,5 mm; d2: 8 mm, l1: 146 mm; l2: 108 mm; l3: 94 mm; z: 2; internal cooling; SCD611-0650-2-4-140HA12-HP358
Order number: 31053060
In Stock -
MEGA-Quadro-Drill-Plus
d1: 6,8 mm; d2: 8 mm, l1: 146 mm; l2: 108 mm; l3: 94 mm; z: 2; internal cooling; SCD611-0680-2-4-140HA12-HP358
Order number: 31053063
In Stock -
MEGA-Quadro-Drill-Plus
d1: 6,9 mm; d2: 8 mm, l1: 146 mm; l2: 108 mm; l3: 94 mm; z: 2; internal cooling; SCD611-0690-2-4-140HA12-HP358
Order number: 31053064
In Stock -
MEGA-Quadro-Drill-Plus
d1: 7 mm; d2: 8 mm, l1: 146 mm; l2: 108 mm; l3: 94 mm; z: 2; internal cooling; SCD611-0700-2-4-140HA12-HP358
Order number: 31053065
In Stock -
MEGA-Quadro-Drill-Plus
d1: 7,1 mm; d2: 8 mm, l1: 146 mm; l2: 108 mm; l3: 94 mm; z: 2; internal cooling; SCD611-0710-2-4-140HA12-HP358
Order number: 31053066
In Stock -
MEGA-Quadro-Drill-Plus
d1: 7,5 mm; d2: 8 mm, l1: 146 mm; l2: 108 mm; l3: 94 mm; z: 2; internal cooling; SCD611-0750-2-4-140HA12-HP358
Order number: 31053070
In Stock -
MEGA-Quadro-Drill-Plus
d1: 7,6 mm; d2: 8 mm, l1: 146 mm; l2: 108 mm; l3: 94 mm; z: 2; internal cooling; SCD611-0760-2-4-140HA12-HP358
Order number: 31053071
In Stock -
MEGA-Quadro-Drill-Plus
d1: 7,7 mm; d2: 8 mm, l1: 146 mm; l2: 108 mm; l3: 94 mm; z: 2; internal cooling; SCD611-0770-2-4-140HA12-HP358
Order number: 31053072
In Stock -
MEGA-Quadro-Drill-Plus
d1: 7,8 mm; d2: 8 mm, l1: 146 mm; l2: 108 mm; l3: 94 mm; z: 2; internal cooling; SCD611-0780-2-4-140HA12-HP358
Order number: 31053073
In Stock -
MEGA-Quadro-Drill-Plus
d1: 8 mm; d2: 8 mm, l1: 146 mm; l2: 108 mm; l3: 94 mm; z: 2; internal cooling; SCD611-0800-2-4-140HA12-HP358
Order number: 31053075
In Stock -
MEGA-Quadro-Drill-Plus
d1: 8,2 mm; d2: 10 mm, l1: 162 mm; l2: 120 mm; l3: 110 mm; z: 2; internal cooling; SCD611-0820-2-4-140HA12-HP358
Order number: 31053077
In Stock -

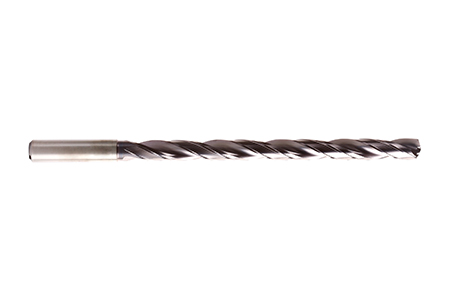

MEGA-Quadro-Drill-Plus
d1: 8,3 mm; d2: 10 mm, l1: 162 mm; l2: 120 mm; l3: 110 mm; z: 2; internal cooling; SCD611-0830-2-4-140HA12-HP358
Order number: 31053078
In Stock -
MEGA-Quadro-Drill-Plus
d1: 8,4 mm; d2: 10 mm, l1: 162 mm; l2: 120 mm; l3: 110 mm; z: 2; internal cooling; SCD611-0840-2-4-140HA12-HP358
Order number: 31053079
In Stock
